This Technical Specification defines a set of interoperable application profiles suitable to be used defining the overall functionality of an interoperable EFC cluster using autonomous vehicle equipment. Doing so, it also defines a way of defining further profiles for future use.
The profiles cover a wide range from simple toll road systems up to very complex tolling principles and tariff rules. An EFC cluster shall select and use one of these profiles covering the needs of all participating Toll Chargers.
The scope is limited to those base standards providing data elements or messages to be used specifically when defining the data exchange for autonomous tolling principles. This covers ISO 17573 and the base standards CEN ISO/TS 17575 parts 1 to 4, CEN ISO/TS 12813, CEN ISO/TS 13141 and those parts of
EN ISO 12855 specifying messages which are only relevant for autonomous systems.
Figure 3 provides a graphical illustration of the scope of this Interoperable Application Profile which is based on the ISP concept according to ISO IEC/TR 10000-1.
For each specified profile, the conditional requirements resulting from the actual use of data elements being still optional according to this profile are specified in Annex A. A set of rules on how to re-use identifiers of a specific entity within the full chain of transactions is specified in Annex B and a protocol implementation conformance statement (PICS) proforma in Annex C.
Outside of the scope are:
- details on how to achieve security using the authenticator data elements of the base standards;
- how to operate the enforcement process;
- commercial aspects and the billing process;
- the handling of DSRC charging transactions;
- system monitoring and performance indicators;
- test standards;
- the initial configuration of the OBE.
Elektronische Gebührenerhebung - Interoperable Anwendungsprofile für unabhängige Systeme
Perception du télépéage - Profils d'application interopérables pour systèmes autonomes
Elektronsko pobiranje pristojbin - Interoperabilni profili aplikacije za avtonomne sisteme
Te tehnične specifikacije opredeljujejo določeno uporabo niza osnovnih standardov za interoperabilne profile aplikacije za avtonomne sisteme za elektronsko pobiranje pristojbin.
Niz osnovnih standardov zajema niz CEN ISO/TS 17575, EN ISO 17573, EN ISO 12855, CEN ISO/TS 13141 in CEN ISO/TS 12813. Standard bo določal podrobnosti o uporabi zgoraj navedenih osnovnih standardov za doseganje interoperabilnosti sistemov za elektronsko pobiranje pristojbin, pri čemer bodo izvajalci storitev uporabljali čelne sisteme, ki so skladni s CEN ISO/TS 17575.
Standard bo določal tudi pravila glede uporabe neobveznih elementov, da se zagotovi dosledna opredelitev lastnosti posameznih domen elektronskega pobiranja pristojbin. Vseboval bo tudi definicijo dosledne uporabe identifikatorjev in drugih podatkovnih elementov v vseh uporabljenih osnovnih standardih, vključno s sklicevanji na druge standarde, ki omogočajo varnost in zasebnost.
Ta standard bo skladen s tehnično specifikacijo za interoperabilnost elektronskih cestninskih sistemov iz evropske Direktive 2004/52/ES in poznejše Odločbe 2009/750/ES.
To vključuje upoštevanje ugotovitev v okviru evropskih projektov, ki določajo komercialno ustanovitev organizacij, njihove pristojnosti in interakcije med njimi.
Na področje uporabe ne spadajo:
– podrobnosti o tem, kako zagotoviti varnost z uporabo podatkovnih elementov overovitelja iz osnovnih standardov;
– kako izvajati postopek uveljavljanja;
– komercialni vidiki;
– upravljanje domen cestninjenja s tehnologijo DSRC;
– definicija nefunkcijskih elementov, kot so indikatorji uspešnosti, npr. zahteve glede natančnosti, razpoložljivosti in poročanja. Te definicije se obravnavajo kot del dvostranskih sporazumov med udeleženimi stranmi ali drugimi profilnimi standardi.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2012
Elektronsko pobiranje pristojbin - Interoperabilni profili aplikacije za avtonomne
sisteme
Electronic fee collection - Interoperable application profiles for autonomous systems
Elektronische Gebührenerhebung - Interoperable Anwendungsprofile für unabhängige
Systeme
Perception du télépéage - Profil d'application d'interopérabilité pour les systèmes
autonomes
Ta slovenski standard je istoveten z: CEN/TS 16331:2012
ICS:
03.220.20 Cestni transport Road transport
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
TECHNICAL SPECIFICATION
CEN/TS 16331
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
March 2012
ICS 03.220.20; 35.240.60
English Version
Electronic fee collection - Interoperable application profiles for
autonomous systems
Perception du télépéage - Profil d'application Elektronische Gebührenerhebung - Interoperable
d'interopérabilité pour les systèmes autonomes Anwendungsprofile für unabhängige Systeme
This Technical Specification (CEN/TS) was approved by CEN on 8 January 2012 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 16331:2012: E
worldwide for CEN national Members.

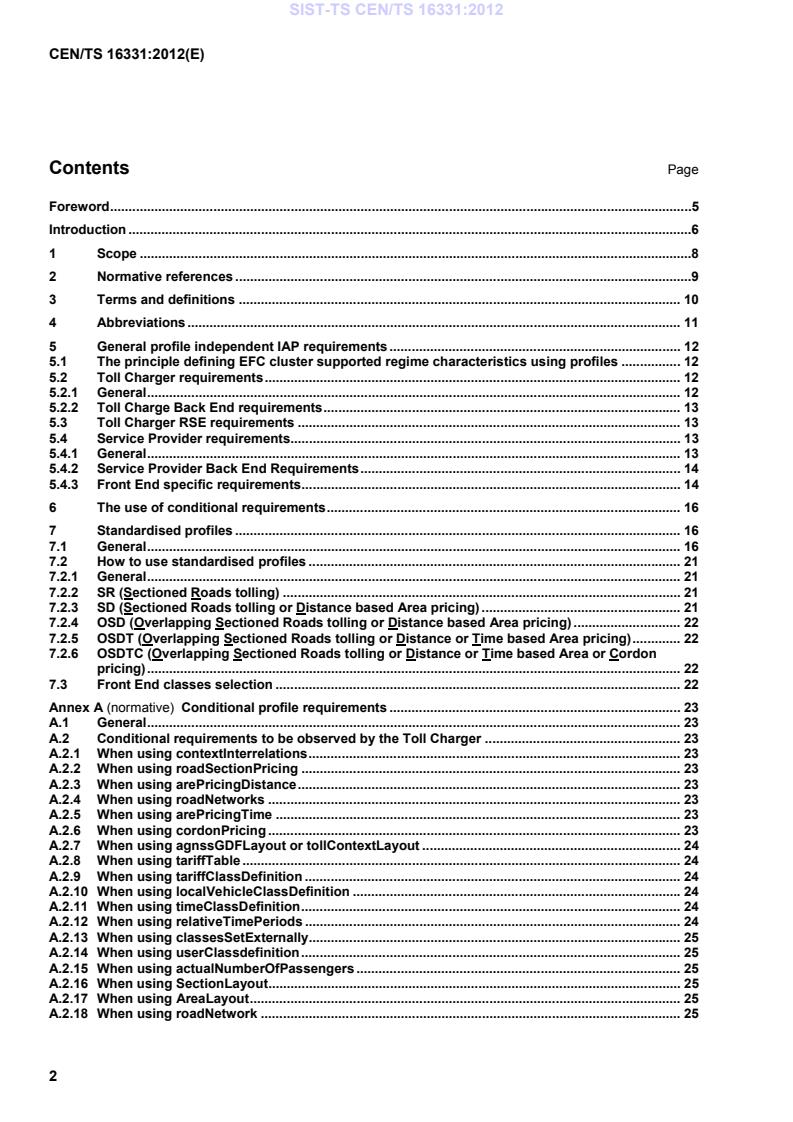

Contents Page
