Overview
EN 13048:2022 - Packaging - Flexible aluminium tubes - Internal lacquer film thickness measurement method - defines reference methods for measuring the thickness of the internal lacquer (inner coating) applied to cylindrical and conical aluminium tubes. It applies to tubes used for pharmaceutical, cosmetic, hygiene, food and other domestic products and can serve as a reference for calibrating electronic coating-thickness instruments.
Key topics and technical requirements
- Two permitted measurement approaches
- Eddy-current test: referenced to EN ISO 2360:2017 (amplitude-sensitive eddy-current method) for non-destructive electronic measurement.
- Chemical test: a destructive reference method that separates the internal lacquer by dissolving the aluminium substrate chemically and measuring the free film.
- Chemical test essentials
- Apparatus: micrometer or dial indicator with 0.001 mm (1 µm) precision; oven; extractor fan; glass container; cutting tools; tweezers; filter paper; personal protective equipment.
- Chemicals: solvent to remove external enamel; sodium hydroxide (NaOH) 20 g/100 ml (or hydrochloric acid 10 g/100 ml as an alternative).
- Procedure highlights: cut sample, remove external enamel, immerse in NaOH (under extraction), recover and rinse film, dry between filter paper, oven-dry 1 hour at 80 °C, cool and measure at 10–25 °C.
- Measurement locations: thickness readings are taken at predefined points along the tube (including near the head and at positions 5–10 mm and 10–20 mm from the head as illustrated in the standard).
- Reporting requirements (minimum): reference to EN 13048, batch identification, sample description and dimensions, instrument ID, lacquer type, measured film thickness at specified points, number of samples, number of defects (out-of-spec tubes), acceptance decision, influencing factors, date/place/tester.
- Safety note: handling of hazardous chemicals and ventilation (extractor fan) are required; users must follow applicable safety regulations.
Applications and users
- Who uses it: packaging manufacturers, tube converters, quality control and testing laboratories, brand owners in pharma/cosmetics/food, regulatory bodies, and instrument manufacturers.
- Practical uses
- Acceptance testing of aluminium tubes and internal coatings.
- Calibration and validation of electronic and automatic film-thickness instruments (including systems that give instantaneous results with accuracy <1 µm).
- Quality assurance to ensure compatibility of internal lacquer with product safety and shelf-life requirements.
Related standards
- EN ISO 2360:2017 - Non-conductive coatings on non-magnetic electrically conductive base metals - amplitude-sensitive eddy-current method.
- EN 12374:2022 - Packaging - Flexible tubes - Terminology.
Keywords: EN 13048:2022, internal lacquer film thickness, flexible aluminium tubes, measurement method, eddy current test, chemical test, coating thickness measurement, micrometer, packaging quality control.
Frequently Asked Questions
EN 13048:2022 is a standard published by the European Committee for Standardization (CEN). Its full title is "Packaging - Flexible aluminium tubes - Internal lacquer film thickness measurement method". This standard covers: This document specifies methods for the determination of the thickness of the lacquer film applied inside cylindrical and conical aluminium tubes. The methods are a reference. They can also be used as a reference when calibrating other electronic instruments suitable for determining coating weight thickness. It is applicable to aluminium tubes used for packing pharmaceutical, cosmetic, hygiene, food and other domestic products. NOTE Although not specified in this document there are available suitable automatic film thickness measurement instruments that provide instantaneous results with good accuracy (<1μm).
This document specifies methods for the determination of the thickness of the lacquer film applied inside cylindrical and conical aluminium tubes. The methods are a reference. They can also be used as a reference when calibrating other electronic instruments suitable for determining coating weight thickness. It is applicable to aluminium tubes used for packing pharmaceutical, cosmetic, hygiene, food and other domestic products. NOTE Although not specified in this document there are available suitable automatic film thickness measurement instruments that provide instantaneous results with good accuracy (<1μm).
EN 13048:2022 is classified under the following ICS (International Classification for Standards) categories: 55.120 - Cans. Tins. Tubes. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13048:2022 has the following relationships with other standards: It is inter standard links to EN 13048:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 13048:2022 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2023
Nadomešča:
SIST EN 13048:2009
Embalaža - Prožne aluminijaste tube - Metoda za merjenje debeline notranje plasti
laka
Packaging - Flexible aluminium tubes - Internal lacquer film thickness measurement
method
Packmittel - Aluminiumtuben - Verfahren zur Bestimmung der Dicke des
Innenschutzlackes
Emballage - Tubes souples en aluminium - Méthode de détermination de l'épaisseur de
vernis intérieur
Ta slovenski standard je istoveten z: EN 13048:2022
ICS:
55.120 Pločevinke. Tube Cans. Tins. Tubes
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 13048
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 55.120 Supersedes EN 13048:2009
English Version
Packaging - Flexible aluminium tubes - Internal lacquer
film thickness measurement method
Emballage - Tubes souples en aluminium - Méthode de Packmittel - Aluminiumtuben - Verfahren zur
détermination de l'épaisseur de vernis intérieur Bestimmung der Dicke des Innenschutzlackes
This European Standard was approved by CEN on 22 August 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13048:2022 E
worldwide for CEN national Members.

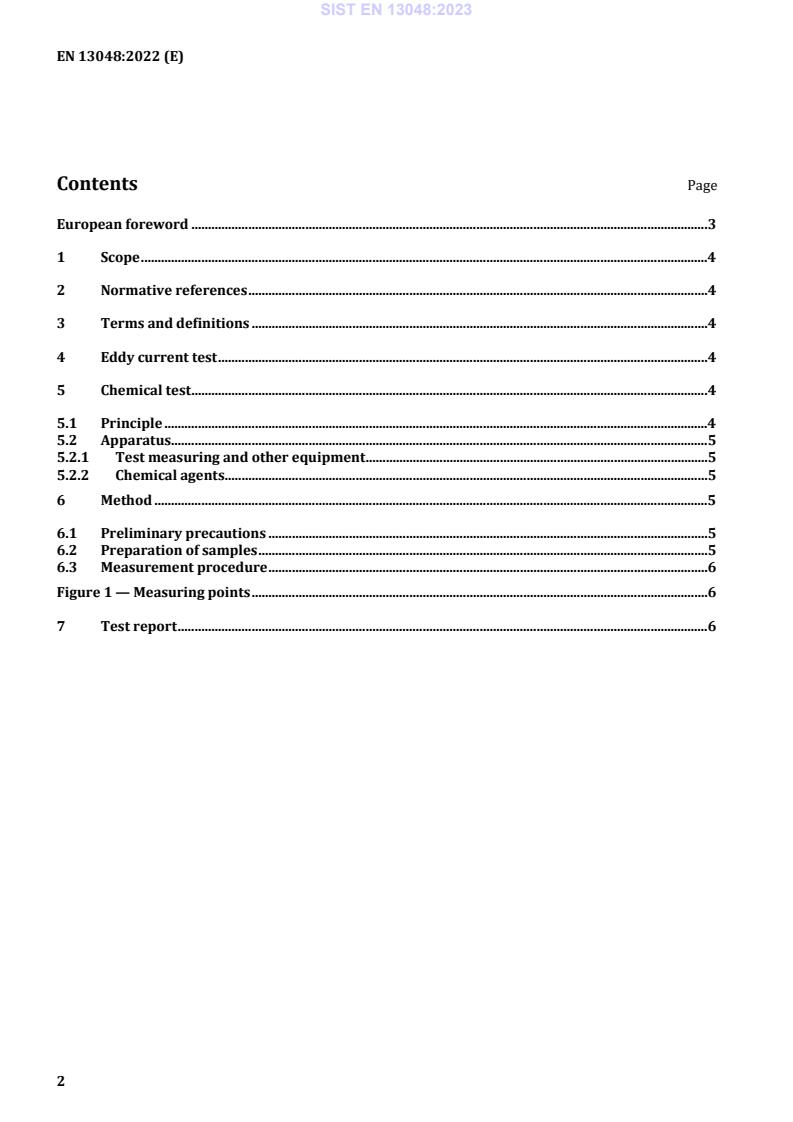

Contents Page
