EN 474-11:2022

SLOVENSKI STANDARD
01-maj-2022
Nadomešča:
SIST EN 474-11:2007+A1:2008
Stroji za zemeljska dela - Varnost - 11. del: Zahteve za kompaktorje zemlje in
odpadkov
Earth-moving machinery - Safety - Part 11: Requirements for earth- and landfill
compactors
Erdbaumaschinen - Sicherheit - Teil 11: Anforderungen für Erd- und Müllverdichter
Engins de terrassement - Sécurité - Partie 11 : Prescriptions applicables aux
compacteurs de remblais et de déchets
Ta slovenski standard je istoveten z: EN 474-11:2022
ICS:
53.100 Stroji za zemeljska dela Earth-moving machinery
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 474-11
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2022
EUROPÄISCHE NORM
ICS 53.100 Supersedes EN 474-11:2006+A1:2008
English Version
Earth-moving machinery - Safety - Part 11: Requirements
for earth- and landfill compactors
Engins de terrassement - Sécurité - Partie 11 : Erdbaumaschinen - Sicherheit - Teil 11: Anforderungen
Prescriptions applicables aux compacteurs de remblais für Erd- und Müllverdichter
et de déchets
This European Standard was approved by CEN on 14 February 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 474-11:2022 E
worldwide for CEN national Members.

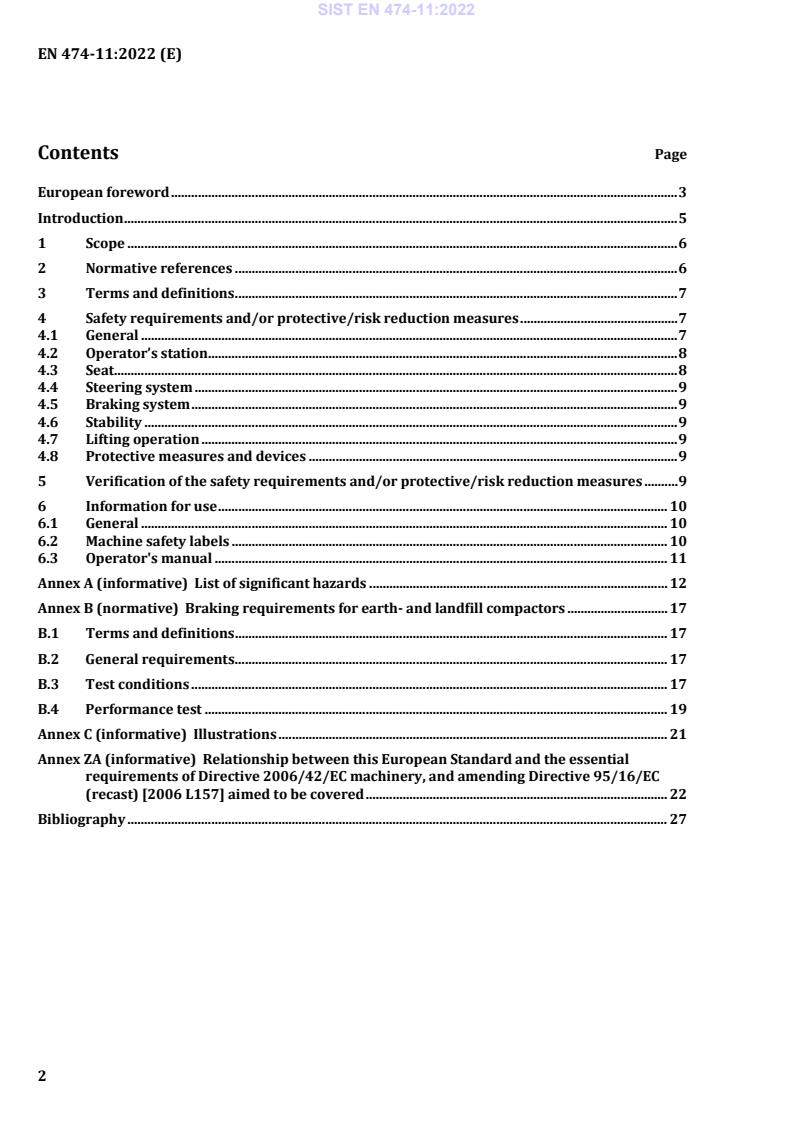

Contents Page
European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Safety requirements and/or protective/risk reduction measures . 7
4.1 General . 7
4.2 Operator’s station . 8
4.3 Seat. 8
4.4 Steering system . 9
4.5 Braking system . 9
4.6 Stability . 9
4.7 Lifting operation . 9
4.8 Protective measures and devices . 9
5 Verification of the safety requirements and/or protective/risk reduction measures . 9
6 Information for use . 10
6.1 General . 10
6.2 Machine safety labels . 10
6.3 Operator's manual . 11
Annex A (informative) List of significant hazards . 12
Annex B (normative) Braking requirements for earth- and landfill compactors . 17

B.1 Terms and definitions . 17
B.2 General requirements . 17
B.3 Test conditions . 17
B.4 Performance test . 19
Annex C (informative) Illustrations . 21
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC machinery, and amending Directive 95/16/EC
(recast) [2006 L157] aimed to be covered . 22
Bibliography . 27

European foreword
This document (EN 474-11:2022) has been prepared by Technical Committee CEN/TC 151 “Construction
equipment and building material machines - Safety”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2022, and conflicting national standards shall be
withdrawn at the latest by March 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 474-11:2006+A1:2008.
This document has been prepared under a standardization request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of
EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
For bibliographic references, see EN 474-1:2022.
EN 474 “Earth-moving machinery — Safety” comprises the following parts:
— Part 1: General requirements
— Part 2: Requirements for tractor-dozers
— Part 3: Requirements for loaders
— Part 4: Requirements for backhoe-loaders
— Part 5: Requirements for hydraulic excavators
— Part 6: Requirements for dumpers
— Part 7: Requirements for scrapers
— Part 8: Requirements for graders
— Part 9: Requirements for pipelayers
— Part 10: Requirements for trenchers
— Part 11: Requirements for earth and landfill compactors
— Part 12: Requirements for cable excavators
— Part 13: Requirements for rollers
This document is intended for use in combination with part 1 of the series.
The main differences between this document and EN 474-11:2006+A1:2008 are as follows:
a) scope has been aligned to distinct rammer compactor dealt with by ISO/TC 195 from machinery dealt
with by this document (modified);
b) safety-related functions of control systems (excluded);
c) normative references (Clause 2) (updated);
d) terms and definitions (Clause 3) (updated);
e) all earth- and landfill-compactors shall be fitted with a cab (added);
f) requirement for cab-protection (4.2.2.2) (modified);
g) requirement for Deodorising filter (4.2.2.3) (modified);
h) requirement for the Primary Access Opening (Cab Door protection) (modified);
i) operator’s seat input spectral class shall be EM3 for earth- and landfill compactors (4.3) (added);
j) requirements for braking systems (4.5 and Annex B) (modified);
k) lifting operations requirements for earth- and landfill compactors (4.7) (excluded);
l) Fenders requirement for earth- and landfill compactors (4.8) (excluded);
m) verification methods table (Clause 5) (added);
n) requirement for Information for use (Clause 6) (modified);
o) list of significant hazards (Annex A) (updated);
p) Annex ZA (updated).
Any feedback and questions on this document should be directed to the users’ national standards body. A
complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
This document is a type-C standard as stated in EN ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the market
players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance, etc.).
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events are
covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or type-B
standards, the requirements of this type-C standard take precedence over the requirements of the other
standards for machines that have been designed and built according to the requirements of this type-C
standard.
1 Scope
This document, together with EN 474-1:2022, deals with all significant hazards for earth-moving
machinery, earth- and landfill compactors when they are used as intended and under the conditions of
misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the
machine (see Annex A).
The requirements of this part are complementary to the common requirements formulated in
EN 474-1:2022. This document does not repeat the requirements of EN 474-1:2022, but supplements or
modifies the requirements for application for earth moving machinery – earth- and landfill compactors.
Rammer compactors and vibratory plates are excluded from this document.
This document does not provide requirements for main electrical circuits and drives of machinery when
the primary source of energy is an external electrical supply.
The following significant and relevant hazards are not covered in this document:
— Laser;
— Lightning.
This document does not provide performance requirements for safety related functions of control
system(s). This document is not applicable to earth- and landfill compactors manufactured before the date
of publication of this document by CEN.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 474-1:2022, Earth-moving machinery — Safety — Part 1: General requirements
EN ISO 3450:2011, Earth-moving machinery — Wheeled or high-speed rubber-tracked machines —
Performance requirements and test procedures for brake systems (ISO 3450:2011)
EN ISO 5010:2019, Earth-moving machinery — Wheeled machines — Steering requirements (ISO
5010:2019)
EN ISO 7096:2020, Earth-moving machinery — Laboratory evaluat
...
