EN 14202:2004
(Main)Blinds and shutters - Suitability for use of tubular and square motorizations - Requirements and test methods
Blinds and shutters - Suitability for use of tubular and square motorizations - Requirements and test methods
This European Standard specifies the requirements and tests to be performed for electric tubular or square drives without driven part, to be applied to power operated blinds and shutters, in addition to their conformity to the electrical safety requirements specified in EN 60335-1 and EN 60335-2-97.
It does not apply to drives with driven part.
Abschlüsse - Gebrauchstauglichkeit von Rohr- und Blockmotoren - Anforderungen und Prüfverfahren
Dieses Dokument legt die Anforderungen und durchzuführenden Prüfungen für elektrische Rohr- oder Blockmotoren ohne angetriebenes Teil, die an kraftbetriebene Abschlüsse und Markisen angebracht werden, fest sowie deren Konformität an elektrische Sicherheitsanforderungen, festgelegt in EN 60335-1 und EN 60335-2-97.
Es gilt nicht für Antriebe zusammen mit einem Abschluss.
Stores extérieurs et fermetures pour baies équipées de fenêtres - Aptitude à l'emploi des actionneurs électriques tubulaires ou carrés - Exigences et méthodes d'essais
La présente Norme européenne spécifie les exigences et essais à satisfaire par les motorisations électriques tubulaires ou carrés sans partie entraînée pour pouvoir équiper les stores et les fermetures en complément de leur conformité aux exigences de sécurité électrique spécifiées dans les normes EN 60335-1 et EN 60335 2 97.
Elle ne s'applique pas aux motorisations avec partie entraînée.
Polkna in rolete - Primernost za uporabo motoriziranih pogonov z valjastimi vodili ali z vodili s pravokotnim presekom - Zahteve in preskusne metode
General Information
- Status
- Published
- Publication Date
- 27-Jul-2004
- Withdrawal Date
- 30-Jan-2005
- Technical Committee
- CEN/TC 33 - Doors, windows, shutters and building hardware
- Drafting Committee
- CEN/TC 33/WG 3 - Blinds and shutters
- Current Stage
- 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
- Start Date
- 20-Jul-2023
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
- Directive
- 98/37/EC - Machinery
Overview
EN 14202:2004 (CEN) specifies requirements and test methods for electric tubular and square drives without driven part used in power-operated blinds and shutters. It complements electrical safety standards EN 60335-1 and EN 60335-2-97 and is part of the blinds/shutters standards family referenced by EN 12216, EN 13120, EN 13561 and EN 13659. EN 14202 focuses on mechanical endurance, performance and functionality of the drive unit itself - it does not apply to drives that are supplied only as built‑in units with their driven part.
Key topics and technical requirements
- Scope and definitions: clarifies tubular vs square motorization and what constitutes a drive “without driven part”.
- Endurance test: describes a rigid test rig (roller tube or profile with drums) and a travelling distance of 2 m.
- Test cycles: tubular motorization - 7 000 cycles; square motorization - 10 000 cycles.
- Test load calculation: load P is calculated from the nominal torque M and drum diameters (De and Dc). For tubular drives De = 0.080 m when roller tube diameter Dt ≥ 0.040 m (alternative formula when Dt < 0.040 m); square drives use an inscribed-circle-based De.
- Performance requirements after endurance:
- Speed stability: variation of run time under load must be ≤ 20% (measured T1 vs T2).
- Limit stop accuracy (drift): classes defined for allowable angle drift - tubular (Class 1: +15°; Class 2: +5°), square (Class 1: +10°; Class 2: +3°).
- Brake characteristics:
- Dynamic (tilt function for external venetian blinds): angular displacement on stop shall not exceed 20°.
- Static: with 1.15 × P stopped mid-travel, displacement after 12 h ≤ 5 mm.
- No visible grease or oil leakage.
- Test report: mandatory details (lab, product ID, test conditions, results per clause 5).
Applications and who uses it
- Manufacturers of tubular and square drives - for design validation, type testing and technical documentation.
- Test laboratories - to perform standardized endurance and performance testing and produce compliance reports.
- Product certifiers and conformity assessors - to verify mechanical performance in addition to electrical safety.
- Specifiers, architects and procurement teams - to reference in technical specifications and tender documents for building blinds, shutters and external venetian systems.
- Installers and OEMs integrating drives into blind/shutter systems - to ensure compatibility and declared performance.
Related standards
- EN 60335-1, EN 60335-2-97 (electrical safety for drives)
- EN 12216 (terminology)
- EN 13120, EN 13561, EN 13659 (performance/safety for internal/external blinds and shutters)
Keywords: EN 14202, tubular motorization, square motorization, blinds and shutters, endurance test, limit stops, motor drive testing, CEN standard.
Frequently Asked Questions
EN 14202:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Blinds and shutters - Suitability for use of tubular and square motorizations - Requirements and test methods". This standard covers: This European Standard specifies the requirements and tests to be performed for electric tubular or square drives without driven part, to be applied to power operated blinds and shutters, in addition to their conformity to the electrical safety requirements specified in EN 60335-1 and EN 60335-2-97. It does not apply to drives with driven part.
This European Standard specifies the requirements and tests to be performed for electric tubular or square drives without driven part, to be applied to power operated blinds and shutters, in addition to their conformity to the electrical safety requirements specified in EN 60335-1 and EN 60335-2-97. It does not apply to drives with driven part.
EN 14202:2004 is classified under the following ICS (International Classification for Standards) categories: 91.060.50 - Doors and windows. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14202:2004 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC, 98/37/EC; Standardization Mandates: M/079. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 14202:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

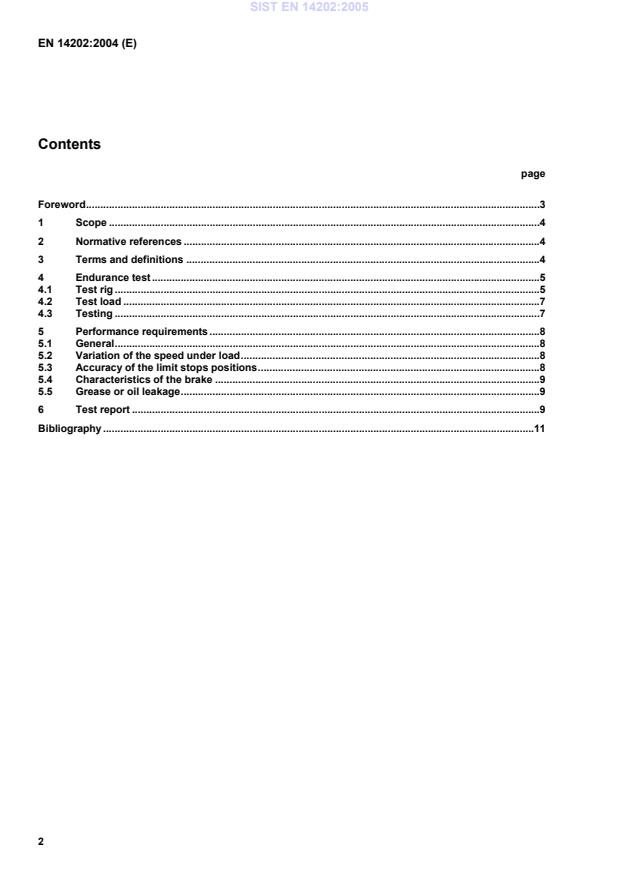

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Polkna in rolete - Primernost za uporabo motoriziranih pogonov z valjastimi vodili ali z vodili s pravokotnim presekom - Zahteve in preskusne metodeAbschlüsse - Gebrauchstauglichkeit von Rohr- und Blockmotoren - Anforderungen und PrüfverfahrenStores extérieurs et fermetures pour baies équipées de fenetres - Aptitude a l'emploi des actionneurs électriques tubulaires ou carrés - Exigences et méthodes d'essaisBlinds and shutters - Suitability for use of tubular and square motorizations - Requirements and test methods91.060.50Vrata in oknaDoors and windowsICS:Ta slovenski standard je istoveten z:EN 14202:2004SIST EN 14202:2005en01-januar-2005SIST EN 14202:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14202July 2004ICS 91.060.50English versionBlinds and shutters - Suitability for use of tubular and squaremotorizations - Requirements and test methodsStores extérieurs et fermetures pour baies équipées defenêtres - Aptitude à l'emploi des actionneurs électriquestubulaires ou carrés - Exigences et méthodes d'essaisAbschlüsse - Eignung von Einsteckantrieben undJalousieantrieben - Anforderungen und PrüfverfahrenThis European Standard was approved by CEN on 13 May 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14202:2004: ESIST EN 14202:2005
...
