EN 343:2003+A1:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Protective clothing - Protection against rainVetements de protection - Protection contre la pluieSchutzkleidung - Schutz gegen RegenTa slovenski standard je istoveten z:EN 343:2003+A1:2007SIST EN 343:2003+A1:2007en,fr,de13.340.10Varovalna oblekaProtective clothingICS:SLOVENSKI
STANDARDSIST EN 343:2003+A1:200701-november-2007

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 343:2003+A1
August 2007 ICS 13.340.10 Supersedes EN 343:2003 English Version
Protective clothing - Protection against rain
Vêtements de protection - Protection contre la pluie
Schutzkleidung - Schutz gegen Regen This European Standard was approved by CEN on 2 July 2003 and includes Amendment 1 approved by CEN on 25 July 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2007 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 343:2003+A1:2007: E

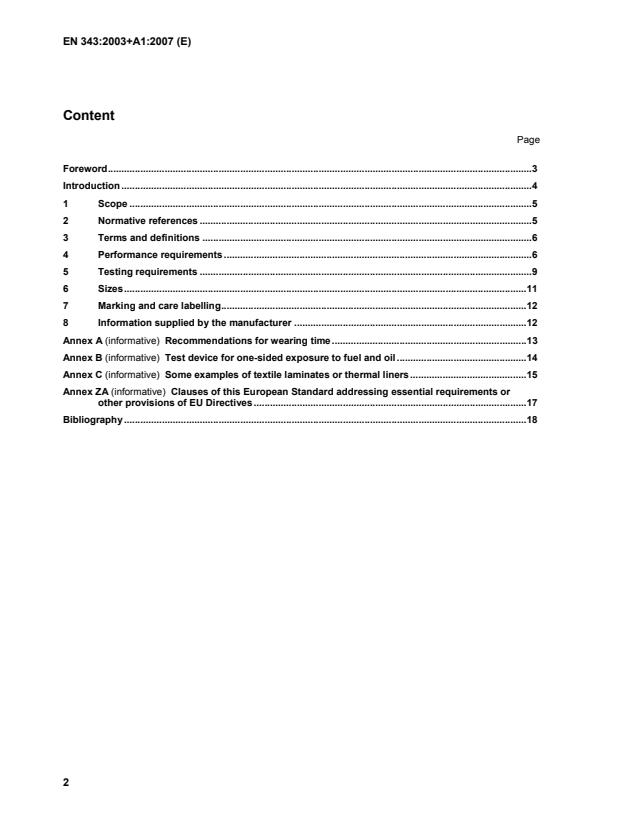

Content Page Foreword.3 Introduction.4 1 Scope.5 2 Normative references.5 3 Terms and definitions.6 4 Performance requirements.6 5 Testing requirements.9 6 Sizes.11 7 Marking and care labelling.12 8 Information supplied by the manufacturer.12 Annex A (informative)
Recommendations for wearing time.13 Annex B (informative)
Test device for one-sided exposure to fuel and oil.14 Annex C (informative)
Some examples of textile laminates or thermal liners.15 Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or other provisions of EU Directives.17 Bibliography.18

1 Scope This European Standard specifies requirements and test methods applicable to materials and seams of protective clothing against the influence of precipitation (e. g. rain, snowflakes), fog and ground humidity. The testing of rain proofness of ready made garments is excluded in this standard at this time because a separate test method for such a property is currently being prepared. 2 Normative references This European Standard incorporates by dated or undated reference, provisions from other publications. These normative references are cited at the appropriate places in the text and the publications are listed hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to this European Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the publication referred to applies (including amendments). EN 340, Protective clothing — General requirements EN 388, Protective gloves against mechanical risks EN 530:1994, Abrasion resistance of protective clothing material — Test methods EN 20811, Textiles — Determination of resistance to water penetration — Hydrostatic pressure test EN 31092, Textiles — Determination of physiological properties — Measurement of thermal and water-vapour resistance under steady-state conditions (sweating guarded - hotplate test) (ISO 11092:1993) EN ISO 1421, Rubber- or plastics-coated fabrics — Determination of tensile strength and elongation at break (ISO 1421:1998) EN ISO 7854:1997, Rubber- or plastics-coated fabrics — Determination of resistance to damage by flexing (ISO 7854:1995) !EN ISO 12947-1, Textiles — Determination of the abrasion resistance of fabrics by the Martindale method — Part 1: Martindale abrasion testing apparatus EN ISO 12947-2, Textiles — Determination of the abrasion resistance of fabrics by the Martindale method — Part 2: Determination of specimen breakdown" EN ISO 13934-1, Textiles — Tensile properties of fabrics — Part 1: Determination of maximum force and elongation at maximum force using the strip method (ISO 13934-1:1999) EN ISO 13935-2, Textiles — Tensile properties of fabrics — Part 2: Determination of maximum force using the grab method !(ISO 13935-2:1999)" ISO 1817, Rubber, vulcanized — Determination of the effect of liquids !ISO 4674, Rubber- or plastics-coated fabrics — Determination of tear resistance "

Table 1 — Application of performance tests on the components
Property Reference clause Outer shell material Liner or thermal liner Lining
X X
Resistance to water penetration (before and/or after pretreat-ment) 4.1 (in combination if applicable
Water vapour resistance 4.2 X X X
(in combination if applicable) Tensile strength 4.3 X
Tear resistance 4.4 X
X X X Dimensional change 4.5 (in combination if applicable) Seam strength 4.6 X
4.2 Resistance to water penetration When tested in accordance with 5.1, resistance to water penetration of the outer shell material together with any applied watertight layer shall be in accordance with Table 2. If a specimen gets different classes of classification in the different tests for marking in accordance with clause 6, the lowest class shall be indicated.

Water penetration resistance Wp
1 2 3 Specimen to be tested – material before pretreatment
– material after each pretreatment (see 5.1.3.2 to 5.1.3.5)
Wp ≥ 8 000 Pa no test required
no test required a
Wp ≥ 8 000 Pa
no test required a
Wp ≥ 13 000 Pa
– seams before pretreatment Wp ≥ 8 000 Pa Wp ≥ 8 000 Pa Wp ≥ 13 000 Pa a no test required because the worst case situation for class 2 and class 3 is after pretreatment NOTE: For each class several requirements shall be met.
4.3 Water vapour resistance When tested in accordance with 5.2, water vapour resistance of all layers of the garment shall be in accordance with Table 3. Table 3 — Classification of water vapour resistance
Water vapour resistance Ret Class
1 a
2 3 WPam⋅² Ret above 40 20 < Ret ≤ 40 Ret ≤ 20
a WARNING: class 1 has a restricted wearing time, see annex A.
4.4 Tensile strength of the outer shell material When tested in accordance with 5.3, the outer shell material shall withstand a minimum tensile force of 450 N in both orthogonal directions of the material. For materials with an elongation of more than 50 % this requirement is not applicable.

5 Testing requirements 5.1 Testing of resistance to water penetration 5.1.1 General Testing of resistance to water penetration, in accordance with EN 20811, with an increase of hydrostatic pressure of (980 ± 50) Pa/min. 5.1.2 Number and size of specimens Number of specimens:  5 specimens for the testing of material before pretreatment;  5 specimens for the testing of the seams before pretreatment;  5 specimens for the testing of material after pretreatment by dry-cleaning and/or washing;  4 specimens for the testing after pretreatment by abrasion;  4 specimens for the testing after pretreatment by repeated flexing, i.e. 2 specimens in production direction and 2 specimens across the production direction;  4 specimens for the testing after pretreatment by fuel and oil, i.e. 2 specimens for testing with fuel and
2 specimens for testing with oil. Specimens are to be cut off from the layers as specified in Table 1 (see also annex C) and shall have a size of at least 130 mm diameter. 5.1.3 Pretreatments of outer shell material and liner or thermal liner in combination 5.1.3.1 General Separate samples will be used for each of the following pretreatments prior to testing the resistance to water penetration:
...
