EN 438-4:2005
(Main)High-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (Usually called Laminates) - Part 4: Classification and specifications for Compact laminates of thickness 2 mm and greater.
High-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (Usually called Laminates) - Part 4: Classification and specifications for Compact laminates of thickness 2 mm and greater.
This Part of EN 438 specifies performance requirements for two types of Compact laminate (defined in Clause 4) of thickness 2 mm or greater intended for interior use.
High-pressure decorative Compact laminates are characterised by their aesthetic qualities, strength, durability and functional performance. Compact HPL sheets are available in a wide variety of colours, patterns and surface finishes; they are extremely strong, and resistant to wear, impact, scratching, moisture, heat and staining; and possess good hygienic and anti-static properties, being easy to clean and maintain.
prEN 438-2 specifies the methods of test relevant to this part of EN 438.
Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) - Teil 4: Klassifizierung und Spezifikationen für Kompakt-Schichtpressstoffe mit einer Dicke von 2 mm und größer
Dieser Teil von prEN 438 legt die Leistungsanforderungen für zwei Kompakt-Schichtpressstofftypen (beide in Abschnitt 4 definiert) mit einer Dicke von 2 mm oder größer fest, die für die Innenanwendung vorgesehen sind.
Die dekorativen Hochdruck-Kompakt-Schichtpressstoffe sind charakterisiert durch ihre ästhetische Beschaffenheit, ihre Festigkeit, Dauergebrauchstauglichkeit und Beanspruchungsfähigkeit. Kompakt-Schichtpressstoffe sind in einer Vielzahl von Farben, Dekoren und Oberflächenausführungen verfügbar; sie sind äußerst robust und widerstandsfähig gegen Abrieb, Stoß, Verkratzen, Feuchtigkeit, Wärme und Fleckenbildung; sie besitzen gute hygienische und antistatische Eigenschaften und sind leicht zu reinigen und zu pflegen.
Die für diesen Teil von prEN 438 zutreffenden Prüfverfahren sind in prEN 438-2 festgelegt.
Stratifiés décoratifs haute pression (HPL) - Plaques à base de résines thermodurcissables (communément appelées stratifiés) - Partie 4 : Classification et spécifications des stratifiés compacts d'épaisseur égale ou supérieure à 2 mm
La présente partie de l'EN 438 spécifie les exigences de performance de deux types de stratifiés compacts (définis à l'article 4) destinés à être utilisés à l'intérieur.
Les stratifiés décoratifs haute pression compacts se caractérisent par leurs qualités esthétiques, leur résistance, leur durabilité et leur performance fonctionnelle. Les stratifiés HPL compacts sont disponibles dans une grande diversité de couleurs, motifs et finitions de surface ; ils sont extrêmement robustes et résistants à l'usure, au choc, à la rayure, à l'humidité, à la chaleur et aux taches et possèdent de bonnes caractéristiques hygiéniques et anti-statiques, tout en étant faciles à nettoyer et à entretenir.
Cette partie de l'EN 438 s'applique exclusivement aux stratifiés compacts définis au paragraphe 3. L'EN 438, Partie 2, prescrit les méthodes d'essai correspondant à la présente partie de l'EN 438.
Dekorativni visokotlačni laminati (HPL) - Plošče na osnovi duromernih smol - 4. del: Razvrstitev in specifikacije za 2 in več mm debele kompaktne laminate
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) - Teil 4: Klassifizierung und Spezifikationen für Kompakt-Schichtpressstoffe mit einer Dicke von 2 mm und größerStratifiés décoratifs haute pression (HPL) - Plaques a base de résines thermodurcissables (communément appelées stratifiés) - Partie 4 : Classification et spécifications des stratifiés compacts d'épaisseur égale ou supérieure a 2 mmHigh-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (Usually called Laminates) - Part 4: Classification and specifications for Compact laminates of thickness 2 mm and greater.83.140.20Laminated sheetsICS:Ta slovenski standard je istoveten z:EN 438-4:2005SIST EN 438-4:2005en01-maj-2005SIST EN 438-4:2005SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 438-4
January 2005 ICS 83.140.20 Supersedes EN 438-1:1991, EN 438-2:1991 English version
High-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (Usually called Laminates) - Part 4: Classification and specifications for Compact laminates of thickness 2 mm and greater.
Stratifiés décoratifs haute pression (HPL) - Plaques à base de résines thermodurcissables (communément appelées stratifiés) - Partie 4 : Classification et spécifications des stratifiés compacts d'épaisseur égale ou supérieure à 2 mm
Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) - Teil 4: Klassifizierung und Spezifikationen für Kompakt-Schichtpressstoffe mit einer Dicke von 2 mm und größer This European Standard was approved by CEN on 16 August 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2005 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 438-4:2005: ESIST EN 438-4:2005

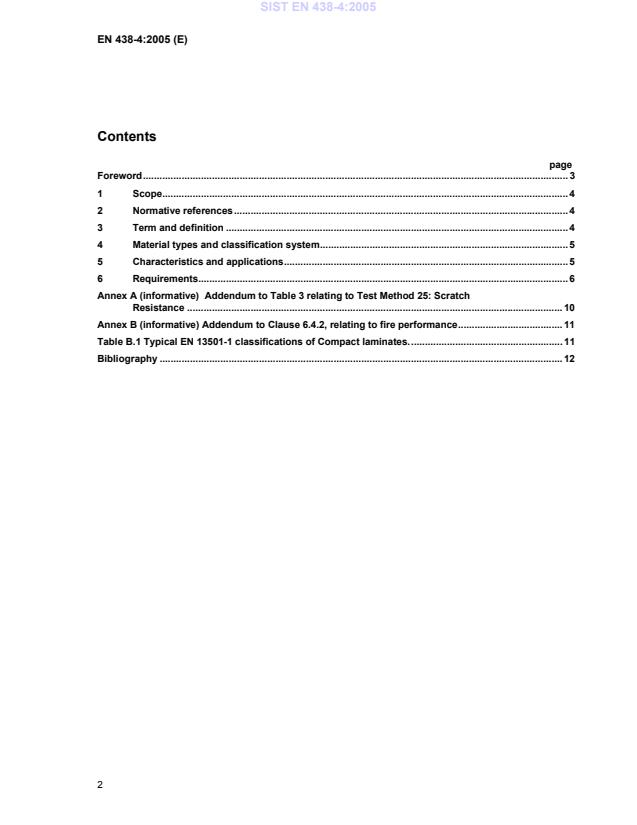

Addendum to Table 3 relating to Test Method 25: Scratch Resistance.10 Annex B (informative) Addendum to Clause 6.4.2, relating to fire performance.11 Table B.1 Typical EN 13501-1 classifications of Compact laminates.11 Bibliography.12
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
1 Scope This Part of EN 438 specifies performance requirements for two types of Compact laminate (defined in Clause 4) of thickness 2 mm or greater intended for interior use. High-pressure decorative Compact laminates are characterised by their aesthetic qualities, strength, durability and functional performance. Compact HPL sheets are available in a wide variety of colours, patterns and surface finishes; they are extremely strong, and resistant to wear, impact, scratching, moisture, heat and staining; and possess good hygienic and anti-static properties, being easy to clean and maintain. EN 438-2 specifies the methods of test relevant to this part of EN 438. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 438-2, High-pressure decorative laminates (HPL) — Sheets based on thermosetting resins (Usually called Laminates) — Part 2: Determination of properties EN 12721:1997, Furniture — Assessment of surface resistance to wet heat (ISO 4211-2:1993 modified) EN ISO 178:2003, Plastics — Determination of flexural properties (ISO 178:2001) EN ISO 527-2:1996, Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and extrusion plastics (ISO 527-2:1993 including Corr 1:1994) EN ISO 1183-1:2004, Plastics — Methods for determining the density of non-cellular plastics - Part 1: Immersion method, liquid pyknometer method and titration method (ISO 1183-1:2004)
3 Term and definition For the purposes of this document, the following term and definition applies. 3.1 high-pressure decorative compact laminate(s) (HPL) sheet(s) consisting of layers of cellulosic fibrous material (normally paper) impregnated with thermosetting resins and bonded together by the high pressure process described below. The surface layer(s) on one or both sides, having decorative colours or designs, are impregnated with melamine based resins. The core layers are impregnated with phenolic based resins The high pressure process is defined as the simultaneous application of heat (temperature ≥ 120 °C) and high specific pressure (≥ 5 Mpa), to provide flowing and subsequent curing of the thermosetting resins to obtain a homogeneous non-porous material with increased density (≥ 1,35 g/cm³), and with the required surface finish.
(COMPACT GRADE) G
(GENERAL PURPOSE)
S
(STANDARD GRADE) or F
(FLAME-RETARDANT GRADE)
4.2 Type CGS Standard grade decorative Compact laminates. Specified as HPL/EN438-4/CGS. 4.3 Type CGF Decorative Compact laminates with improved fire retardance similar to type CGS but also meeting special requirements of specified tests which may vary according to the application (e.g. construction, marine, transport) and the country of use (see Clause 6.3.2 and Annex B). Specified as HPL/EN438-4/CGF. Other laminates having special characteristics are also available but these products are outside the scope of this part of the standard. 5 Characteristics and applications HPL Compact laminates have the following characteristics: Attractive aesthetic qualities High mechanical strength Durability (high resistance to impact, wear and scratching) Good dimensional stability High resistance to the effects of water, steam, heat and frost Non-corrosive Good colour fastness Easy to clean and maintain (good anti-graffiti properties) Hygienic Good chemical resistance No dust attraction Ease of installation Good fire performance Typical applications include wall cladding, partitions, doors, cubicles, lockers, laboratory bench tops, and various self-supporting components in construction, marine and transport industries. When Compact laminates are self-supporting they are ready for installation and only require cutting to size, drilling, etc. to suit the application. SIST EN 438-4:2005
...
