CEN

EN 303-1:1992

(Main)

Heating boilers - Heating boilers with forced draught burners - Part 1: Terminology, general requirements, testing and marking

Heating boilers - Heating boilers with forced draught burners - Part 1: Terminology, general requirements, testing and marking

This standard applies to heating boilers with burners using fans up to a nominal heat output of 300 kW. They are operated, either with negative pressure (natural draught boiler) or with positive pressure (pressurized boiler) in the combustion chamber, in accordance with the boiler manufacturer's instructions. Particular requirements for boilers which can only be used with open vents are contained in a separate document (being prepared). The requirements of this standard apply to heating boilers which are tested on an authorized test rig.

Heizkessel - Heizkessel mit Gebläsebrenner - Teil 1: Begriffe, allgemeine Anforderungen, Prüfung und Kennzeichnung

Diese Norm gilt für Heizkessel mit Gebläsebrennern bis zu einer Nennwärmeleistung von  300 kW, die nach den Festlegungen des Kesselherstellers entweder mit Unterdruck (Naturzugkessel) oder mit Überdruck (Überdruckkessel) im Brennraum betrieben werden. Für Heizkessel, die nur in offenen Anlagen betrieben werden, gelten besondere Bauanforderungen (Norm in Vorbereitung). Die Festlegungen dieser Norm gelten für Heizkessel, die auf einem anerkannten Kesselprüfstand zu prüfen sind.

Chaudières de chauffage - Chaudières avec brûleurs à air soufflé - Partie 1: Terminologie, spécifications générales, essais et marquage

Cette norme s'applique aux chaudières pour brûleurs à air soufflé jusqu'à une puissance nominale de 300 kW. Ces chaudières sont définies par le constructeur comme des chaudières en dépression (à tirage naturel) ou en pression dans la chambre de combustion (chaudières pressurisées). Pour les chaudières qui ne peuvent être utilisées qu'avec un vase d'expansion ouvert les exigences particulières de construction sont précisées séparément (en préparation). Les prescriptions de cette norme s'appliquent à des chaudières essayées sur un banc d'essai agréé.

Kotli za ogrevanje - Kotli z ventilatorskimi gorilniki - 1. del: Terminologija, splošne zahteve, preskušanje in označevanje

General Information

Status
Withdrawn
Publication Date
29-Sep-1992
Withdrawal Date
19-Jan-1999
ICS
91.140.10 - Central heating systems
Technical Committee
CEN/TC 57 - Central heating boilers
Drafting Committee
CEN/TC 57 - Central heating boilers
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
20-Jan-1999
Completion Date
20-Jan-1999
Ref Project
SIST EN 303-1:1997 - Heating boilers - Heating boilers with forced draught burners - Part 1: Terminology, general requirements, testing and marking

Relations

Replaced By
EN 303-1:1999 - Heating boilers - Part 1: Heating boilers with forced draught burners - Terminology, general requirements, testing and marking
Effective Date
22-Dec-2008
Child
EN 303-2:1992 - Heating boilers - Heating boilers with forced draught burners - Part 2: Special requirements for boilers with atomizing oil burners
Effective Date
22-Dec-2008

Buy Standard

EN 303-1:1997EN 303-1:1997
PreviousNext
Standard
EN 303-1:1997
English language
29 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

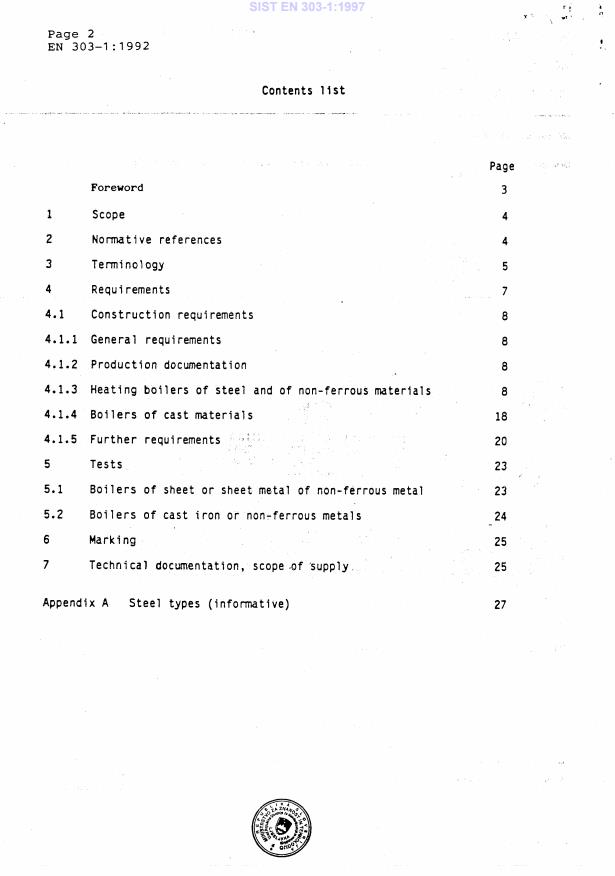

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Heizkessel - Heizkessel mit Gebläsebrenner - Teil 1: Begriffe, allgemeine Anforderungen, Prüfung und KennzeichnungChaudieres de chauffage - Chaudieres avec bruleurs a air soufflé - Partie 1: Terminologie, spécifications générales, essais et marquageHeating boilers - Heating boilers with forced draught burners - Part 1: Terminology, general requirements, testing and marking91.140.10Sistemi centralnega ogrevanjaCentral heating systems01.040.91Gradbeni materiali in gradnja (Slovarji)Construction materials and building (Vocabularies)ICS:Ta slovenski standard je istoveten z:EN 303-1:1992SIST EN 303-1:19
...
