EN 10280:2001

(Main)

Magnetic materials - Methods of measurement of the magnetic properties of electrical sheet and strip by means of a single sheet tester

Magnetic materials - Methods of measurement of the magnetic properties of electrical sheet and strip by means of a single sheet tester

This European Standard defines the general principles of measurements of the magnetic properties of electrical sheets and strips by means of a single sheet tester and gives the technical details of the measurements of specific total loss and of magnetic field strength, excitation current and specific apparent power.

Magnetische Werkstoffe - Verfahren zur Messung der magnetischen Eigenschaften von Elektroblech und -band mit Hilfe eines Tafelmeßgerätes

Diese Europäische Norm legt die allgemeinen Grundlagen zur Messung der magnetischen Eigenschaften von Elektroblech und -band mit Hilfe eines Tafelmeß- gerätes fest und nennt die technischen Einzelheiten der Messung, des spezifischen Ummagnetisierungsverlustes und der magnetischen Feldstärke, der Magnetisierungsstromstärke und der spezifischen Scheinleistung.

Matériaux magnétiques - Méthodes de mesure des caractéristiques magnétiques des tôles et bandes magnétiques à l'aide de l'essai sur tôle unique

La présente norme européenne définit les principes généraux des mesures des caractéristiques magnétiques à l'aide de l'essai sur tôle unique des tôles et bandes en acier et donne les détails techniques de mesure des pertes totales spécifiques et de l'intensité du champ magnétique du courant magnétisant et de la puissance apparente spécifique.

Magnetni materiali - Metode merjenja magnetnih lastnosti elektropločevin in trakov z enoploščnim merilnikom

General Information

Status
Withdrawn
Publication Date
20-Feb-2001
Withdrawal Date
30-Jan-2007
ICS
29.030 - Magnetic materials
Technical Committee
ECISS/TC 108 - Steel sheet and strip for electrical applications
Drafting Committee
ECISS/TC 24 - Electrical steel and strip qualities - Qualities, dimensions, tolerances and specific tests
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
31-Jan-2007
Completion Date
31-Jan-2007
Ref Project
SIST EN 10280:2001 - Magnetic materials - Methods of measurement of the magnetic properties of electrical sheet and strip by means of a single sheet tester

Relations

Merged Into
EN 10280:2001+A1:2007 - Magnetic materials - Methods of measurement of the magnetic properties of electrical sheet and strip by means of a single sheet tester
Effective Date
22-Dec-2008

Buy Standard

EN 10280:2001EN 10280:2001
PreviousNext
Standard
EN 10280:2001
English language
19 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

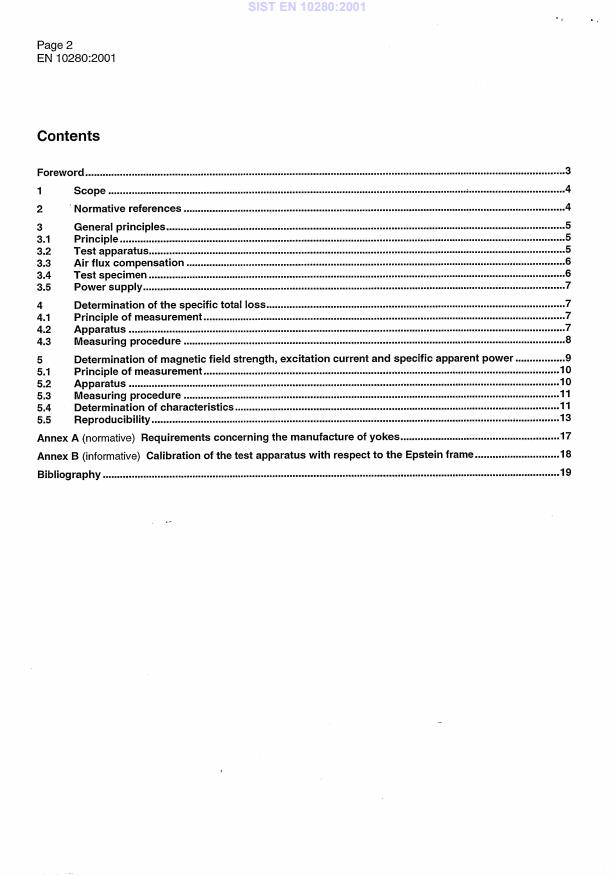

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Magnetische Werkstoffe - Verfahren zur Messung der magnetischen Eigenschaften von Elektroblech und -band mit Hilfe eines TafelmeßgerätesMatériaux magnétiques - Méthodes de mesure des caractéristiques magnétiques des tôles et bandes magnétiques a l'aide de l'essai sur tôle uniqueMagnetic materials - Methods of measurement of the magnetic properties of electrical sheet and strip by means of a single sheet tester77.140.50SROL]GHONLFlat steel products and semi-products29.030Magnetni
...
