EN 703:2004+A1:2009

SLOVENSKI STANDARD
01-november-2009
Kmetijski stroji - Stroji za nalaganje, mešanje oziroma rezanje ter raztros silaže -
Varnost
Agricultural machinery - Silage loading, mixing and/or chopping and distributing
machines - Safety
Landmaschinen - Maschinen zum Laden, Mischen und/oder Zerkleinern und Verteilen
von Silage - Sicherheit
Matériel agricole - Désileuses chargeuses, mélangeuses et/ou hacheuses et
distributrices - Sécurité
Ta slovenski standard je istoveten z: EN 703:2004+A1:2009
ICS:
65.040.20 3RVORSMDLQQDSUDYH]D Buildings and installations for
SUHGHODYRLQVNODGLãþHQMH processing and storage of
NPHWLMVNLKSULGHONRY agricultural produce
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 703:2004+A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2009
ICS 65.060.99 Supersedes EN 703:2004
English Version
Agricultural machinery - Silage loading, mixing and/or chopping
and distributing machines - Safety
Matériel agricole - Désileuses chargeuses, mélangeuses Landmaschinen - Maschinen zum Laden, Mischen
et/ou hacheuses et distributrices - Sécurité und/oder Zerkleinern und Verteilen von Silage - Sicherheit
This European Standard was approved by CEN on 2 February 2004 and includes Amendment 1 approved by CEN on 23 May 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 703:2004+A1:2009: E
worldwide for CEN national Members.

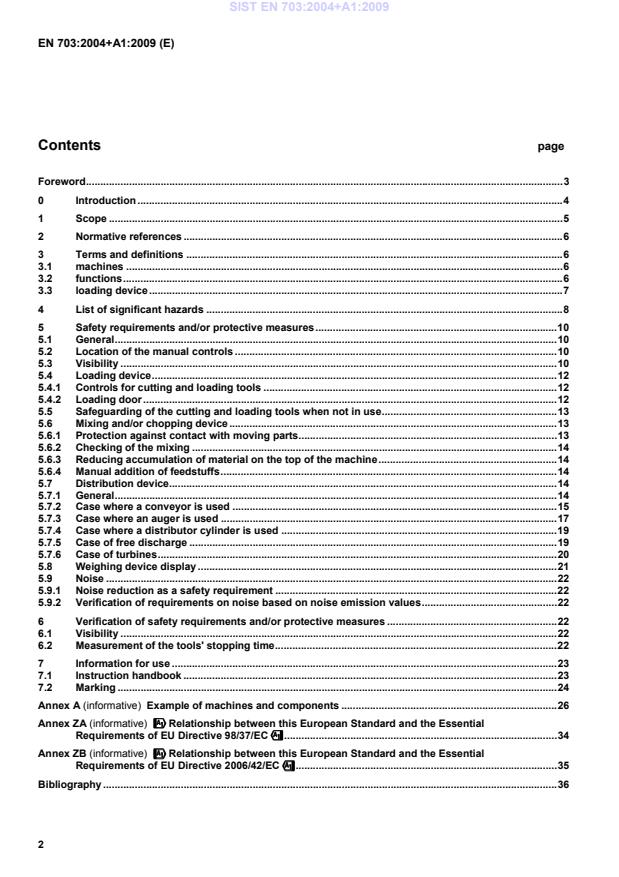

Contents           page
Foreword . 3
0 Introduction . 4
1 Scope . 5
2 Normative references . 6
3 Terms and definitions . 6
3.1 machines . 6
3.2 functions . 6
3.3 loading device . 7
4 List of significant hazards . 8
5 Safety requirements and/or protective measures . 10
5.1 General . 10
5.2 Location of the manual controls . 10
5.3 Visibility . 10
5.4 Loading device . 12
5.4.1 Controls for cutting and loading tools . 12
5.4.2 Loading door . 12
5.5 Safeguarding of the cutting and loading tools when not in use . 13
5.6 Mixing and/or chopping device . 13
5.6.1 Protection against contact with moving parts . 13
5.6.2 Checking of the mixing . 14
5.6.3 Reducing accumulation of material on the top of the machine . 14
5.6.4 Manual addition of feedstuffs . 14
5.7 Distribution device. 14
5.7.1 General . 14
5.7.2 Case where a conveyor is used . 15
5.7.3 Case where an auger is used . 17
5.7.4 Case where a distributor cylinder is used . 19
5.7.5 Case of free discharge . 19
5.7.6 Case of turbines . 20
5.8 Weighing device display . 21
5.9 Noise . 22
5.9.1 Noise reduction as a safety requirement . 22
5.9.2 Verification of requirements on noise based on noise emission values . 22
6 Verification of safety requirements and/or protective measures . 22
6.1 Visibility . 22
6.2 Measurement of the tools' stopping time . 22
7 Information for use . 23
7.1 Instruction handbook . 23
7.2 Marking . 24
Annex A (informative) Example of machines and components . 26
Annex ZA (informative) !!!!Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC"""" . 34
Annex ZB (informative) !!!!Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC"""" . 35
Bibliography . 36

Foreword
This document (EN 703:2004+A1:2009) has been prepared by Technical Committee CEN/TC 144 “Tractors and
machinery for agriculture and forestry”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by January 2010, and conflicting national standards shall be withdrawn at the latest
by January 2010.
This document includes Amendment 1, approved by CEN on 2009-05-23.
This European Standard supersedes !EN 703:2004".
The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ".
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association and supports essential requirements of EU Directive(s).
!For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document."
Annex A is informative and gives examples of machines and components.
This document includes a Bibliography.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.
0 Introduction
This document is a type C standard as stated in EN 1070.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are
indicated in the scope of this document. These hazards are specific to machines for loading (including silage
cutting), mixing and/or chopping and distributing silage.
Significant hazards that are common to all the agricultural machines (self-propelled, mounted, semi-mounted and
trailed) are dealt with in EN 1553.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of the other standards, for machines that
have been designed and built according to the provisions of this type C standard.
1 Scope
This document, used together with EN 1553, specifies the safety requirements and their verification for the design
and construction of mounted, semi-mounted, trailed or self-propelled machines that have a combination of two or
more of the following functions: loading, mixing, chopping and distributing silage and/or other feedstuffs, to be used
by one operator only. It includes those fitted with a built-in loading crane. In addition, it specifies the type of
information on safe working practices (including residual risks) to be provided by the manufacturer.
This document applies only to machines that have the following functional combinations:
 mixing and distributing functions; or
 mixing, chopping and distributing functions; or
 loading, mixing and distributing functions; or
 loading, mixing, chopping and distributing functions; or
 chopping and distributing functions; or
 loading, chopping and distributing functions.
Silage block cutters, even if they carry out a single function, are covered by this document.
It does not apply:
 to machines which pick up green fodder directly from the field;
 to loading cranes;
 to silage buckets.
NOTE 1 Loading cranes are dealt with in EN 12999.
NOTE 2 Silage buckets will be dealt through an amendment or during next revision.
This document deals with all the significant hazards, hazardous situations and events relevant to machines for
loading, mixing and/or chopping and distributing silage and/or other feedstuffs, when they are used as intended
and under the conditions foreseen by the manufacturer as listed in clause 4, except for the hazards arising from:
 failure of the control circuit;
 inadequate seating;
 inadequate lighting;
 impossibility of stopping the machine in the best possible conditions;
 travelling of machinery;
 break-up of parts rotating at high speed.
It is not applicable to environmental hazards (except noise).
This document is not applicable to machines for loading, mixing and/or chopping and distributing silage and/or
other feedstuffs which are manufactured before the date of publication of this document by CEN.
EN 703:2004+A1:200
...
