EN 14317-2:2007
(Main)Thermal insulation products for buildings - In-situ thermal insulation formed from exfoliated vermiculite (EV) products - Part 2: Specification for the installed products
Thermal insulation products for buildings - In-situ thermal insulation formed from exfoliated vermiculite (EV) products - Part 2: Specification for the installed products
This European Standard specifies the requirements for the four types of exfoliated vermiculite products Vermiculite Aggregate (EVA), Coated Vermiculite (EVC), Hydrophobic Vermiculite (EVH) and Premixed Vermiculite (EVM), containing less than 1 % organic material as defined by Annex D of EN14317-1:2004 for in-situ insulation of roofs, ceilings, walls and floors.
This Part 2 of the standard is a specification for the installed products.
This Part 2 of this standard also specifies the checks and test procedures to be used for the declaration made by the installer of the product.
This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards.
This European Standard does not include factory made insulation products of formed shapes and boards made with exfoliated vermiculite or in-situ products intended to be used for the insulation of building equipment and industrial installations.
This European Standard does not specify performance requirements for airborne sound insulation and for acoustic absorption applications.
Wärmedämmstoffe für Gebäude - An der Verwendungsstelle hergestellte Wärmedämmung mit Produkten aus expandiertem Vermiculit (EV) - Teil 2: Spezifikation für die eingebauten Produkte
Diese Europäische Norm legt Anforderungen an vier Arten von Wärmedämmprodukten aus expandiertem
Vermiculit fest, die an der Verwendungsstelle zur Wärmedämmung von Dächern, Decken, Wänden und
Fußböden hergestellt werden und entsprechend der Definition in Anhang D von EN 14317-1:2004 weniger als
1 % organische Stoffe enthalten; die vier Vermiculitprodukte sind Vermiculitkörner (Vermiculite Aggregate,
EVA), beschichtetes Vermiculit (Coated Vermiculite, EVC), wasserabweisendes Vermiculit (Hydrophobic
Vermiculite, EVH) und vorgemischtes Vermiculit (Premixed Vermiculite, EVM).
Der vorliegende Teil 2 dieser Norm ist eine Spezifikation für die eingebauten Produkte.
Teil 2 dieser Norm legt außerdem die Überprüfungen und Prüfverfahren fest, die für die vom Monteur für das
Produkt abzugebende Erklärung anzuwenden sind.
Diese Europäische Norm legt keine Anforderungsstufen für eine bestimmte Eigenschaft fest, die ein Produkt
erreichen muss, um für einen bestimmten Anwendungszweck gebrauchstauglich zu sein. Die erforderlichen
Stufen sind Vorschriften oder übereinstimmenden Normen zu entnehmen.
Diese Europäische Norm gilt nicht für fabrikmäßig hergestellte, in vorgefertigten Formen oder als Platten
vorliegende Wärmedämmstoffe aus expandiertem Vermiculit oder für an der Verwendungsstelle hergestellte
Produkte, die für Anwendungen zur Dämmung von haustechnischen und betriebstechnischen Anlagen
vorgesehen sind.
In dieser Europäischen Norm werden keine Leistungsanforderungen an die Luftschalldämmung und an die
Schallabsorption festgelegt.
Produits isolants thermiques pour le bâtiment - Isolation thermique formée en place à base de granulats légers de vermiculite exfoliée - Partie 2: Spécification des produits mis en place
La présente Norme européenne spécifie les exigences concernant quatre types de produits à base de vermiculite exfoliée : les granulats de vermiculite (EVA), la vermiculite enrobée (EVC), la vermiculite hydrophobe (EVH) et la vermiculite prémélangée (EVM), contenant moins de 1 % de matériaux organiques selon la définition de l’Annexe D de l’EN 14317 1:2004, et destinés à l’isolation en place des toitures, des plafonds, des murs et des planchers.
Le présent document est une spécification applicable aux produits installés.
Il décrit également les vérifications et les modes opératoires d’essai nécessaires pour la déclaration de l’installateur du produit.
La présente Norme européenne ne spécifie pas le niveau requis de toutes les propriétés requises pour qu’un produit démontre son aptitude à l’emploi dans une application particulière. Les niveaux requis peuvent être trouvés dans des réglementations ou dans des normes non-divergentes.
La présente norme européenne n’inclut pas des produits d’isolation formés fabriqués en usine ni les panneaux à base de vermiculite exfoliée ou les produits formés en place, destinés à l’isolation d’équipements de bâtiments et d’installations industrielles.
Le présent document ne spécifie pas d’exigences de performance pour les applications d’isolement aux bruits aériens et d’absorption acoustique.
Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz razplastenega vermikulita (EV), oblikovani na mestu vgradnje - 2. del: Specifikacija za vgrajene izolacijske proizvode
General Information
- Status
- Published
- Publication Date
- 30-Jan-2007
- Technical Committee
- CEN/TC 88 - Thermal insulating materials and products
- Drafting Committee
- CEN/TC 88 - Thermal insulating materials and products
- Current Stage
- 9020 - Submission to 2 Year Review Enquiry - Review Enquiry
- Start Date
- 15-Jan-2026
- Completion Date
- 15-Jan-2026
- Directive
- 89/106/EEC - Construction products
Relations
- Refers
EN 823:1994 - Thermal insulating products for building applications - Determination of thickness - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 14317-2:2007 is the CEN specification for in‑situ thermal insulation formed from exfoliated vermiculite (EV) products once installed. It covers four product types - Vermiculite Aggregate (EVA), Coated Vermiculite (EVC), Hydrophobic Vermiculite (EVH) and Premixed Vermiculite (EVM) - containing less than 1% organic material (per EN 14317-1). Part 2 is a non‑harmonised, installer‑focused document that defines requirements, measurement procedures and the installer’s declaration for roof, ceiling, wall and floor applications. It excludes factory‑made boards, insulation for building equipment/industrial installations and acoustic performance requirements.
Key topics and technical requirements
- Compliance link: Installers must use products that comply with EN 14317-1 and follow manufacturer guidance and national regulations.
- Thermal calculations: Required thickness (dr) is determined from the specified thermal resistance (Rs) and the declared thermal conductivity (λD) using the relationship:
dr = Rs × λD.
Declared thermal resistance (RD) is calculated as RD = di / λD, where di is installed thickness. - Installed thickness rules: The mean installed thickness must be at least the required thickness; no single measurement may be less than 80% of the specified value.
- In‑situ measurements: Installers must verify thickness and cavity fill. Minimum of five thickness measurements per 100 m² is required. In dispute cases, EN 823 pin‑and‑plate method applies.
- Installer’s declaration: Must record trade name/code, declared thermal resistance, required and installed thickness, volume used, installation date and a statement that installation followed the specified procedure.
- Building suitability: Annex A provides guidance on substrate condition, ventilation, vapour barriers and retention of loose-fill products.
Practical applications and users
This standard is intended for practical use by:
- Installers and contractors applying in‑situ exfoliated vermiculite insulation
- Specifiers, architects and engineers who set required thermal resistance and cavity dimensions
- Building inspectors and compliance officers verifying installation records and declarations
- Manufacturers and suppliers ensuring product labelling aligns with EN 14317-1
Use cases include insulating lofts, pitched/flat roofs, floor voids and cavity walls where loose‑fill or bonded vermiculite products are appropriate.
Related standards
- EN 14317-1:2004 - Product specification (pre‑installation)
- EN 823:1994 - Thickness measurement methods (pin & plate)
- prEN ISO 9229:2005 - Thermal insulation terms
- EN ISO 6946, EN ISO 10456 - Thermal calculation procedures
EN 14317-2:2007 helps ensure consistent, verifiable installation and declaration of in‑situ exfoliated vermiculite insulation for safe, energy‑efficient building retrofits and new construction.
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Nonprofit organization that performs technical evaluations of building products.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
BBA (British Board of Agrément)
UK construction product certification.
Sponsored listings
Frequently Asked Questions
EN 14317-2:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Thermal insulation products for buildings - In-situ thermal insulation formed from exfoliated vermiculite (EV) products - Part 2: Specification for the installed products". This standard covers: This European Standard specifies the requirements for the four types of exfoliated vermiculite products Vermiculite Aggregate (EVA), Coated Vermiculite (EVC), Hydrophobic Vermiculite (EVH) and Premixed Vermiculite (EVM), containing less than 1 % organic material as defined by Annex D of EN14317-1:2004 for in-situ insulation of roofs, ceilings, walls and floors. This Part 2 of the standard is a specification for the installed products. This Part 2 of this standard also specifies the checks and test procedures to be used for the declaration made by the installer of the product. This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not include factory made insulation products of formed shapes and boards made with exfoliated vermiculite or in-situ products intended to be used for the insulation of building equipment and industrial installations. This European Standard does not specify performance requirements for airborne sound insulation and for acoustic absorption applications.
This European Standard specifies the requirements for the four types of exfoliated vermiculite products Vermiculite Aggregate (EVA), Coated Vermiculite (EVC), Hydrophobic Vermiculite (EVH) and Premixed Vermiculite (EVM), containing less than 1 % organic material as defined by Annex D of EN14317-1:2004 for in-situ insulation of roofs, ceilings, walls and floors. This Part 2 of the standard is a specification for the installed products. This Part 2 of this standard also specifies the checks and test procedures to be used for the declaration made by the installer of the product. This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not include factory made insulation products of formed shapes and boards made with exfoliated vermiculite or in-situ products intended to be used for the insulation of building equipment and industrial installations. This European Standard does not specify performance requirements for airborne sound insulation and for acoustic absorption applications.
EN 14317-2:2007 is classified under the following ICS (International Classification for Standards) categories: 91.100.60 - Thermal and sound insulating materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14317-2:2007 has the following relationships with other standards: It is inter standard links to EN 823:1994, EN 14317-1:2004, EN ISO 9229:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14317-2:2007 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/103. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14317-2:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermal insulation products for buildings - In-situ thermal insulation formed from exfoliated vermiculite (EV) products - Part 2: Specification for the installed productsToplotnoizolacijski proizvodi za stavbe - Proizvodi iz razplastenega vermikulita (EV), oblikovani na mestu vgradnje - 2. del: Specifikacija za vgrajene izolacijske proizvodeProduits isolants thermiques pour le bâtiment - Isolation thermique formée en place a base de granulats légers de Vermiculite exfoliée (EV) - Partie 2: Spécification des produits mis en placeWärmedämmstoffe für Gebäude - An der Verwendungsstelle hergestellte Wärmedämmung mit Produkten aus expandiertem Vermiculit (EV) - Teil 2: Spezifikation für die eingebauten ProdukteTa slovenski standard je istoveten z:EN 14317-2:2007SIST EN 14317-2:2007en;de91.100.60Thermal and sound insulating materialsICS:SLOVENSKI
STANDARDSIST EN 14317-2:200701-julij-2007
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14317-2January 2007ICS 91.100.60 English VersionThermal insulation products for buildings - In-situ thermalinsulation formed from exfoliated vermiculite (EV) products - Part2: Specification for the installed productsProduits isolants thermiques pour le bâtiment - Isolationthermique formée en place à base de granulats légers deVermiculite exfoliée (EV) - Partie 2: Spécification desproduits mis en placeWärmedämmstoffe für Gebäude - An derVerwendungsstelle hergestellte Wärmedämmung mitProdukten aus expandiertem Vermiculit (EV) - Teil 2:Spezifikation für die eingebauten ProdukteThis European Standard was approved by CEN on 2 December 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14317-2:2007: E

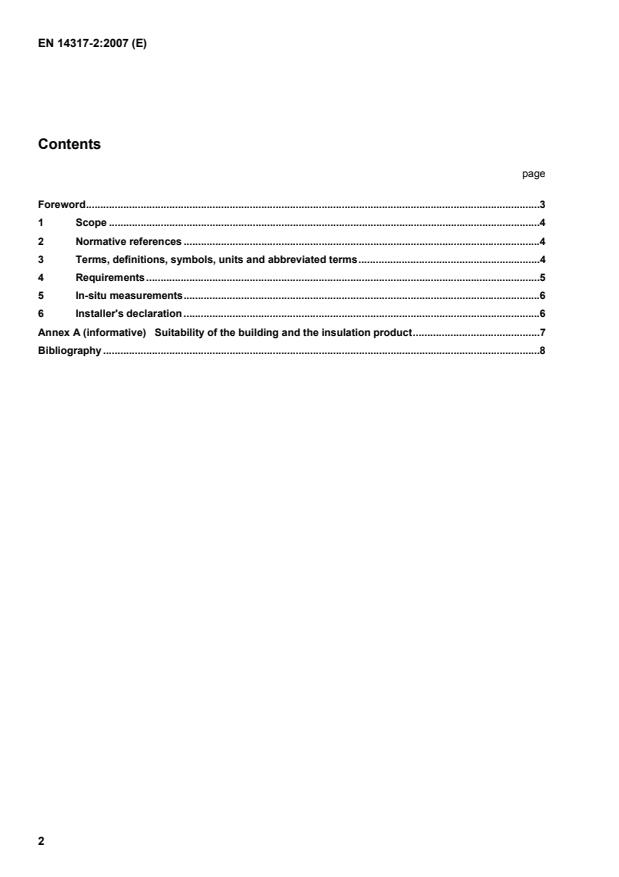

Suitability of the building and the insulation product.7 Bibliography.8
1 Scope This European Standard specifies the requirements for the four types of exfoliated vermiculite products Vermiculite Aggregate (EVA), Coated Vermiculite (EVC), Hydrophobic Vermiculite (EVH) and Premixed Vermiculite (EVM), containing less than 1 % organic material as defined by Annex D of EN 14317-1:2004 for in-situ insulation of roofs, ceilings, walls and floors. This Part 2 of the standard is a specification for the installed products. This Part 2 of this standard also specifies the checks and test procedures to be used for the declaration made by the installer of the product. This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not include f
...
