EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2009
ICS 13.220.50; 91.060.50
English Version
Extended application of test results for fire resistance and/or
smoke control for door, shutter and openable window
assemblies, including their elements of building hardware - Part
2: Fire resistance of hinged and pivoted steel doorsets
Application élargie des résultats d'essais en matière de
résistance au feu et/ou d'étanchéité à la fumée des blocs-
portes, fermetures et fenêtre, y compris leurs éléments de
quincaillerie - Partie 2: Résistance au feu des blocs-portes
battants et pivotants en acier
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 127.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
: This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
Warning
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15269-2:2009: E
worldwide for CEN national Members.

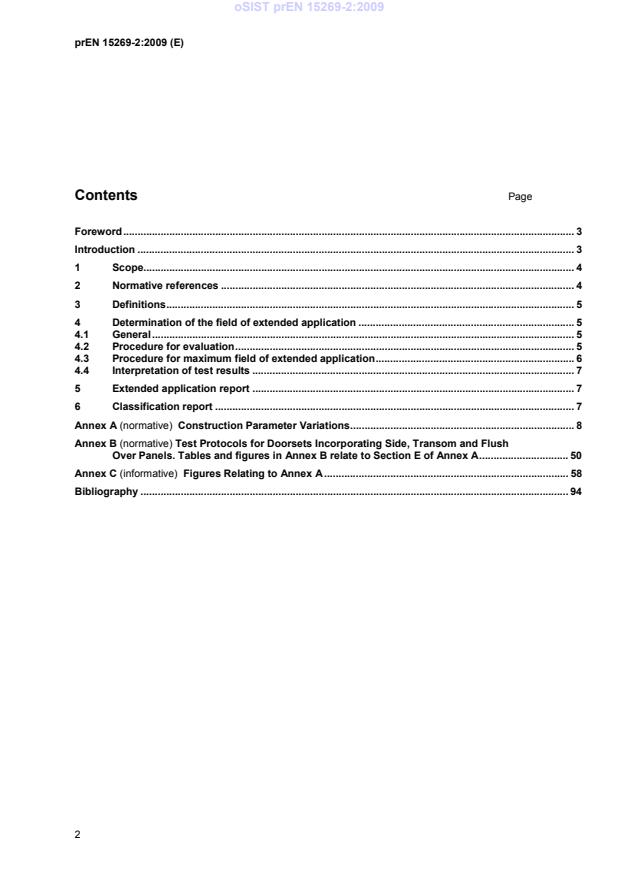

Contents Page
Foreword . 3
Introduction . 3
1 Scope. 4
2 Normative references . 4
3 Definitions . 5
4 Determination of the field of extended application . 5
4.1 General . 5
4.2 Procedure for evaluation . 5
4.3 Procedure for maximum field of extended application . 6
4.4 Interpretation of test results . 7
5 Extended application report . 7
6 Classification report . 7
Annex A (normative) Construction Parameter Variations . 8
Annex B (normative) Test Protocols for Doorsets Incorporating Side, Transom and Flush
Over Panels. Tables and figures in Annex B relate to Section E of Annex A . 50
Annex C (informative) Figures Relating to Annex A . 58
Bibliography . 94

Foreword
This document (prEN 15269-2:2009) has been prepared by Technical Committee CEN/TC 127 “Fire
safety in buildings”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and
the European Free Trade Association, and supports essential requirements of 89/106/EEC.
Introduction
This document is one of a series of standards listed below and intended to be used for the purpose of
producing an extended application report based on the evaluation of one or more fire resistance
and/or smoke control tests. These standards may also be used to identify the best selection of test
specimens required to cover a wide range of product variations.
The prEN 15269 series of standards currently consists of:
prEN 15269, Extended application of test results for fire resistance and/or smoke control for door,
shutter and openable window assemblies, including their elements of building hardware
Part 1: General requirements
Part 2: Fire resistance of hinged and pivoted steel doorsets
Part 3: Fire resistance of hinged and pivoted timber doorsets and openable timber framed windows
Part 4: Fire resistance of hinged and pivoted glass doorsets
Part 5: Fire resistance of hinged and pivoted, metal framed, glazed doorsets and openable windows
Part 6: Fire resistance of sliding timber doorsets
Part 7: Fire resistance of sliding steel doorsets
Part 8: Fire resistance of horizontally folding timber doorsets
Part 9: Fire resistance of horizontally folding steel doorsets
Part 10: Fire resistance of steel rolling shutters
Part 11: Fire resistance of fabric curtains
Part 20: Smoke control for hinged and pivoted timber and steel doorsets
Before there can be any consideration for extended application the doorset should have been tested
in accordance with EN 1634-1 to achieve a test result which could generate a classification in
accordance with EN 13501-2 at least equal to the classification subsequently required from extended
application considerations.
A review of the doorset construction parameters can indicate that one or more characteristics may be
improved by a particular parameter variation. All evaluations should be made on the basis of retaining
the fire resistance classifications obtainable from testing to EN 1634-1, including those lower than the
test duration. However, this should never lead to an increased classification for any specific fire
performance parameter beyond that achieved during any one test unless specifically identified in the
relevant Construction Parameter Variation tables within this series of standards.
The effect on the durability of self closing of the doorsets following an extended application process is
not addressed in this series of standards.
1 Scope
This Part of prEN 15269, which should be read in conjunction with prEN 15269-1, covers single and
double leaf, hinged and pivoted, steel based doorsets.
This document prescribes the methodology for extending the application of test results obtained from
test(s) conducted in accordance with EN 1634-1.
Subject to the completion of the appropriate test or tests selected from those identified in Clause 4 the
extended application may cover all or some of the following non-exhaustive list:
 Integrity only (E), radiation (EW) or insulated (EI or EI ) classifications;
1 2
 door leaf;
 wall/ceiling fixed elements (frame/suspension system;
 glazing for door leaf;
 items of building hardware;
 decorative finishes;
 intumescent, smoke, draught or acoustic seals;
 alternative supporting construction(s).
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies.
EN 1634-1, Fire resistance and smoke control tests for door, shutter and openable window
assemblies and elements of building hardware - Part 1: Fire resistance tests for doors, shutters and
openable windows
EN 1634-2, Fire resistance and smoke control tests for door, shutter and openable window
assemblies and elements of building hardware - Part 2: Fire resistance characterisation test for
elements of building hardware
EN 13501-2, Fire classification of construction products and building elements — Part 2: Classification
using data from fire resistance tests, excluding ventilation services
3 Terms and definitions
For the purposes of this Part or EN 15269, the terms and definitions given in EN1363-1, EN ISO
13943, EN 1634-1, prEN 1634-2 and prEN 15269-1 together with the following apply:
3.1 full scale test
test of a full size doorset in accordance with EN 1634-1
3.2 small scale test
test on elements of building hardware in accordance with prEN 1634-2 and where the decision
process, given in prEN 1634-2, permits its use. This is abbreviated as SS in annex C
3.3 effective rebate depth
dimension of the door leaf thickness of overlapping adjacent edges of door leaf relative to the door
frame, transom or side panel or flush overpanel. At the meeting edges and for rebated leaves the
dimension shall be the depth of the largest rebate or the rebate where the intumescent seal is fitted
3.4 panel
component of a door leaf separated from other elements by joints which break through the total door
thickness. A door leaf can consist of one or more panels.
4 Determination of the field of extended application
4.1 General
4.1.1 Before there can be any consideration for extended application, the doorset must have been
tested and classified in accordance with EN1634-1 and EN 13501-2 respectively in order to establish
a classification for the doorset.
4.1.2 A review of the doorset construction parameters can indicate that one or more characteristics
may be improved by a particular parameter variation. All evaluations shall be made on the basis of
retaining the classifications obtainable from testing to EN1634-1, including those lower than the test
duration. However, this shall never lead to an increased classification for any specific parameter
beyond that achieved during any one test unless specifically identified in the relevant Construction
Parameter Variation tables.
4.1.3 All evaluations shall be made on the basis of retaining the classification obtained from testing
to EN1634-1.
4.1.4 If, by following the ensuing procedure, any part of the classification cannot be achieved by
extended application rules, that part of classification shall be omitted from the subsequent extended
application report and classification report.
4.2 Procedure for evaluation
4.2.1 Identify the variations from the original test specimen(s) which are required to be covered by
an extended application report.
4.2.2 Locate the variations in the appropriate parameter variation by reference to columns (1) and
(2) of Annex A.
4.2.3 Review the type of classification to be retained from column (3) and establish from the
contents of column (4) whether any extended application is available beyond the direct application
rules in EN 1634-1 without the need for further testing.
4.2.4 Where this is deemed to be possible this can be recorded in the extended application report
together with any appropriate restrictions and the stated rules from column (4).
4.2.5 Where the variations required can only be achieved from additional testing according to
column (5), the additional test can be made on a similar specimen type to the original test against
which the extended application is sought. Alternatively, column (5) identifies an option for alternative
testing and relevant test parameters.
4.3 Procedure for maximum field of extended application
4.3.1 It is possible to provide a limited field extended of application from the results of a single test.
However, where a manufacturer intends to produce a range of doors incorporating single doors and
also double doors, with or without glazing, with alternative elements of building hardware, etc., it is
recommended that careful consideration is given to the complete range of doorset designs and
options in order to minimise the testing required before testing commences.
4.3.2 Establish all the parameter variations which are required to be part of the product range.
4.3.3 Select specimen(s) for the first test(s) in the series to ensure that those required for the
manufactured products are covered.
4.3.4 Complete the first test or a series of tests and prepare a field of direct application and possibly
a classification report from the results of the test(s).
4.3.5 Establish which of the original desired parameter variations have not been covered by the
direct application classification report.
4.3.6 Identify these parameter variations in Annex A and establish if any extended application is
possible without further testing.
4.3.7 Record this for the extended application report together with any restrictions and rules given
in column (5).
4.3.8 Evaluate which, if any, of the desired parameter variations have not been covered by the field
of direct application or the initial field of extended application derived from 4.3.7. above.
4.3.9 Select the required outstanding parameter variations from column (1) and column (2) of
Annex A and observe from column (5) which are the most appropriate weakest specimen options for
further testing.
4.3.10 If the complete selection of required parameter variations have not been covered by the tests
completed in accordance with 4.3.9 above, then an appropriate test or tests may be repeated with the
additional product variations incorporated.
4.4 Interpretation of test results
4.4.1 In order to maximise the field of extended application, it is important that the test reports shall
record details of any integrity and/or insulation failures throughout the test duration.
4.4.2 Where a series of tests have been conducted, the field of extended application shall be based
on the lowest performance achieved from the complete series of tests unless premature failure has
been attributed to one or more specific construction parameter variations.
4.4.3 Where it has been possible, to identify specific parameter failures, the extended application
for all other construction parameter variations can be based on the performance achieved after
isolating the premature failure(s).
5 Extended application report
Prepare an extended application report in accordance with the requirements of Clause 6 of prEN
15269-1, based on the results of evaluations in accordance with the above.
6 Classification report
The classification report shall be determined from the results of the extended application report and
shall be presented in accordance with Annex A of EN 13501-2.

Annex A
(normative)
Construction Parameter Variations
Table A.1 is designed to provide rules for the creation of extended application reports by experts in
the field of fire resistance testing of hinged and pivoted steel doorsets.
Table A.1 shall only be used to evaluate a field of extended application when at least one positive fire
resistance test to EN 1634-1 has resulted in a classification according to EN 13501-2.
The first two columns of Table A.1 identify possible variations to the construction details of the specimen tested.
The type of classification achieved from the test can be identified from the ‘Performance characteristic’ section of
Table A.1 column 3 as insulation, radiation control or integrity only. For some parameters, it is necessary to
evaluate whether the specimen displayed a high, medium or low level of distortion during the test. Where this is
the case the following levels shall be used to provide high, medium and low distortion doorsets:
 low < 40 % of effective rebate depth,
 medium > 40 % and < 85 % of effective rebate depth,
 high > 85 % of effective rebate depth.
The effect of the change in each parameter is evaluated for each characteristic in column 3 under E for effects on
integrity, I for effects on insulation (whether an I or I ) and W for the effects on radiation.
1 2
Where symbols are used these relate to the following definitions:
a) < - forecast is a worse performance;
b) > - forecast is a better performance;
c) = - forecast is no significant difference
d) ≤ - forecast is a worse or equal performance;
e) ≥ - forecast is a better or equal performance;
f) >=< - forecast unknown
These evaluations lead to the judgement of the possibility of extending the field of application, the results of
which are given in column 4 of Table A.1. In certain cases in Column 4 it is a requirement to achieve Category B,
the requirements for which are given in EN 1634-1.
Where additional tests are deemed to be necessary the type of specimen approved for incorporation
of the changed parameter is defined in column 5. Where it is possible to use information from tests
performed on one configuration for evidence on a different configuration, this allowance has been
made in order to reduce the overall number of tests required for extended application evaluation e.g.
single action doorsets to double action doorsets.
In order to maximise the possible field of application from a minimum number of tests, the parameter
changes can be spread over a series of test specimens. The recommended test for each parameter is
dependant upon the classification required and the preferred direction of testing as indicated in
Column 5.
If after consideration of a specific variation, additional changes are required to be made to the
specimen, these may be made providing the implications on other variations are also taken into
account.
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required

(1) (2) (3) (4) (5)
E I W
A Door leaf
In certain cases, the rules given in Section A are also appropriate to side, transom and overpanels or the door frame; where this is the case it is clearly indicated in column (1). For double leaf doorsets, both
leaves shall be of the same basic construction.
A.1 General
A.1.1 Number of leaves - See Figure C.1 Single leaf from ≤ ≥ ≥ Not possible without an additional test Additional test single leaf
double leaf test doorset (open outwards)
A.1.2 Number of leaves Double leaf from ≥ ≤ ≥ ≥ Not possible without an additional test Additional test (s) double leaf
single leaf test doorset (open outwards and
inwards for EI doors, open
outwards for E or W doors)
A.1.3 Number of panels per leaf (primary or secondary)- Add = = = Possible if tested at least one leaf (single, primary or Additional test single leaf or
See Figure C.2 (one panel per leaf – secondary) with the minimum of two panels, panel size double leaf doorset (open
on any leaf) not increased and the intended jointing technique outwards)
centrally located in the door leaf
otherwise
not possible without an additional test
A.1.4 Number of panels per leaf - See Figure C.3
Reduce = = = Possible providing the tested width of the panel is not Additional test single leaf or
(one panel) increased otherwise not possible without an additional double leaf doorset (open
test outwards)
A.1.5 Intumescent seals between frame and door leaf / Location towards the >/=/< >/=/< >/=/< Not possible without an additional test Additional test single leaf or
leaves- See Figure C.4 frame rebate double leaf doorset (open
outwards)
A.1.6 Intumescent seals between frame and door leaf / Location away from >/=/< >/=/< >/=/< Not possible without an additional test Additional test single leaf or
leaves – See Figure C.5 the frame rebate double leaf doorset (open
outwards)
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required
(1) (2) (3) (4) (5)
E I W
A.1.7 Intumescent seals between meeting edges of the door Location >/=/< >/=/< >/=/< Not possible without additional test (s) Additional test (s) double leaf
leaves doorset (open outwards and
inwards for EI doors, open
outwards for E or W doors)
A.1.8 Nnon intumescent seals between frame and door leaf / Location = = = Any movement possible providing no modifications of
leaves (draught / smoke / acoustic etc.) - (Euroclass A1) e.g. the construction are required
ceramic products(fitted in leaf or frame).– See Figure C.6
A.1.9 Non intumescent seals between meeting edges of the Location >/=/< >/=/< >/=/< No movement possible without an additional test Additional test double leaf
door leaves (draught / smoke / acoustic etc.) - (Euroclass A1) doorset
A.1.10 Non intumescent seals between door leaves and / or Location >/=/< >/=/< >/=/< No movement possible without an additional test Additional test single or
frames (draught /smoke / acoustic etc.) – < Euroclass A1 double leaf doorset
(fitted in leaf or frame).- See Figure C.7 if the seal is positioned
between the meeting edges
of the door leaves the
additional test has to be a
double leaf doorset
Add = = = Possible for doors without intumescent seals
A.1.11 Non intumescent seals between door leaves and / or
Additional test single or
frames (draught / smoke / acoustic etc.) - (Euroclass A1), e.g. otherwise
double leaf doorset,
ceramic products (fitted in leaf or frame). - See Figure C.8 not possible without an additional test
if the seal is positioned
between the meeting edges
of the door leaves the
additional test has to be a
double leaf doorset
Remove ≤ ≤ ≤ Notpossible without an additional test
A.1.11 Non intumescent seals between door leaves and / or
Additional test single or
framwes (draught / smoke / acoustic etc.) - (Euroclass A1),
double leaf doorset,
e.g. ceramic products (fitted in leaf or frame)- See Figure C.9
if the seal is positioned
between the meeting edges
of the door leaves the
additional test has to be a
double leaf doorset
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required

(1) (2) (3) (4) (5)
E I W
A.1.12 Non intumescent seals between door leaves and / or Add ≤ ≤ ≤ Not possible without an additional test
Additional test single or
frames (draught / smoke / acoustic etc.) – < Euroclass A1
double leaf doorset,
(fitted in leaf or frame)- See Figure C.10
if the seal is positioned
between the meeting edges
of the door leaves the
additional test has to be a
double leaf doorset
A.1.13 Non intumescent seals between door leaves and / or Remove >/=/< >/=/< = Not possible without an additional test
Additional test single or
frames (draught / smoke / acoustic etc. – < Euroclass A1
double leaf doorset,
(fitted in leaf or frame) - See Figure C.11
if the seal is positioned
between the meeting edges
of the door leaves the
additional test has to be a
double leaf doorset
A.1.14 Ventilation grilles (louvres) in door leaf tested without Add ≤ ≤ ≤ Not possible without an additional test Additional test single or
ventilation grille - See Figure C.12a double leaf doorset
A.1.15 Ventilation grilles (louvres) in door leaf - See Figure Remove >/=/< ≥ ≥ Possible providing the cut out is less than 25 % of the
C.12b door leaf area
otherwise
not possible without an additional test
Additional test single or
double leaf doorset
A.1.16 Ventilation grilles (louvres) in door leaf tested with Location in vertical ≤ ≤ ≤ Not possible without an additional test Additional test single or
ventilation grille direction double leaf doorset
A.1.17 Ventilation grilles (louvres) in door leaf tested with Location in horizontal = = = Possible providing the distance between the edge of
ventilation grille - See Figure C.13 direction the louvre and the perimeter of the door leaf is not
decreased and providing any internal stiffening
elements are not affected
otherwise
not possible without an additional test
Additional test single or
double leaf doorset
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required
(1) (2) (3) (4) (5)
E I W
A.1.18 Ventilation grilles (louvres) in door leaf tested with Smaller size ≥ ≥ ≥ Possible for one or more louvres smaller than that
ventilation grille - See Figure C.14a tested specimen providing the location is inside the
perimeter of the tested louvre and minimum spacing
between cut outs is not less than 100 mm
otherwise
not possible without an additional test Additional test single or
double leaf doorset
- See Figure C.14b Larger size ≤ ≤ ≤ Not possible without an additional test Additional test single or
double leaf doorset
A.1.19 Rebate (door leaves to frames) - See Figure C.15a Add ≥ ≤ ≥ EI
Not possible without an additional test unless the Additional test single or
original test had additional thermocouples positioned double leaf doorset (open
100mm and / or 25mm from the edge of the notional outwards)
rebate (i.e. 100-x) where x means the width of the
added rebate and dimension y shall not be reduced
E, EW
Possible providing no reduction of frame rebate or leaf
edge thickness
otherwise
not possible without an additional test Additional test single or
double leaf doorset (open
outwards)
A.1.20 Rebate (meeting edges) - See Figure C.15b Add ≥ ≥ ≥ Possible if the doorset included one rebate and the Additional test double leaf
(one rebate) added rebate is of the same design / material as that doorset (added rebate away
tested otherwise from the fire)
not possible without an additional test
A.1.21 Rebate (door leaves to frames) - See Figure C.16 Remove ≤ ≤ ≤ Not possible without an additional test Additional test single or
double leaf doorset (open
inwards)
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required

(1) (2) (3) (4) (5)
E I W
A.1.22 Latching / locking - See Figure C.17 Remove from door ≤ ≥ ≥ Not possible without an additional test For single leaf doorsets
leaf tested with additional test single leaf
latching / locking doorset (open inwards for EI
doors, open outwards for E
or W doors) for double leaf
doorsets additional test
double leaf doorset (open
inwards for EI doors, open
outwards for E or W doors)
A.1.23 Latched condition for single and double leaf doorsets - Change in latching >=< = = Possible in line with the following relationship: Additional test to include the
See Figure C.18. condition. required latching condition.
tested tested with tested with
without a a latch/lock a latch/lock
latch/lock but latched
unlatched
- possible not possible
extension
to: without
a lock/latch
extension not possible - not possible
to: with for EI doors.
lock/latch possible for
but E or EW
doors if
unlocked /
unlatched latch/lock is
all metal
contruction
extension not possible possible -
to: with a
lock/latch,
latched
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required
(1) (2) (3) (4) (5)
E I W
A.2 Size variations / single or multiple panel construction
A.2.1 Size (area, width, height) all distortions Decrease ≥ ≤ ≥ E, EW
Possible For single leaf doorsets
EI additional test single leaf or
Possible from the size tested down to size of a second double leaf doorset , for
test specimen in the same design double leaf doorsets
additional test double leaf
doorset (open outwards)
A.2.2 Height – all distortions Increase ≤ = ≤ Possible in line with direct application Door sizes beyond the direct
or application are based on
possible to a maximum addition equal to the tested testing of model specimen to
dimension between the latch and top of the door leaf maximum size that can be
providing an additional top hinge / dog bolt together accomodated in a standard
with additional latch in the area of the top free corner furnace
are incorporated and additionally (for EW)
an emitted radiation calculation in accordance with EN For single leaf doorsets
1363-2 within the 15 KW limit additional test single leaf or
or double leaf doorset , for
possible for doorsets which have achieved category B double leaf doorsets
up to: additional test double leaf
15 % for high distortion doorset (open outwards))
20 % for medium distortion and
25 % for low distortion
providing overlap of door leaf to frame header is not
reduced and distance between top hinge and top of
door leaf is equal to or less than tested and additional
(for EW) an emitted radiation calculation in accordance
with EN 1363-2 within the 15 KW limit
or
new test to a taller door
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required

(1) (2) (3) (4) (5)
E I W
Door sizes beyond the direct
A.2.3 Width - all distortions Increase ≤ = ≤ Ppossible in line with direct application
or possiblefor doorsets which have achieved category B application are based on
up to: testing of model specimen to
15 % for high distortion maximum size that can be
20 % for medium distortion and accomodated in a standard
25 % for low distortion, furnace
providing overlap of door leaf to frame jamb is not
reduced
and additional (for EW)
an emitted radiation calculation in accordance with EN
1363-2 within the 15 KW limit for single leaf doorsets
or additional test single leaf or
new test to a wider door double leaf doorset , for
double leaf doorsets
additional test double leaf
doorset (open outwards)
A.2.4 Area - all distortions Increase ≤ = ≤ Possible in line with direct application
or
where height is achieved by additional latch and hinge /
dog bolt full width extension can be applied
or
possible for doorsets which have achieved category B
up to:
20 % for high distortion
25 % for medium distortion and
30 % for low distortion, providing overlap of door leaf to
frame header is not reduced and distance between top
hinge and top of the door leaf is equal to or less than
tested)
and additional (for EW)
an emitted radiation calculation in accordance with EN Additional test see A.2.2 and
1363-2 from within the 15 KW limit / or A.2.3
or
new test to a bigger door
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required
(1) (2) (3) (4) (5)
E I W
A.2.5 Thickness of the door leaf Increase >/=/< ≥ ≥ Not possible without an additional test Additional test can be single
based on high distortion or double leaf doorset
based on medium distortion >/=/< ≥ ≥ Possible providing the same increase of thickness of
core material by a maximum of 10 %
otherwise
not possible without an additional test Additional test single or
double leaf doorset
based on low distortion >/=/< ≥ ≥ Possible providing the same increase of thickness of
core material by a maximum of 25 %
otherwise
not possible without an additional test Additional test single or
double leaf doorset
A.2.6 Thickness of the door leaf Decrease >/=/< ≤ ≤ E
Possible by a maximum of 10 % for a low distortion
doorset
otherwise Additional test single for
not possible without an additional test single leaf doorsets or
EI, EW double leaf for double leaf
not possible without an additional test doorsets

additional test single for
single leaf doorsets or
double leaf for double leaf
doorsets
A.3. Materials and constructions
A.3.1 Density of core material Increase >/=/< ≥ ≥ Possible by a maximum of 15 % (nominal value) of Additional test single or
(organic or Euroclass A1) – all distorsions each core material of the door leaf double leaf doorset
above 15 % not possible without an additional test
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required

(1) (2) (3) (4) (5)
E I W
E
A.3.2 Density of core material Decrease >/=/< ≤ ≤
(organic or Euroclass A1) – all distorsions possible
EI, EW
not possible without an additional test Additional test single or
double leaf doorset
A.3.3 Thickness of core material - See Figure C.19 Increase >/=/< ≥ ≥ Not possible without an additional test Additional test single or
double leaf doorset
based on high distortion
based on medium distortion >/=/< ≥ ≥ Possible by a maximum of 10 % in accordance with
thickness of door leaf and providing that no single
element of the core is reduced in thickness
otherwise Additional test single or
not possible without an additional test double leaf doorset
based on low distortion >/=/< ≥ ≥ Possible by a maximum of 25 % in accordance with
thickness of door leaf and providing that no single
element of the core is reduced in thickness
otherwise Additional test single or
not possible without an additional test double leaf doorset
A.3.4 Thickness of core material - See Figure C.20 Decrease >/=/< ≤ ≤ E Additional test single for
Possible by a maximum of 10 % for a low distortion single leaf doorsets or
doorset double leaf for double leaf
otherwise doorsets
not possible without an additional test
EI, EW
not possible without an additional test
A.3.5 Pattern of core material - See Figure C.21 Increase number of >/=/< ≤ ≤ Increasing of number is possible for E doors Additional test single or
pieces but not possible without additional test for EI or EW double leaf doorset
doors
A.3.6 Pattern of core material - See Figure C.22 Decrease number of ≥ ≥ ≥ Possible
pieces
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required
(1) (2) (3) (4) (5)
E I W
A.3.7 Number of layers of identical and / or different materials Increase >/=/< >/=/< >/=/< Not possible without an additional test Additional test single or
- See Figure C.23 double leaf doorset
A.3.8 Number of layers of identical and / or different materials Decrease >/=/< >/=/< >/=/< Not possible without an additional test Additional test single or
- See Figure C.24 double leaf doorset
= = = Possible
A.3.9 Type of core material (single thickness or in Change of supplier /
combination of different layers) manufacturer of
identical material with
identical composition
and properties
A.3.10 Type of core material (single thickness or in Alternative >/=/< >/=/< >/=/< Not possible without an additional test Additional test single or
combination of different layers) composition double leaf doorset
A.3.11 Amount of adhesive / m – organic based (< Euroclass Increase ≤ = = Not possible without an additional test Additional test single or
A1) double leaf doorset
A.3.12 Amount of adhesive / m – organic based (< Euroclass Decrease ≤ ≤ ≤ Not possible without an additional test Additional test single or
A1) double leaf doorset
A.3.13 Amount of adhesive / m – inorganic based Increase = = = Possible providing no intumescent content Additional test single or
(Euroclass A1), otherwise double leaf doorset
not possible without an additional test
A.3.14 amount of adhesive / m – inorganic based (Euroclass Decrease ≤ ≤ ≤ Not possible without an additional test Additional test single or
A1), double leaf doorset
A.3.15 Type of adhesive Change of = = = Possible for identical chemical composition Additional test single or
manufacturer for otherwise double leaf doorset
identical composition not possible without an additional test
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required

(1) (2) (3) (4) (5)
E I W
A.3.16 Type of adhesive Alternative >/=/< >/=/< >/=/< Not possible without an additional test Additional test single or
composition double leaf doorset
A.3.17 Metal armour sheet (internally mounted) - See Figure Add ≤ ≤ ≤ Not possible without a comparative test conducted with Additional test single or
C.254a an armour sheet double leaf doorset
A.3.18 metal armour sheet (internally mounted) - See Figure Remove ≤ ≤ ≤ Not possible without a comparative test conducted Additional test single or
C.25b without an armour sheet double leaf doorset
A.3.19 Electronic security mesh - See Figure C.26a Add = = = Possible for mesh thickness to maximum 1,0 mm with
an inorganic coating – face fixed or internally mounted Additional test single or
not possible for organic coated mesh without additional double leaf doorset
test
A.3.20 Electronic security mesh - See Figure C.26b Remove = = = Possible

A.3.21 Thickness of steel sheet Increase ≤ ≤ ≤ Possible only in line with direct
application Additional test single or
above direct application not possible without an double leaf doorset
additional test
A.3.22 Thickness of steel sheet Decrease ≥ ≥ ≥ Possible to a maximum of 25 %
above 25 % needs an additional test Additional test single or
double leaf doorset
A.3.23 Type of steel sheet Mild to stainless >/=/< >/=/< >/=/< Possible only for latched door leaves which have Additional test single or
achieved category B and providing that the material double leaf doorset
thickness shall not be increased but may be decreased
up to a maximum of 20 % otherwise not possible
without an additional test
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required
(1) (2) (3) (4) (5)
E I W
Additional test single or
A 3.24 Type of steel sheet Stainless to mild >/=/< >/=/< >/=/< Possible only for latched door leaves which have
achieved category B and providing that the material double leaf doorset
thickness shall not be decreased but may be increased
up to a maximum of 25 % otherwise not possible
without an additional test
A.3.25 Cross - section dimension of stiffening elements - See Increase ≥ ≤ ≥ E & EW Additional test single or
Figure C.27a Possible up to a maximum increase of 50 % double leaf doorset
EI
Not possible without an additional test
A.3.26 Cross - section dimension of stiffening elements - See Decrease ≤ = = Not possible without an additional test Additional test single or
Figure C.27b double leaf doorset

A.3.27 Number of intermediate stiffening elements - See Increase ≥ ≤ ≤ E
Figure C.28a Possible
EI, EW
Possible proportional to the increase of height or width
of the panel, as appropriate, rounded to the nearest
whole number of stiffeners
Additional test single or
otherwise double leaf doorset
not possible without an additional test
A.3.28 number of intermediate stiffening elements - See Decrease ≤ ≥ ≥ Possible proportional to the decrease of height or width Additional test single or
Figure C.28b of the panel, as appropriate, rounded to the nearest double leaf doorset
whole number of stiffeners
otherwise
not possible without an additional test
A.3.29 Stiffening elements - See Figure C.29 Location >/=/< = = Possible within a maximum of 10 % of original
separating dimension
otherwise
Additional test single or
not possible without an additional test double leaf doorset
A.3.30 Number of stiffening element fixing points - See Increase ≥ = = Possible
Figure C.30a
Construction Parameter Variation Influence of variation on Possibility of extension Additional Evidence

performance characteristic Required

(1) (2) (3) (4) (5)
E I W
A.3.31 Number of stiffening element fixing points - See Decrease ≤ = = Possible if proportionately in line with a leaf size
Figure C.30b decrease
otherwise
Additional test single or
not possible without an additional test double leaf doorset
A.3.32 Overlap dimension of leaf edge rebate (between leaf Increase ≥ ≤ >/=/< E, EW
and frame) - See Figure C.31a Possible
...
