EN 14655:2005

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stroji za predelavo hrane - Rezalniki francoskih štruc (baget) - Varnostne in higienske zahteveNahrungsmittelmaschinen - Baguette-Schneidemaschinen - Sicherheits- und HygieneanforderungenMachines pour les produits alimentaires - Machines a couper les baguettes - Prescriptions relatives a la sécurité et a l'hygieneFood processing machinery - Baguette slicers - Safety and hygiene requirements67.260Tovarne in oprema za živilsko industrijoPlants and equipment for the food industryICS:Ta slovenski standard je istoveten z:EN 14655:2005SIST EN 14655:2005en,fr,de01-november-2005SIST EN 14655:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14655June 2005ICS 67.260English versionFood processing machinery - Baguette slicers - Safety andhygiene requirementsMachines pour les produits alimentaires - Machines àcouper les baguettes - Prescriptions relatives à la sécuritéet à l'hygièneNahrungsmittelmaschinen - Baguette-Schneidemaschinen -Sicherheit- und HygieneanforderungenThis European Standard was approved by CEN on 19 May 2005.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2005 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14655:2005: ESIST EN 14655:2005

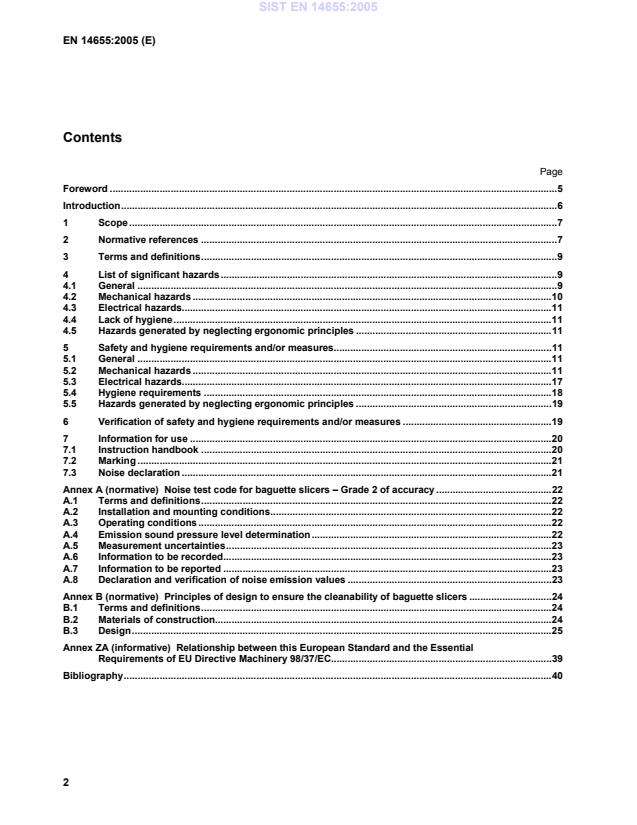

Noise test code for baguette slicers – Grade 2 of accuracy.22 A.1 Terms and definitions.22 A.2 Installation and mounting conditions.22 A.3 Operating conditions.22 A.4 Emission sound pressure level determination.22 A.5 Measurement uncertainties.23 A.6 Information to be recorded.23 A.7 Information to be reported.23 A.8 Declaration and verification of noise emission values.23 Annex B (normative)
Principles of design to ensure the cleanability of baguette slicers.24 B.1 Terms and definitions.24 B.2 Materials of construction.24 B.3 Design.25 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive Machinery 98/37/EC.39 Bibliography.40
Figures Figure 1 — Example of baguette slicer.9 Figure 2 — Danger zones of a baguette slicer.10 Figure 3 — Dimension of the cross-section of the chute opening.12 Figure 4 — Safety dimensions.13 Figure 5 — Example of warning sign.13 Figure 6 — Example of machine with hinged infeed chute not in working position.13 Figure 7 — Discharge area.14 Figure 8 — Example of a baguette slicer
with a light barrier.14 Figure 10 — Example of removal of the crumb tray.16 Figure 11 — Warning signs for baguette slicers.17 Figure 12 — Hygiene areas.19 Figure B.B1.26 Figure B.B2.26 Figure B.B3.27 Figure B.B4.28 Figure B.B5.28 Figure B.B6.29 Figure B.B7.29 Figure B.B8.30 Figure B.B9.30 Figure B.B10.30 Figure B.B11.31 Figure B.B12.31 Figure B.B13.32 Figure B.B14.32 Figure B.B15.33 Figure B.B16.34 Figure B.B17.35 SIST EN 14655:2005

1 Scope This European Standard specifies safety and hygiene requirements for the design and manufacture of baguette slicers used in catering by adults, taking account of installation, cleaning, operating, maintenance and decommissioning. The intended use of these machines is to cut baguette and similar types of long bread sticks, into slices. This European Standard covers requirements for the safe operation of the machine including: loading, cutting, unloading, cleaning, crumb removal and maintenance. These machines have a crescent blade fixed to a shaft, with a rotating movement and vertical manual loading. These machines are intended to be installed on a table, a specific support or an integral stand. The following machines are excluded from the scope of this European Standard:  frame cutter machines with multiple blades1);  machines with rotary crescent (sickle) or circular blade fixed to a shaft with oscillating movement and horizontal manual loading1);  experimental and testing machines under development by the manufacturer;  domestic appliances. This European Standard deals with all significant hazards, hazardous situations and events relevant to baguette slicers, when they are used as intended and under the conditions foreseen by the manufacturer (see Clause 4). Noise is not considered to be a significant hazard. A noise test code is given in Annex A. This European Standard does not deal with noise reduction. This European Standard is not applicable to baguette slicers which are manufactured before the date of publication of this European Standard by CEN. 2 Normative references The following referenced documents are indispensable for the application of this European Standard. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 294:1992, Safety of machinery — Safety distances to prevent danger zones being reached by the upper limbs EN 614-1:1995, Safety of machinery — Ergonomic design principles — Part 1: Terminology and general principles EN 953, Safety of machinery — Guards — General requirements for design and construction of fixed and movable guards EN 954-1:1996, Safety of machinery — Safety related parts of control systems — Part 1: General principles for design
1) See prEN 13954. SIST EN 14655:2005

Key 1 cutting device (one rotating blade) 2 device to adjust the thickness of the slices 3 infeed chute 4 discharge device 5 guidance device to adjust the size of the infeed chute to the dimensions of the bread
6 drive mechanisms 7 electrical controls 8 crumb tray 9 ramp 10 cover of the discharge area Figure 1 — Example of baguette slicer 4 List of significant hazards 4.1 General This clause contains all the significant hazards, hazardous situations and events, as far as they are dealt with in this European Standard, identified by a risk assessment as significant for baguette slicers and which require action to eliminate or reduce the risk. SIST EN 14655:2005

Hazards of cutting or severing. Zone 2: Access to cutting side of blade and other moving parts of the machine through discharge area and crumb tray.
Hazards of cutting or severing, drawing in and shearing. Zone 3: Access to all moving parts (e.g. drive mechanisms) through other sides of the machine.
Hazards of shearing, drawing in.
Key 1
zone 1 2
zone 2 3
zone 3 Figure 2 — Danger zones of a baguette slicer
Figure 3 — Dimension of the cross-section of the chute opening 5.2.1.1.2 Safeguarding by distance If the distance between the edge of the infeed chute and the blade is < 850 mm, then the following requirements apply:  distance between the blade and the upper edge of the infeed chute shall be ≥ 550 mm (see Figure 5);  machine shall be supplied with an integral stand so that the distance from the floor to the upper edge of the infeed chute is ≥ 1 500 mm (see Figure 4). If the machine is not supplied with such integral stand, a permanent warning sign (see Figure 5) indicating the minimum height of the upper edge of the infeed chute (1 500 mm) shall be fixed to the machine and be clearly visible. In that case, the instruction handbook shall also state explicitly the required height of the upper edge of the infeed chute (see 7.1) The characters of the warning sign shall be at least 5 mm high and the sign shall be at least 40 mm high and 35 mm wide. SIST EN 14655:2005

Figure 4 — Safety dimensions Figure 5 — Example of warning sign 5.2.1.1.3 Safeguarding of hinged or removable chute Where the chute is hinged or removable and not in working position:  either it shall be impossible to introduce the hand in the infeed area (see Figure 6); or  an interlocking device shall prevent the movement of the blade.
Figure 6 — Example of machine with hinged infeed chute not in working position 5.2.1.2 Zone 2: Discharge area and crumb tray 5.2.1.2.1 Discharge area Hand access while the blade is rotating shall be prevented:  either by the vertically projected distance between the lower edge of the discharge device and the blade which shall be ≥ 230 mm and by a movable cover interlocked according to 5.2.1. The value of 230 mm is measured from the actuating point at the interlocking system (see Figure 7); SIST EN 14655:2005
...
