prEN 933-11 is a CEN test method for the geometrical examination and classification of coarse recycled aggregate. The standard specifies a hands-on procedure to identify and quantify the constituent materials present in recycled coarse aggregate - for example bituminous materials, masonry, concrete, lightweight particles, unbound aggregate and “other” materials - and to express each constituent as a percentage of the test portion mass. prEN 933-11 supports quality control, reuse decisions and material characterisation for construction applications.

Key topics and technical requirements

  • Scope: Identifies and estimates relative proportions of constituent materials in coarse recycled aggregates. Includes precaution about handling dangerous substances found during examination.
  • Sample preparation: Bulk sample reduction per EN 932-2 to produce a laboratory test portion. Guidance given to target a test portion containing at least 500 particles (Table guidance for mass vs. maximum particle size).
  • Drying & mass control: Dry to constant mass - normally at (110 ± 5) °C; temperature-sensitive materials may be dried at (40 ± 5) °C. Record dry mass (M0) and test portion mass (M1).
  • Sieving: Use 63 mm and 8 mm sieves (EN 933-2) to remove oversize (>63 mm) and undersize (<8 mm) particles before sorting.
  • Sorting & classes: Hand-sort test portion into six classes: A Bituminous, B Masonry, C Concrete, L Lightweight (<1.0 Mg/m3), U Unbound aggregate, X Other. Optional masonry and “other” subclasses provide more detail (e.g., clay masonry, autoclaved aerated concrete, wood, plastics, gypsum).
  • Weighing & calculations: Determine mass of each class, calculate percent P = M(class)/M1 × 100. Rounding rules: Class X and its subclasses to one decimal place; other classes to whole numbers.
  • Validation: If summed masses differ from M1 by more than 1%, repeat the test.
  • Apparatus: Includes calibrated sieves, ventilated oven, balance (readable to 0.1 %), trays, brushes; sieving machine optional.
  • Optional tests: Density characteristics per EN 1097-6 Annex C can be applied to sorted classes.

Applications and users

  • Who uses it: Aggregate testing laboratories, recycled-aggregate producers, demolition and recycling facilities, concrete/asphalt producers, materials engineers, specifiers and regulators.
  • Practical uses:
    • Quality control and certification of recycled coarse aggregates.
    • Determining acceptability and end-use (e.g., reuse in concrete, unbound layers, asphalt).
    • Supporting specification compliance, reporting, and environmental/resource management.
    • Feeding further tests (density, mechanical and chemical tests) by providing class-separated samples.

Related standards

  • EN 932 series (sample reduction and general properties) - EN 932-2, EN 932-5
  • EN 933 series (geometrical properties) - EN 933-1, EN 933-2, EN 933-3
  • EN 1097-6 (particle density and water absorption) - referenced for density determinations

Keywords: prEN 933-11, classification test, coarse recycled aggregate, recycled aggregates, constituent materials, aggregate testing, CEN, EN 933.

Frequently Asked Questions

prEN 933-11 is a draft published by the European Committee for Standardization (CEN). Its full title is "Tests for geometrical properties of aggregates - Part 11: Classification test for the constituents of coarse recycled aggregate". This standard covers: Specifies a method for the examination of coarse recycled aggregates and for the purposes of identifying and quantifying constituent materials.

Specifies a method for the examination of coarse recycled aggregates and for the purposes of identifying and quantifying constituent materials.

prEN 933-11 is classified under the following ICS (International Classification for Standards) categories: 91.100.15 - Mineral materials and products. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase prEN 933-11 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


SLOVENSKI OSIST prEN 933-11:2004

PREDSTANDARD
maj 2004
Preskusi geometričnih lastnosti agregatov – 11. del: Klasifikacija sestavin
grobega recikliranega agregata
Tests for geometrical properties of aggregates - Part 11: Classification test for the
constituents of coarse recycled aggregate
ICS 91.100.15 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2004
ICS 91.100
English version
Tests for geometrical properties of aggregates - Part 11:
Classification test for the constituents of coarse recycled
aggregate
Essais relatifs aux caractéristiques géometriques des Prüfverfahren für geometrische Eigenschaften von
granulats - Partie 11: Essai de classification des gravillons Gesteinskörnungen - Teil 11: Prüfung zur Einteilung der
recyclés selon leur composition Bestandteile von rezyklierter grober Gesteinskörnung
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 154.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has
the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 933-11:2004: E
worldwide for CEN national Members.

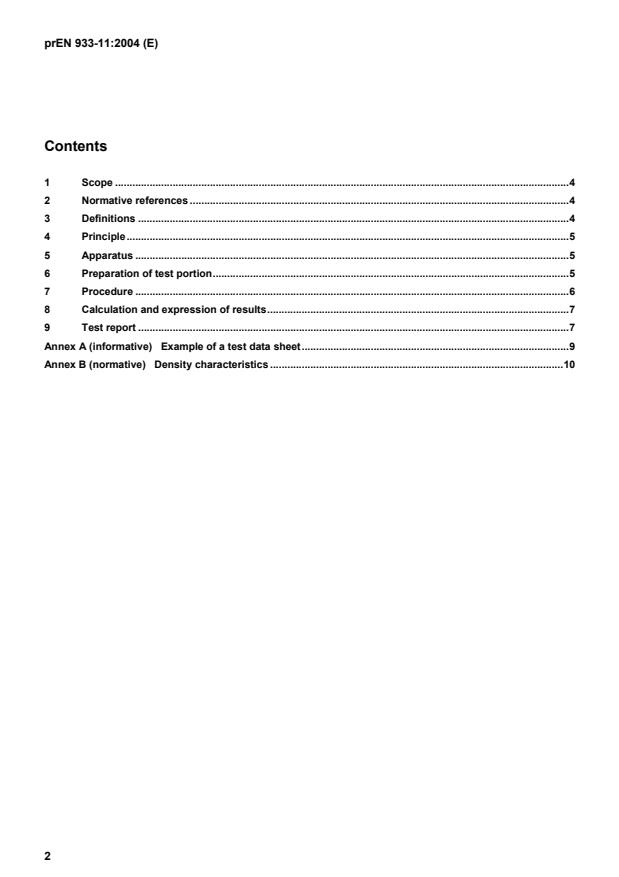

Contents
1 Scope .4
2 Normative references .4
3 Definitions .4
4 Principle.5
5 Apparatus .5
6 Preparation of test portion.5
7 Procedure .6
8 Calculation and expression of results.7
9 Test report .7
Annex A (informative)  Example of a test data sheet.9
Annex B (normative)  Density characteristics .10
Foreword
This document prEN 933-11 has been prepared by Technical Committee CEN/TC 154, "Aggregates", the
secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This European Standard is one of a series of standards for tests for geometrical properties of aggregates. Test
methods for other properties of aggregates are covered by Parts of the following European Standards:
EN 932 Tests for general properties of aggregates
EN 1097 Tests for mechanical and physical properties of aggregates
EN 1367 Tests for thermal and weathering properties of aggregates
EN 1744 Tests for chemical properties of aggregates
EN 13179 Tests for filler aggregate used in bituminous mixtures
The other parts of EN 933 are:
Part 1: Determination of particle size distribution - Sieving method
Part 2: Determination of particle size distribution - Test sieves, nominal size of apertures
Part 3: Determination of particle shape - Flakiness index
Part 4: Determination of particle shape - Shape index
Part 5: Assessment of surface characteristics - Percentage of crushed and broken surfaces
in coarse aggregate particles
Part 6: Assessment of surface characteristics - Flow coefficient of aggregates
Part 7: Determination of shell content - Percentage of shells in coarse aggregates
Part 8: Assessment of fines - Sand equivalent test
Part 9: Assessment of fines - Methylene blue test
Part 10: Assessment of fines - Grading of fillers (air jet sieving)
1 Scope
This European Standard specifies a method for the examination of coarse recycled aggregates for the purpose of
identifying and estimating the relative proportions of constituent materials.
NOTE If dangerous substances are found in while carrying out this method, they should be dealt with in accordance
with regulations in the place of use
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references, the latest edition of the
publication referred to applies.
EN 932-2 Tests for general properties of aggregate – Part 2 - Methods for reducing laboratory samples
EN 932-5 Tests for general properties of aggregates – Part 5 - Common equipment and calibration
EN 933-1 Tests for geometrical properties of aggregates – Part 1 - Determination of particle size distribution –
Sieving method
EN 933-2 Tests for geometrical properties of aggregates – Part 2: Determination of particle size distribution –
Test sieves, nominal size of apertures
EN 933-3 Tests for geometrical properties of aggregates – Part 3: Determination of particle shape – Flakiness
index
EN 1097-6 Tests for mechanical and physical properties of aggregates – Part 6: Determination of particle
density and water absorption
3 Definitions
For the purposes of this standard, the following definitions apply:
3.1
aggregate size
designation of aggregate in terms of lower (d) and upper (D) sieve sizes expressed as d/D
NOTE This designation accepts the presence of some particles which will be retained on the upper sieve (oversize)
and some which will pass the lower sieve (undersize)
3.2
particle size fraction d /D
i i
fraction of an aggregate passing the lar
...
