ASTM B30-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

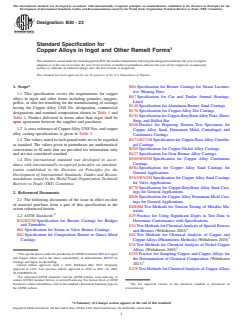

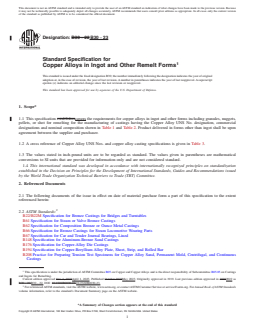

Designation: B30 − 22 B30 − 23
Standard Specification for
Copper Alloys in Ingot and Other Remelt Forms
This standard is issued under the fixed designation B30; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification establishescovers the requirements for copper alloys in ingot and other forms including granules, nuggets,
pellets, or shot for remelting for the manufacturing of castings having the Copper Alloy UNS No. designation, commercial
designations and nominal composition shown in Table 1 and Table 2. Product delivered in forms other than ingot shall be upon
agreement between the supplier and purchaser.
1.2 A cross reference of Copper Alloy UNS Nos. and copper alloy casting specifications is given in Table 3.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 The following documents of the issue in effect on date of material purchase form a part of this specification to the extent
referenced herein:
2.2 ASTM Standards:
B22/B22M Specification for Bronze Castings for Bridges and Turntables
B61 Specification for Steam or Valve Bronze Castings
B62 Specification for Composition Bronze or Ounce Metal Castings
B66 Specification for Bronze Castings for Steam Locomotive Wearing Parts
B67 Specification for Car and Tender Journal Bearings, Lined
B148 Specification for Aluminum-Bronze Sand Castings
B176 Specification for Copper-Alloy Die Castings
B194 Specification for Copper-Beryllium Alloy Plate, Sheet, Strip, and Rolled Bar
B208 Practice for Preparing Tension Test Specimens for Copper Alloy Sand, Permanent Mold, Centrifugal, and Continuous
Castings
This specification is under the jurisdiction of ASTM Committee B05 on Copper and Copper Alloys and is the direct responsibility of Subcommittee B05.05 on Castings
and Ingots for Remelting.
Current edition approved Oct. 1, 2022April 1, 2023. Published October 2022May 2023. Originally approved in 1919. Last previous edition approved in 20202022 as
B30 – 20.B30 – 22. DOI: 10.1520/B0030-22.10.1520/B0030-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B30 − 23

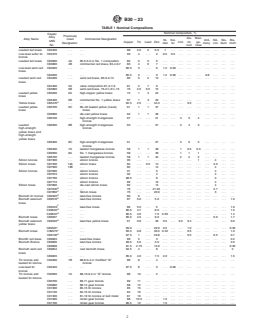

TABLE 1 Nominal Compositions
Nominal Composition, %
Copper
Previously
Alloy
Alu- Man-
Alloy Name Used Commercial Designation
Ni- Sul- Anti- Sili- Nio- Bis-
UNS
Copper Tin Lead Zinc Iron mi- ga-
Designation
ckel fur mony con bium muth
No.
num nese
Leaded red brass C83450 . . . . . . 88 2.5 2 6.5 1 . . . . . . . . . . . . . . . . . . . . . . . .
Low-lead sulfur tin C83470 . . . . . . 93 4 . . . 2 0.5 0.5 . . . . . . . . . . . . . . . . . . . . .
bronze
Leaded red brass C83600 4A 85-5-5-5 or No. 1 composition 85 5 5 5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
C83800 4B commercial red brass, 83-4-6-7 83 4 6 7 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low-lead semi-red C84020 . . . . . . 85.5 3 . . . 9 1.2 0.38 . . . . . . . . . . . . . . . . . . . . .
brass
C84030 . . . . . . 85.5 3 . . . 9 1.2 0.38 . . . . . . . . . 0.8 . . . . . . . . .
Leaded semi-red C84200 . . . semi-red brass, 80-5-2-13 80 5 2 13 . . . . . . . . . . . . . . . . . . . . . . . . . . .
brass
C84400 5A valve composition 81-3-7-9 81 3 7 9 . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 1
C84800 5B semi-red brass, 76-2 ⁄2-6 ⁄2-15 76 2.5 6.5 15 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leaded yellow C85200 6A high-copper yellow brass 72 1 3 24 . . . . . . . . . . . . . . . . . . . . . . . . . . .
brass
C85400 6B commercial No. 1 yellow brass 67 1 3 29 . . . . . . . . . . . . . . . . . . . . . . . . . . .
A
Yellow brass C85470 . . . . . . 62.5 2.5 . . . 34.3 . . . . . . . . . 0.5 . . . . . . . . . . . . . . .
Leaded yellow C85700 6C 60–40 leaded yellow (naval) 61 1 1 37 . . . . . . . . . . . . . . . . . . . . . . . . . . .
brass brass
C85800 . . . die-cast yellow brass 62 1 1 36 . . . . . . . . . . . . . . . . . . . . . . . . . . .
C86100 . . . high-strength manganese 67 . . . . . . 21 . . . . . . 3 5 4 . . . . . . . . . . . .
bronze
Leaded C86200 8B high-strength manganese 63 . . . . . . 27 . . . . . . 3 4 3 . . . . . . . . . . . .
high-strength bronze
yellow brass and
high-strength
yellow brass
C86300 8C high-strength manganese 61 . . . . . . 27 . . . . . . 3 6 3 . . . . . . . . . . . .
bronze
C86400 7A leaded manganese bronze 58 1 1 38 . . . . . . 1 0.5 0.5 . . . . . . . . . . . .
C86500 8A No. 1 manganese bronze 58 . . . . . . 39 . . . . . . 1 1 1 . . . . . . . . . . . .
C86700 . . . leaded manganese bronze 58 1 1 34 . . . . . . 2 2 2 . . . . . . . . . . . .
Silicon bronze C87300 . . . silicon bronze 95 . . . . . . . . . . . . . . . . . . . . . 1 . . . 4 . . . . . .
Silicon brass C87400 13A silicon brass 82 . . . 0.5 14 . . . . . . . . . . . . . . . . . . 3.5 . . . . . .
C87500 13B . . . 82 . . . . . . 14 . . . . . . . . . . . . . . . . . . 4 . . . . . .
Silicon bronze C87600 . . . silicon bronze 91 . . . . . . 5 . . . . . . . . . . . . . . . . . . 4 . . . . . .
C87610 . . . silicon bronze 92 . . . . . . 4 . . . . . . . . . . . . . . . . . . 4 . . . . . .
C87700 . . . silicon bronze 88.5 . . . . . . 8 . . . . . . . . . . . . . . . . . . 3 . . . . . .
C87710 . . . silicon bronze 86 . . . . . . 10 . . . . . . . . . . . . . . . . . . 4 . . . . . .
Silicon brass C87800 . . . die-cast silicon brass 82 . . . . . . 14 . . . . . . . . . . . . . . . . . . 4 . . . . . .
B
C87845 . . . . . . 76 . . . . . . 21.26 . . . . . . . . . . . . . . . . . . 2.7 . . . . . .
C
C87850 . . . Silicon brass 76 . . . . . . 20.9 . . . . . . . . . . . . . . . . . . 3 . . . . . .
D
Bismuth tin bronze C89320 . . . lead-free bronze 89 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E
Bismuth selenium C89510 . . . lead-free bronze 87 5.0 . . . 5.0 . . . . . . . . . . . . . . . . . . . . . . . . 1.0
brass
F
C89520 . . . lead-free brass 86 5.5 . . . 5 . . . . . . . . . . . . . . . . . . . . . . . . 1.9
G
C89530 . . . . . . 86.5 4.7 8.0 . . . . . . . . . . . . . . . . . . . . . . . . 1.5
G
C89535 . . . . . . 86.5 3.0 7.0 0.65 . . . . . . . . . . . . . . . . . . . . . 1.4
Bismuth brass C89537 . . . . . . 85.0 4.5 . . . 9.0 . . . . . . . . . . . . . . . . . . 0.9 . . . 1.7
H
Bismuth selenium C89540 . . . lead-free yellow brass 61 0.8 . . . 36 0.5 . . . 0.3 0.4 . . . . . . . . . . . . 0.9
yellow brass
I
C89545 . . . . . . 69.0 . . . . . . 29.0 0.5 . . . . . . 1.0 . . . . . . . . . . . . 0.55
J
Bismuth brass C89570 . . . . . . 60.5 0.8 . . . 36.5 0.32 . . . . . . 0.5 . . . . . . . . . . . . 1.0
K
C89720 . . . . . . 67.5 1 . . . 29.8 . . . . . . . . . 0.5 . . . . . . 0.5 . . . 0.7
Bismith red brass C89833 . . . Lead-free brass 89 5 . . . 3 . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Bismuth Bronze C89836 . . . lead-free bronze 89.5 5.5 . . . 3.0 . . . . . . . . . . . . . . . . . . . . . . . . 2.0
C89838 . . . . . . 81.5 2.75 . . . 15.0 . . . . . . . . . . . . . . . . . . . . . . . . 0.55
Bismuth semi-red C89844 . . . cast bismuth brass 84.5 4 . . . 8 . . . . . . . . . . . . . . . . . . . . . . . . 3
brass
C89845 . . . . . . 85.0 4.0 . . . 7.5 2.0 . . . . . . . . . . . . . . . . . . . . . 1.5
Tin bronze and C90300 1B 88-8-0-4 or modified “G” 88 8 . . . 4 . . . . . . . . . . . . . . . . . . . . . . . . . . .
leaded tin bronze bronze
Low-lead tin C90420 . . . . . . 87.5 8 . . . 3 . . . 0.38 . . . . . . . . . . . . . . . . . . . . .
bronze
Tin bronze and C90500 1A 88-10-0-2 or “G” bronze 88 10 . . . 2 . . . . . . . . . . . . . . . . . . . . . . . . . . .
leaded tin bronze
C90700 . . . 89-11 gear bronze 89 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C90800 . . . 88-12 gear bronze 88 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C91000 . . . 85-15 tin bronze 85 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C91100 . . . 84-16 tin bronze 84 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C91300 . . . 81-19 tin bronze or bell metal 81 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C91600 . . . nickel gear bronze 88 10.5 . . . . . . 1.5 . . . . . . . . . . . . . . . . . . . . . . . .
C91700 . . . nickel gear bronze 86.5 12 . . . . . . 1.5 . . . . . . . . . . . . . . . . . . . . . . . .
B30 − 23

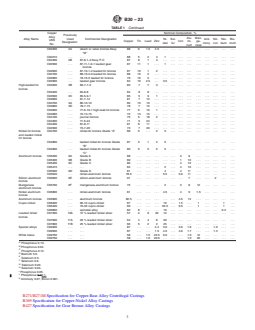

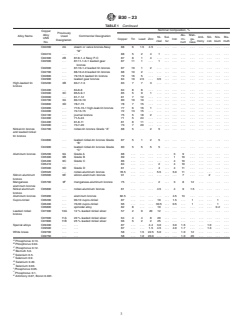

TABLE 1 Continued
Nominal Composition, %
Copper
Previously
Alloy
Alu- Man-
Alloy Name Used Commercial Designation
Ni- Sul- Anti- Sili- Nio- Bis-
UNS
Copper Tin Lead Zinc Iron mi- ga-
Designation
ckel fur mony con bium muth
No.
num nese
C92200 2A steam or valve bronze-Navy 88 6 1.5 4.5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
“M”
C92210 . . . . . . 88 5 2 4 1 . . . . . . . . . . . . . . . . . . . . . . . .
C92300 2B 87-8-1-4 Navy P-C 87 8 1 4 . . . . . . . . . . . . . . . . . . . . . . . . . . .
C92500 . . . 87-11-1-0-1 leaded gear 87 11 1 . . . 1 . . . . . . . . . . . . . . . . . . . . . . . .
bronze
C92600 . . . 87-10-1-2 leaded tin bronze 87 10 1 2 . . . . . . . . . . . . . . . . . . . . . . . . . . .
C92700 . . . 88-10-2-0 leaded tin bronze 88 10 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C92800 . . . 79-16-5 leaded tin bronze 79 16 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C92900 . . . leaded gear bronze 84 10 2.5 . . . 3.5 . . . . . . . . . . . . . . . . . . . . . . . .
High-leaded tin C93200 3B 83-7-7-3 83 7 7 3 . . . . . . . . . . . . . . . . . . . . . . . . . . .
bronze
C93400 . . . 84-8-8 84 8 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C93500 3C 85-5-9-1 85 5 9 1 . . . . . . . . . . . . . . . . . . . . . . . . . . .
C93600 . . . 81-7-12 81 7 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C93700 3A 80-10-10 80 10 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C93800 3D 78-7-15 78 7 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C93900 . . . 77-6-16-1 high-lead-tin bronze 77 6 16 1 . . . . . . . . . . . . . . . . . . . . . . . . . . .
C94000 . . . 72-13-15 72 13 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C94100 . . . journal bronze 75 5 18 2 . . . . . . . . . . . . . . . . . . . . . . . . . . .
C94300 . . . 71-5-24 71 5 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C94400 . . . 81-8-11 81 8 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C94500 . . . 73-7-20 73 7 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nickel-tin bronze C94700 . . . nickel-tin bronze Grade “A” 88 5 . . . 2 5 . . . . . . . . . . . . . . . . . . . . . . . .
and leaded nickel
tin bronze
C94800 . . . leaded nickel-tin bronze Grade 87 5 1 2 5 . . . . . . . . . . . . . . . . . . . . . . . .
“B”
C94900 . . . leaded nickel-tin bronze Grade 80 5 5 5 5 . . . . . . . . . . . . . . . . . . . . . . . .
“C”
Aluminum bronze C95200 9A Grade A 88 . . . . . . . . . . . . . . . 3 9 . . . . . . . . . . . . . . .
C95300 9B Grade B 89 . . . . . . . . . . . . . . . 1 10 . . . . . . . . . . . . . . .
C95400 9C Grade C 86 . . . . . . . . . . . . . . . 4 10 . . . . . . . . . . . . . . .
C95410 . . . . . . 84 . . . . . . . . . 2 . . . 4 10 . . . . . . . . . . . . . . .
C95500 9D Grade D 81 . . . . . . . . . 4 . . . 4 11 . . . . . . . . . . . . . . .
C95520 . . . nickel-aluminum bronze 78.5 . . . . . . . . . 5.5 . . . 5.0 11 . . . . . . . . . . . . . . .
Silicon aluminum C95600 9E silicon-aluminum bronze 91 . . . . . . . . . . . . . . . . . . 7 . . . . . . 2 . . . . . .
bronze
Manganese C95700 9F manganese-aluminum bronze 75 . . . . . . . . . 2 . . . 3 8 12 . . . . . . . . . . . .
aluminum bronze
Nickel aluminum C95800 . . . nickel-aluminum bronze 81 . . . . . . . . . 4.5 . . . 4 9 1.5 . . . . . . . . . . . .
bronze
Aluminum bronze C95900 . . . aluminum bronze 82.5 . . . . . . . . . . . . . . . 4.5 13 . . . . . . . . . . . . . . .
Cupro-nickel C96200 . . . 90-10 cupro-nickel 87 . . . . . . . . . 10 . . . 1.5 . . . 1 . . . . . . 1 . . .
C96400 . . . 70-30 cupro-nickel 66 . . . . . . . . . 30.5 . . . 0.5 . . . 1 . . . . . . 1 . . .
C96800 . . . spinodal alloy 82 8 . . . . . . 10 . . . . . . . . . . . . . . . . . . 0.2 . . .
Leaded nickel C97300 10A 12 % leaded nickel silver 57 2 9 20 12 . . . . . . . . . . . . . . . . . . . . . . . .
bronze
C97600 11A 20 % leaded nickel silver 64 4 4 8 20 . . . . . . . . . . . . . . . . . . . . . . . .
C97800 11B 25 % leaded nickel silver 66 5 2 2 25 . . . . . . . . . . . . . . . . . . . . . . . .
Special alloys C99400 . . . . . . 87 . . . . . . 4.4 3.0 . . . 3.0 1.6 . . . . . . 1.0 . . . . . .
C99500 . . . . . . 87 . . . . . . 1.5 4.5 . . . 4.0 1.7 . . . . . . 1.3 . . . . . .
White brass C99700 . . . . . . 58 . . . 1.5 22.5 5.0 . . . . . . 1.0 12 . . . . . . . . . . . .
C99750 . . . . . . 58 . . . 1.0 20.0 . . . . . . . . . 1.0 20 . . . . . . . . . . . .
A
Phosphorus 0.13.
B
Phosphorus 0.04.
C
Phosphorus 0.12.
D
Bismuth 5.0.
E
Selenium 0.5.
F
Selenium 0.9.
G
Selenium 0.20.
H
Selenium 0.03.
I
Phosphorus 0.05.
J
Phosphorus 0.10.1.
K
Antimony 0.07, Boron 0.001.
B271/B271M Specification for Copper-Base Alloy Centrifugal Castings
B369 Specification for Copper-Nickel Alloy Castings
B427 Specification for Gear Bronze Alloy Castings
B30 − 23

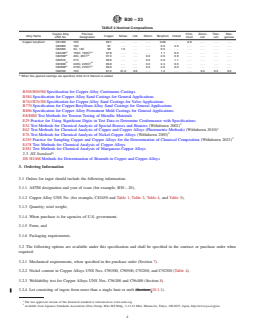

TABLE 2 Nominal Compositions
Copper Alloy Previous Chro- Zircon- Titan- Man-
Alloy Name Copper Nickel Iron Silicon Beryllium Cobalt
UNS No. Designation mium ium ium ganese
Copper beryllium C81400 70C 99.1 . . . . . . . . . 0.06 . . . 0.8 . . . . . . . . .
C82000 10C 97 . . . . . . . . . 0.5 2.5 . . . . . . . . . . . .
C82200 3C, 14C 98 1.5 . . . . . . 0.5 . . . . . . . . . . . . . . .
A A
C82400 165C, 165CT 97.8 . . . . . . . . . 1.7 0.5 . . . . . . . . . . . .
A A
C82500 20C, 20CT 97.2 . . . . . . 0.3 2.0 0.5 . . . . . . . . . . . .
C82510 21C 96.6 . . . . . . 0.3 2.0 1.1 . . . . . . . . . . . .
A A
C82600 245C, 245CT 96.8 . . . . . . 0.3 2.4 0.5 . . . . . . . . . . . .
A A
C82800 275C, 275CT 96.6 . . . . . . 0.3 2.6 0.5 . . . . . . . . . . . .
C96700 72C 67.2 31.0 0.6 . . . 1.2 . . . . . . 0.3 0.3 0.6
A
When fine grained castings are specified, 0.02–0.12 titanium is added.
B505/B505M Specification for Copper Alloy Continuous Castings
B584 Specification for Copper Alloy Sand Castings for General Applications
B763/B763M Specification for Copper Alloy Sand Castings for Valve Applications
B770 Specification for Copper-Beryllium Alloy Sand Castings for General Applications
B806 Specification for Copper Alloy Permanent Mold Castings for General Applications
E8/E8M Test Methods for Tension Testing of Metallic Materials
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E54 Test Methods for Chemical Analysis of Special Brasses and Bronzes (Withdrawn 2002)
E62 Test Methods for Chemical Analysis of Copper and Copper Alloys (Photometric Methods) (Withdrawn 2010)
E76 Test Methods for Chemical Analysis of Nickel-Copper Alloys (Withdrawn 2003)
E255 Practice for Sampling Copper and Copper Alloys for the Determination of Chemical Composition (Withdrawn 2023)
E478 Test Methods for Chemical Analysis of Copper Alloys
E581 Test Methods for Chemical Analysis of Manganese-Copper Alloys
2.3 JIS Standard
JIS H1068 Methods for Determination of Bismuth in Copper and Copper Alloys
3. Ordering Information
3.1 Orders for ingot should include the following information:
3.1.1 ASTM designation and year of issue (for example, B30 – 20),
3.1.2 Copper Alloy UNS No. (for example, C83450 and Table 1, Table 2, Table 4, and Table 5),
3.1.3 Quantity; total weight,
3.1.4 When purchase is for agencies of U.S. government,
3.1.5 Form, and
3.1.6 Packaging requirements.
3.2 The following options are available under this specification and shall be specified in the contract or purchase order when
required:
3.2.1 Mechanical requirements, when specified in the purchase order (Section 7).
3.2.2 Nickel content in Copper Alloys UNS Nos. C90300, C90500, C92200, and C92300 (Table 4).
3.2.3 Weldability test for Copper Alloys UNS Nos. C96200 and C96400 (Section 8).
3.2.4 Lot consisting of ingots from more than a single heat or melt (Section (10.1.1).
The last approved version of this historical standard is referenced on www.astm.org.
Available from Japanese Standards Association (JSA) Group, Mita MT Bldg., 3-13-12 Mita, Minato-ku, Tokyo, 108-0073, Japan, http://www.jsa.or.jp/en.
B30 − 23
TABLE 3 Alloy/Specification Cross Reference
ASTM Copper Alloy Casting Specification
Copper Alloy UNS No.
B22/ B271/ B505/ B763/
B30 B61 B62 B66 B67 B148 B176 B369 B427 B584 B770 B806
B22M B271M B505M B763M
C81400 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C82000 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C82200 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C82400 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C82500 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C82510 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C82600 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C82800 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C83450 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . .
C83470 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . .
C83600 . . . X . . . X . . . . . . . . . . . . X . . . . . . X X . . . . . . . . .
C83800 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C84020 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C84030 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C84200 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C84400 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C84800 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C85200 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . . . .
C85400 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . . . .
C85470 . . . X . . . . . . . . . . . . . . . X X . . . . . . X X X . . . X
C85700 . . . X . . . . . . . . . . . . . . . X X . . . . . . X X X . . . . . .
C85800 . . . X . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . . . . . . . . . . .
C86100 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C86200 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C86300 X X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C86400 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . . . .
C86500 . . . X . . . . . . . . . . . . . . . X X . . . . . . X X X . . . . . .
C86700 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . . . .
C87300 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . . . .
C87400 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . . . .
C87500 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . X
C87600 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . X X . . . . . .
C87610 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . .
C87700 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . .
C87710 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . .
C87800 . . . X . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . . . . . . . . X
C87845 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C87850 . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . X
C89320 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C89510 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C89520 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C89530 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . .
C89535 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . .
C89537 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . X
C89540 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
C89545 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . .
C89570 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . X
C89720 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X X . . . . . .
C89833 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C89836 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C89838 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . .
C89844 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . .
C89845 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . .
C90300 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C90420 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C90500 X X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C90700 . . . X . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . . . . .
C90800 . . . X . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . .
C91000 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C91100 X X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C91300 X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C91600 . . . X . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . .
C91700 . . . X . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . .
C92200 . . . X X . . . . . . . . . . . . . . . X . . . . . . X X . . . . . . . . .
C92210 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C92300 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C92500 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C92600 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . .
C92700 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C92800 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C92900 . . . X . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . . . . . . . .
C93200 . . . X . . . . . . X . . . . . . . . . X . . . . . . X X X . . . . . .
C93400 . . . X . . . . . . X . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
B30 − 23
TABLE 3 Continued
ASTM Copper Alloy Casting Specification
Copper Alloy UNS No.
B22/ B271/ B505/ B763/
B30 B61 B62 B66 B67 B148 B176 B369 B427 B584 B770 B806
B22M B271M B505M B763M
C93500 . . . X . . . . . . . . . . . . . . . . . . X . . . . . . X X X . . . . . .
C93600 . . . X . . . . . . X . . . . . . . . . X . . . . . . X . . . . . . . . . . . .
C93700 X X . . . . . . X . . . . . . . . . X . . . . . . X X X . . . . . .
C93800 . . . X . . . . . . X . . . . . . . . . X . . . . . . X X X . . . . . .
C93900 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C94000 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C94100 . . . X . . . . . . . . . X . . . . . . . . . . . . . . . X . . . . . . . . . . . .
C94300 . . . X . . . . . . X . . . . . . . . . X . . . . . . X X X . . . . . .
C94400 . . . X . . . . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C94500 . . . X . . . . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C94700 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X X . . . . . .
C94800 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . X X X . . . . . .
C94900 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X . . . . . .
C95200 . . . X . . . . . . . . . . . . X . . . X . . . . . . X . . . X . . . . . .
C95300 . . . X . . . . . . . . . . . . X . . . X . . . . . . X . . . X . . . X
C95400 . . . X . . . . . . X . . . X . . . X . . . . . . X . . . X . . . X
C95410 . . . X . . . . . . . . . . . . X . . . X . . . . . . X . . . X . . . X
C95500 . . . X . . . . . . . . . . . . X . . . X . . . . . . X . . . X . . . X
C95520 . . . X . . . . . . . . . . . . X . . . X . . . . . . X . . . . . . . . . . . .
C95600 . . . X . . . . . . . . . . . . X . . . . . . . . . . . . . . . . . . X . . . . . .
C95700 . . . X . . . . . . . . . . . . X . . . . . . . . . . . . X . . . . . . . . . . . .
C95800 . . . X . . . . . . . . . . . . X . . . X . . . . . . X . . . X . . . X
C95900 . . . X . . . . . . . . . . . . X . . . X . . . . . . X . . . . . . . . . . . .
C96200 . . . X . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . . . . .
C96400 . . . X . . . . . . . . . . . . . . . . . . . . . X . . . X . . . . . . . . . . . .
C96700 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . .
C96800 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . . . . .
C97300 . . . X . . . . . . . . . . . . . . . X . . . . . . . . . X X X . . . . . .
C97600 . . . X . . . . . . . . . . . . . . . X . . . . . . . . . X X X . . . . . .
C97800 . . . X . . . . . . . . . . . . . . . X . . . . . . . . . X X X . . . . . .
C99400 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . .
C99500 . . . X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X . . . . . .
C99700 . . . X . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . . . . . . . . . . .
C99750 . . . X . . . . . . . . . . . . . . . X . . . . . . . . . . . . . . . . . . . . . . . .
3.2.5 Place of inspection (Section 14).
3.2.6 Type of ingot surface (5.1).
4. Material and Manufacture
4.1 Material—Any material may be used which when melted will produce an alloy of the required chemical composition and
mechanical requirements.
4.2 Manufacture:
4.2.1 Any manufacturing process may be used that will yield ingot of uniform composition that is free of defects of a nature that
would render the ingot unsuitable for remelting.
4.2.2 Each heat or lot of ingot shall maintain heat identification numbers.
5. Workmanship, Finish, and Appearance
5.1 The ingots or other remelt forms shall have the surface specified in the purchase order (3.2.6).
6. Chemical Composition
6.1 The ingot shall conform to the requirements given in Table 4 or Table 5 for the specified alloy. Ingot is an intermediate product,
therefore the limits listed in Table 4 and Table 5 may be more restrictive than those applicable for cast products produced from
the ingot after remelting.
B30 − 23
TABLE 4 Ingot Chemical Requirements
Composition, % max except as indicated
Copper Corresponding
Classifi- Alloy ASTM
Nickel Alu- Man-
Anti- Phos- Sili- Bis-
cation UNS Casting
Copper Tin Lead Zinc Iron (incl Sulfur mi- ga- Other
mony phorus con muth A
No. Specifications
Cobalt) num nese
Leaded red C83450 87.0– 2.2– 1.5– 5.8– 0.25 0.25 0.8– 0.08 0.03 0.005 . . . 0.005 . . . . . . B584 (C83450)
B,C
brass 89.0 3.0 2.5 7.5 1.5 B763/B763M (C83450)
Low-lead C83470 90.0– 3.0– 0.09 1.0– 0.50 0.20 1.0 0.20– 0.10 0.01 . . . 0.01 . . . . . . B584 (C83470)
B,D
sulfur tin 96.0 5.0 3.0 0.6
bronze
Leaded red C83600 84.0– 4.3– 4.0– 4.3– 0.25 0.25 0.8 0.08 0.03 0.005 . . . 0.005 . . . . . . B62 (C83600)
B,C
brass 86.0 6.0 5.7 6.0 B271/B271M (C83600)
B505/B505M (C83600)
B584 (C83600)
C83800 82.0– 3.5– 5.8– 5.5– 0.25 0.25 0.8 0.08 0.02 0.005 . . . 0.005 . . . . . . B584 (C83800)
B,C
83.5 4.2 6.8 8.0 B271/B271M (C83800)
B505/B505M (C83800)
B763/B763M (C83800)
Low-lead C84020 82.0– 2.0– 0.09 5.0– 0.40 0.02 0.50– 0.10– 0.05 0.005 0.20 0.005 . . . B B584 (C84020)
C
semi-red 89.0 4.0 14.0 2.0 0.65 0.10
brass C
0.10
Ti
0.10
Zr
0.10
C84030 82.0– 2.0– 0.09 5.0– 0.40 0.10– 0.50– 0.10– 0.05 0.005 0.20 0.005 . . . B B584 (C84030)
C
89.0 4.0 14.0 1.5 2.0 0.65 0.10
C
0.10
Ti
0.10
Zr
0.10
Leaded C84200 78.0– 4.3– 2.0– 10.0– 0.35 0.25 0.8 0.08 0.02 0.005 . . . 0.005 . . . . . . B505/B505M (C84200)
B,C
semi-red 82.0 6.0 2.8 16.0
brass
C84400 79.0– 2.5– 6.3– 7.0– 0.35 0.25 0.8 0.08 0.02 0.005 . . . 0.005 . . . . . . B584 (C84400)
B,C
82.0 3.5 7.7 10.0 B271/B271M (C84400)
B505/B505M (C84400)
B763/B763M (C84400)
C84800 75.0– 2.3– 5.5– 13.0– 0.35 0.25 0.8 0.08 0.02 0.005 . . . 0.005 . . . . . . B584 (C84800)
B,C
76.7 3.0 6.7 16.0 B271/B271M (C84800)
B505/B505M (C84800)
B763/B763M (C84800)
Leaded C85200 70.0– 0.8– 1.5– 21.0– 0.50 0.20 0.8 0.05 0.01 0.005 . . . 0.05 . . . . . . B271/B271M (C85200)
B,E
yellow 73.0 1.7 3.5 27.0 B584 (C85200)
brass B763/B763M (C85200)
C85400 66.0– 0.50– 1.5– 25.0– 0.50 . . . 0.8 . . . . . . 0.005 . . . 0.05 . . . . . . B271/B271M (C85400)
B,F
69.0 1.5 3.5 31.0 B584 (C85400)
B763/B763M (C85400)
Yellow C85470 60.0– 1.0– 0.09 Rem 0.20 . . . . . . . . . 0.02– 0.10– . . . 0.40– . . . . . . B176 (C85470)
D
brass 65.0 4.0 0.25 1.0 1.0 B271/B271M (C85470)
B505/B505M (C85470)
B584 (C85470)
B763/B763M (C85470)
B806 (C85470)
Leaded C85700 58.0– 0.50– 0.8– 33.0– 0.50 . . . 0.8 . . . . . . 0.80 . . . 0.05 . . . . . . B271/B271M (C85700)
B,G
yellow 63.0 1.5 1.5 40.0 B176 (C85700)
brass B584 (C85700)
B763/B763M (C85700)
B763/B763M (C85710)
C85800 57.0 1.5 1.5 31.0– 0.50 0.05 0.50 0.05 0.01 0.50 0.25 0.25 . . . 0.05 B176
B,G
min 41.0 As
C86100 66.0– 0.10 0.10 rem- 2.0– . . . . . . . . . . . . 4.5– 2.5– . . . . . . . . .
B,H
68.0 ain- 4.0 5.5 5.0
der
High- C86200 60.0– 0.10 0.10 22.0– 2.0– . . . 0.8 . . . . . . 3.0– 2.5– . . . . . . . . . B271/B2
...
