ASTM D2464-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D2464 − 15 D2464 − 23 An American National Standard
Standard Specification for
Threaded Poly(Vinyl Chloride) (PVC) Plastic Pipe Fittings,
Schedule 80
This standard is issued under the fixed designation D2464; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification covers poly(vinyl chloride) (PVC) threaded Schedule 80 pipe fittings. Included are requirements for
materials, workmanship, dimensions, and burst pressure.
NOTE 1—Threaded CPVC plastic pipe fittings, Schedule 80, which were formerly included in this standard, are now covered by Specification F437.
1.2 The products covered by this specification are intended for use with the distribution of pressurized liquids only, which are
chemically compatible with the piping materials. Due to inherent hazards associated with testing components and systems with
compressed air or other compressed gases some manufacturers do not allow pneumatic testing of their products. Consult with
specific product/component manufacturers for their specific testing procedures prior to pneumatic testing.
NOTE 2—Pressurized (compressed) air or other compressed gases contain large amounts of stored energy which present serious safety hazards should a
system fail for any reason.
1.3 The text of this specification references notes, footnotes, and appendixes which provide explanatory material. These notes and
footnotes (excluding those in tables and figures) shall not be considered as requirements of the specification.
1.4 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are provided for
information only.
1.5 The following safety hazards caveat pertains only to the test method portion, Section 8, of this specification.This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety and healthsafety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
This specification is under the jurisdiction of ASTM Committee F17 on Plastic Piping Systems and is the direct responsibility of Subcommittee F17.10 on Fittings.
Current edition approved March 1, 2015Sept. 1, 2023. Published July 2015September 2023. Originally approved in 1965. Last previous edition approved in 20132015
as D2464 – 13.D2464 – 15. DOI: 10.1520/D2464-15.10.1520/D2464-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D2464 − 23
D618 Practice for Conditioning Plastics for Testing
D1599 Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings
D1600 Terminology for Abbreviated Terms Relating to Plastics
D1784 Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated
Poly(Vinyl Chloride) (CPVC) Compounds
D2122 Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings
F412 Terminology Relating to Plastic Piping Systems
F437 Specification for Threaded Chlorinated Poly(Vinyl Chloride) (CPVC) Plastic Pipe Fittings, Schedule 80
F1498 Specification for Taper Pipe Threads 60° for Thermoplastic Pipe and Fittings
2.2 Federal Standard:
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
2.3 Military Standard:
MIL-STD-129 Marking for Shipment and Storage
2.4 NSF Standard:
Standard No. 14 for Plastic Piping Components and Related Materials
Standard No. 61 for Drinking Water Systems Components—Health Effects
3. Terminology
3.1 General—General—DefinitionsDefinitions are in accordance with Terminology F412, and abbreviations are in accordance
with Terminology D1600, unless otherwise indicated. The abbreviation for poly(vinyl chloride) plastic is PVC.
4. Classification
4.1 General—This specification covers threaded Schedule 80 PVC pipe fittings, made from fourtwo PVC plastic compounds and
intended for use with threaded Iron Pipe Size (IPS) outside-diameter plastic pipe.
4.1.1 Fittings covered by this specification are normally molded. In-line fittings, such as couplings, unions, bushings, caps, nipples,
etc., shall be molded or machined from extruded stock.
4.1.2 Fittings fabricated by back welding or butt fusion are not included in this specification.
5. Materials and Manufacture
5.1 This specification covers PVC pipe fittings made from two PVC plastics as classified in Specification D1784. These are cell
classifications 12454 and 14333.
NOTE 3—Mechanical strength, heat deflection temperature, and flammability requirements are covered in Specification D1784.
5.2 Rework Material—The manufacturers shall use only their own clean rework fitting material and the fittings produced shall
meet all the requirements of this specification.
6. Requirements
6.1 Dimensions and Tolerances:
6.1.1 The dimensions and tolerances of the fittings shall be as shown in Table 1 and Table 2 when measured in accordance with
Test Method D2122. Minimum dimensions have zero negative tolerances. Bushings shall have thread lengths applicable to the
corresponding sizes. Counterbore is optional, is not shown in Table 1, and is not included in the center-to-end or end-to-end
dimensions.
6.1.2 Fittings Not Illustrated—All fittings, whether illustrated in Table 1 and Table 2 or not, shall have wall thicknesses and thread
dimensions conforming to 6.1 and 6.2.
DLA Document Services Building 4/D 700 Robbins Avenue Philadelphia, PA 19111-5094 http://quicksearch.dla.mil/
Available from NSF International, P.O. Box 130140, 789 N. Dixboro Rd., Ann Arbor, MI 48113-0140, http://www.nsf.org.
D2464 − 23
A

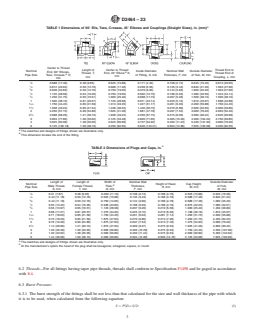

TABLE 1 Dimensions of 90° Ells, Tees, Crosses, 45° Elbows and Couplings (Straight Sizes), in. (mm)
Center to Thread
Length of Thread End to
Center to Thread
Nominal Inside Diameter Nominal Wall Outside Diameter
End, 90° Elbows,
B
Thread, T, Thread End of
End, 45° Elbow, K,
B
Pipe Size Tees, Crosses, H, of Fitting, D, min Thickness, F, min of Hub, M, min
min
min Coupling, L, min
min
⁄8 0.688 (17.48) 0.38 (9.65) 0.625 (15.88) 0.171 (4.34) 0.108 (2.74) 0.645 (16.40) 0.813 (20.65)
⁄4 0.812 (20.63) 0.50 (12.70) 0.688 (17.48) 0.258 (6.55) 0.135 (3.43) 0.840 (21.30) 1.063 (27.00)
⁄8 0.938 (23.83) 0.50 (12.70) 0.750 (19.05) 0.379 (9.63) 0.144 (3.66) 1.000 (25.40) 1.063 (27.00)
⁄2 1.125 (28.58) 0.64 (16.26) 0.750 (19.05) 0.502 (12.75) 0.198 (5.03) 1.280 (32.50) 1.344 (34.14)
⁄4 1.250 (31.75) 0.65 (16.51) 1.000 (25.40) 0.698 (17.73) 0.207 (5.26) 1.500 (38.10) 1.500 (38.10)
1 1.500 (38.10) 0.81 (20.57) 1.125 (28.58) 0.911 (23.14) 0.225 (5.72) 1.810 (45.97) 1.688 (42.88)
1 ⁄4 1.750 (44.45) 0.85 (21.59) 1.313 (33.35) 1.227 (31.17) 0.261 (6.63) 2.200 (55.88) 1.750 (44.45)
1 ⁄2 1.938 (49.23) 0.85 (21.54) 1.438 (36.53) 1.446 (36.73) 0.270 (6.86) 2.500 (63.50) 2.000 (50.80)
2 2.250 (57.15) 0.90 (22.86) 1.625 (41.28) 1.881 (47.78) 0.297 (7.54) 3.000 (76.20) 2.063 (52.40)
2 ⁄2 2.688 (68.28) 1.21 (30.73) 1.938 (49.23) 2.250 (57.15) 0.315 (8.00) 3.580 (90.42) 2.625 (66.68)
3 3.063 (77.80) 1.30 (33.02) 2.125 (53.48) 2.820 (71.65) 0.405 (10.29) 4.300 (104.22) 2.750 (69.85)
4 3.625 (92.08) 1.38 (35.05) 2.625 (66.68) 3.737 (94.92) 0.450 (11.43) 5.430 (137.92) 3.000 (76.20)
6 5.125 (130.18) 1.50 (38.10) 3.250 (82.55) 5.646 (143.41) 0.504 (12.80) 7.625 (193.68) 3.250 (82.55)
A
The sketches and designs of fittings shown are illustrative only.
B
This dimension locates the end of the fitting.
A

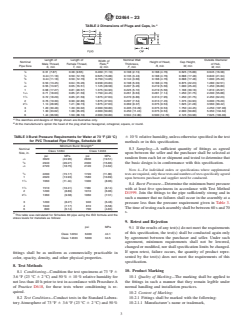

TABLE 2 Dimensions of Plugs and Caps, in.
Length of Length of Nominal Wall Outside Diameter
Width of
Nominal Height of Head, Cap Height,
B
Male Thread, Female Thread, Thickness, of Hub,
Flats,
Pipe Size R, min W, min
Q, min
S, min T, min F, min M, min
⁄8 0.31 (7.87) 0.38 (9.65) 0.469 (11.19) 0.108 (2.74) 0.188 (4.76) 0.625 (15.88) 0.645 (16.38)
⁄4 0.44 (11.18) 0.50 (12.70) 0.625 (15.88) 0.135 (3.43) 0.188 (4.76) 0.688 (17.48) 0.840 (21.34)
⁄8 0.44 (11.18) 0.50 (12.70) 0.750 (14.05) 0.144 (3.66) 0.188 (4.76) 0.688 (17.48) 1.000 (25.40)
⁄2 0.53 (13.45) 0.64 (16.26) 0.938 (23.83) 0.198 (5.03) 0.188 (4.76) 0.875 (22.23) 1.280 (32.51)
⁄4 0.55 (13.97) 0.65 (16.51) 1.125 (28.58) 0.207 (5.26) 0.219 (5.56) 1.000 (25.40) 1.450 (36.80)
1 0.68 (17.27) 0.81 (20.57) 1.375 (34.93) 0.225 (5.72) 0.219 (5.56) 1.188 (30.18) 1.810 (45.97)
1 ⁄4 0.71 (18.03) 0.85 (21.59) 1.750 (44.45) 0.261 (6.63) 0.281 (7.14) 1.250 (31.75) 2.200 (55.88)
1 ⁄2 0.72 (18.29) 0.85 (21.59) 1.875 (47.63) 0.270 (6.8
...
