ASTM D5261-10(2018)
(Test Method)Standard Test Method for Measuring Mass per Unit Area of Geotextiles
Standard Test Method for Measuring Mass per Unit Area of Geotextiles
SIGNIFICANCE AND USE
5.1 This test method is used to determine if the geotextile material meets specifications for mass per unit area. This test method can be used for quality control to determine specimen conformance. This measurement allows for a simple control of the delivered material by a comparison of the mass per unit area of the delivered material and the specified mass per unit area.
5.2 The procedure in this test method may be used for acceptance testing of commercial shipments, but caution is advised since information about between-laboratory precision is incomplete. Comparative tests in accordance with 5.2.1 are advisable.
5.2.1 In case of a dispute arising from differences in reported test results when using the procedures in this test method for acceptance testing of commercial shipments, the purchaser and the manufacturer should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens that are as homogeneous as possible and which are from a lot of material of the type in question. The test specimen should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using the appropriate Student’s t-test and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the manufacturer must agree to interpret future test results in light of the known bias.
SCOPE
1.1 This test method covers and can be used as an index to the determination of mass per unit area of all geotextiles.
1.2 The values stated in SI units or other units shall be regarded separately as standard. The values stated in parentheses are provided for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Jun-2018
- Technical Committee
- D35 - Geosynthetics
- Drafting Committee
- D35.01 - Mechanical Properties
Relations
- Effective Date
- 01-Jul-2018
- Effective Date
- 01-Feb-2024
- Effective Date
- 01-May-2020
- Effective Date
- 01-Feb-2020
- Effective Date
- 15-Apr-2018
- Effective Date
- 01-Aug-2017
- Effective Date
- 01-Mar-2017
- Effective Date
- 01-Jan-2016
- Effective Date
- 15-Sep-2015
- Effective Date
- 01-Sep-2015
- Effective Date
- 01-Sep-2015
- Effective Date
- 01-Jul-2015
- Effective Date
- 01-Apr-2015
- Effective Date
- 01-Feb-2015
- Effective Date
- 01-Mar-2014
Overview
ASTM D5261-10(2018): Standard Test Method for Measuring Mass per Unit Area of Geotextiles is an internationally recognized standard published by ASTM International. This standard outlines procedures to determine the mass per unit area (also referred to as unit weight) of geotextiles, which are permeable textile materials used in geotechnical and civil engineering projects. Accurate measurement of mass per unit area is essential for quality control, specification compliance, and material comparison during construction projects involving geotextiles.
Key Topics
Purpose and Scope:
ASTM D5261-10(2018) provides a standardized method for measuring the mass per unit area across all types of geotextiles, including woven, nonwoven, and knitted fabrics. The scope covers:- Quality assurance and control of geotextile products
- Verifying compliance with specified mass requirements
- Acceptance testing for commercial shipments and dispute resolution through comparative testing
Test Method:
The procedure involves:- Preparing representative samples from a material lot
- Conditioning specimens in a controlled atmosphere (relative humidity 65% ± 5%, temperature 21°C ± 2°C)
- Weighing precisely cut specimens using a calibrated balance
- Calculating and averaging results to determine the material’s mass per unit area
Precision and Bias:
While the method is suitable for routine quality control, users should note that data on inter-laboratory precision is still developing. Comparative testing and statistical analysis, including Student’s t-test, are recommended for resolving bilateral discrepancies when using this standard for acceptance testing.Safety and Compliance:
Users of ASTM D5261 must ensure appropriate safety, health, and regulatory practices are followed, as the standard itself does not address all potential safety concerns.
Applications
The ASTM D5261-10(2018) standard is widely applied in engineering and construction industries where geotextiles are used. Key applications include:
Quality Control:
Ensuring geotextile rolls meet specified mass per unit area before they are utilized in projects, such as embankments, retaining walls, or roadbeds.Material Specification Compliance:
Providing objective data for manufacturers, suppliers, and purchasers to confirm that delivered geotextile products conform to required technical specifications.Project Documentation:
Supporting documentation for submittals in infrastructure and environmental projects, demonstrating compliance with regulatory and project requirements.Commercial Transactions:
Aiding in the resolution of disputes between buyers and suppliers regarding delivered product properties, by enabling standardized verification.
Related Standards
Several ASTM and ISO standards are referenced in or associated with ASTM D5261-10(2018):
- ASTM D1776/D1776M: Practice for Conditioning and Testing Textiles
- ASTM D4354: Practice for Sampling of Geosynthetics and Rolled Erosion Control Products for Testing
- ASTM D4439: Terminology for Geosynthetics
- ISO 9864: Geotextiles - Determination of Mass per Unit Area
These related standards address terminology, sampling methods, specimen preparation, and conditioning procedures, ensuring consistency and reliability when testing geotextile materials.
By adhering to ASTM D5261-10(2018), stakeholders achieve reliable quality assurance for geotextiles, contributing to the durability, safety, and performance of civil engineering works. Ensuring accurate measurement and reporting of geotextile mass per unit area supports effective project execution and regulatory compliance.
Get Certified
Connect with accredited certification bodies for this standard
Control Union Certifications
Global certification for agriculture and sustainability.
Bureau Veritas Bangladesh
Bureau Veritas certification services in Bangladesh.
ECOCERT France
Leader in organic and sustainability certification worldwide.
Sponsored listings
Frequently Asked Questions
ASTM D5261-10(2018) is a standard published by ASTM International. Its full title is "Standard Test Method for Measuring Mass per Unit Area of Geotextiles". This standard covers: SIGNIFICANCE AND USE 5.1 This test method is used to determine if the geotextile material meets specifications for mass per unit area. This test method can be used for quality control to determine specimen conformance. This measurement allows for a simple control of the delivered material by a comparison of the mass per unit area of the delivered material and the specified mass per unit area. 5.2 The procedure in this test method may be used for acceptance testing of commercial shipments, but caution is advised since information about between-laboratory precision is incomplete. Comparative tests in accordance with 5.2.1 are advisable. 5.2.1 In case of a dispute arising from differences in reported test results when using the procedures in this test method for acceptance testing of commercial shipments, the purchaser and the manufacturer should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens that are as homogeneous as possible and which are from a lot of material of the type in question. The test specimen should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using the appropriate Student’s t-test and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the manufacturer must agree to interpret future test results in light of the known bias. SCOPE 1.1 This test method covers and can be used as an index to the determination of mass per unit area of all geotextiles. 1.2 The values stated in SI units or other units shall be regarded separately as standard. The values stated in parentheses are provided for information only. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 This test method is used to determine if the geotextile material meets specifications for mass per unit area. This test method can be used for quality control to determine specimen conformance. This measurement allows for a simple control of the delivered material by a comparison of the mass per unit area of the delivered material and the specified mass per unit area. 5.2 The procedure in this test method may be used for acceptance testing of commercial shipments, but caution is advised since information about between-laboratory precision is incomplete. Comparative tests in accordance with 5.2.1 are advisable. 5.2.1 In case of a dispute arising from differences in reported test results when using the procedures in this test method for acceptance testing of commercial shipments, the purchaser and the manufacturer should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens that are as homogeneous as possible and which are from a lot of material of the type in question. The test specimen should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using the appropriate Student’s t-test and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the manufacturer must agree to interpret future test results in light of the known bias. SCOPE 1.1 This test method covers and can be used as an index to the determination of mass per unit area of all geotextiles. 1.2 The values stated in SI units or other units shall be regarded separately as standard. The values stated in parentheses are provided for information only. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D5261-10(2018) is classified under the following ICS (International Classification for Standards) categories: 59.080.70 - Geotextiles. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D5261-10(2018) has the following relationships with other standards: It is inter standard links to ASTM D5261-10, ASTM D4439-24, ASTM D4354-12(2020), ASTM D1776/D1776M-20, ASTM D4439-18, ASTM D4439-17, ASTM D123-17, ASTM D1776/D1776M-16, ASTM D123-15b, ASTM D123-15a, ASTM D4439-15a, ASTM D4439-15, ASTM D123-15, ASTM D1776/D1776M-15, ASTM D4439-14. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D5261-10(2018) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

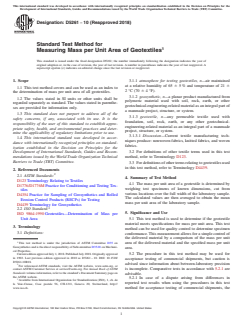

Designation: D5261 − 10 (Reapproved 2018)
Standard Test Method for
Measuring Mass per Unit Area of Geotextiles
This standard is issued under the fixed designation D5261; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3.1.1 atmosphere for testing geotextiles, n—air maintained
at a relative humidity of 65 6 5 % and temperature of 21 6
1.1 This test method covers and can be used as an index to
2 °C (70 6 4 °F).
the determination of mass per unit area of all geotextiles.
3.1.2 geosynthetic, n—a planar product manufactured from
1.2 The values stated in SI units or other units shall be
polymeric material used with soil, rock, earth, or other
regarded separately as standard. The values stated in parenthe-
geotechnical-engineering-related material as an integral part of
ses are provided for information only.
a manmade project, structure, or system.
1.3 This standard does not purport to address all of the
3.1.3 geotextile, n—any permeable textile used with
safety concerns, if any, associated with its use. It is the
foundation, soil, rock, earth, or any other geotechnical-
responsibility of the user of this standard to establish appro-
engineering-related material as an integral part of a manmade
priate safety, health, and environmental practices and deter-
project, structure, or system.
mine the applicability of regulatory limitations prior to use.
3.1.3.1 Discussion—Current textile manufacturing tech-
1.4 This international standard was developed in accor-
niques produce: nonwoven fabrics, knitted fabrics, and woven
dance with internationally recognized principles on standard-
fabrics.
ization established in the Decision on Principles for the
3.2 For definitions of other textile terms used in this test
Development of International Standards, Guides and Recom-
method, refer to Terminology D123.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
3.3 Fordefinitionsofothertermsrelatingtogeotextilesused
in this test method, refer to Terminology D4439.
2. Referenced Documents
2.1 ASTM Standards:
4. Summary of Test Method
D123 Terminology Relating to Textiles
4.1 The mass per unit area of a geotextile is determined by
D1776/D1776M Practice for Conditioning and Testing Tex-
weighing test specimens of known dimensions, cut from
tiles
various locations over the full width of the laboratory sample.
D4354 Practice for Sampling of Geosynthetics and Rolled
The calculated values are then averaged to obtain the mean
Erosion Control Products (RECPs) for Testing
mass per unit area of the laboratory sample.
D4439 Terminology for Geosynthetics
2.2 ISO Standard:
5. Significance and Use
ISO 9864:1990 Geotextiles—Determination of Mass per
Unit Area 5.1 This test method is used to determine if the geotextile
material meets specifications for mass per unit area. This test
3. Terminology
method can be used for quality control to determine specimen
3.1 Definitions:
conformance. This measurement allows for a simple control of
the delivered material by a comparison of the mass per unit
This test method is under the jurisdiction of ASTM Committee D35 on area of the delivered material and the specified mass per unit
Geosynthetics and is the direct responsibility of Subcommittee D35.01 on Mechani-
area.
cal Properties.
Current edition approved July 1, 2018. Published July 2018. Originally approved
5.2 The procedure in this test method may be used for
in 1992. Last previous edition approved in 2010 as D5261 – 10. DOI: 10.1520/
acceptance testing of commercial shipments, but caution is
D5261-10R18.
advised since information about between-laboratory precision
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
is incomplete. Comparative tests in accordance with 5.2.1 are
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
advisable.
the ASTM website.
5.2.1 In case of a dispute arising from differences in
Available from International Organization for Standardization (ISO), 1, ch. de
reported test results when using the procedures in this test
la Voie-Creuse, Case postale 56, CH-1211, Geneva 20, Switzerland, http://
www.iso.ch. method for acceptance testing of commercial shipments, the
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

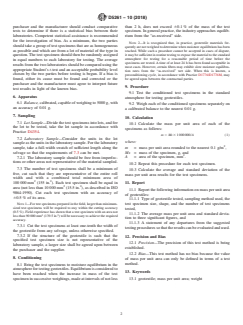

D5261 − 10 (2018)
purchaser and the manufacturer should conduct comparative than 2 h, does not exceed 60.1 % of the mass of the test
tests to determine if there is a statistical bias between their specimen. In general practice, the industry approaches equilib-
laboratories. Competent statistical assistance is recommended rium from the “as-received” side.
for the investigation of bias. As a minimum, the two parties
NOTE 2—It is recognized that, in practice, geotextile materials fre-
should take a group of test specimens that are as homogeneous
quently are not weighed to determine when moisture equilibrium has been
as possible and which are from a lot of material of the type in
reached. While such
...
