ASTM D1799-20

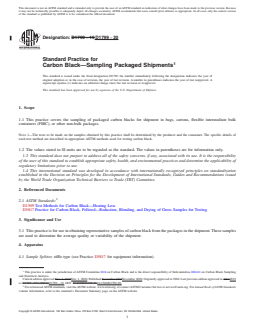

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

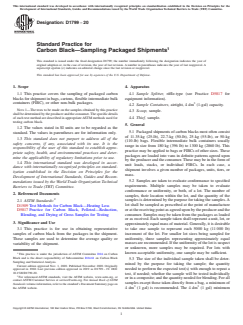

Designation: D1799 − 19 D1799 − 20
Standard Practice for
Carbon Black—Sampling Packaged Shipments
This standard is issued under the fixed designation D1799; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 This practice covers the sampling of packaged carbon blacks for shipment in bags, cartons, flexible intermediate bulk
containers (FIBC), or other non-bulk packages.
NOTE 1—The tests to be made on the samples obtained by this practice shall be determined by the producer and the consumer. The specific details of
each test method are described in appropriate ASTM methods used for testing carbon black.
1.2 The values stated in SI units are to be regarded as the standard. The values in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D1509 Test Methods for Carbon Black—Heating Loss
D5817 Practice for Carbon Black, Pelleted—Reduction, Blending, and Drying of Gross Samples for Testing
3. Significance and Use
3.1 This practice is for use in obtaining representative samples of carbon black from the packages in the shipment. These samples
are used to determine the average quality or variability of the shipment.
4. Apparatus
4.1 Sample Splitter, riffle-type (see Practice D5817 for equipment information).
This practice is under the jurisdiction of ASTM Committee D24 on Carbon Black and is the direct responsibility of Subcommittee D24.61 on Carbon Black Sampling
and Statistical Analysis.
Current edition approved Nov. 1, 2019Nov. 1, 2020. Published November 2019November 2020. Originally approved in 1960. Last previous edition approved in 20142019
as D1799 – 03a (2014).D1799 – 19. DOI: 10.1520/D1799-19.10.1520/D1799-20.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D1799 − 20
4.2 Sample Containers, airtight, 4 dm (1-gal) capacity.
4.3 Scoop, sample.
4.4 Thief, sample.
5. General
5.1 Packaged shipments of carbon blacks most often consist of 11.35-kg (25-lb), 22.7-kg (50-lb), 25-kg (55-lb), or 50-kg (110-lb)
bags. Flexible intermediate bulk containers usually range in size from 180 kg (396 lb) to 1300 kg (2860 lb). This practice may be
applied to bags or FIBCs of other sizes. These packages are loaded into vans in definite patterns agreed upon by the producer and
the consumer. These may be in the form of unit loads, stacks, or individual FIBCs. In each case, a shipment involves a given
number of packages, units, tiers, or mass.
5.2 Samples are taken to evaluate conformance to specified requirements. Multiple samples may be taken to evaluate conformance
or uniformity, or both, of a lot. The number of samples, their location within the lot, and the quantity of the samples is determined
by the purpose for taking the samples. A lot shall be sampled as prescribed at the point of manufacture or at the receiving point
as agreed upon by the producer and the consumer. Samples may be taken from the packages as loaded or as received. Each sample
taken shall represent a unit, lot, or approximately equal mass of material. Generally, it is desirable to take one sample to represent
each 5000 kg (11 000 lb) increment of the lot. For smaller lot sizes being sampled for uniformity, three samples representing
approximately equal masses are recommended. If the uniformity of the lot is suspect or unknown, more samples may be required.
For lots with known acceptable uniformity, one sample may be sufficient.
5.3 The size of the individual sample taken shall be determined by the purpose for taking the sample; the quantity needed to
perform the expected test(s) with enough to repeat a test, if needed; whether the sample will be tested individually or in a
composite; and the quantity needed for blending. For all samples except those taken directly from a bag, a minimum of 4 dm (1
gal) is recommended. The 4 dm (1 gal) minimum sample size is recommended because pelleted carbon blacks tend to stratify.
When sampling directly from an individual bag, the mass removed must be small enough that it does not adversely affect the final
mass remaining in the bag to render it unsuitable for use.
NOTE 2—Pellet quality tests may be erroneous due to a local or spotty condition unless the samples are blended through the sample splitter as described
in Practice D5817.
6. Sample Preparation and Handling
6.1 Store the samples in airtight containers until the tests are compl
...
