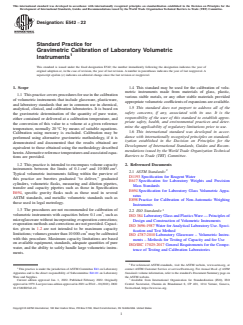

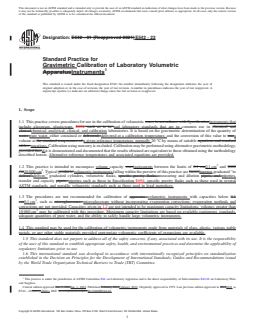

ASTM E542-22

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: E542 − 01 (Reapproved 2021) E542 − 22
Standard Practice for
Gravimetric Calibration of Laboratory Volumetric
ApparatusInstruments
This standard is issued under the fixed designation E542; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice covers procedures for use in the calibration of volumetric ware, in accordance with Specificationinstruments that
include glassware, plasticware, E694 such as is in and laboratory standards that are in common use in chemical and
clinicalchemical, analytical, clinical, and calibration laboratories. It is based on the gravimetric determination of the quantity of
water pure water, either contained or delivered, delivered at a calibration temperature, and the conversion of this value to truea
volume at the standard temperature of a given reference temperature, normally 20 °C by means of suitable equations and standard
tables. equations. Calibration using mercury is excluded. Calibration may be performed using alternative gravimetric methodology,
provided that if it is demonstrated and documented that the results obtained are equivalent to those obtained using the methodology
described herein. Alternative reference temperatures and associated equations are provided.
1.2 This practice is intended to encompass volume capacity wareinstruments between the limits of 0.1 cm0.1 cm and 2000
cm10 000 cm . Typical products volumetric instruments falling within the purview of this practice are buretsburettes graduated “to
deliver”,deliver,” graduated cylinders, volumetric flasks, specific gravity flasks, measuring and dilution pipets, and pipettes,
transfer and capacity pipets. pipettes such as those in Specification E694, specific gravity flasks such as those used in several
ASTM standards, and metallic volumetric standards such as those used in legal metrology.
1.3 The procedures are not recommended for calibration of apparatus volumetric instruments with capacities below 0.1
cm0.1 cm , such as microglassware. microglassware without incorporating evaporation corrections; evaporation methods and
corrections are not provided. Capacities given in 1.2 are not intended to be maximum capacity limitations; volumes greater than
10 000 cm may be calibrated with this procedure. Maximum capacity limitations are based on available equipment, standards,
adequate quantities of pure water, and the ability to safely handle large volumetric instruments.
1.4 This standard may be used for the calibration of volumetric instruments made from materials of glass, plastic, various stable
metals, or any other stable materials provided appropriate volumetric coefficients of expansions are available.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This practice is under the jurisdiction of ASTM Committee E41 on Laboratory Apparatus and is the direct responsibility of Subcommittee E41.01 on Laboratory Ware
and Supplies.
Current edition approved Jan. 1, 2021Jan. 1, 2022. Published February 2021February 2022. Originally approved in 1979. Last previous edition approved in 20122021 as
E542 – 01(2012).(2021). DOI: 10.1520/E0542-01R21.10.1520/E0542-22.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E542 − 22

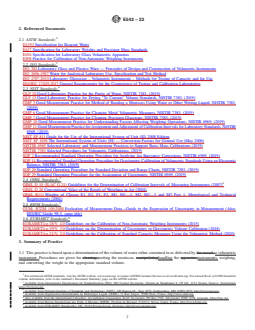

2. Referenced Documents
2.1 ASTM Standards:
D1193 Specification for Reagent Water
E617 Specification for Laboratory Weights and Precision Mass Standards
E694 Specification for Laboratory Glass Volumetric Apparatus
E898 Practice for Calibration of Non-Automatic Weighing Instruments
2.2 ISO Standards:
ISO 384 Laboratory Glass and Plastics Ware — Principles of Design and Construction of Volumetric Instruments
ISO 3696:1987 Water for Analytical Laboratory Use. Specification and Test Method
ISO 4787:2010 Laboratory Glassware – Volumetric Instruments – Methods for Testing of Capacity and for Use
ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories
2.3 NIST Standards:
GLP 10 Good Laboratory Practice for the Purity of Water, NISTIR 7383, (2019)
GLP 13 Good Laboratory Practice for Drying “To Contain” Volume Standards, NISTIR 7383, (2019)
GMP 3 Good Measurement Practice for Method of Reading a Meniscus Using Water or Other Wetting Liquid, NISTIR 7383,
(2019)
GMP 6 Good Measurement Practice for Cleaning Metal Volumetric Measures, NISTIR 7383, (2019)
GMP 7 Good Measurement Practice for Cleaning Precision Glassware, NISTIR 7383, (2019)
GMP 10 Good Measurement Practice for Understanding Factors Affecting Weighing Operations, NISTIR 6969, (2019)
GMP 11 Good Measurement Practice for Assignment and Adjustment of Calibration Intervals for Laboratory Standards, NISTIR
6969, (2019)
NIST SP 811 Guide for the Use of the International System of Unit (SI) 2008 Edition
NIST SP 1038 The International System of Units (SI) — Conversion Factors for General Use (May 2006)
NISTIR 6969 Selected Laboratory and Measurement Practices to Support Basic Mass Calibrations (2019)
NISTIR 7383 Selected Procedures for Volumetric Calibrations, (2019)
SOP 2 Recommended Standard Operating Procedure for Applying Air Buoyancy Corrections, NISTIR 6969, (2019)
SOP 14 Recommended Standard Operating Procedure for Gravimetric Calibration of Volumetric Standards Using an Electronic
Balance, NISTIR 7383, (2019)
SOP 20 Standard Operating Procedure for Standard Deviation and Range Charts, NISTIR 7383, (2019)
SOP 29 Standard Operating Procedure for the Assignment of Uncertainty, NISTIR 6969, (2019)
2.4 OIML Standards:
OIML D 10 (ILAC G-24) Guidelines for the Determination of Calibration Intervals of Measuring Instruments (2007)
OIML D 28 Conventional Value of the Result of Weighing in Air (2004)
OIML R111 Weights of Classes E1, E2, F1, F2, M1, M1—2, M2, M2—3 and M3 Part 1: Metrological and Technical
Requirements (2004)
2.5 BIPM Standards:
GUM: JCGM 100:2008 Evaluation of Measurement Data—Guide to the Expression of Uncertainty in Measurement (Also:
ISO/IEC Guide 98-3, same title)
2.6 EURAMET Standards:
EURAMET/cg-18/V. 4.0 Guidelines on the Calibration of Non-Automatic Weighing Instruments (2015)
EURAMET/cg-19/V. 3.0 Guidelines on the Determination of Uncertainty in Gravimetric Volume Calibration (2018)
EURAMET/cg-21/V. 2.0 Guidelines on the Calibration of Standard Capacity Measures Using the Volumetric Method (2020)
3. Summary of Practice
3.1 This practice is based upon a determination of the volume of water either contained in or delivered by the vessel. a volumetric
instrument. Procedures are given for cleaning, setting the meniscus, manipulatinghandling the apparatus,instruments, weighing,
and converting the weight to the appropriate standard volume.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from International Organization for Standardization (ISO), ISO Central Secretariat, Chemin de Blandonnet 8, CP 401, 1214 Vernier, Geneva, Switzerland,
https://www.iso.org.
Available from National Institute of Standards and Technology (NIST), 100 Bureau Dr., Stop 1070, Gaithersburg, MD 20899-1070, http://www.nist.gov.
Available from Organisation Internationale de Metrologie Legale (OIML), 11 Rue Turgot, 75009 Paris, France, http://www.oiml.org.
Also available from the International Laboratory Accreditation Cooperation, ILAC Secretariat, PO Box 7507, Silverwater NSW 2128, Australia, https://ilac.org.
Available from Bureau International des Poids et Mesures (BIPM), Pavilion de Breteuil, F-92312, Sèvres Cedex, France, http://www.bipm.org.
Available from EURAMET, Bundesallee 100, 38116 Braunschweig, Germany, http://www.euramet.org.
E542 − 22

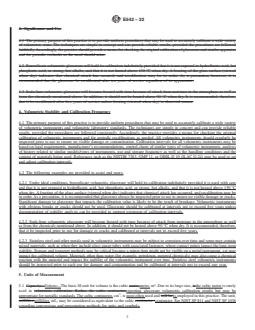

4. Significance and Use
4.1 The primary purpose of this practice is to provide uniform procedures that may be used to accurately calibrate a wide variety
of volumetric ware. The techniques are simple in concept and can provide reliable results, provided the procedures are followed
faithfully. Accordingly, the practice should provide a means for checking the original calibration of glassware and similar apparatus
and for periodic rechecks as the need should arise.
4.2 Borosilicate volumetric glassware will hold its calibration indefinitely provided that it is not exposed to hydrofluoric acid, hot
phosphoric acid, or strong, hot alkalis, and that it is not heated above 150 °C when dry. A frosting of the glass surface (viewed
when dry) indicates that chemical attack has occured, and recalibration may be in order. As a precaution, however, it is
recommended that the glassware be recalibrated after ten years of service regardless of its appearance.
4.3 Soda-lime volumetric glassware will become frosted with time because of attack from moisture in the atmosphere as well as
from the chemicals mentioned above. In addition, it should not be heated above 90 °C when dry. It is recommended, therefore,
that it be recalibrated after five years of service unless frosting (viewed when dry) is observed sooner.
4. Volumetric Stability and Calibration Frequency
4.1 The primary purpose of this practice is to provide uniform procedures that may be used to accurately calibrate a wide variety
of volumetric instruments and volumetric laboratory standards. The techniques are simple in concept and can provide reliable
results, provided the procedures are followed consistently. Accordingly, the practice provides a means for checking the original
calibration of volumetric instruments and for periodic recalibrations as needed. All volumetric instruments should regularly be
inspected prior to use to ensure no visible damage or contamination. Calibration intervals for all volumetric instruments may be
based on legal requirements, manufacturer’s recommendations, control charts of similar types of volumetric instruments, analysis
of history related to similar models/types of instruments, use and storage frequency as well as the handling conditions and the
content of materials being used. References such as the NISTIR 7383, GMP 11, or OIML D 10 (ILAC G-24) may be used to set
and adjust calibration intervals.
4.2 The following examples are provided to assist end users:
4.2.1 Under ideal conditions, borosilicate volumetric glassware will hold its calibration indefinitely provided it is used with care
and that it is not exposed to hydrofluoric acid, hot phosphoric acid, or strong, hot alkalis, and that it is not heated above 150 °C
when dry. A frosting of the glass surface (viewed when dry) indicates that chemical attack has occurred, and recalibration may be
in order. As a precaution, it is recommended that glassware always be inspected prior to use to ensure no visible damage or cracks.
Significant damage to glassware that impacts the calibration value is likely to be the result of breakage. Volumetric instruments
with obvious breaks or cracks should not be used. Glassware should be calibrated at intervals not to exceed five years unless
documentation of stability analysis can be provided to support extension of calibration intervals.
4.2.2 Soda-lime volumetric glassware will become frosted with time because of attack from moisture in the atmosphere as well
as from the chemicals mentioned above. In addition, it should not be heated above 90 °C when dry. It is recommended, therefore,
that it be inspected prior to use for damage or cracks and calibrated at intervals not to exceed five years.
4.2.3 Stainless steel and other metals used in volumetric instruments may be subject to corrosion over time and some may contain
mixed materials, such as when they include glass gauge tubes with associated fasteners, where contact points impact the long-term
stability. Storage and transport methods may be critical because a minor dent might not be visible on a metal instrument, yet may
impact the calibrated volume. Materials other than water (for example, petroleum, metered chemicals) may also cause a chemical
reaction with the material and impact the stability of the volumetric instrument over time. Stainless steel volumetric instruments
should be inspected prior to each use for damage and contamination and be calibrated at intervals not to exceed one year.

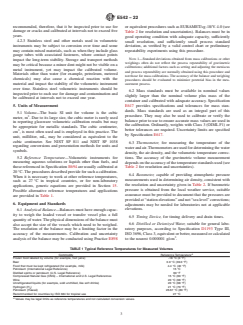

5. Units of Measurement
5.1 Capacity—Volume—The basic SI unit for volume is the cubic metre,meter, m . Due to its large size, it the cubic meter is rarely
used in volumetric calibration. Rather, the cubic centimetre,reporting glassware volumetric calibration results but may be
appropriate for metallic standards. The cubic centimeter, cm , is most often used and will be is employed in this practice. The unit,
millilitre,milliliter, mL, may be considered as equivalent to the cubic centimetre. centimeter. See NIST SP 811 and NIST SP 1038
regarding conversions and presentation methods for units and symbols.
E542 − 22

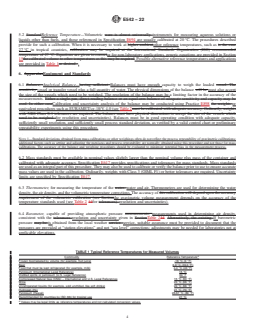

5.2 StandardReference Temperature—Volumetric ware is almost universally instruments for measuring aqueous solutions or
liquids other than fuels, and those referenced in Specification E694 are usually calibrated at 20 °C. The procedures described
provide for such a calibration. When it is necessary to work at higher ambientother reference temperatures, such as is the case
27 °C in tropical countries, calibration may be required at the International Standards Organization (ISO) recommended
temperature of 27 °C. Equations are given to corrector for non-laboratory applications, generic equations are provided in Section
15the calibrated volume to other temperatures as this may be required. Possible alternative reference temperatures and applications
are provided in Table 1or desired. .
6. ApparatusEquipment and Standards
6.1 Balance, Analytical Balance—having sufficient Balances must have enough capacity to weigh the loaded vessel. The
sensitivity vessel or transfer vessel plus a full quantity of water. The physical dimensions of the balance will be must also accept
the size of the vessels which need to be weighed. The resolution of the balance may be a limiting factor in the accuracy of the
measurements. Either a single-pan, direct-reading balance or an equal-arm balance of adequate sensitivity and capacity may be
used. In either caseCalibration and uncertainty analysis of the balance may be conducted using Practice E898 the weights or
equivalent procedures such as EURAMET/cg-18/V. 4.0 (see Table 2must be calibrated with adequate accuracy. Ordinarily, weights
with NBS Class S-1 tolerances are required. The balance must have physical dimensions to accept the size of the vessels which
need to be weighed. for resolution and uncertainties). Balances must be in good operating condition with adequate capacity,
sufficiently small resolution, and sufficiently small process standard deviation, as verified by a valid control chart or preliminary
repeatability experiments using this procedure.
NOTE 1—Standard deviations obtained from mass calibrations or other weighings often do not reflect the process repeatability of gravimetric calibrations;
additional factors such as setting and adjusting the meniscus and process repeatability are normally obtained using this procedure and not those for mass
calibrations. The accuracy of the balance and weighing procedures should be evaluated to minimize potential bias in the measurement process.
6.2 Mass standards must be available in nominal values slightly larger than the nominal volume plus mass of the container and
calibrated with adequate accuracy. Specification E617 provides specifications and tolerances for mass standards. Mass standards
are used as an integral part of this procedure. They may also be used to calibrate or verify the balance prior to use to ensure accurate
mass values are used in the calibration. Ordinarily, weights with Class 3 (OIML F1) or better tolerances are required. Uncertainty
limits are specified by Specification E617.
6.3 Thermometer, for measuring the temperature of the water. water and air. Thermometers are used for determining the water
density, the air density, and the volumetric temperature corrections. The accuracy of this calibration will depend upon the accuracy
requirement of the volumetric calibration (see Sectionthe gravimetric volume measurement depends on the accuracy of the
temperature standards used (see Table 2 14for tolerances). resolution and uncertainties).
6.4 Barometer, capable of providing atmospheric pressure measurements, measurements used in determining air density,
consistent with the tolerances resolution and uncertainty given in SectionTable 214. Alternatively, the existing If barometric
pressure may be is obtained from the local weather service. service, suitable assurance must be provided to document that the
pressures are provided at “station elevations” and not “sea level” corrections; adjustments may be needed for laboratories not at
applicable elevations.
TABLE 1 Typical Reference Temperatures for Measured Volumes
A
Commodity Reference Temperature
Frozen food labeled by volume (for example, fruit juice) -18 °C (0 °F)
Beer 3.9 °C (39.0 °F)
Food that must be kept refrigerated (for example, milk) 4.4 °C (40 °F)
Petroleum (International Legal Reference) 15 °C
Distilled spirits or petroleum (U.S. Legal Reference) 60 °F
Compressed Natural Gas (CNG) – International and U.S. Legal References 15 °C (60 °F)
Wine 20 °C (68 °F)
Unrefrigerated liquids (for example, sold unchilled, like soft drinks) 20 °C (68 °F)
Hydrogen (H ) 21 °C (70 °F)
Petroleum (Hawaii) 26.67 °C (80 °F)
Recommended for countries by ISO 384 for tropical use 27 °C
A
Values may be legal limits as reference temperatures and not calculated conversion values.
E542 − 22

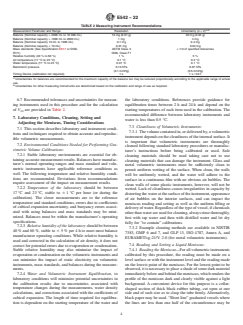

TABLE 2 Measuring Instrument Recommendations
A,B
Measurement Parameter and Range Resolution Uncertainty (k = 2)
Balance (Nominal capacity > 2000 mL to 10 000 mL) 10 mg (0.01 g) 40 mg (0.04 g)
Balance (Nominal capacity > 1000 mL to 2000 mL) 1 mg 4 mg
Balance (Nominal capacity 10 mL to 1000 mL) 0.1 mg 0.4 mg
Balance (Nominal capacity < 10 mL) 0.01 mg 0.04 mg
Mass standards (See Specification E617 or OIML ASTM Class 3 < 1/3 of specified tolerances
R111) OIML Class F1
Relative humidity (40 % to 60 %) 1 % 5 %
Air temperature (17 °C to 23 °C) 0.1 °C 0.2 °C
Water temperature (17 °C to 23 °C) 0.01 °C 0.1 °C
Barometric pressure 0.13 hPa 0.67 hPa
(0.1 mmHg) (0.5 mmHg)
Timing Device (calibration not required) 1 s 1 s / 24 h
A
Uncertainties for balances are recommended for the maximum capacity of the balance but may be reduced proportionally according to the applicable range of actual
use.
B
Uncertainties for other measuring instruments are determined based on the calibration and range of use as required.
6.5 Timing Device, for timing delivery and drain times.
6.6 Distilled or Deionized Water, suitable for general laboratory purposes. purposes, according to Specification D1193 Type III,
ISO 3696, Class 3, equivalent or better, measured or calculated to the nearest 0.000001 g/cm .
6.7 Recommended tolerances and uncertainties for measuring instruments used in this procedure and for the calculation of V are
provided in Table 2.
7. General Laboratory Conditions, Cleaning, Setting and Adjusting the Meniscus, Timing Considerations
7.1 This section describes manipulative laboratory and instrument conditions and techniques required to obtain accurate and
reproducible volumetric measurements.
7.2 Environmental Conditions Needed for Performing Gravimetric Volume Calibrations:
7.2.1 Stable laboratory environments are essential for obtaining accurate measurement results. Balances have manufacturer’s
normal operating ranges and mass standard and volumetric instruments have applicable reference conditions as well. The following
temperature and relative humidity conditions are recommended. Deviations from recommendations require assessment of the
impact on measurement results.
7.2.2 Temperature of the laboratory should be between 17 °C and 23 °C, stable to 6 1 °C per hour (or during the calibration). The
closer measurements are to the reference temperature and standard conditions, errors due to coefficients of cubical expansion
uncertainty, and buoyancy errors associated with using balances and mass standards may be minimized. Balances must be within
the manufacturer’s operating specifications.
7.2.3 Relative humidity of the laboratory should be between 40 % and 60 %, stable to 6 5 % per 4 h to meet most balance
manufacturer operating conditions. While relative humidity is used and corrected in the calculation of air density, it does not correct
for potential errors due to evaporation or condensation. Stable relative humidity may also minimize the impact of evaporation or
condensation on the volumetric instruments and can minimize the impact of static electricity on volumetric instruments, mass
standards, and balances during the measurements.
7.2.4 Water and Volumetric Instrument Equilibration, to laboratory conditions will minimize potential uncertainties in the
calibration results due to uncertainties associated with temperature changes during the measurements, water density calculations,
and corrections associated with the coefficients of cubical expansion. The length of time required for equilibration is dependent
on the starting temperature of the water and the laboratory conditions. References provide guidance for equilibration times between
2 h and 24 h and depend on the starting temperatures of each item used in the calibration. The recommended difference between
laboratory instruments and water is less than 0.5 °C.
7.3 Cleaning Procedures: Cleanliness of Volumetric Instruments:
E542 − 22
7.3.1 The volume contained in, or delivered by, a volumetric instrument depends on the cleanliness of the internal surface. It is
important that volumetric ware be thoroughly cleaned before being tested or used. Glass apparatus instruments are thoroughly
cleaned following standard laboratory procedures or manufacturer’s instructions before being calibrated or used. Safe cleaning
materials should be used taking care not to use cleaning materials that can damage the instrument. Glass and metal volumetric
instruments must be sufficiently clean to permit uniform wetting of the surface. When clean, the walls will be uniformly wetted,
and the water will adhere to the glass surface in a continuous film. film with no obvious air bubbles. The clean walls of some plastic
apparatus,instruments, however, will not be wetted. (Follow the instructions of the manufacturer. Do not use materials which will
attack, discolor, or swell the plasticware.) Lack of cleanliness causes irregularities in capacity by distorting the water surface. The
liquids usually used for cleaning glassware are sodium dichromatic-sulfuric acid cleaning solution (commercially available from
laboratory supply houses), nitric acid, fuming sulfuric acid, alcohol, and water. The choice of cleaning agent to be used depends
on the nature of the contaminant. After cleaning with the cleaning solution and thoroughly rinsing with tap water, the vessel should
be rinsed with distilled water. at the surface of the instrument, appearance of air bubbles on the interior surfaces, and can impact
the meniscus reading and setting as well as the uniform filling or delivery of water. Regardless of the type of vessel, if chemicals
other than water are used for cleaning, always rinse thoroughly, first with tap water and then with distilled water and let dry fully
for “to contain” calibrations.
7.3.2 After cleaning, the vessel should be rinsed with ethyl alcohol and dried with clean air at room temperature. It is not necessary
to dry any vessel marked “to deliver.” When cleaning small articles such as pipets, it is usually easier to fill them with cleaning
solution by suction, using a vacuum line, if available, or a small rubber bulb, but never by mouth. The solution should be drawn
through the pipet several times until the entire inside surface is evenly coated. Rinse thoroughly with tap water and then with
distilled water. For cleaning flasks, pour in enough cleaning solution while rotating so that a film of solution will cover the entire
interior surface. A break in the film indicates a contaminated area. For filling a buret with cleaning solution, it should be held in
a vertical position and filled by pouring into the top. Open the stopcock to drain. Regardless of the type of vessel, always rinse
thoroughly, first with tap water and then with distilled water. Plastic volumetric ware should be cleaned in an appropriate manner
before calibration. Example cleaning methods are available in NISTIR 7383, GMP 6 and 7, and GLP 13, ISO 4787, Annex A, and
EURAMET/cg-21/V. 2.0 (for metal volumetric instruments).
7.4 Reading and Setting a Liquid Meniscus:
7.4.1 Reading the Meniscus—For all apparatus volumetric instruments calibrated by this procedure, the reading is must be made
on the a level surface or with the instrument level and the reading made on the lowest point of the meniscus. In order that For the
lowest point mayto be observed, it is necessary to place a shade of some dark material immediately below and behind the meniscus,
which renders the profile of the meniscus dark and clearly visible against a light background. A convenient device for this purpose
is a collar-shaped section of thick black rubber tubing, cut open at one side and of such size as to clasp the tube firmly.
Alternatively, black paper may be used. “Short line” graduated vessels where the lines are less than one half of the circumference
may be read more accurately by placing a mirror against the rear of the vessel to reflect the front line.
7.4.2 Setting the Meniscus—Setting of the meniscus shall be performed by one of the two methods detailed below. Wherever
practicalbelow on a level volumetric instrument. Wherever practical, the meniscus should descend to the position of setting.
7.4.2.1 The position of the lowest point of the meniscus with reference to the graduation line is horizontally tangent to the plane
of the upper edge of the graduation line. The position of the meniscus is obtained by having the eye in the same plane of the upper
edge of the graduation line.
7.4.2.2 The position of the lowest point of the meniscus with reference to the graduation line is such that it is in the plane of the
middle of the graduation line. This position of the meniscus is obtained by making the setting in the center of the ellipse formed
by the graduation line on the front and the back of the tube as observed by having the eye slightly below the plane of the graduation
line. The setting is accurate if, as the eye is raised and the ellipse narrows, the lowest point of the meniscus remains midway
between the front and rear portions of the graduation line. By this method, it is possible to observe the approach of the meniscus
from either above or below the line to its proper setting.
NOTE 2—The difference between meniscus positions resulting from the alternative methods of adjustment is the volume equivalent of one half the
thickness of the graduation line. In the case of articles volumetric instruments where the capacity is read as the difference between two meniscus readings
(for example, on a buret),burette), then no error results if the article is manufactured using one method of adjustment and is later used by the other method.
Bias and the impact of visual acuity and lighting when reading the meniscus should be studied by the laboratory to determine differences among operators
and may be captured as a component of the calibration uncertainty. Differences in reading the meniscus may be apparent in the results of interlaboratory
comparisons, especially when different procedures are selected for use in each laboratory. Calculation of the uncertainty associated with reading and
E542 − 22
setting the meniscus may be performed using calculations provided in NISTIR 7383, GMP 3, EURAMET/cg-19/V. 3.0, or ISO 4787, Annex B as noted
in Section 17.
Even in the most unfavorable cases of single-mark articles (for example large flasks), when working to the highest attainable accuracy, the difference
between the two methods of adjustment is unlikely to exceed 30 % of the Class A (precision apparatus) limit of error and a correction can be calculated
where necessary.
7.5 Delivery and Drain Times—For volumetric instruments used for delivery of a liquid, the volume delivered is always less than
the volume contained, due to the film of liquid left on the inner walls of the volumetric instrument. The volume of this film depends
on cleanliness as well as the time taken to deliver the liquid, and the volume delivered decreases with decreasing delivery time.
For example, the delivered volume of a pipette or burette will decrease if the tip is broken (shorter delivery time) or will increase
if the tip is not clean and the outflow of liquid is restricted. When liquids other than water are used in volumetric instruments, the
liquid viscosity will affect delivery times and sample retention on the inside of the volumetric instrument. Delivery times and
waiting times are usually specified for volumetric instruments and must be followed.
8. Calibration Procedure for BuretsBurettes
8.1 Clamp the buretburette vertically on a support stand; also clamp a plain glass test tube, large enough to hold a thermometer,
near the buretburette if the buretburette is of such a size that it is not large enough to insert a thermometer in the top for observing
the temperature of the water. Fill the buretburette from a reservoir or storage bottle, in which the water has reached equilibrium
with room temperature, and check to verify that there is neither leakage from the tip nor from the stopcock plug. Drain and record
the delivery time. Delivery time is determined by the unrestricted outflow of the water from the zero mark to the lowest graduation
mark with the stopcock fully open. Refill the buretburette to approximately 10 mm 10 mm above the zero mark and fill the test
tube that holds the thermometer; record the temperature. Set the meniscus on the zero mark graduation line, using the buretburette
stopcock to lower the liquid level, and touch the tip with the wetted wall of a beaker to remove any excess water. A weighing flask
(transfer vessel) that has been tightly stoppered and weighed empty is placed with the inside of the neck in contact with the tip
of the buretburette (the flask will be at a slight angle).
8.2 Fully open the stopcock until the water is only a few millimetresmillimeters above the linegraduation being testedcalibrated
and then the stream is slowed so as to make an accurate setting. When the setting has been completed, move the flask horizontally,
breaking the contact with the buret.burette. Recheck the setting.
8.3 Then stopper and weigh the flask a second time, after which refill the thermometer tube and testcalibrate the next interval in
the same manner as the first one—from the zero mark graduation line to the next interval needed. graduation line needed.
8.4 For buretsburettes with a specified waiting time, use the following procedure: after adjustment to the zero mark, graduation
line, fully open the stopcock until the meniscus has reached a position a few millimetresmillimeters above the graduation line for
calibration. After the specified waiting time (for example, 30 s), 30 s), adjust the meniscus to the graduation line, remove the flask,
and weigh.
8.5 Repeat the procedure to obtain replicate values. Report the mean of the calibrated values as the calibrated measurement result.
Use the repeatability of the runs to ensure the validity of the measurements according to Section 16 and to determine the
uncertainty component associated with the measurement repeatability according to Section 17.
9. Calibration Procedure for Pipets (One Mark) Pipettes
9.1 Fill the pipetpipette with distilled water by suction to the index higher graduation mark and measure the delivery time with
the tip in contact with the glass surface of the internal side of a beaker. Refill by suction slightly above the index line. nominal
capacity graduation. Record the temperature of the distilled water in the beaker from which the pipetpipette is filled. Remove any
water on the outside of the tip by a downward wipe with filter paper after the filling is completed. Then slowly lower the meniscus
to the index using either a stopcock or hose clamp for “fine control.” The tip must be in contact with the wet wall of a beaker while
the setting is made on the index line. Do not remove any water remaining on the tip at this time. tip. Hold the pipetpipette in a
vertical position and deliver water into a previously weighed weighing flask (transfer vessel) with the tip in contact with the inside
wall of the neck of the flask. After the water has ceased to flow, wait 2 s, then remove the pipetpipette from contact with the flask.
The flask is now stoppered and weighed with its containedfilled load.
E542 − 22
9.2 If the pipette has a lower graduation line, the liquid flow must be nearly stopped a few millimeters above the graduation line.
After observing a waiting time, if specified, complete the final setting with the tip in contact with the inside wall of the neck of
the flask.
9.3 Repeat the procedure to obtain replicate values. Report the mean of the calibrated values as the calibrated measurement result.
Use the repeatability of the runs to ensure the validity of the measurements according to Section 16 and to determine the
uncertainty component associated with the measurement repeatability according to Section 17.
10. Calibration Procedure of Flasks (to Contain)
10.1 After cleaning and drying, weigh the empty flask including the stopper. Place an appropriateappropriately sized funnel in the
flask to discharge the water below the stopper. Fill from beaker or supply line, maneuvering the funnel so as to wet the entire neck
below the stopper. Let stand for about 2 min to allow the walls to drain.below the reference line so that the walls of the volumetric
instrument considerably above the ring mark are not wetted.
10.1.1 After cleaning and drying, weigh the empty flask including the stopper. Place an appropriate sized funnel or other filling
device in the flask to discharge the water below the capacity line. Fill from beaker or supply line taking care to avoid wetting neck
above capacity line.
10.1.1 Place the flask under a buretburette and complete filling and setting the meniscus, taking care not to splash water on the
walls, after which place stopper in neck to lessen evaporation and weigh. A pipetpipette or dropper with a finely drawn tip may
be used to adjust the meniscus instead of the buret.burette. Determine the temperature by placing a thermometer in the filling
beaker or in one which has been filled from the water supply. The temperature may be taken after final weighing by placing a
thermometer directly in the flask, provided the flask is of sufficient size to accommodate it. Alternatively, after weighing, the water
may be poured into a flask of sufficient size to accommodate the thermometer.
10.1.2 To perform repeated calibrations, two options are allowed:
(1) The flask must be dried between each run. Obtaining an initial dry weight will allow the operator to determine when the
flask is sufficiently dry.
(2) Remove a sufficient amount of liquid, measure the temperature of the liquid inside the flask, clean the entire neck so that
the walls of the volumetric instrument considerably above the graduation line are not wetted, set the meniscus again taking care
not to splash water on the walls and weigh the flask. The initial value of the dried flask is used in all repetitions.
10.2 Repeat the procedure to obtain replicate values. Report the mean of the calibrated values as the calibrated measurement result.
Use the repeatability of the runs to ensure the validity of the measurements according to Section 16 and to determine the
uncertainty component associated with the measurement repeatability according to Section 17.
11. Calibration Procedure of Flasks (to Deliver)
11.1 Do not dry flasks that are calibrated to deliver prior to the test. Fill the flask to approximately the index line and empty rapidly
by gradually inclining the flask so as to avoid splashing on the walls as much as possible. When the main drainage stream has
ceased, the flask will be nearly vertical. Hold in this position for 30 s and touch off the drop of water adhering to the top of the
flask. Place a watch glass or plastic cap on the flask to reduce evaporation and weigh immediately. Take a water temperature
reading, fill the flask, and make the meniscus setting on the index line, taking care not to splash water on the walls. Place the same
cap or watch glass on the filled flask and weigh. The reverse of this procedure may be used, if desirable.
11.2 Repeat the procedure to obtain replicate values. Report the mean of the calibrated values as the calibrated measurement result.
Use the repeatability of the runs to ensure the validity of the measurements according to Section 16 and to determine the
uncertainty component associated with the measurement repeatability according to Section 17.
12. Calibration Procedure of Other Volumetric Glassware
12.1 Measuring Pipets—Pipettes (and Multi-Graduation Pipettes)—Measuring pipetspipettes may be calibrated by a similar
procedure as described in Section 8, except that the tip must be in contact with the wet wall of a beaker or other vessel when the
setting is made on the zero line of a measuring pipet. pipette. This includes pipettes that have multiple graduations rather than
single graduations (one-mark pipettes).
E542 − 22
12.2 Graduated Cylinders—Volumetric wareinstruments of this kind may be calibrated by the procedures described in Sections
10 or 11. , depending on whether they are identified as to Contain or to Deliver (often designated as TC or TD).
13. Weighing ProcedureMeasurements
13.1 Two weighings are required, namely I referring to the loaded vessel, and I referring to the empty vessel. Normally, I and
L E E
I are observed under the same conditions, hence a precise zero adjustment of the balance is not necessary. Either a single-pan or
L
double-pan balance may be used. For the latter case, during both weighings, place on the opposite pan a vessel, similar to the one
being weighed to serve as a tare. Complete both of the required weighings in as short a time interval as convenient to assure that
they have been weighed under similar conditions. Record the temperature of the air in the balance case and the barometric pressure
for use in subsequent calculations.
13.1 The analytical balance that is used should meet manufacturer’s specifications and resolution requirements for the
measurement. Balances may be calibrated following Practice E898 (or use EURAMET/cg-18/V. 4.0). Follow the balance
manufacturer’s instructions and good laboratory practice in making the requisite measurements.weighings. Weighings should be
made with care and made expeditiously to minimize evaporation losses which wouldcan constitute a source of error. The balance
used should be in prime working condition. Care must be taken to gently place the vessel in the center of the balance pan to avoid
off-center loading errors. Vessels should not be filled while sitting on the balance pan as that practice can introduce hysteresis
errors. The vessels that are weighed should be clean externally,externally and handled carefully to avoid contamination.
contamination and heat or static transfer. Vessels may be wiped with a clean cotton cloth as required. Handling required and
covered or stoppered whenever possible to minimize evaporation. Handling volumetric instruments and mass standards with clean
cotton gloves is considered to be good practice. a good practice, taking care to prevent wetting or other contamination of the gloves.
See NISTIR 6969, GMP 10 to better understand factors affecting weighing operations.
NOTE 3—Balance indications are conventional mass values and based on calibration with known mass standards calibrated to a reference temperature of
3 3
20 °C, a reference mass density of 8.0 g ⁄cm , and reference air density of 0.0012 g/cm per OIML D 28. The recorded balance indications provide
conventional mass values and are uncorrected for air buoyancy under the conditions of calibration.
13.2 One weighing is required of the mass standard used in this procedure (one-point balance calibration). A mass standard is
selected to be slightly larger than the loaded capacity of the volumetric instrument to provide a calibration correction factor
between zero and the full mass of the vessel loaded with water being weighed. First zero the balance and then gently place the
mass standard in the center of the balance pan and record the reading as I .
M
NOTE 4—For large volumes, and longer time intervals, mass standards at the loaded and at the empty mass of the volumetric instrument, and buoyancy
conditions for filled and empty instruments, may be needed with appropriate modifications in the procedure and associated equations. See NISTIR 7383,
SOP 14 for alternative procedures and equations for large volumes. Alternatively, use Practice E898 or EURAMET/cg-18/V. 4.0 and calibrate the balance
prior to use and use a factor of 1 in lieu of the value M /I .
s M
13.3 Two weighings are required of the volumetric instrument or transfer vessel, namely I referring to the loaded vessel, and I
L E
referring to the empty vessel. Normally, I and I are observed under the same conditions, and are best observed by zeroing the
E L
electronic balance prior to each measurement. Both required weighings must be completed in as short a time interval as convenient
to ensure that weighings are being made under similar environmental conditions. The air temperature, relative humidity, and
barometric pressure should be recorded within or as near to the balance as possible for use in air density calculations. The mass
of volumetric instrument or transfer vessel is weighed with both loaded and empty conditions, thus cancelling any corrections
associated with the density and buoyancy of the vessel/instrument itself.
14. Temperature and Environmental Measurements
14.1 Measurements of the air temperature, barometric pressure, and relative humidity must be made at nearly the same time and
location as the measurements of the calibration. Measurements immediately before and after the calibration may be used to
determine average conditions as well as verification of environmental stability during the calibration.
14.2 Measurements of water temperature must be made to determine the temperature of the water used during the calibration as
close to the time of calibration as possible, taking into consideration that the insertion of a thermometer into a volumetric
instrument where possible will remove the mass of water being weighed when done prior to the weighing. Care must also be taken
to minimize possible gradients in the neck of flasks or volumetric instruments due to handling methods and or due to lack of water
E542 − 22
equilibration with the laboratory environment. Volumetric instruments will gradually equilibrate with th
...
