ASTM D5197-21

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D5197 − 21
Standard Test Method for
Determination of Formaldehyde and Other Carbonyl
Compounds in Air (Active Sampler Methodology)
This standard is issued under the fixed designation D5197; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 1ppm (1.2mg⁄m ). Lower concentrations in air may be
v/v
determined using higher sampling volume and with control of
1.1 This test method presents a procedure for the determi-
contamination, appropriate selection of flow rate and sampling
nation of formaldehyde (HCHO) and other carbonyl com-
duration.
pounds (aldehydes and ketones) in air. Other carbonyl com-
pounds that have been successfully quantified by this method 1.4 The sampling method gives a time-weighted average
include acetaldehyde, acetone, propanal (propionaldehyde), (TWA) sample. It can be used for long-term (1 to 24 h) or
2-butanone (methyl ethyl ketone), butyraldehyde, short-term (5 to 60 min) sampling of air for formaldehyde.
benzaldehyde, isovaleraldehyde, valeraldehyde, Shorter sampling times or low flow rates will result in higher
o-tolualdehyde, m-tolualdehyde, p-tolualdehyde, hexanal, and detection limits and may result in greater variation in co-
2,5-dimethylbenzaldehyde. located sampler results. Tests should be performed over a
duration and a flow rate that allows the data quality objective
1.2 This test method involves drawing air through a car-
oftheprojecttobeachieved.Sampletimesforothercarbonyls,
tridge containing silica gel coated with 2,4-
such as acetaldehyde, may be limited to short term (1). The
dinitrophenylhydrazine(DNPH)reagent.Carbonylcompounds
dataprovidestotalconcentrationsofcarbonylcompoundsfrom
readily form stable derivatives with the acidified DNPH
whichtimeweightedaverageconcentrationscanbecalculated.
reagent. The DNPH derivatives are analyzed for parent alde-
hydes and ketones using high performance liquid chromatog- 1.5 This test method instructs the user on how to prepare
raphy (HPLC) or ultra-high performance liquid chromatogra- sampling cartridges from commercially available chromato-
phy (UHPLC). UHPLC systems use higher pressures and graphic grade silica gel cartridges by the application of
smaller particle sizes in columns compared to HPLC systems. acidified DNPH to each cartridge.
The sampling procedure is a modification of U.S. EPAMethod
1.6 Thesamplingflowrate,asdescribedinthistestmethod,
TO-11A (see 2.2).
has been validated for sampling rates up to 1.5 L/min for
1.3 This test method is based on the reaction of carbonyl formaldehyde.Thisflowratelimitationisprincipallyduetothe
compounds with DNPH in the presence of an acid to form
high pressure drop (>8 kPa at 1.0 L/min) across user prepared
stable derivatives according to the reaction shown in Fig. 1, silicagelcartridgeswhichhaveaparticlesizeof55to105µm.
(where: both R and R are alkyl or aromatic groups (ketones),
These cartridges are not generally compatible with battery-
or either, or both R or R is a hydrogen atom (aldehydes)).The powered pumps used in personal sampling equipment (for
determinationofformaldehydeandothercarbonylcompounds,
example, those used by industrial hygienists).
as DNPH derivatives, is similar to that of U.S. EPA Method
1.7 Alternatively, pre-coated DNPH silica gel cartridges are
TO-11A in that it uses HPLC or UHPLC for separation of
commercially available and may be substituted provided they
carbonylcompoundsfollowedbyUVadsorptionorphotodiode
can be demonstrated to meet blank and analyte trapping
array detection. This test method exceeds the stated applica-
acceptance criteria (2). Some of these use silica gel of a larger
bilityofTO-11Atoincludeothercarbonylcompoundsthatcan
particle size that results in a lower pressure drop across the
be determined as stated in 10.2.4. This test method is suitable
cartridge. These low pressure drop cartridges may be more
for determination of formaldehyde and other carbonyl com-
suitable for sampling air using battery-powered personal sam-
poundsintheairborneconcentrationrangefromapproximately
pling pumps.
10ppb (12 µg/m ), requires sampling for 1h at 1L⁄min) to
v/v
1 2
This test method is under the jurisdiction of ASTM Committee D22 on Air The boldface numbers in parentheses refer to a list of references at the end of
Quality and is the direct responsibility of Subcommittee D22.05 on Indoor Air. this standard.
Current edition approved Sept. 1, 2021. Published May 2022. Originally The cartridge used in the development and performance evaluation of this test
approved in 1991. Last previous edition approved in 2016 as D5197–16. DOI: method was the Sep-Pak Plus Silica cartridge. Other manufactures make similar
10.1520/D5197-22. products.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D5197 − 21
2.3 Other Documents:
40 CFR Part 136 Appendix B, the MURDefinition and
Procedure for the Determination of the Method Detection
Limit – Revision 2
3. Terminology
3.1 Definitions:
3.1.1 For definitions of terms used in this test method, refer
to Terminology D1356 and Practice E682.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 All other pertinent abbreviations and symbols are
defined when first cited in this test method.
4. Summary of Test Method
4.1 A known volume of air is drawn through a prepacked

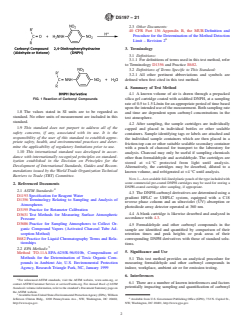

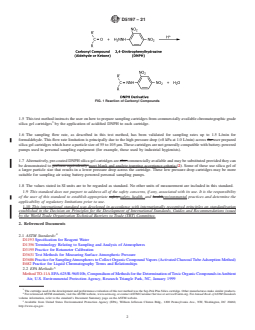

FIG. 1 Reaction of Carbonyl Compounds silica gel cartridge coated with acidified DNPH, at a sampling
rateof0.5to1.5L/minforanappropriateperiodoftimebased
upon the intended use of the measurement. Both sampling rate
1.8 The values stated in SI units are to be regarded as
and time are dependent upon carbonyl concentrations in the
standard. No other units of measurement are included in this
test atmosphere.
standard.
4.2 After sampling, the sample cartridges are individually
1.9 This standard does not purport to address all of the
capped and placed in individual bottles or other sealable
safety concerns, if any, associated with its use. It is the
containers. Sample identifying tags or labels are attached and
responsibility of the user of this standard to establish appro-
the individual sample containers which are then placed in a
priate safety, health, and environmental practices and deter-
friction-top can or other suitable sealable secondary container
mine the applicability of regulatory limitations prior to use.
with a pouch of charcoal for transport to the laboratory for
1.10 This international standard was developed in accor-
analysis. Charcoal may only be useful if sampling chemicals
dance with internationally recognized principles on standard-
other than formaldehyde and acetaldehyde. The cartridges are
ization established in the Decision on Principles for the
stored at <4 °C protected from light until analysis.
Development of International Standards, Guides and Recom-
Alternatively, the cartridges may be desorbed, diluted to a
mendations issued by the World Trade Organization Technical
known volume, and refrigerated at <4°C until analysis.
Barriers to Trade (TBT) Committee.
NOTE1—Are-sealablefoil-linedplasticpouchofthetypeincludedwith
some commercial pre-coated DNPH cartridges may be used for storing a
2. Referenced Documents
DNPH-coated cartridge after sampling, if appropriate.
2.1 ASTM Standards:
4.3 The DNPH-carbonyl derivatives are determined using a
D1193Specification for Reagent Water
gradient HPLC or UHPLC system, equipped with a C18
D1356Terminology Relating to Sampling and Analysis of
reverse phase column and an ultraviolet (UV) absorption or
Atmospheres
photodiode array detector operated at 360 nm.
D3195Practice for Rotameter Calibration
4.4 A blank cartridge is likewise desorbed and analyzed in
D3631Test Methods for Measuring Surface Atmospheric
accordance with 4.3.
Pressure
D3686Practice for Sampling Atmospheres to Collect Or-
4.5 Formaldehyde and other carbonyl compounds in the
ganic Compound Vapors (Activated Charcoal Tube Ad-
sample are identified and quantified by comparison of their
sorption Method)
retention times and peak heights or peak areas of their
E682Practice for Liquid Chromatography Terms and Rela-
corresponding DNPH derivatives with those of standard solu-
tionships
tions.
2.2 EPA Methods:
5. Significance and Use
Method TO-11A EPA-625/R-96/010b, Compendium of
Methods for the Determination of Toxic Organic Com-
5.1 This test method provides an analytical procedure for
pounds in Ambient Air, U.S. Environmental Protection
measuring formaldehyde and other carbonyl compounds in
Agency, Research Triangle Park, NC, January 1999
indoor, workplace, ambient air or for emission testing.
6. Interferences
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
6.1 There are a number of known interferences and factors
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
potentially impacting sampling and quantification of carbonyl
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website.
AvailablefromUnitedStatesEnvironmentalProtectionAgency(EPA),William
Jefferson Clinton Bldg., 1200 Pennsylvania Ave., NW, Washington, DC 20460, Available from U.S. Government Publishing Office (GPO), 732 N. Capitol St.,
http://www.epa.gov. NW, Washington, DC 20401, http://www.gpo.gov.
D5197 − 21
compounds using acidified DNPH impregnated cartridges. the devices described in 6.2.2 and 6.2.4 before the sample
These interferences and other factors are summarized in Table reaches the cartridge (4).
1.
6.2.1 The presence of ozone in the sample stream is readily
inferredfromtheappearanceofnewcompoundswithretention
6.2 Ozone (~50 ppbv and above) has been shown to

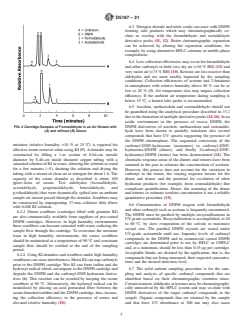

times shorter than that of the hydrazone of formaldehyde. Fig.
interfere negatively by reacting with both the DNPH and its
2 shows chromatograms of samples of a formaldehyde-spiked
carbonyl derivatives (hydrazones) in the cartridge (4-7). The
air stream with and without ozone.
extent of interference depends on the temporal variations of
both ozone and the carbonyl compounds and the duration of 6.2.2 Themostdirectsolutiontotheozoneinterferenceisto
sampling. Significant (~45%) negative interference from remove the ozone before the sample stream reaches the
ozone was observed even at concentrations of formaldehyde cartridge. This process entails constructing an ozone denuder
and ozone typical of clean ambient air (2 ppbv and 40 ppbv, or scrubber and placing it in front of the cartridge. Typically,
respectively) when air was sampled for three hours at 1 L/min. denuders and scrubbers use potassium iodide (KI). Manganese
It is highly recommended that ozone be removed by means of oxide scrubbers have also been used (8). At least some air

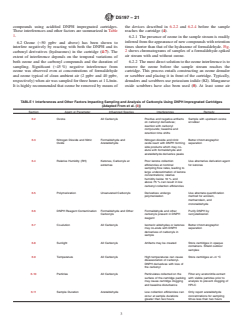

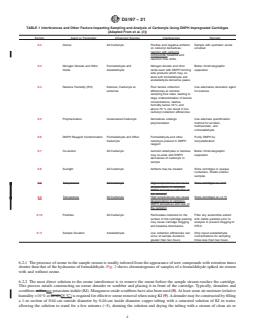

TABLE 1 Interferences and Other Factors Impacting Sampling and Analysis of Carbonyls Using DNPH Impregnated Cartridges
(Adapted From et al. (3))
Section Agent or Parameter Influenced Species Interferences Remedy
6.2 Ozone All Carbonyls Positive and negative artifacts Sample with upstream ozone
on carbonyl derivatives; scrubber
reaction with carbonyl
compounds; baseline and
retention time shifts
6.3 Nitrogen Dioxide and Nitric Formaldehyde and Nitrogen dioxide and nitric Better chromatographic
Oxide Acetaldehyde oxide react with DNPH forming separation
side products which may co-
elute with formaldehyde and
acetaldehyde derivative peaks
6.4 Relative Humidity (RH) Ketones, Carbonyls at Poor ketone collection Use alternative derivation agent
extremes efficiencies at nominal for ketones
sampling flow rates, leading to
large underestimation of ketone
concentrations; relative
humidity below 10 % and
above 75 % can result in low
carbonyl collection efficiencies
6.5 Polymerization Unsaturated Carbonyls Derivatives undergo Use alternate quantification
polymerization method for acrolein,
methacrolein, and
crotonaldehyde
6.6 DNPH Reagent Contamination Formaldehyde and Other Formaldehyde and other Purify DNPH by
Carbonyls carbonyls present in DNPH recrystallization
reagent
6.7 Co-elution All Carbonyls Isomeric aldehydes or ketones Better chromatographic
may co-elute with DNPH separation
derivatives of carbonyls in
sample
6.8 Sunlight All Carbonyls Artifacts may be created Store cartridges in opaque
containers. Shield outdoor
samples
6.9 Temperature All Carbonyls High temperatures can cause Store cartridges at <4 °C
disassociation of carbonyl-
DNPH derivatives with loss of
the carbonyl
6.10 Particles All Carbonyls Particulates collected on the Filter any acetonitrile extract
surface of the cartridge packing with visible particles prior to
may cause cartridge clogging analysis to prevent clogging of
and baseline disturbance HPLC
6.11 Sample Duration Acetaldehyde Low collection efficiencies can Only report acetaldehyde
occur at sample durations concentrations for sampling
greater than two hours times less than two hours
D5197 − 21
6.3 Nitrogen dioxide and nitric oxide can react with DNPH
forming side products which may chromatographically co-
elute or overlap with the formaldehyde and acetaldehyde
derivative peaks (11, 12). Better chromatographic separation
can be achieved by altering the separation conditions, for
example, by using alternative HPLC columns or mobile phase
compositions.
6.4 Low collection efficiencies may occur for formaldehyde
and other carbonyls in both very dry air (<10% RH) (13) and
very moist air (>75% RH) (10). Ketones are less reactive than
aldehydes and are more readily impacted by the sampling
conditions. Collection efficiencies of acetone and 2-butanone
in atmospheres with relative humidity above 50 % can be as
low as 20 % (3). Air temperature also may impact collection
efficiency. If the ambient air temperature during sampling is
below 15°C, a heated inlet probe is recommended.
6.5 Acrolein, methacrolein and crotonaldehyde should not
be quantified using the analytical procedure described in 10.2
duetotheformationofmultiplederivativepeaks (14-16).Inan
acidic environment in the presence of excess DNPH, the
DNPH derivatives of acrolein, methacrolein and crotonalde-
FIG. 2 Cartridge Samples of Formaldehyde in an Air Stream with
(A) and without (B) Ozone
hyde have been shown to partially transform into several
compounds that have UV spectra suggesting the presence of
the DNPH chromophore. The sequential conversion of the
moisture (relative humidity >10 % at 25°C) is required for
carbonyl-DNP-hydrazone (monomer) to carbonyl-DNP-
effective ozone removal when using KI (9).Adenuder may be
hydrazone-DNPH (dimer), and finally 2(carbonyl-DNP-
constructed by filling a 1-m section of 0.64-cm outside
hydrazone)-DNPH (trimer) has been demonstrated (14). The
diameter by 0.46-cm inside diameter copper tubing with a
chromatic response areas of the dimers and trimers have been
saturatedsolutionofKIinwater,allowingthesolutiontostand
summed in the past to estimate the concentration of acrolein.
for a few minutes (~5), draining the solution and drying the
However, this process does not account for the variations in
tubing with a stream of clean air or nitrogen for about 1 h.The
carbonyl in the trimer, the varying response factors for the
capacity of the ozone denuder as described is about 100
dimer and trimer, and the potential for co-elution of other
ppmv-hour of ozone. Test aldehydes (formaldehyde,
hydrazine products (for example, from crotonaldehyde) that
acetaldehyde, propionaldehyde, benzaldehyde, and
complicate quantification. Hence, the summing of the dimer
p-tolualdehyde) that were dynamically spiked into an ambient
and trimers to estimate acrolein concentration is not a reliable
sample air stream passed through the denuder. Scrubbers may
quantitative procedure (15).
be constructed by impregnating 37-mm cellulose fiber filters
6.6 Contamination of DNPH reagent with formaldehyde
with 0.6M KI solution.
and other carbonyls such as acetone is frequently encountered.
6.2.3 Ozone scrubbers (cartridges filled with granular KI)
The DNPH must be purified by multiple recrystallizations in
are also commercially available from suppliers of pre-coated
UV-grade acetonitrile. Recrystallization is accomplished, at 40
DNPH cartridges. However, in high humidity environments
to 60°C, by slow evaporation of the solvent to maximize
these scrubbers can become saturated with water, reducing the
crystal size. The purified DNPH crystals are stored under
sample flow through the cartridge. To overcome the moisture
UV-grade acetonitrile until use. Impurity levels of carbonyl
issue in high humidity environments, the ozone scrubbers
compounds in the DNPH and in commercial coated DNPH
should be maintained at a temperature of 90°C and consistent
cartridges are determined prior to use by HPLC or UHPLC
sample flow should be verified at the end of the sampling
and, at a minimum, should be less than 0.15 µg per cartridge.
period.
Acceptable blanks are dictated by the application, that is, the
6.2.4 UsingKIdenudersandscrubbersunderhighhumidity
compounds that are being measured, their expected concentra-
conditionscancauseinterferences.MoistKIcantrapcarbonyls
tions and the desired detection level.
prior to the DNPH cartridge. Wet KI can form iodine and the
hydroxylradicalwhichcanmigratetotheDNPHcartridgeand 6.7 The solid sorbent sampling procedure is for the sam-
degrade the DNPH and the carbonyl-DNP-hydrazone deriva- pling and analysis of specific carbonyl compounds that are
tives (6). This reaction can be avoided by keeping the ozone identified based on their chromatographic retention times.
scrubbers at 90°C. Alternatively, the hydroxyl radical can be Certainisomericaldehydesorketonesmaybechromatographi-
neutralized by placing an acid permeated filter between the cally unresolved by the HPLC system and may co-elute with
ozonedenuder/scrubberandtheDNPHcartridge,thus,increas- DNPH derivatives of the target carbonyl compounds in the
ing the collection efficiency in the presence of ozone and sample. Organic compounds that are retained by the sample
elevated relative humidity (10). and that have UV absorbance at 360 nm may also cause
D5197 − 21
interferences. Such interferences can often be identified and applications, it may be desirable or required that the sampling
overcome by altering the chromatographic separation condi- system flow is certified on a periodic basis against a NIST or
tions. Alternatively, UHPLC systems can improve chromato- equivalent reference standard.
graphic resolution and overcome interferences and some coe-
NOTE 2—An example of a sampling system for ambient air consisting
lution issues.
of a heated manifold/sample inlet, a denuder/cartridge assembly, a flow
meter, a vacuum gage/pump, a timer and a power supply is shown in Fig.
6.8 Exposure of the DNPH-coated sampling cartridges to
3. In operation, ambient air is drawn through the denuder/cartridge
directsunlightmayproduceartifactsandshouldbeavoidedby
assembly with a vacuum pump at a fixed flow rate between 0.5 to 1.5
storing cartridges in opaque containers such as foil-lined
L/min.
pouches (17). When sampling outdoors, samplers should be
NOTE3—Apressuredropthroughtheuser-preparedsamplecartridgeof
shielded from direct exposure to sunlight.
about 19 kPa at a sampling rate of 1.5 L/min has been observed. Some
commercially available pre-coated cartridges may exhibit lower pressure
6.9 Hightemperaturescancausedisassociationofcarbonyl-
drops, which will permit the use of battery-operated personal sampling
DNPH derivatives with loss of the carbonyl as the carbonyl-
pumps.
DNPH reaction is an equilibrium reaction. Formaldehyde-
7.2 HPLC or UHPLC System, an example HPLC system
DNPH derivatives are particularly sensitive to temperature.
used for this analysis consists of two or more mobile phase
Cartridgesshouldbechilledat<4°Cpriortosampling,assoon
reservoirs; a single or a dual high-pressure pump system
aspossibleaftersampling,andextractsshouldalsobestoredat
equipped with a mobile phase gradient programmer, an injec-
<4°Cpriortoanalysis (18).Note,excessivelylowtemperature
tion valve (automatic sampler with a fixed-volume sampling
(typically <10°C) storage of commercially produced car-
loop (for example, 10 L, 20 L)); a C18 reverse phase (RP)
tridges should be avoided to prevent mounting rings from
column(forexample,25-cmby4.6-mminsidediameter);aUV
falling off or cartridge bodies from cracking.
detector operating at 360 nm; and a data system. A typical
6.10 Particulates collected on the surface of the cartridge
gradient HPLC system configuration is shown in Fig. 4.
packingmaycausecartridgecloggingandcreateback-pressure
during analysis. If these particulates are insoluble in acetoni- NOTE 4—Most commercial HPLC analytical systems will be adequate
for this application.
trile (for example: α-pinene aerosol) they may create signifi-
cant baseline disturbance during analysis. To prevent clogging
7.3 Stopwatch.
of HPLC components, remove insoluble acetonitrile particles
7.4 Friction-Top Metal Can (for example, 4-LPaint Can) or
by filtration prior to analysis (19).
Other Suitable Container, with polyethylene air bubble pack-
6.11 Sample collection efficiency was shown to be between
ingorothersuitablepadding,toholdandcushionsamplevials.
1–62 % for 24-hour sampling of acetaldehyde at a sample
7.5 Thermometer, to record temperature.
collection rate of 0.15L⁄min. Collection efficiencies of 100 %
were reported for sampling of less than 2 hours (1).Itis
7.6 Barometer (refer to Test Methods D3631).
recommended that reporting of acetaldehyde concentrations
should be from samples of 2 hours or less. 7.7 Suction Filtration Apparatus,forfilteringHPLCmobile
phase (optional).
7. Apparatus
7.8 Volumetric Flasks, various sizes, 5 to 2000 mL.
7.1 Sampling System, capable of accurately and precisely
sampling 0.5 to 1.50 L/min to the nearest 0.01 L/min. In some 7.9 Pipets, various sizes, 1 to 50 mL.
FIG. 3 A Dual-Cartridge Sampling System with Heated Manifold for Carbonyl Compounds in Ambient Air
D5197 − 21
FIG. 4 A Typical Gradient HPLC System Configuration for Determination of Carbonyl Compounds Collected on DNPH Cartridges
7.10 Helium Purge Line, for degassing HPLC mobile phase
(optional).
7.11 Erlenmeyer Flask, 1 L, for preparing HPLC mobile
phase.
7.12 Graduated Cylinder, 1 L, for preparing HPLC mobile
phase.
7.13 Syringes, for HPLC injection, with capacity at least
four times the loop volume (see 7.2) (optional).
7.14 Sample Vials.
7.15 Melting Point Apparatus, (optional).
7.16 Rotameters (refer to Practice D3195), Soap Bubble
Meter,or Wet Test Meter.
7.17 Graduated Syringes.
7.18 Mass Flowmeters, Mass Flow Controllers, or Other
Suitable Device for metering/setting air flow rate of 0.5 to 1.5
L/min through sample cartridge.
7.19 Positive Displacement, Repetitive Dispensing Pipets,0
to 10-mL range.
7.20 Cartridge Drying Manifold, with multiple standard
male syringe connectors (see Fig. 5).
7.21 LiquidSyringes(polypropylenesyringesareadequate),
10 mL, used to prepare acidified DNPH-coated cartridges.
FIG. 5 Syringe Rack for Coating and Drying Sample Cartridges
7.22 Syringe Rack, made from an aluminum plate or other
suitablematerial(0.16by36by53-cm)withadjustablelegson
7.23 Syringe Fittings/Plugs, to connect cartridges to the
four corners. A matrix (5 by 9) of circular holes of diameter
sampling system and to cap prepared cartridges.
slightly larger than the diameter of the 10-mL syringes,
symmetrically drilled from the center of the plate, to enable 7.24 Hot Plates, Beakers, Flasks, Measuring and Dispos-
batch processing of 45 cartridges for cleaning, coating, or able Pipets, Volumetric Flasks, and so forth, used in the
sample elution, or combination thereof (see Fig. 5). purification of DNPH.
D5197 − 21
7.25 BorosilicateGlassCultureTubes,(20by125mm)with concentrations/longer exposures (see the Safety Data Sheet
polypropylene screw caps or other suitable container to trans- (SDS) for more details).
port coated cartridges. 9.1.1 Prepare a supersaturated solution of DNPH by boiling
excess DNPH in 200 mLof acetonitrile for approximately 1 h.
7.26 Heated Probe, necessary for when the temperature of
9.1.2 After 1 h, remove and transfer the supernatant to a
sampled air is below 15°C.
covered beaker on a hot plate and allow gradual cooling to 40
7.27 Cartridge Sampler, prepacked with silica gel and
to 60°C.
coated with DNPH in accordance with Section 9,oras
9.1.3 Maintain the solution at this temperature (40°C) until
commercially available.
95% of solvent has evaporated.
7.28 Polyethylene Gloves, used to handle silica gel car- 9.1.4 Decant the solution to waste, and rinse the remaining
tridges. crystals twice with three times their apparent volume of
acetonitrile.
8. Reagents and Materials
9.1.5 Transfer the crystals to another clean beaker, add
200mL of acetonitrile, heat to boiling, and again let crystals
8.1 Purity of Reagents—Reagent grade chemicals shall be
grow slowly at 40 to 60°C until 95% of the solvent has
used in all tests. Unless otherwise indicated, it is intended that
evaporated.
all reagents conform to the specifications of the Committee on
9.1.6 Repeat rinsing process as described in 9.1.4.
Analytical Reagents of theAmerican Chemical Society where
such specifications are available. 9.1.7 Take an aliquot of the second rinse, dilute ten times
with acetonitrile, acidify with 1 mL of 3.8 M perchloric acid
8.2 Purity of Water—Unless otherwise indicated, references
per 100 mL of DNPH solution, and analyze by HPLC, in
to water shall be understood to mean reagent water as defined
accordance with 10.2.4.
by Type II of Specification D1193.
NOTE 6—An acid is necessary to catalyze the reaction of the carbonyls
8.3 2,4-Dinitrophenylhydrazine (DNPH), recrystallized at
with DNPH. Most strong inorganic acids such as hydrochloric, sulfuric,
least twice with UV-grade acetonitrile before use.
phosphoric or perchloric acids will perform satisfactorily. Perchloric acid
was the preferred catalyst for impinger sampling when using acetonitrile
8.4 Acetonitrile, UV-grade.
solutionofDNPHastheabsorbingsolution.TheDNPHderivativesdonot
8.5 Perchloric Acid, 60%, specific gravity 1.51.
precipitate from solution as readily as when hydrochloric acid is used as
thecatalyst.ThisisanidealsituationforanHPLCanalyticalfinishasthis
8.6 Hydrochloric Acid, 36.5–38%, specific gravity 1.19.
minimizes sample handling. For most ambient air sampling, precipitation
is not a problem because the carbonyl concentration is generally in the
8.7 Formaldehyde, 37% solution (w/w).
parts per billion range.
8.8 Aldehydes and Ketones, used for preparation of DNPH
9.1.8 An acceptable impurity level in 9.1.7 is typically
derivative standards (optional).
<0.025 µg/mL of formaldehyde DNPH reagent derivative. If
8.9 Ethanol or Methanol.
the impurity level is not acceptable for intended sampling
8.10 Silica Gel Solid-Phase Extraction Cartridges. application, repeat recrystallization.
9.1.9 Transfer the purified crystals to an all-glass reagent
8.11 Nitrogen, high-purity grade (best source).
bottle,add200mLofacetonitrile,stopper,shakegently,andlet
8.12 Charcoal, granular (best source).
stand overnight.Analyze the supernatant as in 9.1.7 by HPLC
8.13 Helium, high-purity grade (best source). in accordance with 10.2.3.
9.1.10 If the impurity level is not satisfactory, pipet the
9. Preparation of Reagents and Cartridges
solutiontowaste,thenadd25mLofacetonitriletothepurified
NOTE 5—This section is intended for users who desire to prepare their
crystals. Repeat rinsing with 20-mL portions of acetonitrile
own sampling cartridges by coating prepacked silica gel cartridges with
until a satisfactorily low impurity level in the supernatant is
acidified DNPH. Users who intend to purchase DNPH-coated cartridges
confirmed by HPLC analysis.
andDNPHderivativestandardsfromcommercialsourcesmayskipanyor
all portions of this section. Users are cautioned to check that the carbonyl 9.1.11 If the impurity level is satisfactory, add another
background of the purchased cartridges meet the quality control and
25mL of acetonitrile, stopper, and shake the reagent bottle,
accuracy required for their intended applications.
then set aside. The saturated solution above the purified
9.1 Purification of 2,4-Dinitrophenylhydrazine (DNPH):
crystals is the stock DNPH reagent.
Warning—This procedure should be performed under a prop-
9.1.12 Maintain only a minimum volume of saturated solu-
erly ventilated hood and behind a protective shield, as there is
tion adequate for day-to-day operation. This will minimize
an explosion potential from perchloric acid and inhalation of
waste of purified reagent, should it be necessary to re-rinse the
acetonitrile can result in nose and throat irritation (brief
crystals to decrease the level of impurity for applications
exposure at 500 ppm) or more serious effects at higher
requiring more stringent purity specifications.
9.1.13 Use clean pipets when removing saturated DNPH
stock solution for any analytical applications. Do not pour the
ACS Reagent Chemicals, Specifications and Procedures for Reagents and
stock solution from the reagent bottle.
Standard-Grade Reference Materials, American Chemical Society, Washington,
DC. For suggestions on the testing of reagents not listed by theAmerican Chemical
9.2 Preparation of DNPH-Formaldehyde Derivative:
Society, see Analar Standards for Laboratory Chemicals, BDH Ltd., Poole, Dorset,
9.2.1 To a portion of the recrystallized DNPH add sufficient
U.K., and the United States Pharmacopeia and National Formulary, U.S. Pharma-
copeial Convention, Inc. (USPC), Rockville, MD. 2 N HCl to obtain an approximately saturated solution.Add to
D5197 − 21
thissolutionformaldehydeinmolarexcessoftheDNPH.Filter rack for coating and drying the sample cartridges is illustrated
theDNPH-formaldehydeprecipitate,washitwith2 NHCland in Fig. 5(a) and Fig. 5(b).
water, and allow it to dry in air. 9.4.2.2 Using a positive displacement, repetitive pipet, add
9.2.2 Check the purity of the DNPH-formaldehyde deriva- 10 mL of acetonitrile to each of the syringes.
9.4.2.3 Let liquid drain to waste by gravity.
tivebymeltingpoint(166°C)determinationorHPLC/UHPLC
analysis. If the impurity level is not acceptable, recrystallize
NOTE 10—Remove any air bubbles that may be trapped between the
the derivative in ethanol. Repeat the purity check and recrys-
syringe and the silica cartridge by displacing them with the acetonitrile in
tallization as necessary until an acceptable level of purity (for
the syringe.
example, 99%) is achieved.
9.4.2.4 Set the repetitive dispenser containing the acidified
9.2.3 The DNPH derivatives of formaldehyde and other
DNPH coating solution to dispense 7 mL into the cartridges.
carbonylcompoundssuitableforuseasstandardsarecommer-
9.4.2.5 Once the effluent flow at the outlet of the cartridge
cially available both in the form of pure crystals and as
has stopped, dispense 7 mLof the coating reagent into each of
individual or mixed stock solutions in acetonitrile.
the syringes.
9.3 Preparation of DNPH-Formaldehyde Standards: 9.4.2.6 Let the coating reagent drain by gravity through the
cartridge until flow at the other end of the cartridge stops.
9.3.1 Prepare a standard stock solution of the DNPH form-
9.4.2.7 Wipe the excess liquid at the outlet of each of the
aldehyde derivative by dissolving accurately weighed amounts
cartridges with clean tissue paper.
in acetonitrile.
9.4.2.8 Assemble a drying manifold as shown in Fig. 5(b).
9.3.2 Prepare a working calibration standard mix from the
Thiscontainsapreviouslyprepared,DNPH-coatedcartridgeat
standard stock solution. The concentration of the DNPH
each of the exit ports (for example, these scrubber or “guard
formaldehyde derivative in the standard mix solutions should
cartridges” can be prepared by drying a few of the newly
be adjusted to reflect the range of concentrations expected in
coated cartridges in accordance with 9.4.2.9 – 9.4.2.15 and
real samples.
“sacrificing” these few to ensure the purity of the rest). The
NOTE 7—Individual stock solutions of approximately 100 mg/L are
“guardcartridges”servetoremovetracesofformaldehydethat
prepared by dissolving 10 mg of the solid derivative in 100 mL of
may be present in the nitrogen gas supply.
acetonitrile. The individual solution is used to prepare calibration stan-
9.4.2.9 Insert cartridge connectors (flared at both ends, 0.64
dards containing the derivative of interest at concentrations of 0.5 to
20µg⁄mL that spans the concentration of interest.
by2.5-cmoutsidediameterTFE-fluorocarbonFEPtubingwith
insidediameterslightlysmallerthantheoutsidediameterofthe
9.3.3 Store all standard solutions in tightly capped contain-
cartridge port) onto the long end of the scrubber cartridges.
ers at <4°C in a refrigerator.They should be stable for several
9.4.2.10 Remove the cartridges from the syringes and con-
months.
nect the short ends of the cartridges to the open end of the
9.4 Preparation of DNPH-Coated Cartridges:
cartridge connectors already attached to the scrubber car-
NOTE 8—This procedure must be performed in an atmosphere with a tridges.
very low aldehyde background. All glassware and plastic ware must be
9.4.2.11 Pass nitrogen through each of the cartridges at
scrupulously cleaned and rinsed with deionized water and aldehyde-free
about 300 to 400 mL/min.
acetonitrile. Contact of reagents with laboratory air must be minimized.
9.4.2.12 Rinse the exterior surfaces and outlet end of the
Polyethylene gloves must be worn when handling the cartridges.
cartridges with acetonitrile using a Pasteur pipet.
9.4.1 DNPH Coating Solution:
9.4.2.13 After 15 min, stop the flow of nitrogen, wipe the
9.4.1.1 Pipet 30 mL of saturated DNPH stock solution into
cartridge exterior free of rinse acetonitrile, and remove the
a 1000-mL volumetric flask, then add 500 mL acetonitrile.
dried cartridges.
9.4.1.2 Acidify with 1.0 mL of concentrated HCl.
9.4.2.14 Plug both ends of the coated cartridge with stan-
NOTE9—Theatmosphereabovetheacidifiedsolutionshouldpreferably dard polypropylene male syringe plugs and place the plugged
be filtered through a DNPH-coated silica gel cartridge, to minimize
cartridge in a borosilicate glass culture tube with polypropyl-
contamination from laboratory air. Shake the solution, then make up to
ene screw caps.
volumewithacetonitrile.Stoppertheflask,invert,andshakeseveraltimes
9.4.2.15 Put a serial number and a lot number label on each
until the solution is homogeneous. Transfer the acidified solution to a
of the individual cartridge glass storage containers and refrig-
reagent bottle equipped witha0to 10-mL range positive displacement
dispenser. erate the prepared lot until use.
9.4.1.3 Prime the dispenser and slowly dispense 10 to
10. Procedure
20mL to waste.
9.4.1.4 Dispense an aliquot solution to a sample vial, and
10.1 Sample Collection:
check the impurity level of the acidified solution by HPLC/
10.1.1 Assemble the sampling system, and ensure that the
UHPLC in accordance with 9.1.
pump is capable of a constant flow rate throughout the
9.4.1.5 The impurity level should be <0.025 µg/mLformal-
sampling period. The coated cartridges can be used as direct
dehyde as the DNPH derivative, similar to that in the DNPH
probes and traps for sampling air when the temperature is
stock solution.
above15°C(see7.26).Addanozonedenuderorscrubber(see
9.4.2 Coating of Silica Gel Cartridges: 6.2) if required.
9.4.2.1 Openthecartridgepackage,connecttheshortendto 10.1.2 Beforesamplecollection,checkthesystemforleaks.
a 10-mL syringe, and place it in the syringe rack. The syringe Plugtheinlet(shortend)ofthecartridgesonoflowisindicated
D5197 − 21
at the outlet end of the pump. The mass flowmeter should not 10.1.7 Turnthesampleronandadjusttheflowtothedesired
indicate any air flow through the sampling apparatus. As rate.Atypical flow rate is 1.0 L/min through one cartridge and
0.8 L/min for two cartridges in series.
required or desired the flow can be qualified against a NISTor
similarly traceable flow standard. 10.1.8 Operate the sampler for the desired period, with
periodic recording of the sampling variables.
NOTE 11—The silica gel is held in the cartridge between two fine
10.1.9 If the ambient air temperature during sampling is
porosity filter frits. Air flow during sampling could change as airborne
below15°C,aheatedinletprobeisrecommendedtominimize
particulates deposit on the front frit.The flow change could be significant
the liquid water interferences in the DNPH cartridge and to
whensamplingparticulate-ladenatmospheres.Forunattendedorextended
increase reaction rates.
samplingperiods,amassflowcontrolleror,asappropriate,acompensated
personal sampling pump is highly recommended to maintain constant
10.1.10 At the end of the sampling period, stop the flow.
flow. The mass flow controller should be set at least 20% below its
The flow rate must be checked just before stopping the flow. If
maximum airflow rate.
the flow rates at the beginning and end of the sampling period
10.1.3 Install the entire assembly, an example is shown in differ by more than 15%, the sample should be marked as
Fig. 3, (including a “dummy” sampling cartridge) and check suspect.
10.1.11 Immediately after sampling, remove the cartridge
the flow rate at a value near the desired rate. In general, flow
(using polyethylene gloves) from the sampling system, cap
rates of 0.5 to 1.5 L/min should be employed. The total moles
with the original end plugs, and place it back in the original
ofcarbonylinthevolumeofairsampledshouldnotexceedthat
labeled glass culture tube. Cap the culture tube, seal it with
of the DNPH (0.005 to 0.01 mmol/cartridge for commercially
TFE-fluorocarbon tape. If appropriate, a re-sealable foil-lined
available pre-coated cartridges). In general, a safe estimate of
plastic pouch may be used instead of the glass culture tube for
the sample size should be approximately 75% of the DNPH
storing the exposed cartridge. Refrigerate the culture tube or
loading of the cartridge (100 to 200 g as HCHO). Generally,
pouch containing the exposed sample cartridge at <4 °C until
flowcalibrationisaccomplishedusingasoapbubbleflowmeter
analysis. The refrigeration period prior to analysis must not
or calibrated wet test meter connected to the flow exit,
exceed 14 days.
assuming the system is sealed. If the system is not sealed a
sacrificial cartridge can be temporarily replace the sample
NOTE 13—If samples are to be shipped to a central laboratory for
analysis, the duration of the non-refrigerated period should be kept to a
cartridge allowing the flow calibration to be measured at the
minimum, preferably less than two days.
inlet to the sacrificial cartridge.
10.1.12 The average sample flow rate is calculated from the
NOTE 12—Test Method D3686 describes an appropriate calibration
following equation:
scheme that does not require a sealed flow system downstream of the
Q 1Q 1.1Q
pump.
1 2 n
Q 5 (1)
A
n
10.1.4 The operator must measure and record the sampling
flow rate at the beginning and end of the sampling period to where:
determine sample volume. If the sampling period exceeds 2 h,
Q = average flow rate, mL/min,
A
the flow rate should be measured at intermediate points during Q,Q,.Q = flow rates determined at beginning, end,
1 2 n
the sampling period. Include a rotameter to allow observation
and intermediate points during sampling,
of the flow rate without interruption of the sampling process. and
n = number of points averaged.
Alternatively, a sampling pump which directly measures and
continuously records the flow can be used. If the sampler was
10.1.13 The total flow volume is then calculated using the
qualified against a flow standard, this should also be recorded.
following equation:
10.1.5 Before sampling, remove the glass culture tube from
T 2 T 3Q
~ !
2 1 A
V 5 (2)
the friction-top metal can or other suitable container. Let the
m
cartridge warm to room temperature in the glass tube before
where:
connectingittothesampletrain.Withacommercialpre-coated
DNPH cartridge, let the cartridge warm to room temperature V = totalvolume,L,sampledatthemeasuredtempera-
m
ture and pressure,
before connecting to the sampling train.
T = stop time, min,
10.1.6 Using polyethylene gloves, remove the coated car-
T = start time, min,
tridge from the glass tube, remove the syringe plugs, and
T –T = total sampling time, min, and
2 1
connect the cartridge to the sampling system with a syringe
Q = average flow rate, mL/min.
A
adapter fitting. Seal the glass tube for later use and connect the
10.1.14 Thetotalvolume(V )atstandardconditions,25°C
m
cartridge to the sampling train so that the short end becomes
and 101.3 kPa, is calculated from the following equation:
the sample inlet. With commercial pre-coated cartridges, fol-
low the manufacturer’s instructions. Some cartridges may be P 298
A
V 5 V 3 3 (3)
s m
constructed from sealed-glass tubes. For these, break the ends 101.3 2731t
A
of the cartridge with a tube breaker. Connect the cartridge by
where:
inserting the end with the smaller quantity of sorbent to the
V = total sample volume, L, at 25°C and 101.3-kPa
s
samplingtrainsothatthelargerquantityofsorbentisattheair
pressure,
inlet end. Use care when handling the broken ends.
D5197 − 21
10.2.3.2 Operate the instrument in the isocratic mode if the
V = total sample volume, L, at measured temperature and
m
analytesofinterestarelimitedtothederivativesformaldehyde,
pressure,
acetaldehyde,acetoneandpropionaldehyde;otherwise,operate
P = average pressure, kPa, and
A
t = average temperature, °C. the system in the gradient mode. For isocratic separation of
A
formaldehyde,theparametersinTable2canbeusedforHPLC
10.2 Sample Analysis:
based analyses.
10.2.1 Sample Storage—Samples are returned to the labo-
Before each analysis, check the detector baseline to ensure
ratory in an insulated container at <4°C with appropriate
stable conditions.
padding and stored in a refrigerator at <4°C until analysis.
10.2.3.3 The operating parameters found adequate for the
Alternatively, the samples may also be stored alone in a
separation of the 17 carbonyls within the scope of this test
refrigerator at <4°C in their individual glass containers or
method are shown in Table 3.
pouches. The time between sampling and analysis must not
10.2.3.4 The gradient program in 10.2.3.3 adequately sepa-
exceed 14 days.
rates DNPH derivatives of formaldehyde and acetaldehyde;
10.2.2 Sample Desorption:
acrolein and its principal transformation product from the
NOTE 14—Sample desorption can be automated provided quantitative
derivatives of acetone and propionaldehyde; the derivative of
recovery during extraction is demonstrated, for example, by performance
crotonaldehyde from its principal transformation product; the
testing.
derivative of methacrolein from the derivatives of 2-butanone
10.2.2.1 Connect the sample cartridge (inlet or short end
and butyraldehyde; the derivatives of isovaleraldehyde,
during sampling) to a clean syringe.
valeraldehyde, hexanal, 2,5-dimethylbenzaldehyde; and the
isomers of the tolualdehyde derivatives. Due to transforma-
NOTE 15—The liquid flow during desorption should be in the same
tions (6.5) acrolein, methacrolein and crotonaldehyde should
direction as the air flow during sampling to prevent insoluble particulates
from getting into the eluate. Reverse desorption may be performed if the not be quantified with this method.
eluate is filtered prior to HPLC or UHPLC analysis. A filtered blank
10.2.3.5 Chromatographic parameters that have been used
extract must be analyzed to confirm that no contamination is being
in round robin analysis of the carbonyl derivatives participated
introduced by the LC filter.
in by several laboratories have been described in the literature
10.2.2.2 Place the cartridge/syringe in the syringe rack.
(20).
10.2.2.3 Extract the DNPH derivatives of the carbonyls and
NOTE 18—Column manufacturers as well as suppliers of pre-coated
the unreacted DNPH from the cartridge (gravity feed) by
DNPH cartridges usually recommend optimal conditions for the sepa
...
