ASTM D4821-20

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D4821 − 19 D4821 − 20
Standard Guide for
Carbon Black—Validation of Test Method Precision and
Bias
This standard is issued under the fixed designation D4821; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This guide covers procedures for using the ASTM Standard Reference Blacks (SRBs) and the HT and INR Iodine Number
Standards to continuously monitor the precision of those carbon black test methods for which reference values have been
established. It also offers guidelines for troubleshooting various test methods.
1.2 This guide defines the environmental conditions that are required for laboratories that perform carbon black testing activities
for those test methods under D24’s jurisdiction.
1.3 This guide establishes procedures for the use of x-charts to continuously monitor those tests listed in Section 2 for within-lab
precision (repeatability) and between-lab accuracy (reproducibility).
1.4 This guide provides a statistical procedure for improving test reproducibility when a laboratory cannot physically calibrate its
apparatus to obtain the reference values of the ASTM reference blacks, within the ranges given in this guide.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D1510 Test Method for Carbon Black—Iodine Adsorption Number
D1513 Test Method for Carbon Black, Pelleted—Pour Density
D1765 Classification System for Carbon Blacks Used in Rubber Products
D2414 Test Method for Carbon Black—Oil Absorption Number (OAN)
D3265 Test Method for Carbon Black—Tint Strength
D3324 Practice for Carbon Black—Improving Test Reproducibility Using ASTM Standard Reference Blacks (Withdrawn
2002)
D3493 Test Method for Carbon Black—Oil Absorption Number of Compressed Sample (COAN)
This guide is under the jurisdiction of ASTM Committee D24 on Carbon Black and is the direct responsibility of Subcommittee D24.61 on Carbon Black Sampling and
Statistical Analysis.
Current edition approved Aug. 1, 2019Nov. 1, 2020. Published August 2019November 2020. Originally approved in 1988. Last previous edition approved in 20162019
as D4821 – 16.D4821 – 19. DOI: 10.1520/D4821-19.10.1520/D4821-20.
Standard Reference Blacks are available from Laboratory Standards & Technologies, Inc., 227 Somerset St., Borger, TX 79007.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

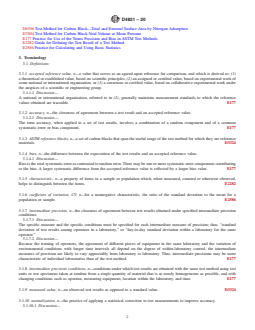

D4821 − 20
D6556 Test Method for Carbon Black—Total and External Surface Area by Nitrogen Adsorption
D7854 Test Method for Carbon Black-Void Volume at Mean Pressure
E177 Practice for Use of the Terms Precision and Bias in ASTM Test Methods
E2282 Guide for Defining the Test Result of a Test Method
E2586 Practice for Calculating and Using Basic Statistics
3. Terminology
3.1 Definitions:
3.1.1 accepted reference value, n—a value that serves as an agreed-upon reference for comparison, and which is derived as: (1)
a theoretical or established value, based on scientific principles, (2) an assigned or certified value, based on experimental work of
some national or international organization, or (3) a consensus or certified value, based on collaborative experimental work under
the auspices of a scientific or engineering group.
3.1.1.1 Discussion—
A national or international organization, referred to in (2), generally maintains measurement standards to which the reference
values obtained are traceable. E177
3.1.2 accuracy, n—the closeness of agreement between a test result and an accepted reference value.
3.1.2.1 Discussion—
The term accuracy, when applied to a set of test results, involves a combination of a random component and of a common
systematic error or bias component. E177
3.1.3 ASTM reference blacks, n—a set of carbon blacks that span the useful range of the test method for which they are reference
materials. D3324
3.1.4 bias, n—the difference between the expectation of the test results and an accepted reference value.
3.1.4.1 Discussion—
Bias is the total systematic error as contrasted to random error. There may be one or more systematic error components contributing
to the bias. A larger systematic difference from the accepted reference value is reflected by a larger bias value. E177
3.1.5 characteristic, n—a property of items in a sample or population which, when measured, counted or otherwise observed,
helps to distinguish between the items. E2282
3.1.6 coeffıcient of variation, CV, n—for a nonnegative characteristic, the ratio of the standard deviation to the mean for a
population or sample. E2586
3.1.7 intermediate precision, n—the closeness of agreement between test results obtained under specified intermediate precision
conditions.
3.1.7.1 Discussion—
The specific measure and the specific conditions must be specified for each intermediate measure of precision; thus, “standard
deviation of test results among operators in a laboratory,” or “day-to-day standard deviation within a laboratory for the same
operator.”
3.1.7.2 Discussion—
Because the training of operators, the agreement of different pieces of equipment in the same laboratory and the variation of
environmental conditions with longer time intervals all depend on the degree of within-laboratory control, the intermediate
measures of precision are likely to vary appreciably from laboratory to laboratory. Thus, intermediate precisions may be more
characteristic of individual laboratories than of the test method. E177
3.1.8 intermediate precision conditions, n—conditions under which test results are obtained with the same test method using test
units or test specimens taken at random from a single quantity of material that is as nearly homogeneous as possible, and with
changing conditions such as operator, measuring equipment, location within the laboratory, and time. E177
3.1.9 measured value, n—an observed test results as opposed to a standard value. D3324
3.1.10 normalization, n—the practice of applying a statistical correction to test measurements to improve accuracy.
3.1.10.1 Discussion—

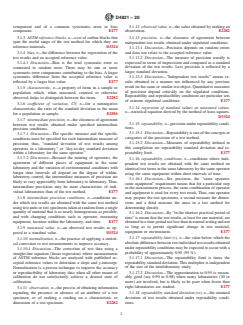

D4821 − 20
The correction of test data using a straight-line equation (linear regression) where measurements of ASTM reference blacks are
analyzed with published accepted reference values to determine a slope and y-intercept. Normalization is a proven technique to
improve the accuracy or reproducibility of laboratory data when all other means of calibration do not satisfactorily achieve a
desired state of calibration.
3.1.11 observation, n—the process of obtaining information regarding the presence or absence of an attribute of a test specimen,
or of making a reading on a characteristic or dimension of a test specimen. E2282
3.1.12 observed value, n—the value obtained by making an observation. E2282
3.1.13 precision, n—the closeness of agreement between independent test results obtained under stipulated conditions.
3.1.13.1 Discussion—
Precision depends on random errors and does not relate to the accepted reference value.
3.1.13.2 Discussion—
The measure of precision usually is expressed in terms of imprecision and computed as a standard deviation of the test results. Less
precision is reflected by a larger standard deviation.
3.1.13.3 Discussion—
“Independent test results” means results obtained in a manner not influenced by any previous result on the same or similar test
object. Quantitative measures of precision depend critically on the stipulated conditions. Repeatability and reproducibility
conditions are particular sets of extreme stipulated conditions. E177
3.1.14 regression of standard values on measured values, n—statistical equation derived by the method of least-squares. D3324
3.1.15 repeatability, n—precision under repeatability conditions.
3.1.15.1 Discussion—
Repeatability is one of the concepts or categories of the precision of a test method.
3.1.15.2 Discussion—
Measures of repeatability defined in this compilation are repeatability standard deviation and repeatability limit. E177
3.1.16 repeatability conditions, n—conditions where independent test results are obtained with the same method on identical test
items in the same laboratory by the same operator using the same equipment within short intervals of time.
3.1.16.1 Discussion—
See precision, the “same operator, same equipment” requirement means that for a particular step in the measurement process, the
same combination of operator and equipment is used for every test result. Thus, one operator may prepare the test specimens, a
second measure the dimensions and a third measure the mass in a test method for determining density.
3.1.16.2 Discussion—
By “in the shortest practical period of time” is meant that the test results, at least for one material, are obtained in a time period
not less than in normal testing and not so long as to permit significant change in test material, equipment or environment. E177
3.1.17 repeatability limit (r), n—the value below which the absolute difference between two individual test results obtained under
repeatability conditions may be expected to occur with a probability of approximately 0.95 (95 %).
3.1.17.1 Discussion—
The repeatability limit is times the repeatability standard deviation. This multiplier is independent of the size of the interlaboratory
study.
3.1.17.2 Discussion—
The approximation to 0.95 is reasonably good (say 0.90 to 0.98) when many laboratories (30 or more) are involved, but is likely
to be poor when fewer than eight laboratories are studied. E177
3.1.18 repeatability standard deviation (sr), n—the standard deviation of test results obtained under repeatability conditions.
3.1.18.1 Discussion—
It is a measure of the dispersion of the distribution of test results under repeatability conditions.
3.1.18.2 Discussion—
Similarly, “repeatability variance” and “repeatability coefficient of variation” could be defined and used as measures of the
dispersion of test results under repeatability conditions.—In an interlaboratory study, this is the pooled standard deviation of test
results obtained under repeatability conditions.
3.1.18.3 Discussion—

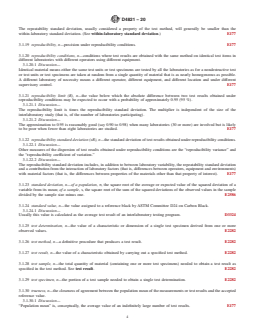

D4821 − 20
The repeatability standard deviation, usually considered a property of the test method, will generally be smaller than the
within-laboratory standard deviation. (See within-laboratory standard deviation.) E177
3.1.19 reproducibility, n—precision under reproducibility conditions. E177
3.1.20 reproducibility conditions, n—conditions where test results are obtained with the same method on identical test items in
different laboratories with different operators using different equipment.
3.1.20.1 Discussion—
Identical material means either the same test units or test specimens are tested by all the laboratories as for a nondestructive test
or test units or test specimens are taken at random from a single quantity of material that is as nearly homogeneous as possible.
A different laboratory of necessity means a different operator, different equipment, and different location and under different
supervisory control. E177
3.1.21 reproducibility limit (R), n—the value below which the absolute difference between two test results obtained under
reproducibility conditions may be expected to occur with a probability of approximately 0.95 (95 %).
3.1.21.1 Discussion—
The reproducibility limit is times the reproducibility standard deviation. The multiplier is independent of the size of the
interlaboratory study (that is, of the number of laboratories participating).
3.1.21.2 Discussion—
The approximation to 0.95 is reasonably good (say 0.90 to 0.98) when many laboratories (30 or more) are involved but is likely
to be poor when fewer than eight laboratories are studied. E177
3.1.22 reproducibility standard deviation (sR), n—the standard deviation of test results obtained under reproducibility conditions.
3.1.22.1 Discussion—
Other measures of the dispersion of test results obtained under reproducibility conditions are the “reproducibility variance” and
the “reproducibility coefficient of variation.”
3.1.22.2 Discussion—
The reproducibility standard deviation includes, in addition to between laboratory variability, the repeatability standard deviation
and a contribution from the interaction of laboratory factors (that is, differences between operators, equipment and environments)
with material factors (that is, the differences between properties of the materials other than that property of interest). E177
3.1.23 standard deviation, n—of a population, σ, the square root of the average or expected value of the squared deviation of a
variable from its mean; of a sample, s, the square root of the sum of the squared deviations of the observed values in the sample
divided by the sample size minus one. E2586
3.1.24 standard value, n—the value assigned to a reference black by ASTM Committee D24 on Carbon Black.
3.1.24.1 Discussion—
Usually this value is calculated as the average test result of an interlaboratory testing program. D3324
3.1.25 test determination, n—the value of a characteristic or dimension of a single test specimen derived from one or more
observed values. E2282
3.1.26 test method, n—a definitive procedure that produces a test result. E2282
3.1.27 test result, n—the value of a characteristic obtained by carrying out a specified test method. E2282
3.1.28 test sample, n—the total quantity of material (containing one or more test specimens) needed to obtain a test result as
specified in the test method. See test result. E2282
3.1.29 test specimen, n—the portion of a test sample needed to obtain a single test determination. E2282
3.1.30 trueness, n—the closeness of agreement between the population mean of the measurements or test results and the accepted
reference value.
3.1.30.1 Discussion—
“Population mean” is, conceptually, the average value of an indefinitely large number of test results. E177
D4821 − 20
2 2
3.1.31 variance, σ , s , n—square of the standard deviation of the population or sample. E2586
3.1.32 within-laboratory standard deviation, n—the standard deviation of test results obtained within a laboratory for a single
material under conditions that may include such elements as different operators, equipment, and longer time intervals.
3.1.32.1 Discussion—
Because the training of operators, the agreement of different pieces of equipment in the same laboratory and the variation of
environmental conditions with longer time intervals depend on the degree of within-laboratory control, the within-laboratory
standard deviation is likely to vary appreciably from laboratory to laboratory. E177
4. Significance and Use
4.1 This guide provides insight into the environmental conditions required for operation of laboratories or to aid in the design of
new laboratories that perform carbon black testing activities using those test methods that are under D24’s jurisdiction. This guide
does not supersede any specific requirements a laboratory may choose to establish.
4.2 This guide recommends the use of statistical x-charts to graphically monitor test data determined for the ASTM reference
blacks for those test methods given in Section 2. All laboratories are encouraged to utilize statistical x-charts and ASTM reference
blacks because this enables a comparison of testing precision within and between laboratories. The guide describes practices for
the use of repeatability and reproducibility limits and x-charts.
4.3 In addition to the calibration of a test method by physicochemical means, a statistical method for achieving calibration of a
test method is presented (that is, normalization).

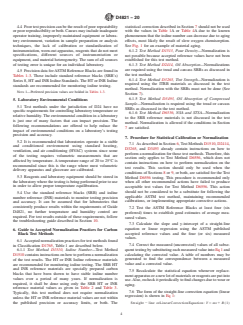

4.4 Poor test precision can be the result of poor repeatability or poor reproducibility or both. Causes may include inadequate
operator training, improperly maintained equipment or laboratory environment, variation in sample preparation or analysis
techniques, the lack of calibration or standardization of instrumentation, worn-out apparatus, reagents that do not meet
specifications, different sources of instrumentation or equipment, and material heterogeneity. The sum of all sources of testing error
is unique for an individual laboratory.
4.5 Precision data for ASTM Reference Blacks are found in Tables 1-3. These include standard reference blacks (SRB’s) Series
8, HT and INR Iodine Standards. The HT or INR Iodine standards are recommended for monitoring iodine testing.
NOTE 1—Preferred precision values are bolded in Tables 1-3.
5. Laboratory Environmental Conditions
5.1 Test methods under the jurisdiction of D24 have no specific requirements for controlling laboratory temperature or relative
humidity. The environmental condition in a laboratory is just one of many factors that can impact precision. The following
recommendations are offered to help reduce the impact of environmental conditions on a laboratory’s testing precision and
accuracy.
5.2 It is recommended that laboratories operate in a stable and conditioned environment using standard heating, ventilation, and
air conditioning (HVAC) systems since some of the testing requires volumetric measurements that are affected by temperature. A
temperature range of 20 to 25°C is recommended since this is the range where most volumetric delivery apparatus and glassware
are calibrated.
5.3 Reagents and laboratory equipment should be stored in the laboratory where the testing is being performed prior to use in order
to allow proper temperature equilibration.
5.4 Use the standard reference blacks (SRB) and iodine number reference (INR) materials to monitor testing precision and
accuracy. It can be assumed that for laboratories that consistently produce results within the requirements of Guide D4821, no
further temperature and humidity control are required. For test results outside of these requirements, follow the troubleshooting
guide described in Section 10.
D4821 − 20
TABLE 1 SRB-8 Precision by Test Method
Table 1A Precision Parameters for Test Method D1510, Iodine Number Method A & B, (Type 1 Precision)
Units g/kg
A
Material Mean Level Sr r (r) SR R (R)
SRB-8B2 146.3 0.57 1.61 1.1 1.70 4.80 3.3
SRB-8C 138.8 0.68 1.92 1.4 2.11 5.96 4.3
SRB-8B 135.6 0.68 1.91 1.4 1.93 5.47 4.0
SRB-8A 80.5 0.36 1.03 1.3 0.88 2.49 3.1
SRB-8A2 78.1 0.88 2.49 3.2 1.33 3.78 4.8
SRB-8F 35.9 0.32 0.89 2.5 0.57 1.61 4.5
SRB-8E 35.8 0.32 0.91 2.5 0.60 1.71 4.8
SRB-8D 21.7 0.28 0.80 3.7 0.55 1.55 7.1
Average 84.1
Pooled Values 0.48 1.35 1.6 1.32 3.72 4.4
Table 1B Precision Parameters for Test Method D6556, NSA Method, (Type 1 Precision)
3 2 2
Units 10 m /kg (m /g)
Material Mean Level Sr r (r) SR R (R)
SRB-8B 142.0 0.47 1.34 0.9 1.44 4.06 2.9
SRB-8B2 138.0 0.31 0.87 0.6 0.79 2.24 1.6
SRB-8C 126.4 0.44 1.25 1.0 1.07 3.02 2.4
SRB-8A 76.5 0.33 0.94 1.2 0.84 2.38 3.1
SRB-8A2 75.9 0.29 0.81 1.1 0.70 1.98 2.6
SRB-8E 36.7 0.23 0.65 1.8 0.53 1.49 4.1
SRB-8F 36.7 0.21 0.58 1.6 0.38 1.09 3.0
SRB-8D 21.6 0.18 0.52 2.4 0.30 0.85 3.9
Average 81.7
Pooled Values 0.32 0.91 1.1 0.83 2.35 2.9
Table 1C Precision Parameters for Test Method D6556, STSA Method, (Type 1 Precision)
3 2 2
Units 10 m /kg (m /g)
Material Mean Level Sr r (r) SR R (R)
SRB-8B 133.1 0.71 2.00 1.5 1.39 3.92 2.9
SRB-8B2 126.7 0.56 1.58 1.2 2.02 5.73 4.5
SRB-8C 115.8 0.48 1.35 1.2 1.06 3.01 2.6
SRB-8A 77.2 0.41 1.17 1.5 1.15 3.26 4.2
SRB-8A2 76.0 0.47 1.32 1.7 1.23 3.49 4.6
SRB-8E 35.8 0.34 0.96 2.7 0.71 2.02 5.6
SRB-8F 35.4 0.33 0.93 2.6 0.69 1.95 5.5
SRB-8D 21.2 0.26 0.73 3.5 0.54 1.52 7.2
Average 77.6
Pooled Values 0.46 1.31 1.7 1.19 3.36 4.3
Table 1D Precision Parameters for Test Method D2414, OAN Method, (Type 1 Precision)
–5 3 3
Units 10 m /kg (cm /100 g)
Material Mean Level Sr r (r) SR R (R)
SRB-8C 174.9 0.50 1.41 0.8 1.08 3.04 1.7
SRB-8B2 125.2 0.42 1.19 1.0 0.97 2.74 2.2
SRB-8B 123.5 0.45 1.26 1.0 0.91 2.57 2.1
SRB-8A2 71.5 0.46 1.31 1.8 1.56 4.42 6.2
SRB-8A 70.9 0.46 1.31 1.8 0.93 2.64 3.7
SRB-8F 132.0 0.41 1.16 0.9 0.91 2.59 2.0
SRB-8E 87.8 0.36 1.02 1.2 1.30 3.68 4.2
SRB-8D 36.9 0.26 0.73 1.9 1.09 3.09 8.1
Average 103.0
Pooled Values 0.42 1.19 1.2 1.11 3.15 3.1
Table 1E Precision Parameters for Test Method D3493, COAN Method, (Type 1 Precision)
–5 3 3
Units 10 m /kg (cm /100 g)
Material Mean Level Sr r (r) SR R (R)
SRB-8C 130.6 0.54 1.52 1.2 1.47 4.17 3.2
SRB-8B2 103.1 0.50 1.42 1.4 1.03 2.92 2.8
SRB-8B 99.4 0.47 1.32 1.3 1.03 2.91 2.9
SRB-8A2 67.5 0.35 0.98 1.5 1.08 3.05 4.5
SRB-8A 66.7 0.42 1.20 1.8 0.87 2.46 3.7
SRB-8F 88.6 0.40 1.12 1.3 0.91 2.58 2.9
SRB-8E 74.7 0.36 1.01 1.3 0.99 2.82 3.8
SRB-8D 36.9 0.26 0.74 1.9 0.96 2.72 7.1
Average 83.7
Pooled Values 0.42 1.19 1.4 1.06 2.99 3.6
A
The iodine adsorption number of carbon black has been shown to decrease in value as the carbon black ages. Generally, the higher the surface area the faster the rate
of change. Therefore, the target or mean values given in Table 1A may not be obtained due to this aging effect. Iodine Number testing should be monitored using HT or
INR iodine standards and their reference values found in Table 2 and Table 3. See Section 10 for additional information.
D4821 − 20
TABLE 1 SRB-8 Precision by Test Method (continued)
Table 1F Precision Parameters for Test Method D3265, Tint Strength Method, (Type 1 Precision)
Units Tint Strength
Material Mean Level Sr r (r) SR R (R)
SRB-8B2 132.1 0.65 1.83 1.4 1.86 5.26 4.0
SRB-8B 131.4 0.43 1.23 0.9 2.12 6.01 4.6
SRB-8C 112.0 0.46 1.29 1.2 1.10 3.11 2.8
SRB-8A2 111.0 0.49 1.39 1.2 1.15 3.25 2.9
SRB-8A 110.6 0.40 1.14 1.0 1.23 3.48 3.1
SRB-8E 61.8 0.30 0.84 1.4 0.95 2.69 4.4
SRB-8F 52.6 0.28 0.80 1.5 0.77 2.18 4.1
SRB-8D 42.5 0.26 0.73 1.7 0.73 2.08 4.9
Average 94.3
Pooled Values 0.43 1.21 1.3 1.32 3.75 4.0
TABLE 2 HT Iodine Standards Precision
Table 2 Precision Parameters for Test Method D1510, Iodine Number Methods A & B, (Type 1 Precision)
Units g/kg
Material Mean Level Sr r (r) SR R (R)
HT-1 43.7 0.24 0.68 1.50 0.49 1.38 3.20
HT-2 90.7 0.23 0.65 0.70 0.68 1.94 2.10
HT-3 126.6 0.23 0.64 0.50 0.61 1.73 1.40
Average
Pooled Values 87.0 0.23 0.66 0.8 0.60 1.70 2.0
TABLE 3 INR Iodine Standards Precision
Table 3 Precision Parameters for Test Method D1510, Iodine Number Methods A & B, (Type 1 Precision)
Units g/kg
Material Mean Level Sr r (r) SR R (R)
INR-A 41.5 0.31 0.88 2.1 1.19 3.37 8.1
INR-B 90.8 0.33 0.95 1.0 0.63 1.77 2.0
INR-C 125.8 0.31 0.87 0.7 1.00 2.84 2.3
Average
Pooled Values 86.0 0.32 0.90 1.0 0.97 2.74 3.2
6. Guide to Accepted Normalization Practices for Carbon Black Test Methods
6.1 Accepted normalization practices for test methods found in Classification D1765, Table 1 are described below.
6.1.1 Test Method D1510, Iodine Number—Test Method D1510 contains instructions on how to perform a normalization of the
test results. The HT or INR Iodine reference materials are recommended for monitoring iodine testing. The SRB HT and INR
reference materials are specially prepared carbon blacks that have been shown to have stable iodine number values over a period
of many years. If normalization is required, it shall be done using only the SRB HT or INR reference material values as given in
Table 2 and Table 3. Typically, this test method does not require normalization unless the HT or INR reference material values are
not within the published precision or accuracy limits, or both. The statistical correction described in Section 7 should not be used
with the values in Table 1A or Table 4A due to the known phenomenon that the iodine number can decrease due to aging effects,
most likely the result of slow oxygen chemisorption. See Fig. 1 for an example of material aging.
6.1.2 Test Method D1513, Pour Density—Normalization is not possible because accepted reference values have not been
established for this test method.
6.1.3 Test Method D2414, Oil Absorption—Normalizations are required using the tread and carcass SRBs as discussed in the test
method.
6.1.4 Test Method D3265, Tint Strength—Normalization is required using the ITRB materials as discussed in the test method.
Normalization with the SRBs must not be done (See Section 7).
6.1.5 Test Method D3493, Oil Absorption of Compressed Sample—Normalization is required using the tread or carcass SRBs as
discussed in the test method.
6.1.6 Test Method D6556, NSA and STSA—Normalization to the SRB reference materials is not discussed in the test method.
Normalization is allowed if the conditions in Section 7 are satisfied.
D4821 − 20
TABLE 4 SRB-8 Between-Lab Accuracy Limits by Test Method
Table 4A Between-Lab Accuracy Limits for Test Method D1510, Iodine Number Method A & B
Units g/kg
A
Material Mean Level SR 3SR LCL UCL
SRB-8B2 146.3 1.70 5.09 141.2 151.4
SRB-8C 138.8 2.11 6.32 132.5 145.2
SRB-8B 135.6 1.93 5.80 129.8 141.4
SRB-8A 80.5 0.88 2.64 77.9 83.2
SRB-8A2 78.1 1.33 4.00 74.1 82.1
SRB-8F 35.9 0.57 1.70 34.2 37.6
SRB-8E 35.8 0.60 1.81 34.0 37.6
SRB-8D 21.7 0.55 1.64 20.0 23.3
Table 4B Between-Lab Accuracy Limits for Test Method D6556, Method NSA
3 2 2
Units 10 m /kg (m /g)
Material Mean Level SR 3SR LCL UCL
SRB-8B 142.0 1.44 4.31 137.7 146.3
SRB-8B2 138.0 0.79 2.37 135.6 140.4
SRB-8C 126.4 1.07 3.20 123.2 129.6
SRB-8A 76.5 0.84 2.53 74.0 79.0
SRB-8A2 75.9 0.70 2.10 73.8 78.0
SRB-8E 36.7 0.53 1.58 35.1 38.3
SRB-8F 36.7 0.38 1.15 35.5 37.8
SRB-8D 21.6 0.30 0.90 20.7 22.5
Table 4C Between-Lab Accuracy Limits for Test Method D6556, Method STSA
3 2 2
Units 10 m /kg (m /g)
Material Mean Level SR 3SR LCL UCL
SRB-8B 133.1 1.39 4.16 128.9 137.2
SRB-8B2 126.7 2.02 6.07 120.7 132.8
SRB-8C 115.8 1.06 3.19 112.6 119.0
SRB-8A 77.2 1.15 3.45 73.8 80.7
SRB-8A2 76.0 1.23 3.70 72.3 79.7
SRB-8E 35.8 0.71 2.14 33.7 38.0
SRB-8F 35.4 0.69 2.06 33.3 37.5
SRB-8D 21.2 0.54 1.61 19.6 22.8
Table 4D Between-Lab Accuracy Limits for Test Method D2414, Method OAN
–5 3 3
Units 10 m /kg (cm /100
g)
B
Material Mean Level SR 3SR LCL UCL
SRB-8C 174.9 1.08 3.23 171.7 178.1
SRB-8B2 125.2 0.97 2.90 122.2 128.1
SRB-8B 123.5 0.91 2.72 120.8 126.2
SRB-8A2 71.5 1.56 4.68 66.8 76.2
SRB-8A 70.9 0.93 2.79 68.1 73.7
SRB-8F 132.0 0.91 2.74 129.2 134.7
SRB-8E 87.8 1.30 3.90 83.9 91.7
SRB-8D 36.9 1.09 3.28 33.6 40.2
Table 4E Between-Lab Accuracy Limits for Test Method D3493, Method COAN
–5 3 3
Units 10 m /kg (cm /100
g)
B
Material Mean Level SR 3SR LCL UCL
SRB-8C 130.6 1.47 4.42 126.2 135.1
SRB-8B2 103.1 1.03 3.09 100.1 106.2
SRB-8B 99.4 1.03 3.09 96.3 102.5
SRB-8A2 67.5 1.08 3.24 64.3 70.8
SRB-8A 66.7 0.87 2.61 64.1 69.3
SRB-8F 88.6 0.91 2.73 85.8 91.3
SRB-8E 74.7 0.99 2.98 71.8 77.7
SRB-8D 36.9 0.96 2.89 34.0 39.8
Table 4F Between-Lab Accuracy Limits for Test Method D3265, Method Tint Strength
Units Tint Strength
Material Mean Level SR 3SR LCL UCL
SRB-8B2 132.1 1.86 5.57 126.6 137.7
SRB-
...
