ASTM D2990-17

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

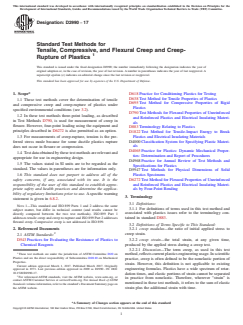

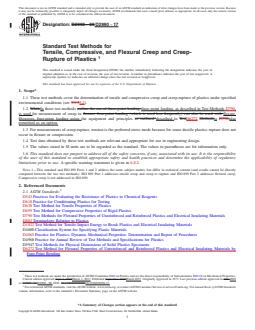

Designation: D2990 − 09 D2990 − 17
Standard Test Methods for
Tensile, Compressive, and Flexural Creep and Creep-
Rupture of Plastics
This standard is issued under the fixed designation D2990; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 These test methods cover the determination of tensile and compressive creep and creep-rupture of plastics under specified
environmental conditions (see 3.1.33.2).
1.2 WhileIn these test methods outline the use of three-point loading three-point loading, as described in Test Methods D790,
is used for measurement of creep in flexure, four-point loading (which is used less frequently) can also be used with flexure.
However, four-point loading using the equipment and principles as outlined described in TestD6272 Methodsis D790.also
permitted as an option.
1.3 For measurements of creep-rupture, tension is the preferred stress mode because for some ductile plastics rupture does not
occur in flexure or compression.
1.4 Test data obtained by these test methods are relevant and appropriate for use in engineering design.
1.5 The values stated in SI units are to be regarded as the standard. The values in parentheses are for information only.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use. A specific warning statement is given in 6.8.2.
NOTE 1—This standard and ISO 899 Parts 1 and 2 address the same subject matter, but differ in technical content (and results cannot be directly
compared between the two test methods). ISO 899 Part 1 addresses tensile creep and creep to rupture and ISO 899 Part 2 addresses flexural creep.
Compressive creep is not addressed in ISO 899.
2. Referenced Documents
2.1 ASTM Standards:
D543 Practices for Evaluating the Resistance of Plastics to Chemical Reagents
D618 Practice for Conditioning Plastics for Testing
D638 Test Method for Tensile Properties of Plastics
D695 Test Method for Compressive Properties of Rigid Plastics
D790 Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
D883 Terminology Relating to Plastics
D1822 Test Method for Tensile-Impact Energy to Break Plastics and Electrical Insulating Materials
D4000 Classification System for Specifying Plastic Materials
D4065 Practice for Plastics: Dynamic Mechanical Properties: Determination and Report of Procedures
D4968 Practice for Annual Review of Test Methods and Specifications for Plastics
D5947 Test Methods for Physical Dimensions of Solid Plastics Specimens
D6272 Test Method for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials by
Four-Point Bending
These test methods are under the jurisdiction of ASTM Committee D20 on Plastics and are the direct responsibility of Subcommittee D20.10 on Mechanical Properties.
Current edition approved Sept. 1, 2009March 1, 2017. Published September 2009March 2017. Originally approved in 1971. Last previous edition approved in 20012009
as D2990 - 01.D2990 - 09. DOI: 10.1520/D2990-09.10.1520/D2990-17.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D2990 − 17

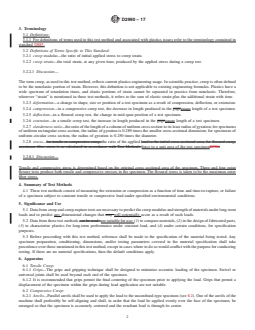

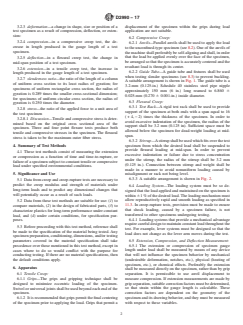

3. Terminology
3.1 Definitions:
3.1.1 For definitions of terms used in this test method and associated with plastics issues refer to the terminology contained in
standard D883.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 creep modulus—the ratio of initial applied stress to creep strain.
3.2.2 creep strain—the total strain, at any given time, produced by the applied stress during a creep test.
3.2.2.1 Discussion—
The term creep, as used in this test method, reflects current plastics engineering usage. In scientific practice, creep is often defined
to be the nonelastic portion of strain. However, this definition is not applicable to existing engineering formulas. Plastics have a
wide spectrum of retardation times, and elastic portions of strain cannot be separated in practice from nonelastic. Therefore,
wherever “strain” is mentioned in these test methods, it refers to the sum of elastic strain plus the additional strain with time.
3.2.3 deformation—a change in shape, size or position of a test specimen as a result of compression, deflection, or extension:
3.2.4 compression—in a compressive creep test, the decrease in length produced in the gagegauge length of a test specimen.
3.2.5 deflection—in a flexural creep test, the change in mid-span position of a test specimen.
3.2.6 extension—in a tensile creep test, the increase in length produced in the gagegauge length of a test specimen.
3.2.7 slenderness ratio—the ratio of the length of a column of uniform cross section to its least radius of gyration; for specimens
of uniform rectangular cross section, the radius of gyration is 0.289 times the smaller cross-sectional dimension; for specimens of
uniform circular cross section, the radius of gyration is 0.250 times the diameter.
3.2.8 stress—for tensile or compressive creep, the ratio of the applied load to the initial cross-sectional area; for flexural creep,
maximum fiber stress is as calculated in accordance with Test Methods force to a unit area of the test specimenD790.
3.2.8.1 Discussion—
Tensile and compressive stress is determined based on the original cross sectional area of the specimen. Three and four point
flexure tests produce both tensile and compressive stresses in the specimen. The flexural stress is taken to be the maximum outer
fiber stress.
4. Summary of Test Methods
4.1 These test methods consist of measuring the extension or compression as a function of time and time-to-rupture, or failure
of a specimen subject to constant tensile or compressive load under specified environmental conditions.
5. Significance and Use
5.1 Data from creep and creep-rupture tests are necessary to predict the creep modulus and strength of materials under long-term
loads and to predict any dimensional changes that may will potentially occur as a result of such loads.
5.2 Data from these test methods can be used: are suitable for use: (1) to compare materials, (2) in the design of fabricated parts,
(3) to characterize plastics for long-term performance under constant load, and (4) under certain conditions, for specification
purposes.
5.3 Before proceeding with this test method, reference shall be made to the specification of the material being tested. Any
specimen preparation, conditioning, dimensions, and/or testing parameters covered in the material specification shall take
precedence over those mentioned in this test method, except in cases where to do so would conflict with the purpose for conducting
testing. If there are no material specifications, then the default conditions apply.
6. Apparatus
6.1 Tensile Creep:
6.1.1 Grips—The grips and gripping technique shall be designed to minimize eccentric loading of the specimen. Swivel or
universal joints shall be used beyond each end of the specimen.
6.1.2 It is recommended that grips permit the final centering of the specimen prior to applying the load. Grips that permit a
displacement of the specimen within the grips during load application are not suitable.
6.2 Compressive Creep:
6.2.1 Anvils—Parallel anvils shall be used to apply the load to the unconfined-type specimen (see 8.2). One of the anvils of the
machine shall preferably be self-aligning and shall, in order that the load be applied evenly over the face of the specimen, be
arranged so that the specimen is accurately centered and the resultant load is through its center.
D2990 − 17
6.2.2 Guide Tube—A guide tube and fixtures shall be used when testing slender specimens (see 8.3) to prevent buckling. A
suitable arrangement is shown in Fig. 1. The guide tube is a 3.2-mm (0.125-in.) Schedule 40 stainless steel pipe nipple
approximately 150 mm (6 in.) long reamed to 6.860 6 0.025-mm (0.270 6 0.001-in.) inside diameter.
6.3 Flexural Creep:
6.3.1 Test Rack—A rigid test rack shall be used to provide support of the specimen at both ends with a span equal to 16
( + 4, − 2) times the thickness of the specimen. In order to avoid excessive indentation of the specimen, the radius of the support
shall be 3.2 mm (0.125 in). Sufficient space must be allowed below the specimen for dead-weight loading at mid-span.
6.3.2 Stirrup—A stirrup shall be used which fits over the test specimen from which the desired load shall be suspended to
provide flexural loading at mid-span. In order to prevent excessive indentation or failure due to stress concentration under the
stirrup, the radius of the stirrup shall be 3.2 mm (0.125 in.). Connection between stirrup and weight shall be made in a manner
to avoid nonuniform loading caused by misalignment or rack not being level.
6.3.3 A suitable arrangement is shown in Fig. 2.
6.4 Loading System—The loading system must be so designed that the load applied and maintained on the specimen is within
61 % of the desired load. The loading mechanism must allow reproductively rapid and smooth loading as specified in 11.3. In
creep-rupture tests, provision must be made to ensure that shock loading, caused by a specimen failure, is not transferred to other
specimens undergoing testing.
6.4.1 Loading systems that provide a mechanical advantage require careful design to maintain constant load throughout the test.
For example, lever systems must be designed so that the load does not change as the lever arm moves during the test.
6.5 Extension, Compression, and Deflection Measurement:
6.5.1 The extension or compression of specimen gagegauge length under load shall be measured by means of any device that
will not influence the specimen behavior by mechanical (undesirable deformation, notches, etc.), physical (heating of specimen,
etc.), or chemical effects. Preferably the extension shall be measured directly on the specimen, rather than by grip separation. Anvil
displacement may be used It is permissible to use anvil displacement to measure compression. If extension measurements are made
by grip separation, suitable correction factors must be determined, so that strain within the gage length can be calculated. gauge
length is calculable. These correction factors are dependent on the geometry of the specimen and its drawing behavior, and they
must be measured with respect to these variables.
6.5.2 The deflection of the specimen at mid-span shall be measured using a dial gagegauge (with loading springs removed, with
its measuring foot resting on stirrup) or a cathetometer.
6.5.3 The accuracy of the deformation measuring device shall be within 6 1 % of the deformation to be measured.

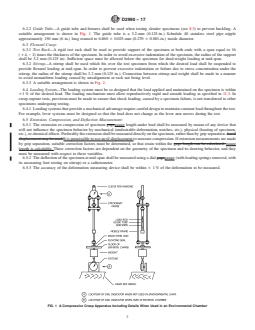

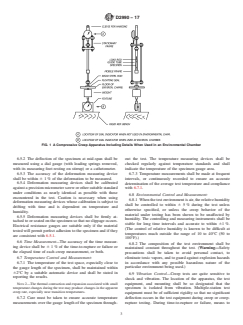

FIG. 1 A Compressive Creep Apparatus Including Details When Used in an Environmental Chamber
D2990 − 17

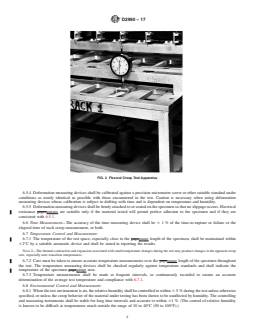

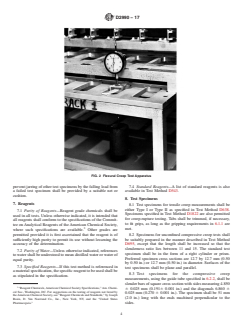

FIG. 2 Flexural Creep Test Apparatus
6.5.4 Deformation measuring devices shall be calibrated against a precision micrometer screw or other suitable standard under
conditions as nearly identical as possible with those encountered in the test. Caution is necessary when using deformation
measuring devices whose calibration is subject to drifting with time and is dependent on temperature and humidity.
6.5.5 Deformation measuring devices shall be firmly attached to or seated on the specimen so that no slippage occurs. Electrical
resistance gagesgauges are suitable only if the material tested will permit perfect adhesion to the specimen and if they are
consistent with 6.5.1.
6.6 Time Measurement—The accuracy of the time measuring device shall be 6 1 % of the time-to-rupture or failure or the
elapsed time of each creep measurement, or both.
6.7 Temperature Control and Measurement:
6.7.1 The temperature of the test space, especially close to the gagegauge length of the specimen, shall be maintained within
62°C by a suitable automatic device and shall be stated in reporting the results.
NOTE 2—The thermal contraction and expansion associated with small temperature changes during the test may produce changes in the apparent creep
rate, especially near transition temperatures.
6.7.2 Care must be taken to ensure accurate temperature measurements over the gagegauge length of the specimen throughout
the test. The temperature measuring devices shall be checked regularly against temperature standards and shall indicate the
temperature of the specimen gagegauge area.
6.7.3 Temperature measurements shall be made at frequent intervals, or continuously recorded to ensure an accurate
determination of the average test temperature and compliance with 6.7.1.
6.8 Environmental Control and Measurement:
6.8.1 When the test environment is air, the relative humidity shall be controlled to within 6 5 % during the test unless otherwise
specified, or unless the creep behavior of the material under testing has been shown to be unaffected by humidity. The controlling
and measuring instruments shall be stable for long time intervals and accurate to within 61 %. (The control of relative humidity
is known to be difficult at temperatures much outside the range of 10 to 40°C (50 to 100°F).)
D2990 − 17
6.8.2 The composition of the test environment shall be maintained constant throughout the test. (Warning—Safety precautions
shall be taken to avoid personal contact, to eliminate toxic vapors, and to guard against explosion hazards in accordance with any
possible hazardous nature of the particular environment being used.)
6.9 Vibration Control—Creep tests are quite sensitive to shock and vibration. The location of the apparatus, the test equipment,
and mounting shall be so designated that the specimen is isolated from vibration. Multiple-station test equipment must be of
sufficient rigidity so that no significant deflection occurs in the test equipment during creep or creep-rupture testing. During
time-to-rupture or failure, means to prevent jarring of other test specimens by the falling load from a failed test specimen shall be
provided by a suitable net or cushion.
7. Reagents
7.1 Purity of Reagents—Reagent grade chemicals shall be used in all tests. Unless otherwise indicated, it is intended that all
reagents shall conform to the specifications of the Committee on Analytical Reagents of the American Chemical Society, where
such specifications are available. Other grades may be used, are permitted provided it is first ascertained that the reagent is of
sufficiently high purity to permit its use without lessening the accuracy of the determination.
7.2 Purity of Water—Unless otherwise indicated, references to water shall be understood to mean distilled water or water of
equal purity.
7.3 Specified Reagents—ShouldIf this test method beis referenced in a material specification, the specific reagent to be used
shall be as stipulated in the specification.
7.4 Standard Reagents—A list of standard reagents is also available in Test Method D543.
8. Test Specimens
8.1 Test specimens for tensile creep measurements shall be either Type I or Type II as specified in Test Method D638. In addition
to these, specimens Specimens specified in Test Method D1822 may be usedare also permitted for creep-rupture testing. Tabs shall
be trimmed, if necessary, to fit grips, as long as the gripping requirements in 6.1.1 are met.
8.2 Specimens for unconfined compressive creep tests shall be suitably prepared in the manner described in Test Method D695,
except that the length shall be increased so that the slenderness ratio lies between 11 and 15. The standard test specimen shall be
in the form of a right cylinder or prism. Preferred specimen cross sections are 12.7 by 12.7 mm (0.50 by 0.50 in.) or 12.7 mm (0.50
in.) in diameter. Surfaces of the test specimens shall be plane and parallel.
8.3 Test specimens for the compressive creep measurements, using the guide tube specified in 6.2.2, shall be slender bars of
square cross section with sides measuring 4.850 6 0.025 mm (0.1916 0.001 in.) and the diagonals 6.860 6 0.025 mm (0.270 6
0.001 in.). The specimen shall be 51 mm (2.0 in.) long with the ends machined perpendicular to the sides.
8.4 Test specimens for flexural creep measurements shall be rectangular bars conforming to the requirements of Section 5 of
Test Methods D790. Preferred specimen sizes are 63.5 by 12.7 by 3.18 mm (2.5 by 0.5 by 0.125 in.) or 127 by 12.7 by 6.4 mm
(5.0 by 0.5 by 0.25 in.). Close tolerances of specimen and span dimensions are not critical as long as actual dimensions are used
in calculating loads.
8.5 Test specimens may be made by Suitable means of producing test specimens include injection or compression molding or
by machining from sheets or other fabricated forms. When the testing objective is to obtain design data, the method of sample
fabrication shall be the same as that used in the application.
8.6 Specimens prepared from sheet shall be cut in the same direction. If the material is suspected to be anisotropic, a set of
specimens shall be cut for testing from each of the two principal directions of the sheet.
8.7 The width and the thickness of the specimens shall be measured at room temperature with a suitable micrometer to the
nearest 0.025 mm (0.001 in.) and 0.005 mm (0.0002 in.), respectively, at five or more points along the gagegauge length or span
prior to testing.
8.8 In the case of materials whose dimensions are known to change significantly due to the specified environment alone (for
example, the shrinkage of some thermosetting plastics due to post-curing at elevated temperatures), provision shall be made to test
unloaded control specimens alongside the test specimen so that compensation may be made it is possible to compensate for
changes other than creep. A minimum of three control specimens shall be tested at each test temperature.
8.9 In creep testing at a single temperature, the minimum number of test specimens at each stress shall be two if four or more
levels of stress are used or three if fewer than four levels are used.
8.10 In creep-rupture testing, a minimum of two specimens shall be tested at each of the stress levels specified in 10.2.1 at each
temperature.
“Reagent Chemicals, American Chemical Society Specifications,” Am. Chemical Soc., Washington, DC. For suggestions on the testing of reagents not listed by the
American Chemical Society, see “Reagent Chemicals and Standards,” by Joseph Rosin, D. Van Nostrand Co., Inc., New York, NY, and the “United States Pharmacopeia.”
D2990 − 17
NOTE 3—The scatter of creep-rupture data is considerable, with one half to a full decade of variation in time-to-rupture being typical. Therefore, it may
be necessary to test more than two specimens at each stress level to obtain satisfactory results.
9. Conditioning
9.1 Condition the test specimens at 23 6 2°C (73.4 6 3.6°F) and 50 6 10 % relative humidity for not less than 40 h prior to
testing in accordance with Procedure A of Methods D618 for those tests where conditioning is required.
9.2 The specimen shall be preconditioned in the test environment for at least 48 h prior to being tested. Those materials whose
creep properties are suspected to be affected by moisture content shall be brought to moisture equilibrium appropriate to the test
conditions prior to testing.
10. Selection of Test Conditions
10.1 Test Temperatures—Selection of temperatures for creep and creep-rupture testing depends on the intended use of the test
results and shall be made as follows:
10.1.1 To characterize a material, select two or more test temperatures to cover the useful temperature range, usually at elevated
temperatures, in suitable increments that reflect the variation of the creep of the material with temperature and transitions of the
material.
NOTE 4—A useful method for measuring the elevated-temperature response and transitions of a material for the purpose of selecting test temperatures
is Test Method D4065.
10.1.2 To obtain design data, the test temperatures and environment shall be the same as those of the intended end-use
application.
10.1.3 To obtain the stress for 1 % strain at 1000 h (see 10.3.2) or for other simple material comparisons such as data sheets,
select the test temperatures from the following: 23, 50, 70, 90, 120, and 155°C. These temperatures were selected from the list of
standard temperatures in Practice D618.
10.2 Creep-Rupture:
10.2.1 At each test temperature, make creep-rupture tests at a minimum of seven stress levels selected so as to produce rupture
at approximately the following times: 1, 10, 30, 100, 300, 1000, and 3000 h.
10.2.1.1 The objective of these tests is to produce at each test temperature, a curve of stress-at-rupture versus time-to-rupture,
often called a “creep-rupture envelope,” which indicates a limit of a material’s load-bearing capability at the test temperature. For
the prediction of long-term performance, for example, in the design of parts that will bear constant loads six months or longer, test
times longer than 3000 h are usually necessary, particularly at elevated temperatures where heat aging of the material may be
occurring, is suspected to occur, and in aggressive environments, both of which can have the potential to greatly affect
creep-rupture.
10.2.2 For materials that fail catastrophically (that is, with negligible yielding, drawing, or flowing) measure and report the
time-to-rupture. For materials that yield, draw, or flow significantly prior to rupture, measure and report the time at the onset of
tertiary creep (onset of yielding, flowing, or drawing) shall be considered the time-to-failure and shall be measured and reported.
For materials that yield, draw, or flow, creep strain will have to be measured with a recorder.
10.3 Creep:
10.3.1 To obtain design data or to characterize a material, select stress levels as follows:
10.3.1.1 For materials that show linear viscoelasticity, that is, successive creep modulus versus time for different stresses that
superimpose upon each other (Boltzman superposition principle (1), select a minimum of three stress levels for each temperature
of interest.
10.3.1.2 For materials that are significantly affected by stress, select at least five stresses (and preferably more) for each
temperature of interest.
10.3.1.3 Select stress levels in approximately even increments up to the 1000-h creep-rupture stress:
Stress levels above 7 MPa (1000 psi) to the nearest 3.5 MPa (500 psi);
Stress levels below 7 MPa (1000 psi) to the nearest 0.7 MPa (100 psi).
10.3.1.4 Do not use stress levels that produce failure in less than 1000 h in creep testing.
10.3.2 For simple material comparisons, as for data sheets and the like, determine the stress to produce 1 % strain in 1000 h.
Do this by selecting several loads to produce strains in the approximate range of 1 % (both somewhat greater and less than 1 %
in 1000 h) and plotting a 1000-h isochronous stress-strain curve from which the stress to produce 1 % strain shall be determined
by interpolation.
NOTE 5—Isochronous stress-strain curves are cartesian plots of the applied stress used in the creep test versus the creep strain at a specific time, in
this case 1000 h. Since only one point of an isochronous plot is obtained from each creep test, it is usually necessary to run creep tests at least three stress
levels (and preferably more) to obtain an isochronous plot (Fig. 3).
The boldface numbers in parentheses refer to a list of references at the end of this standard.
D2990 − 17
FIG. 3 Cartesian Isochronous Stress Strain Curves at Various Times
11. Procedure
11.1 Mount a properly conditioned and measured specimen in the grips, compressive creep fixture, or flexural creep rack. If
necessary, mount a properly conditioned and measured control specimen alongside the test specimen in the same manner.
11.2 Attach the deformation measuring devices to the specimen (and control specimen) or, if these are optical devices, install
ready for measurements. Make the initial or reference measurement for extension or deflection.
11.2.1 If the test environment would be disturbed during the attachment of the deformation measuring device, mount the device
prior to mounting the specimen.
11.3 Apply the full load rapidly and smoothly to the specimen, preferably in 1 to 5 s. In no case shall the loading time exceed
5 s. Start the timing at the onset of loading.
11.4 If an environmental agent is used, apply it to the entire gagegauge length of the specimen immediately after loading.
11.4.1 If the environmental agent is volatile, cover the specimen to retard evaporation without affecting the applied load.
Replenish volatile agents periodically.
NOTE 6—For liquid environmental agents a cotton swab, film, or other device may be wrapped or sealed around the gagegauge length or span of the
specimen, and the liquid agent applied to saturate the swab.
11.5 Measure the extension of compression of the specimen in accordance with the following approximate time schedule: 1, 6,
12, and 30 min; 1, 2, 5, 20, 50, 100, 200, 500, 700, and 1000 h. For creep tests longer than 1000 h, measure deformation at least
monthly.
11.5.1 If discontinuities in the creep strain versus time plot are suspected or encountered, readings shall be taken more
frequently than scheduled above.
11.6 Measure temperature, relative humidity, and other environmental variables and deformation of control specimen in
accordance with the same schedule as that for deformation of the test specimen.
11.7 Upon completion of the test interval without rupture, remove the load rapidly and smoothly.
11.8 Upon completion of the test interval without rupture, remove the Optionally, initiate measurements of the recovery on the
same schedule as used in 11.5load rapidly and smoothly. during the load application. Calculate recovery strain as described in 12.2.
NOTE 7—If desired, measurements of the recovery can be initiated on the same schedule as used in 11.5 during the load application. Calculate recovery
strain as described in 12.2.
12. Calculation
12.1 For tensile or compressive measurements, calculate the stresses for each specimen in megapascals (or pounds-force per
square inch) by dividing the load by the average initial cross-sectional area of the reduced section.
12.1.1 For three-point flexural measurements (see Test Methods D790), calculate the maximum fiber stress for each specimen
in megapascals (or pounds-force per square inch) as follows:
S 5 3PL/2bd
12.1.2 For four-point flexural measurements using a load span of ⁄3 the support span (see D6272), calculate the maximum fiber
stress for each specimen in megapascals (or pounds-force per square inch) as follows:
S 5 PL/bd (1)
D2990 − 17
12.1.3 For flexural measurements, four-point flexural measurements using a load span of ⁄2 the support span (see D6272),
calculate the maximum fiber stress for each specim
...
