ASTM D7493-22

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D7493 − 14 (Reapproved 2018) D7493 − 22
Standard Test Method for
Online Measurement of Sulfur Compounds in Natural Gas
and Gaseous Fuels by Gas Chromatograph and
Electrochemical Detection
This standard is issued under the fixed designation D7493; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method is for on-line measurement of volatile gas phase sulfur-containing compounds in gaseous fuels by gas
chromatography (GC) and electrochemical (EC) detection. This test method is applicable to hydrogen sulfide, C1 to C4
mercaptans, sulfides, and tetrahydrothiophene (THT).
1.1.1 Carbonyl sulfide (COS) is not covered in measured according to this test method.
3 3
1.1.2 The detection range for sulfur compounds is approximately from 0.1 to 100 ppmvppm(v) (mL/m ) or 0.1 to 100 mg/m . at
25 °C, 101.3 kPa. The detection range maywill vary depending on the sample injection volume, chromatographic peak separation,
and the sensitivity toof the specific EC detector.
1.2 This test method describes a GC-EC method employing packedusing capillary GC columns and a specific detector for natural
gas and other gaseous fuelfuels composed of mainly light (C4 and smaller) hydrocarbons. Alternative GC columns including
packed columns, detector designs, and instrument parameters may be used, provided that chromatographic separation, quality
control, and measurement objectives needed to comply with user,user or regulator needs, or both, are achieved.
1.3 This test method does not intend to identify and measure all individual sulfur species,species and is mainly employed for
monitoring naturally occurring reduced sulfur compounds commonly found in natural gas and fuel gases or employed as an odorant
in these gases.
1.4 TheThis test method is typically employed in repetitive or continuous on-line monitoring of sulfur components in natural gas
and fuel gases using a single sulfur calibration standard. Need for a multipoint calibration curve or Guidance for producing
calibration curves specific to particular analytes or enhanced quality control procedures can be satisfied by making use of
procedures delineated found in Test Methods D5504, D5623, D6228, D6968, ISO 19739, or GPA 2199.
1.5 The test method can be used for measurement of all measuring sulfur compounds listed in Table 1 in air or other gaseous
matrices, provided that no compounds that can interfere with the GC separation and electrochemical detection are not present.
1.6 This test method is written as a companion to Practices D5287, D7165 and D7166.
This test method is under the jurisdiction of ASTM Committee D03 on Gaseous Fuels and is the direct responsibility of Subcommittee D03.12 on On-Line/At-Line
Analysis of Gaseous Fuels.
Current edition approved July 1, 2018Nov. 1, 2022. Published July 2018April 2023. Originally approved in 2008. Last previous edition approved in 20142018 as
D7493D7493 – 14 (2018).-14. DOI: 10.1520/D7493-14R18.10.1520/D7493-22.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7493 − 22

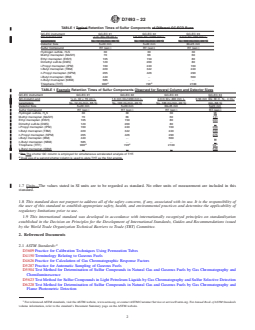

TABLE 1 Typical Retention Times of Sulfur Components of Different GC-ECD Runs
GC-EC instrument GC-EC #1 GC-EC #2 GC-EC #3
GC-Column and ⁄8 in. ID× 70 cm L, 1.6 mm ID× 1200 mm L, 4 mm ID× 400 mm L,
parameters N , 12 mL/min, 65 °C N , 100 mL/min, 20 °C N , 100 mL/min, 20 °C
2 2 2
Detector Size 5×20 mm 5×20 mm 30×25 mm
Sulfur Compound RT (sec.) RT (sec.) RT (sec.)
Hydrogen sulfide, H S 30 30 30
Methyl mercaptan (MeSH) 70 66 60
Ethyl mercaptan (EtSH) 105 150 80
Dimethyl sulfide (DMS) 120 200 80
i-Propyl mercaptan (IPM) 160 240 160
t-Butyl mercaptan (TBM) 220 342 240
n-Propyl mercaptan (NPM) 265 426 290
i-Butyl mercaptan (IBM) 440 . 560
n-Butyl mercaptan (NBM) 585 . .
A A
Thiophane (THT) 900 720 2100

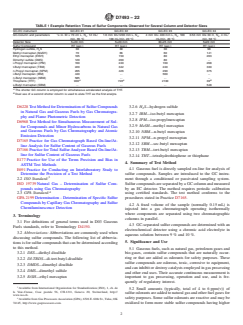

TABLE 1 Example Retention Times of Sulfur Components Observed for Several Column and Detector Sizes
GC-EC instrument GC-EC #1 GC-EC #2 GC-EC #3 GC-EC #4
GC-Column and ⁄8 in. ID × 70 cm L, 1.6 mm ID×1200 mm L, 4 mm ID× 400 mm L, 0.53 mm IDx 30 m, N , 4 mL/
parameters N , 12 mL/min, 65 °C N , 100 mL/min, 20 °C N , 100 mL/min, 20 °C min, 58 °C
2 2 2
Detector Size 5×20 mm 5×20 mm 30×25 mm 5x20 mm
Sulfur Compound RT (sec.) RT (sec.) RT (sec.) RT (sec.)
Hydrogen sulfide, H S 30 30 30 98
Methyl mercaptan (MeSH) 70 66 60 141
Ethyl mercaptan (EtSH) 105 150 80 203
Dimethyl sulfide (DMS) 120 200 80 .
i-Propyl mercaptan (IPM) 160 240 160 268
t-Butyl mercaptan (TBM) 220 342 240 330
n-Propyl mercaptan (NPM) 265 426 290 375
i-Butyl mercaptan (IBM) 440 . 560 .
n-Butyl mercaptan (NBM) 585 . . .
A A B
Thiophane (THT) 900 720 2100 39
s-Butyl mercaptan (SBM) . . . 548
A
The The shorter GC column is employed for simultaneous accelerated analysis of THT.
B
Dual use of a second shorter column is used to elute THT as the first analyte.
1.7 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this
standard.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of
the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D3609 Practice for Calibration Techniques Using Permeation Tubes
D4150 Terminology Relating to Gaseous Fuels
D4626 Practice for Calculation of Gas Chromatographic Response Factors
D5287 Practice for Automatic Sampling of Gaseous Fuels
D5504 Test Method for Determination of Sulfur Compounds in Natural Gas and Gaseous Fuels by Gas Chromatography and
Chemiluminescence
D5623 Test Method for Sulfur Compounds in Light Petroleum Liquids by Gas Chromatography and Sulfur Selective Detection
D6228 Test Method for Determination of Sulfur Compounds in Natural Gas and Gaseous Fuels by Gas Chromatography and
Flame Photometric Detection
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
D7493 − 22
D6968 Test Method for Simultaneous Measurement of Sulfur Compounds and Minor Hydrocarbons in Natural Gas and Gaseous
Fuels by Gas Chromatography and Atomic Emission Detection
D7165 Practice for Gas Chromatograph Based On-line/At-line Analysis for Sulfur Content of Gaseous Fuels
D7166 Practice for Total Sulfur Analyzer Based On-line/At-line for Sulfur Content of Gaseous Fuels
E177 Practice for Use of the Terms Precision and Bias in ASTM Test Methods
E691 Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
2.2 ISO Standards:Standard:
ISO 19739 Natural gasGas – Determination of sulfur compounds by gas chromatographySulfur Compounds using Gas
Chromatography
2.3 GPA StandardStandard:
GPA 2199 Determination - Determination of Specific Sulfur Compounds by Capillary Gas Chromatography and Sulfur
Chemiluminescence Detection
3. Terminology
3.1 Common terminology used in this method are cited in For definitions of general terms used in D03 Gaseous Fuels standards,
refer to Terminology D4150. Sulfur compounds are commonly referred by their initials (chemical or formula), for example,
3.2 Abbreviations:
hydrogen sulfide = H S
methyl mercaptan = MeSH (MM)
ethyl mercaptan = EtSH (EM)
dimethyl sulfide = DMS
i-Propyl mercaptan = IPM
n-Propyl mercaptan = NPM
t-Butyl mercaptan = TBM
tetrahydrothiophene = THT or Thiophane
3.2 Abbreviations: Abbreviations are commonly used when discussing sulfur compounds. The following list of abbreviations
is for sulfur compounds that can be determined according to this method.
3.2.1 DES—diethyl disulfide
3.2.2 DI-TBDS—di-tert-butyl-disulfide
3.2.3 DMDS—dimethyl disulfide
3.2.4 DMS—dimethyl sulfide
3.2.5 EtSH—ethyl mercaptan
3.2.6 H S—hydrogen sulfide
3.2.7 IBM—iso-butyl mercaptan
3.2.8 IPM—iso-propylmercaptan
3.2.9 MeSH—methyl mercaptan
3.2.10 NBM—n-butyl mercaptan
Available from International Organization for Standardization (ISO), 1, ch. de la Voie-Creuse, Case postale 56, CH-1211, Geneva 20, Switzerland, http://www.iso.ch.
Available from Gas Processors Association (GPA), 6526 E. 60th St., Tulsa, OK 74145, http://www.gasprocessors.com.
D7493 − 22
3.2.11 NPM—n-propyl mercaptan
3.2.12 SBM—sec-butyl mercaptan
3.2.13 TBM—tert-butyl mercaptan
3.2.14 THT—tetrahydrothiophene or thiophane
4. Summary of Test Method
4.1 Gaseous fuel is directly sampled on-line for analysis of sulfur compounds. Samples are introduced to the GC instrument
through a conditioned or passivated sampling system. Sulfur compounds are separated by a GC column and measured by an EC
detector. The method requires periodic calibration using certified standards. The test method conforms to the practicesprocedures
stated in Practice D7165.
4.2 A fixed volume of the sample (normally 0.25 mL) 0.15 mL) is injected into a gas chromatograph operating isothermally where
components are separated using two chromatographic columns.columns in parallel.
4.3 GC-separated sulfur compounds are determined usingwith an electrochemical detector utilizingusing a chromic acid
electrolyte.electrolyte in aqueous solution between 9 % and 10 %.
5. Significance and Use
5.1 Gaseous fuels, such as natural gas, petroleum gases and bio-gases, contain sulfur compounds that are naturally occurring or
that are added as odorants for safety purposes. These sulfur compounds are odorous, toxic, corrosive to equipment, and can inhibit
or destroy catalysts employed in gas processing and other end uses. Their accurate continuous measurement is important to gas
processing, operation and utilization,use, and is frequently of regulatory interest.
5.2 Small amounts (typically, total of 4 to 6 ppmv) 6 ppm(v)) of sulfur odorants are added to natural gas and other fuel gases for
safety purposes. Some sulfur odorants are reactive,reactive and may be oxidized to form more stable sulfur compounds having
lowerhigher odor thresholds which adversely impact the potential safety of the gas delivery systems and gas users. Gaseous fuels
are analyzed for sulfur compounds and odorant levels to assist in pipeline integrity surveillance and to ensure appropriate odorant
levels for public safety.
5.3 This method offers an on-line techniquemethod to continuously identify and quantify individual target sulfur species in
gaseous fuel with automatic calibration and validation.
6. Apparatus
6.1 Chromatograph—Industrial gas chromatograph with an isothermal oven, automatic injection valve, and software necessary for
interfacing to a chromic acid electrochemical detector and designed for the intended application. The GC system must be inert,
well-conditioned and passivated with a gas containing the sulfur compounds of interest to ensure reliable results.
6.1.1 Sample Inlet System—The gas sample is introduced to the GC by sample loop injection. An automated non-reactive gas
sampling valve is employed for a fixed sample loop injection. The sample injection port must be heated continuously at a
temperature significantly (~10 °C) above the temperature at which the gas wasis sampled to avoid sample condensation and
discrimination. Inert tubing made of non-permeable, non-sorbing and non-reactive materials, as short as possible and heat traced
at the same temperature, should be is employed for transferring the sample from a sample source to the gas sampling valve and
to the GC inlet system. Silica-coated 316 stainless steel (s.s.) and non-permeable polytetrafluoroethylene (PTFE) type tubing are
often employed. Different size fixed-volume sample loops (0.25 to 10.0 mL) (0.05 to 0.15 mL) may be used to target multiple
concentration ranges for components in a gas, provided chromatographic separation and quality control objectives are obtained.
The same non-reactive materials are used for the sample loop to avoid possible minimize decomposition or absorption of reactive
species. The sampling and GC inlet system must be well conditioned or passivated and evaluated frequently for compatibility with
trace quantities of reactive sulfur compounds, such as tert-butyl mercaptan. mercaptan (TBM). A programmable and
computer-controlled multi-stream sample selector can be used to sample fuel gases and calibration gases.
D7493 − 22
6.1.2 Column Temperature—The gas chromatograph GC must be capable of maintaining an isothermal temperature, normally at
65 °C,58 °C, with temperature variation not exceeding 60.5 °C.
6.1.3 Carrier and Detector Gas Control—Constant flow control of carrier and detector gases is necessary for optimumoptimal and
consistent analytical performance. Control is best provided by the use of pressure regulators like Piezo valves and fixed flow
restrictors. Piezo valves allow for remote adjustments when needed. The gas flow rate is measured using a gas flow meter either
volumetrically or based upon mass flow rates. Mass flow controllers, capable of maintaining gas flow constant to 61 % 61 % at
the required flow rates should be are used. The supply pressure of the gas delivered to the gas chromatograph must be at least 69
kPa (10 psi) 69 kPa greater than the regulated gas at the instrument to compensate for system back pressure.
6.1.4 Detector—An EC detector, whose operation is based upon the reduction/oxidation reaction between reduced sulfur
compounds and a solution of chromic acid (Fig. 1), is used in this method. The detector is set according to the manufacturer’s
specifications for this particular application. One EC detector is normally employed for measurement. A second column is
employed for detection of late-eluting sulfur compounds, such as THT. application.
6.1.4.1 The detector consists of a an electrochemical system made of glass and a container made of glass or methyl
polymethacrylate container. polymethacrylate. The electrodes, two pieces of platinum gauze grids, are arranged vertically in
parallel, and are welded in a borosilicate glass tube. These grids are isolated from each other and other conductive materials and
connected to an amplifier for data acquisition.
6.1.4.2 The electrolyte, a solution of chromium (VI) oxide in distilled or deionized water (100(100 g g/L or 0.66⁄L or 0.66 mole
mole/L), ⁄L), is contained in an acid-resistant vessel. A tube fitted with the electrodes is dipped into the solution such that the liquid
is retained by capillary action within the tube at a level approximately midway between two grids.
6.1.4.3 The gas flow from the GC column is discharged through a narrow glass or PTFE tube (2 mm (0.7 mm ID) immediately
above the upper grid center (normally 5 mm). 5 mm). Each sulfur compound sequentially elutes and reacts with chromic acid.
Possible reaction mechanisms are illustrated as Eq 1 and Eq 2. The redox reaction occurs on the electrode surface, creating a
potential difference between the two electrodes, thus causing a current to be measured (using a low resistance measuring circuit).
For example, t-butyl mercaptan TBM is oxidized to t-butyl sulfoxide and chromium oxide (Eq 2).

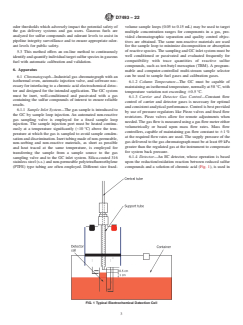

FIG. 1 Typical Electrochemical Detection Cell
D7493 − 22
2 CrO 12 R 2 SH→2 RS 5 O1Cr O (1)
3 2 3
where:
R = organic moieties, such as CxHy
R = organic moieties, such as CxHy.
2 CrO 12 C H 2 SH→2 C H 2 SO1Cr O 1H O (2)
3 4 9 4 9 2 3 2
6.2 Column—1200 mm of 1.6 mm ID glass or PTFE tubing packed with 150 to 180 um (80 to 100 mesh) Chromosorb W support
30 m of 0.53 mm ID metallic capillary column with 3 μm film thickness of 624 or equivalent stationary phase has been successfully
used in performance of this test method. However, other columns including packed columns that provide adequate retention and
resolution characteristics under the experimental conditions as described in 8.1 can be used. A second GC column of the same ID
and phase, but of a shorter length, can be employed for faster measurement of late-eluting sulfur compounds such as THT. In this
case, two columns are connected to the GC injection system using a 10-port valve to direct sample flow through the appropriate
column and then onto the EC detector; thus, allowing measurement of low molecular weight sulfur gases and high molecular
weight sulfur gases such as THT from a single sample injection. injection, THT may exit first in such mounting of columns if a
dual column (column commutation) is used. The elution of high molecular weight sulfur gases such as THT may also be
accelerated by increased sped up carrier gas flow rate after the elution of TBM. When samples may contain high boiling or
instrument damaging substances, a backflush column may be employed to remove these materials before they reach the
chromatographic column and EC detector. The performance of GC columns shall giveprovide adequate separation of target sulfur
compounds for the particular application.
6.3 Data Acquisition
6.3.1 The device and software must have the following capabilities:
6.3.1.1 Graphic presentation of the chromatogram.
6.3.1.2 Digital display of chromatographic peak areas.
6.3.1.3 Identification of peaks by retention time or relative retention time, or both.
6.3.1.4 Calculation and use of response factors.
6.3.1.5 External standard calculation and data presentation.
6.3.1.6 Instrument control for electrochemical detector operation, such as gas pressure and flow control.
7. Reagents and Materials
7.1 High-pressure Cylinder Reference Gas Standards—Gas standards of high purity with certified stability and accuracy are used.
7.1.1 Sulfur Gas Standards—Single or multiple sulfur compounds in a compressed gas of high purity nitrogen, helium, or methane
base gas may be used. Care must be exercised in the use of compressed gas standards since they can introduce errors in
measurement due to lack of uniformity in their manufacture or instability in their storage and use. analyte instability. The
non-mandatory protocol for compressed gas standards cited in Appendix X1 of Test Method D5504 can be used to ensure the
quality of standards and to establish traceability to a National Institute of Standards and Technology (NIST) or other (NIST),
national metrology institute (NMI) (NMI), or other standard reference material.material (SRM).
7.1.2 Multiple sulfur gas standard mixes should be used as recommended by a compressed gas standard manufacturer to assure
the long term long-term stability of sulfur components.compounds. The standard should by re-certified as per manufacturers’
recommendations or as needed for regulatory compliance.
7.1.3 Compressed Gas Standard Delivery System—Pressure regulators, gas lines, and fittings must be inert, appropriate for the
delivery of sulfur gases and well passivated.passivated or inert.
7.2 Sulfur Permeation Standards—Gaseous standards generated from individual or a combination of certified permeation tubes
D7493 − 22
and devices at a constant temperature (60.1 °C) and a constant flow rate can be used for calibrations. The standard concentration
is calculated by mass loss at a fixed temperature and dilution gas flow rate. Permeation devices should be calibrated gravimetrically
to the nearest 0.01 mg. 0.01 mg. Impurities permeated from each device must be detected, measured, and accounted for in the mass
loss if they are present above a level of 0.1 % 0.1 % of the permeated sulfur species. Permeation devices shall be discarded when
the liquid content is reduced to less than 10 % 10 % of the initial volume. See Practice D3609 for further information on the proper
use of permeation devices.
NOTE 1—Warning: Sulfur compounds may be flammable and may be harmful if ingested or inhaled.
7.2.1 Warning—Sulfur compounds may be flammable and ma
...
