SIST EN 13286-5:2004
(Main)Unbound and hydraulically bound mixtures - Part 5: Test methods for laboratory reference density and water content - Vibrating table
Unbound and hydraulically bound mixtures - Part 5: Test methods for laboratory reference density and water content - Vibrating table
This European Standard specifies a method for the determination of the maximum dry density of cohesionless materials when compacted using a vibrating table. The method utilizes vibratory compaction to obtain maximum density under saturated condition. Materials for which this method is applicable may contain up to 12% by mass fines (< 0,063 mm). Maximum particle size of the materials to be tested is 80 mm.
Ungebunden und hydraulisch gebundene Gemische - Teil 5: Laborprüfverfahren für die Trockendichte und den Wassergehalt - Vibrationstisch
Diese Europäische Norm legt ein Verfahren zur Bestimmung der höchsten Trockendichte und des Wassergehalts von nicht bindigen Materialien fest, die auf einem Vibrationstisch verdichtet werden. Bei diesem Verfahren wird die Vibrationsverdichtung genutzt, um unter Sättigungsbedingungen die höchste Dichte zu erreichen.
Dieses Verfahren ist auf Materialien anwendbar, die bis zu 12 Massenanteile in Prozent Feinkorn (< 0,063 mm) enthalten dürfen. Das Größtkorn der zu prüfenden Materialien beträgt 80 mm.
Das Verfahren trifft für Gemische zu, die im Straßenbau verwendet werden.
Mélanges traités et mélanges non traités aux liants hydrauliques - Partie 5: Méthode d'essai de détermination en laboratoire de la masse volumique apparente seche de référence et de la teneur en eau - Table vibrante
La présente Norme européenne spécifie une méthode d'essai pour déterminer la masse volumique apparente sèche maximale et la teneur en eau des matériaux non cohérents compactés à l'aide d'une table vibrante. Cette méthode utilise le compactage par vibration afin d'obtenir une masse volumique apparente maximale à l'état saturé.
Cette méthode s'applique aux matériaux dont la teneur en fines (< 0,063 mm) peut atteindre jusqu'à 12 % en masse. La dimension maximale des éléments des matériaux soumis à l'essai est de 80 mm.
La présente méthode s'applique aux mélanges utilisés en construction routière.
Nevezane in hidravlično vezane zmesi – 5. del: Preskusne metode za laboratorijsko referenčno gostoto in vsebnost vode – Vibracijska miza
General Information
- Status
- Published
- Publication Date
- 31-May-2004
- Technical Committee
- CES - Roads
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Jun-2004
- Due Date
- 01-Jun-2004
- Completion Date
- 01-Jun-2004
- Directive
- 89/106/EEC - Construction products
Overview
EN 13286-5:2003 (CEN) defines a laboratory test method using a vibrating table to determine the maximum dry density and corresponding water content of cohesionless and lightly fined materials used in road construction. The method uses vibratory compaction under near‑saturated conditions and is applicable to materials containing up to 12% fines (<0.063 mm) with a maximum particle size of 80 mm.
Key topics and requirements
- Scope: Laboratory determination of reference dry density and water content for unbound and hydraulically bound mixtures intended for roadworks.
- Material limits: Up to 12% fines by mass; max particle size 80 mm.
- Apparatus:
- Steel vibrating table with cushioned deck and electromagnetic vibrator (frequency ~50 Hz ≈ 3 000 vpm).
- Amplitude adjustable (typical range 0.1–0.4 mm).
- Cylindrical metal moulds (≈14 L capacity; dimensions specified).
- Surcharge base plate and surcharge load assembly, balances, slide gauge, ventilated oven (110 ± 5 °C).
- Procedure highlights:
- Representative sampling (see EN 932‑1); typical sample mass ≈ 45 kg.
- If water is added, allow soaking (at least 30 min for traditional road materials).
- Initial vibration during filling (total 360 s), reducing amplitude to prevent boiling.
- Final vibration under surcharge at specified amplitude for 720 s.
- Measure settled specimen height, weigh wet and oven‑dried material (drying per EN 1097‑5).
- Calculations & reporting:
- Water content from mass loss on drying.
- Maximum dry density calculated from measured wet mass, volume, and water content.
- Test report must reference EN 13286‑5 and include density (Mg/m3 to two decimals) and water content (%) to one decimal.
- Calibration: Mould calibration interval - after every 1 000 tests or annually.
Applications and users
- Practical for geotechnical and materials laboratories, pavement engineers, highway authorities, contractors, and aggregate suppliers who need standardized reference densities and moisture conditions for:
- Designing and specifying unbound base and subbase layers.
- Quality control and acceptance testing of road construction materials.
- Comparative evaluation of compaction methods (vibrating table vs. Proctor, vibrating hammer, etc.).
Related standards
- EN 13286‑1:2003 (general requirements and sampling)
- EN 13286‑2 / ‑3 / ‑4 (other compaction/test methods)
- EN 932‑1 (sampling of aggregates)
- EN 1097‑5 (water content determination by oven drying)
Keywords: EN 13286-5:2003, vibrating table, maximum dry density, laboratory reference density, water content, unbound mixtures, hydraulically bound mixtures, road construction materials, CEN.
Frequently Asked Questions
SIST EN 13286-5:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Unbound and hydraulically bound mixtures - Part 5: Test methods for laboratory reference density and water content - Vibrating table". This standard covers: This European Standard specifies a method for the determination of the maximum dry density of cohesionless materials when compacted using a vibrating table. The method utilizes vibratory compaction to obtain maximum density under saturated condition. Materials for which this method is applicable may contain up to 12% by mass fines (< 0,063 mm). Maximum particle size of the materials to be tested is 80 mm.
This European Standard specifies a method for the determination of the maximum dry density of cohesionless materials when compacted using a vibrating table. The method utilizes vibratory compaction to obtain maximum density under saturated condition. Materials for which this method is applicable may contain up to 12% by mass fines (< 0,063 mm). Maximum particle size of the materials to be tested is 80 mm.
SIST EN 13286-5:2004 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 13286-5:2004 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 13286-5:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-junij-2004
1HYH]DQHLQKLGUDYOLþQRYH]DQH]PHVL±GHO 3UHVNXVQHPHWRGH]D
ODERUDWRULMVNRUHIHUHQþQRJRVWRWRLQYVHEQRVWYRGH±9LEUDFLMVNDPL]D
Unbound and hydraulically bound mixtures - Part 5: Test methods for laboratory
reference density and water content - Vibrating table
Ungebunden und hydraulisch gebundene Gemische - Teil 5: Laborprüfverfahren für die
Trockendichte und den Wassergehalt - Vibrationstisch
Mélanges traités et mélanges non traités aux liants hydrauliques - Partie 5: Méthode
d'essai de détermination en laboratoire de la masse volumique apparente seche de
référence et de la teneur en eau - Table vibrante
Ta slovenski standard je istoveten z: EN 13286-5:2003
ICS:
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 13286-5
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2003
ICS 93.080.20
English version
Unbound and hydraulically bound mixtures - Part 5: Test
methods for laboratory reference density and water content -
Vibrating table
Mélanges traités et mélanges non traités aux liants Ungebunden und hydraulisch gebundene Gemische - Teil
hydrauliques - Partie 5: Méthodes d'essai pour la masse 5: Laborprüfverfahren für die Trockendichte und den
volumique de référence et la teneur en eau en laboratoire - Wassergehalt - Vibrationstisch
Table vibrante
This European Standard was approved by CEN on 12 December 2002.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovak Republic, Spain, Sweden, Switzerland and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13286-5:2003 E
worldwide for CEN national Members.

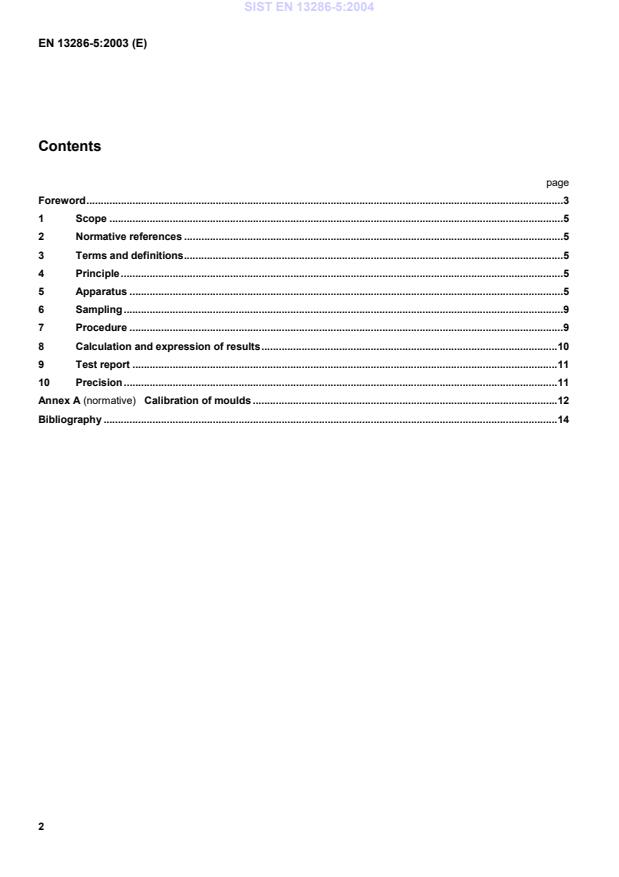

Contents
page
Foreword.3
1 Scope .5
2 Normative references .5
3 Terms and definitions.5
4 Principle.5
5 Apparatus .5
6 Sampling.9
7 Procedure .9
8 Calculation and expression of results.10
9 Test report .11
10 Precision.11
Annex A (normative) Calibration of moulds .12
Bibliography .14
Foreword
This document (EN 13286-5:2003) has been prepared by Technical Committee CEN/TC 227 "Road Materials", the
secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by September 2003, and conflicting national standards shall be withdrawn at the
latest by December 2003.
This European Standard is one of a series of standards as follows:
EN 13286-1, Unbound and hydraulically bound mixtures – Part 1: Test methods for laboratory reference density
and water content – Introduction, general requirements and sampling.
prEN 13286-2, Unbound and hydraulically bound mixtures – Part 2: Test methods for laboratory reference density
and water content – Proctor compaction.
EN 13286-3, Unbound and hydraulically bound mixtures – Part 3: Test methods for laboratory reference density
and water content – Vibrocompression with controlled parameters.
EN 13286-4, Unbound and hydraulically bound mixtures – Part 4: Test methods for laboratory reference density
and water content – Vibrating hammer.
EN 13286-5, Unbound and hydraulically bound mixtures – Part 5: Test methods for laboratory reference density
and water content – Vibrating table.
prEN 13286-7, Unbound and hydraulically bound mixtures — Part 7: Cyclic load triaxial test for unbound mixtures.
EN 13286-40, Unbound and hydraulically bound mixtures — Part 40: Test method for the determination of the
direct tensile strength of hydraulically bound mixtures.
EN 13286-41, Unbound and hydraulically bound mixtures — Part 41: Test methods for the determination of the
compressive of strength of hydraulically bound mixtures.
EN 13286-42, Unbound and hydraulically bound mixtures — Part 42: Test method for the determination of the
indirect tensile strength of hydraulically bound mixtures.
EN 13286-43, Unbound and hydraulically bound mixtures — Part 43: Test method for the determination of the
modulus of elasticity of hydraulically bound mixtures.
prEN 13286-44, Unbound and hydraulically bound mixtures — Part 44: Test method for the determination of the
alpha coefficient of vitrified blastfurnace slag.
prEN 13286-45, Unbound and hydraulically bound mixtures — Part 45: Test method for the determination of the
workability period of hydraulically bound mixtures.
EN 13286-46, Unbound and hydraulically bound mixtures — Part 46: Test method for the determination of the
moisture condition value.
prEN 13286-47, Unbound and hydraulically bound mixtures — Part 47: Test method for the determination of
California bearing ratio, immediate bearing index and linear swelling.
prEN 13286-48, Unbound and hydraulically bound mixtures — Part 48: Test method for the determination of the
degree of pulverisation.
prEN 13286-49, Unbound and hydraulically bound mixtures — Part 49: Test method for the determination of the
accelerated swelling of soil treated by lime and/or hydraulic binder.
prEN 13286-50, Unbound and hydraulically bound mixtures — Part 50: Method for the manufacture of test
specimens of hydraulically bound mixtures using Proctor equipment or vibrating table compaction.
prEN 13286-51, Unbound and hydraulically bound mixtures — Part 51: Method for the manufacture of test
specimens of hydraulically bound mixtures using vibrating hammer compaction.
prEN 13286-52, Unbound and hydraulically bound mixtures — Part 52: Method for the manufacture of test
specimens of hydraulically bound mixtures using vibrocompression.
prEN 13286-53, Unbound and hydraulically bound mixtures — Part 53: Method for the manufacture of test
specimens of hydraulically bound mixtures using axial compression.
Annex A is normative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,
Slovak Republic, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This European Standard specifies a method for the determination of the maximum dry density and water content of
cohesionless materials when compacted using a vibrating table. The method utilizes vibratory compaction to obtain
maximum density under saturated conditions.
Materials for which this method is applicable may contain up to 12 % by mass fines (< 0,063 mm). The maximum
particle size of the materials to be tested is 80 mm.
This method applies to mixtures to be used in road construction.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text, and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies (including amendments).
EN 932-1, Tests for general properties of aggregates – Part 1: Methods for sampling.
EN 1097-5, Tests for mecha
...
