Overview
SIST EN ISO 16484-5:2026 defines the data communication protocol for Building Automation and Control Systems (BACS). Developed by the Slovenian Institute for Standardization (SIST) and aligned with international standard ISO 16484-5:2026, this standard sets the requirements for data communication services and protocols used to monitor and control building systems such as HVAC&R (Heating, Ventilation, Air Conditioning, and Refrigeration) and related subsystems. It also introduces an abstract, object-oriented approach for information exchange, enabling more efficient digital control across various building technologies.
This standard is essential for equipment manufacturers, system integrators, designers, and facility managers who need to ensure seamless interoperability and integration between different brands and types of building automation equipment.
Key Topics
- BACnet Protocol Architecture: Outlines the open communication framework for BACS, detailing the various network topologies, collapsed architecture, and built-in security provisions.
- Layered Communication Model: Defines application, network, data link, and physical layers supporting multiple technologies including Ethernet, ARCNET, MS/TP, Point-to-Point, and LonTalk networks.
- Object-Oriented Data Representation: Provides a model for representing devices and their data as well-defined objects, such as analog and binary inputs/outputs, schedules, trend logs, alarms, and access control points.
- Alarm, Event, and Audit Services: Specifies services for monitoring, event notifications, audit trails, and handling of alarms within building systems.
- Access and File Services: Details how systems can securely retrieve, update, and manage files and objects, supporting holistic device management and data integrity.
- Authentication and Authorization: Addresses mechanisms for verifying user and device identities and managing access rights to secure critical building operations.
- Error Handling and Logging: Standardizes error, reject, and abort codes to ensure systems handle exceptions consistently and effectively.
Applications
Implementing SIST EN ISO 16484-5:2026 delivers significant benefits for various sectors within the building and construction industry:
- Seamless System Integration: Enables diverse devices from multiple vendors to coexist and operate as a unified system-important in smart buildings and complex facilities.
- Future-Proof Building Infrastructure: The abstract, object-oriented model makes it easier to adapt systems to evolving technologies and industry requirements.
- Enhanced Building Performance: Reliable and standardized data communication helps optimize HVAC&R performance, energy management, lighting, security, and access controls, improving comfort and efficiency.
- Simplified Maintenance and Upgrades: Standardized protocols and object models reduce downtime and compatibility issues during system upgrades or expansions.
- Regulatory Compliance: As the standard may be referenced in national and international regulations, early adoption helps meet compliance and market requirements.
Related Standards
Professionals working with SIST EN ISO 16484-5:2026 may also benefit from familiarity with the following standards:
- ISO 16484 Series: Covering holistic BACS design, installation, and commissioning processes.
- ISO 8802-3 (Ethernet): Referenced within BACnet for physical and data link layer compatibility.
- ISO/IEC 14908-1 (LonTalk): Used for certain network types within building automation.
- IEC 61131: Relevant for programmable controllers commonly used in automation systems.
- EN 15232: Focuses on the energy performance of buildings through automation and control systems.
For industry professionals seeking to design, implement, or manage advanced building automation, adopting SIST EN ISO 16484-5:2026 ensures a scalable, interoperable, and secure foundation for intelligent facility management.
Relations
- Effective Date
- 01-Oct-2026
- Effective Date
- 02-Sep-2026
- Effective Date
- 02-Sep-2026
- Effective Date
- 02-Sep-2026
Get Certified
Connect with accredited certification bodies for this standard
BSI Group
BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.
NYCE
Mexican standards and certification body.
Sponsored listings
Frequently Asked Questions
SIST EN ISO 16484-5:2026 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Building automation and control systems (BACS) - Part 5: Data communication protocol (ISO 16484-5:2026)". This standard covers: The purpose of this document is to define data communication services and protocols for computer equipment used for monitoring and control of HVAC&R and other building systems and to define, in addition, an abstract, object-oriented representation of information communicated between such equipment, thereby facilitating the application and use of digital control technology in buildings.
The purpose of this document is to define data communication services and protocols for computer equipment used for monitoring and control of HVAC&R and other building systems and to define, in addition, an abstract, object-oriented representation of information communicated between such equipment, thereby facilitating the application and use of digital control technology in buildings.
SIST EN ISO 16484-5:2026 is classified under the following ICS (International Classification for Standards) categories: 35.240.67 - IT applications in building and construction industry; 97.120 - Automatic controls for household use. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN ISO 16484-5:2026 has the following relationships with other standards: It is inter standard links to SIST EN ISO 16484-5:2022, SIST EN ISO 16484-3:2005, SIST-TP CEN/TR 18081:2024, SIST EN IEC 60730-1:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN ISO 16484-5:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

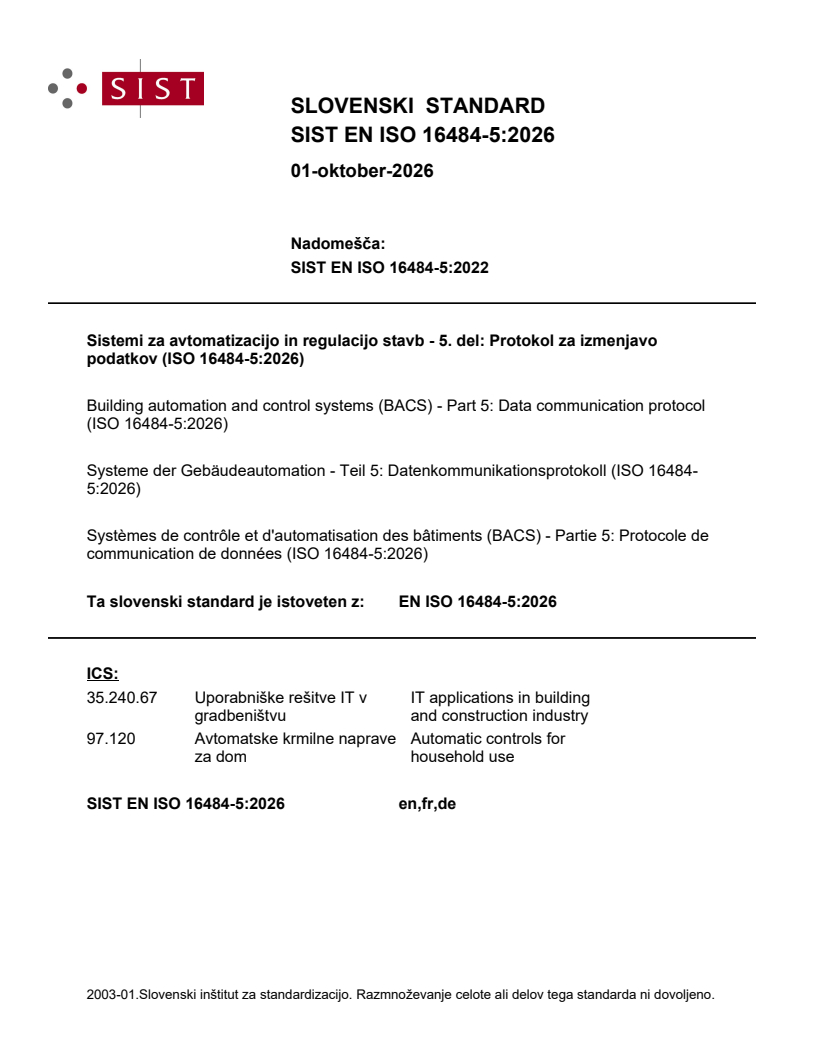

SLOVENSKI STANDARD
01-oktober-2026
Nadomešča:
SIST EN ISO 16484-5:2022
Sistemi za avtomatizacijo in regulacijo stavb - 5. del: Protokol za izmenjavo
podatkov (ISO 16484-5:2026)
Building automation and control systems (BACS) - Part 5: Data communication protocol
(ISO 16484-5:2026)
Systeme der Gebäudeautomation - Teil 5: Datenkommunikationsprotokoll (ISO 16484-
5:2026)
Systèmes de contrôle et d'automatisation des bâtiments (BACS) - Partie 5: Protocole de
communication de données (ISO 16484-5:2026)
Ta slovenski standard je istoveten z: EN ISO 16484-5:2026
ICS:
35.240.67 Uporabniške rešitve IT v IT applications in building
gradbeništvu and construction industry
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 16484-5

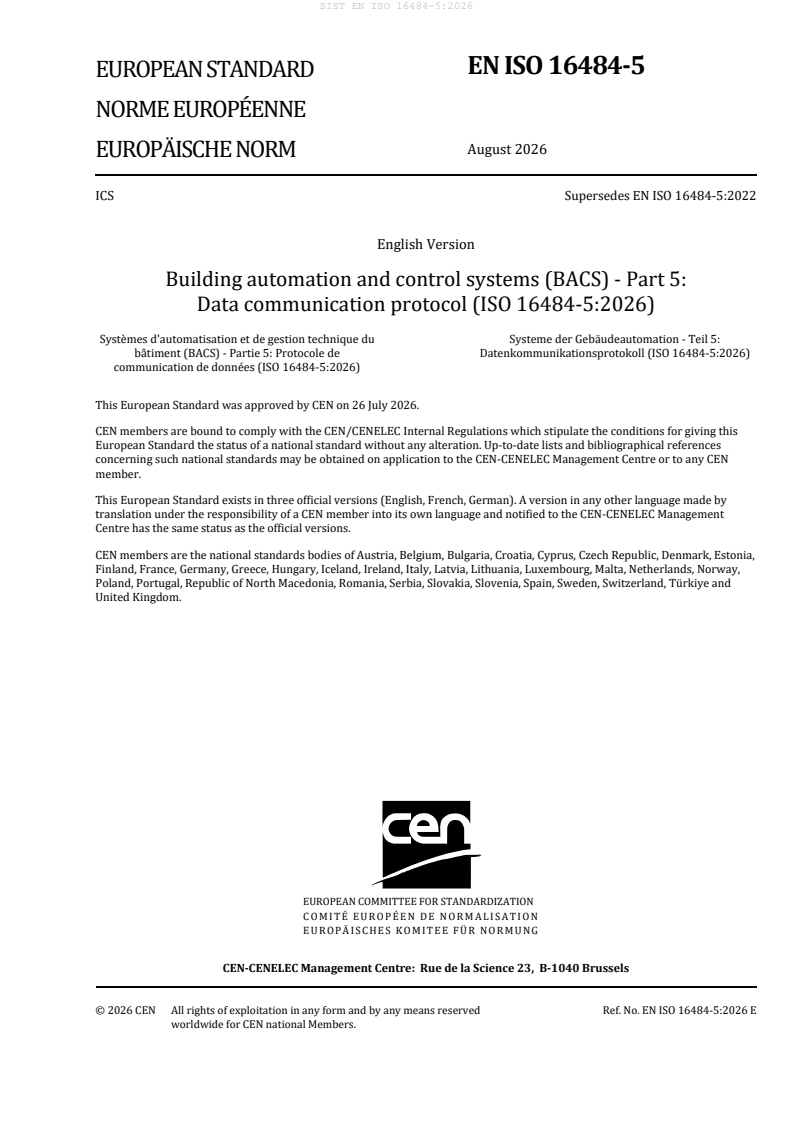

EUROPEAN STANDARD
NORME EUROPÉENNE
August 2026
EUROPÄISCHE NORM
ICS Supersedes EN ISO 16484-5:2022
English Version
Building automation and control systems (BACS) - Part 5:
Data communication protocol (ISO 16484-5:2026)
Systèmes d'automatisation et de gestion technique du Systeme der Gebäudeautomation - Teil 5:
bâtiment (BACS) - Partie 5: Protocole de Datenkommunikationsprotokoll (ISO 16484-5:2026)
communication de données (ISO 16484-5:2026)
This European Standard was approved by CEN on 26 July 2026.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16484-5:2026 E
worldwide for CEN national Members.

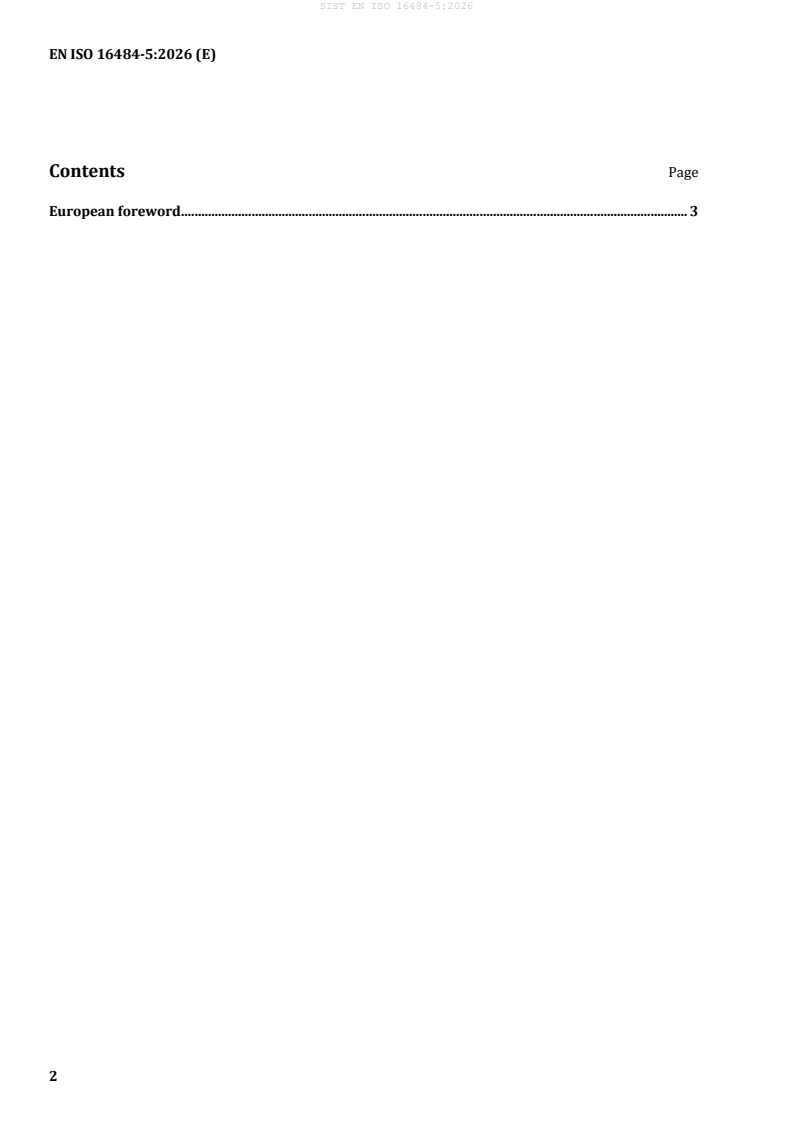

Contents Page
