SIST EN IEC 61810-7-19:2026
(Main)Electrical relays - Tests and Measurements - Part 7-19: Electrical endurance
- Abstract
This part of IEC 60730 applies to automatic electrical motor-starting relays
– intended to control the start windings of single phase motors;
– for use in, on, or in association with equipment for household appliance and similar use;
NOTE 1 Throughout this document, the word "equipment" means "appliance and equipment" and "control" means "motor-starting relays".
– intended for appliances within the scope of IEC 60335;
– for equipment that is used in building automation within the scope of ISO 16484 series and IEC 63044 series (HBES/BACS);
– for equipment that is used by the public, such as equipment intended to be used in shops, offices, hospitals, farms and commercial and industrial applications;
EXAMPLE 1 Controls for commercial catering, heating and air-conditioning equipment.
– used in, on, or in association with equipment that are smart enabled;
EXAMPLE 2 Smart grid control, remote interfaces/control of energy-consuming equipment.
– that are AC or DC powered with a rated voltage not exceeding 690 V AC or 600 V DC;
– used in, on, or in association with equipment that use electricity, gas, oil, solid fuel, solar thermal energy, etc., or a combination thereof;
– utilized as part of a control system or controls which are mechanically integral with multifunctional controls having non-electrical outputs;
– using NTC or PTC thermistors, requirements for which are contained in Annex J;
– that are mechanically or electrically operated, responsive to or controlling such characteristics as current and voltage, or combinations thereof;
EXAMPLE 3 Centrifugal motor-starting devices.
– as well as manual controls when such are electrically and/or mechanically integral with automatic controls.
NOTE 2 Requirements for manually actuated mechanical switches not forming part of an automatic control are contained in IEC 61058-1-1.
This document applies to
– the inherent safety of motor-starting control, and
– functional safety of motor-starting control and safety related systems (when required),
– controls where the performance (for example the effect of EMC phenomena) of the product can impair the overall safety and performance of the controlled system,
– the operating values, operating times, and operating sequences where such are associated with equipment safety,
– motor-starting controls incorporating electronic devices, thermistor elements, thermal elements or magnetic elements.
This document specifies the requirements for construction, operation and testing of automatic electrical motor-starting relays used in, on, or in association with an equipment.
This document does not
– apply to motor-starting relays designed exclusively for industrial process applications unless explicitly mentioned in the relevant equipment standard. However, this document can be applied to motor-start relays for equipment intended specifically for industrial applications in cases where no relevant safety standard exists;
– take into account the response value of an automatic action of a control, if such a response value is dependent upon the method of mounting the control in the equipment. Where a response value is of significant purpose for the protection of the user, or surroundings, the value defined in the appropriate equipment standard or as determined by the manufacturer will apply;
– apply to general purpose relays or to contactors and motor starters of the type covered by IEC 60947 series;
– apply to mechanically operated motor-starting devices.
- Status
- Published
- Public Enquiry End Date
- 31-Oct-2023
- Publication Date
- 26-Oct-2026
- Technical Committee
- ISS EIT.ERE - All-or-nothing electrical relays
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 15-Oct-2026
- Due Date
- 20-Dec-2026
- Completion Date
- 27-Oct-2026
SIST EN IEC 61810-7-19:2026 is the Slovenian standard for Electrical relays - Tests and Measurements - Part 7-19: Electrical endurance, published by SIST and aligned with IEC 61810-7-19. It specifies how to test relay electrical endurance under normal, overload, inductive, lamp, cable, inrush, and special-load conditions, and how to evaluate the result. It is intended for relay manufacturers, test laboratories, quality teams, and anyone qualifying relays for switching applications.
What does SIST EN IEC 61810-7-19:2026 specify?
SIST EN IEC 61810-7-19:2026 gives guidance for testing relay performance under expected transportation, storage, and operational conditions, with the focus on electrical endurance. Clause 1 states that the document is used with appropriate severities and conditions to assess how specimens perform in service.
The document is organised into five main clauses and three annexes:
- Clause 1 Scope
- Clause 2 Normative references
- Clause 3 Terms and definitions
- Clause 4 Test procedure
- Clause 5 Evaluation
- Annex A Special loads
- Annex B Inductive contact loads
- Annex T Test report
The Slovenian standard is identical to prEN IEC 61810-7-19:2023.
| Annex | What it covers |
|---|---|
| Annex A | Special loads, including dedicated device applications, motor starting, lamp loads, cable loads, inrush current loads, electronic ballast loads, and solid-state relay tests |
| Annex B | Inductive contact loads, with utilization categories and test values corresponding to IEC 60947-5-1 |
| Annex T | The test report content needed to document the test |
What are the key requirements of SIST EN IEC 61810-7-19:2026?
The core of SIST EN IEC 61810-7-19:2026 is the test procedure in Clause 4, which tells you how to set up the relay, load it, run the endurance sequence, and judge the result. In practice, this is the part that determines whether a relay design can survive the expected switching duty.
Test setup and sampling
Clause 4.2 says the test is carried out on each contact load and each contact material specified by the manufacturer. Table 1 gives the number of samples and mounting conditions for type test and sampling test. That matters because the same relay can behave differently depending on how it is mounted and which contact system is being assessed.
The preferred mounting is group mounting for the endurance sequence, unless the manufacturer specifies otherwise. For PCB relays, a PCB may be used for wiring if minimum mounting distances are maintained. The document also says the load circuit shall follow the annexed test circuit unless the manufacturer explicitly specifies a different one.
Severity levels and operating duty
Clause 4.2 defines three severity levels. Severity A treats the first malfunction as a failure, Severity B allows more malfunctions before failure is declared, and Severity C follows the manufacturer’s declared level. This gives the test user a way to match the test to the intended application risk.
Unless the manufacturer states otherwise, the endurance test is done at the upper limit of the ambient temperature range, with the relay coil energized at rated voltage or another value within the rated coil voltage or operative range. If no other value is specified, the operating rate is 360 operations per hour with duty type S6 50% and 6000 operations total. The test frequency must stay below the relay’s maximum frequency of operation from IEC 61810-7-45.
Monitoring and functional checks
Clause 4 requires the contacts to be monitored for failure to make, failure to break, and unintended bridging. For relays with a manual actuating member, the document adds a manual-operation check at least 100 times, using the maximum rated switching current at the related voltage unless the manufacturer specifies otherwise. That is important for products that may be operated both automatically and by hand.
Clause 4.3 lists the conditions that have to be stated for the test, including relay type, contact material, severity level, ambient conditions, mounting method, energization value, switching current, power factor or time constant, duty factor, protective devices, and final measurements. The final measurements may include the dielectric strength test from IEC 61810-7-4 and any other checks specified by the manufacturer.
Overload testing
Clause 4 includes an overload test for fault conditions when the manufacturer declares limiting making or breaking capacity above the rated switching current. The test uses 50 cycles for AC and DC loads unless otherwise specified, and the relay must show no malfunction. After overload testing, the same samples are used for endurance testing under the same conditions.
For DC loads, the contacts should switch at least twice their maximum rated current at maximum rated voltage unless otherwise specified. For AC loads, the contacts should switch at least twice their maximum rated current at rated voltage. The clause also notes that special loads are treated in Annex A and inductive loads in Annex B.
Evaluation after testing
Clause 5 says the relay fails if the applicable failure criterion is not met. After the electrical endurance procedure, the dielectric strength test is performed again, and contact-circuit resistance and functional tests are measured when applicable. A final visual inspection is also required to verify electrical integrity.
What terms does SIST EN IEC 61810-7-19:2026 define?
Making and breaking capacities - the greatest current a relay output circuit can make and break under specified conditions such as voltage, number of operations, power factor, and time constant.
Overload - operating conditions in an electrically undamaged circuit that cause an overcurrent. In practice, this is the fault-duty condition used to stress the relay beyond normal operation.
Utilization category - a combination of requirements that represents a characteristic group of practical applications. In this document, it helps relate relay tests to real switching duties.
Severity level - the failure criterion used in the endurance test. Severity A fails on the first malfunction, Severity B on the sixth detected malfunction or two consecutive malfunctions, and Severity C is manufacturer-defined.
Contact-circuit resistance - the resistance of the contact circuit measured after testing where applicable. It shows whether the contact path has degraded.
Who uses SIST EN IEC 61810-7-19:2026?
SIST EN IEC 61810-7-19:2026 is used by relay manufacturers, test laboratories, certification and conformity assessment bodies, and quality assurance teams. It is also relevant to buyers and engineers who need to specify endurance testing for relays used in control circuits, motor starting, lamp switching, telecom and signalling applications, and other switching duties.
The document is especially useful when relays are intended for special loads, inductive loads, inrush current loads, or high-capacity applications. It also supports users who need to document test conditions and results in a reproducible way.
What changed in SIST EN IEC 61810-7-19:2026 from the previous edition?
This document supersedes 94/851/CD and 94/913/CC. The source states that it is still under study and subject to change at the draft stage.
Which standards are used with SIST EN IEC 61810-7-19:2026?
SIST EN IEC 61810-7-19:2026 is to be used with IEC 61810-1:2015. That relationship matters because the endurance part relies on the general relay requirements in the base standard.
The normative references and companion parts named in the document are:
- IEC 60669-1:2017 - provides household and similar fixed-electrical installation requirements used in some load and application cases.
- IEC 60947-5-1:2016 - provides utilization categories and test values referenced in Annex B.
- IEC 61810-7-0:202X - provides the general testing and guidance framework used throughout the document.
- IEC 61810-7-4:202X - provides the dielectric strength test used after endurance testing.
- IEC 61810-7-6:202X - provides contact-circuit resistance or voltage drop measurement.
- IEC 61810-7-7:202X - provides functional tests used in evaluation.
- IEC 61810-7-45:202X - provides the maximum frequency of operation.
- IEC 61810-10:2019 - provides additional functional aspects and safety requirements for high-capacity relays.
- IEC 62246-1:2015 - provides the generic specification for reed switches.
What does the SIST EN IEC 61810-7-19:2026 document contain?
The document contains the test procedures, test circuits, and reporting structure needed to assess relay electrical endurance. Table 1 sets sample numbers and mounting conditions, Table 2 sets the test procedure flow, and Table 3 gives schematics for contact loading. Those tables are the practical core for planning a lab test or writing a specification.
Annex A adds detailed procedures and figures for special loads such as motor starting, resistance loads, lamp loads, cable loads, electronic ballast loads, and solid-state relay testing. It includes multiple test values tables and circuit figures so that the test lab can build the correct load and verify inrush and endurance behaviour.
Annex B provides the inductive-load test matrix, including normal and abnormal conditions, endurance testing, and contact rating equivalencies to utilization categories. Annex T defines what the test report has to record so that the test can be reproduced and reviewed later.
Relations
- Refers
SIST EN IEC 61810-7:2025 - Electrical relays - Tests and Measurements - Part 7: Functional Tests - Effective Date
- 15-Sep-2026
- Effective Date
- 15-Sep-2026
- Effective Date
- 15-Sep-2026
- Effective Date
- 15-Sep-2026
- Effective Date
- 15-Sep-2026
- Effective Date
- 15-Sep-2026
- Effective Date
- 15-Sep-2026
- Effective Date
- 15-Sep-2026
- Effective Date
- 03-Feb-2026
Get Certified
Connect with accredited certification bodies for this standard
IMQ S.p.A. (Certification)
Italian electrical product certification.
SLG Prüf- und Zertifizierungs GmbH
German testing and certification body.
UL Solutions
Global safety science company with testing, inspection and certification.
Sponsored listings
Frequently Asked Questions
SIST EN IEC 61810-7-19:2026 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Electrical relays - Tests and Measurements - Part 7-19: Electrical endurance". This standard covers: This part of IEC 60730 applies to automatic electrical motor-starting relays – intended to control the start windings of single phase motors; – for use in, on, or in association with equipment for household appliance and similar use; NOTE 1 Throughout this document, the word "equipment" means "appliance and equipment" and "control" means "motor-starting relays". – intended for appliances within the scope of IEC 60335; – for equipment that is used in building automation within the scope of ISO 16484 series and IEC 63044 series (HBES/BACS); – for equipment that is used by the public, such as equipment intended to be used in shops, offices, hospitals, farms and commercial and industrial applications; EXAMPLE 1 Controls for commercial catering, heating and air-conditioning equipment. – used in, on, or in association with equipment that are smart enabled; EXAMPLE 2 Smart grid control, remote interfaces/control of energy-consuming equipment. – that are AC or DC powered with a rated voltage not exceeding 690 V AC or 600 V DC; – used in, on, or in association with equipment that use electricity, gas, oil, solid fuel, solar thermal energy, etc., or a combination thereof; – utilized as part of a control system or controls which are mechanically integral with multifunctional controls having non-electrical outputs; – using NTC or PTC thermistors, requirements for which are contained in Annex J; – that are mechanically or electrically operated, responsive to or controlling such characteristics as current and voltage, or combinations thereof; EXAMPLE 3 Centrifugal motor-starting devices. – as well as manual controls when such are electrically and/or mechanically integral with automatic controls. NOTE 2 Requirements for manually actuated mechanical switches not forming part of an automatic control are contained in IEC 61058-1-1. This document applies to – the inherent safety of motor-starting control, and – functional safety of motor-starting control and safety related systems (when required), – controls where the performance (for example the effect of EMC phenomena) of the product can impair the overall safety and performance of the controlled system, – the operating values, operating times, and operating sequences where such are associated with equipment safety, – motor-starting controls incorporating electronic devices, thermistor elements, thermal elements or magnetic elements. This document specifies the requirements for construction, operation and testing of automatic electrical motor-starting relays used in, on, or in association with an equipment. This document does not – apply to motor-starting relays designed exclusively for industrial process applications unless explicitly mentioned in the relevant equipment standard. However, this document can be applied to motor-start relays for equipment intended specifically for industrial applications in cases where no relevant safety standard exists; – take into account the response value of an automatic action of a control, if such a response value is dependent upon the method of mounting the control in the equipment. Where a response value is of significant purpose for the protection of the user, or surroundings, the value defined in the appropriate equipment standard or as determined by the manufacturer will apply; – apply to general purpose relays or to contactors and motor starters of the type covered by IEC 60947 series; – apply to mechanically operated motor-starting devices.
This part of IEC 60730 applies to automatic electrical motor-starting relays – intended to control the start windings of single phase motors; – for use in, on, or in association with equipment for household appliance and similar use; NOTE 1 Throughout this document, the word "equipment" means "appliance and equipment" and "control" means "motor-starting relays". – intended for appliances within the scope of IEC 60335; – for equipment that is used in building automation within the scope of ISO 16484 series and IEC 63044 series (HBES/BACS); – for equipment that is used by the public, such as equipment intended to be used in shops, offices, hospitals, farms and commercial and industrial applications; EXAMPLE 1 Controls for commercial catering, heating and air-conditioning equipment. – used in, on, or in association with equipment that are smart enabled; EXAMPLE 2 Smart grid control, remote interfaces/control of energy-consuming equipment. – that are AC or DC powered with a rated voltage not exceeding 690 V AC or 600 V DC; – used in, on, or in association with equipment that use electricity, gas, oil, solid fuel, solar thermal energy, etc., or a combination thereof; – utilized as part of a control system or controls which are mechanically integral with multifunctional controls having non-electrical outputs; – using NTC or PTC thermistors, requirements for which are contained in Annex J; – that are mechanically or electrically operated, responsive to or controlling such characteristics as current and voltage, or combinations thereof; EXAMPLE 3 Centrifugal motor-starting devices. – as well as manual controls when such are electrically and/or mechanically integral with automatic controls. NOTE 2 Requirements for manually actuated mechanical switches not forming part of an automatic control are contained in IEC 61058-1-1. This document applies to – the inherent safety of motor-starting control, and – functional safety of motor-starting control and safety related systems (when required), – controls where the performance (for example the effect of EMC phenomena) of the product can impair the overall safety and performance of the controlled system, – the operating values, operating times, and operating sequences where such are associated with equipment safety, – motor-starting controls incorporating electronic devices, thermistor elements, thermal elements or magnetic elements. This document specifies the requirements for construction, operation and testing of automatic electrical motor-starting relays used in, on, or in association with an equipment. This document does not – apply to motor-starting relays designed exclusively for industrial process applications unless explicitly mentioned in the relevant equipment standard. However, this document can be applied to motor-start relays for equipment intended specifically for industrial applications in cases where no relevant safety standard exists; – take into account the response value of an automatic action of a control, if such a response value is dependent upon the method of mounting the control in the equipment. Where a response value is of significant purpose for the protection of the user, or surroundings, the value defined in the appropriate equipment standard or as determined by the manufacturer will apply; – apply to general purpose relays or to contactors and motor starters of the type covered by IEC 60947 series; – apply to mechanically operated motor-starting devices.
SIST EN IEC 61810-7-19:2026 is classified under the following ICS (International Classification for Standards) categories: 29.120.70 - Relays. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 61810-7-19:2026 has the following relationships with other standards: It is inter standard links to SIST EN IEC 61810-7:2025, SIST EN IEC 63522-41:2026, kSIST FprEN IEC 63522-0:2026, SIST EN IEC 63522-6:2025, SIST EN IEC 63522-4:2026, SIST EN IEC 61810-10:2021, SIST EN IEC 61810-45:2025, SIST EN IEC 60947-5-1:2025, SIST EN IEC 63522-11:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN IEC 61810-7-19:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

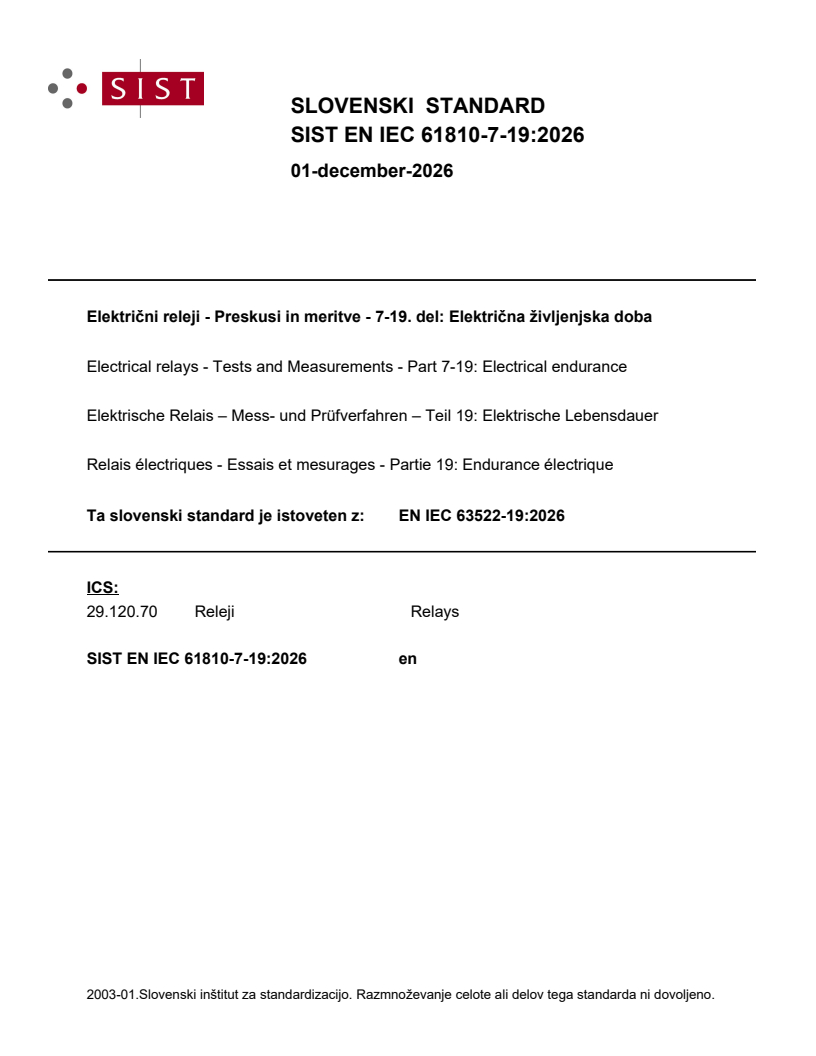

SLOVENSKI STANDARD
01-december-2026
Električni releji - Preskusi in meritve - 7-19. del: Električna življenjska doba
Electrical relays - Tests and Measurements - Part 7-19: Electrical endurance
Elektrische Relais – Mess- und Prüfverfahren – Teil 19: Elektrische Lebensdauer
Relais électriques - Essais et mesurages - Partie 19: Endurance électrique
Ta slovenski standard je istoveten z: EN IEC 63522-19:2026
ICS:
29.120.70 Releji Relays
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

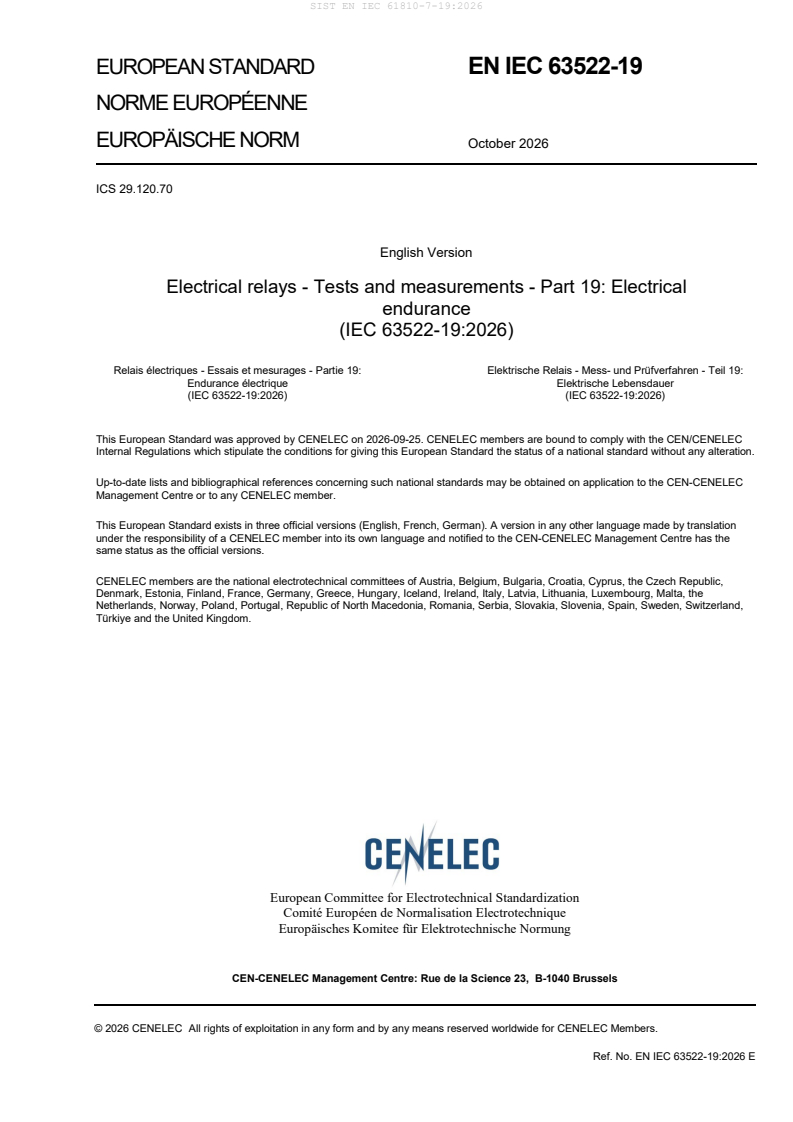

EUROPEAN STANDARD EN IEC 63522-19
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2026
ICS 29.120.70
English Version
Electrical relays - Tests and measurements - Part 19: Electrical
endurance
(IEC 63522-19:2026)
Relais électriques - Essais et mesurages - Partie 19: Elektrische Relais - Mess- und Prüfverfahren - Teil 19:
Endurance électrique Elektrische Lebensdauer
(IEC 63522-19:2026) (IEC 63522-19:2026)
This European Standard was approved by CENELEC on 2026-09-25. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63522-19:2026 E

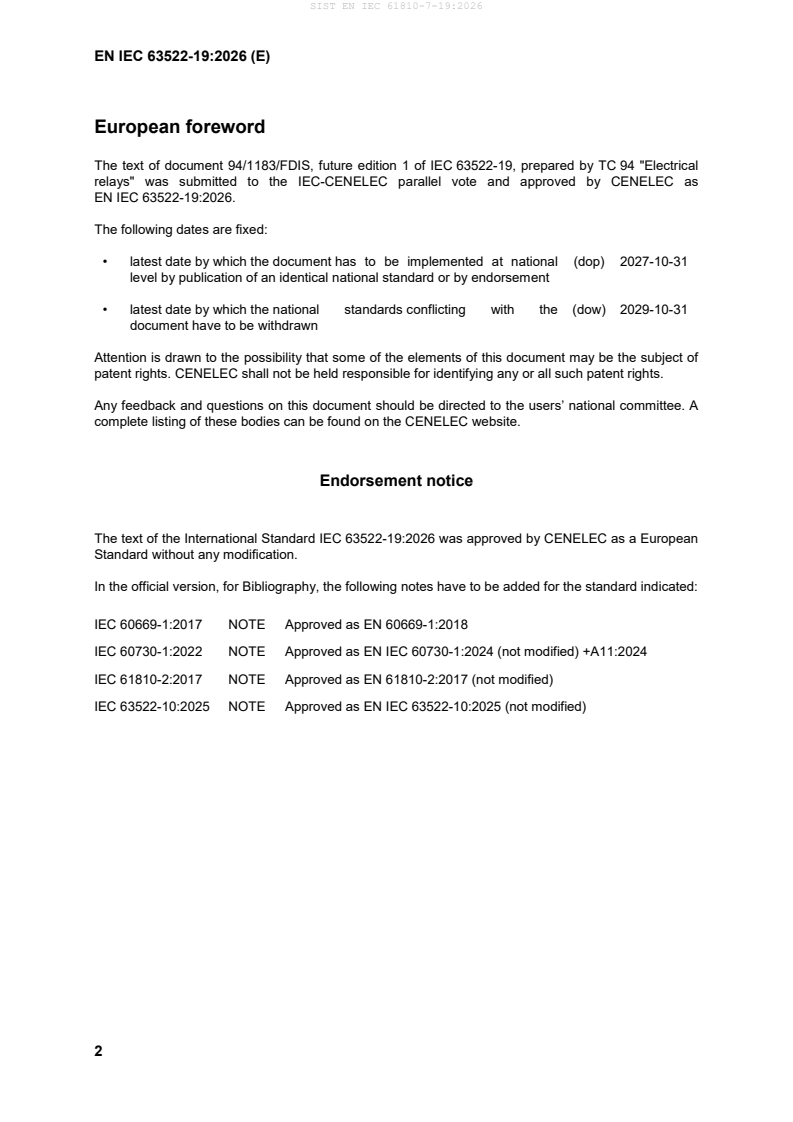

European foreword
The text of document 94/1183/FDIS, future edition 1 of IEC 63522-19, prepared by TC 94 "Electrical
relays" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2027-10-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2029-10-31
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63522-19:2026 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60669-1:2017 NOTE Approved as EN 60669-1:2018
IEC 60730-1:2022 NOTE Approved as EN IEC 60730-1:2024 (not modified) +A11:2024
IEC 61810-2:2017 NOTE Approved as EN 61810-2:2017 (not modified)
IEC 63522-10:2025 NOTE Approved as EN IEC 63522-10:2025 (not modified)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60947-5-1 2024 Low-voltage switchgear and controlgear - EN IEC 60947-5-1 2025
Part 5-1: Control circuit devices and
switching elements - Electromechanical
control circuit devices
IEC 61810-10 2019 Electromechanical elementary relays - Part EN IEC 61810-10 2019
10: Additional functional aspects and
safety requirements for high-capacity
relays
1 2
IEC 63522-0 — Electrical relays - Tests and Measurements EN IEC 63522-0 —
- Part 0: General and Guidance
IEC 63522-4 2025 Electrical relays - Tests and measurements EN IEC 63522-4 2026
- Part 4: Dielectric strength test
IEC 63522-6 2025 Electrical relays - Tests and measurements EN IEC 63522-6 2025
- Part 6: Contact-circuit resistance or
voltage drop
IEC 63522-7 2025 Electrical relays - Tests and measurements EN IEC 63522-7 2025
- Part 7: Functional tests
IEC 63522-41 - Electrical relays - Tests and measurements EN IEC 63522-41 -
- Part 41: Tests and measurement
procedures - Insulation coordination
IEC 63522-45 2025 Electrical relays - Tests and measurements EN IEC 63522-45 2025
- Part 45: Maximum frequency of operation
Under preparation. Stage at the time of publication: IEC CDV 63522-0:2025.
Under preparation. Stage at the time of publication: FprEN IEC 63522-0:2026.
IEC 60730-2-10 ®
Edition 3.0 2026-08
INTERNATIONAL
STANDARD
Automatic electrical controls -
Part 2-10: Particular requirements for motor-starting relays
ICS 97.120 ISBN 978-2-8327-1408-9
IEC 60730-2-10:2026-08(en)
IEC 60730-2-10:2026 © IEC 2026
CONTENTS
FOREWORD . 2
1 Scope . 4
2 Normative references . 5
3 Terms and definitions . 5
4 General . 5
5 Required technical information . 6
6 Protection against electric shock . 6
7 Provision for protective earthing . 6
8 Terminals and terminations. 6
9 Constructional requirements . 6
10 Threaded parts and connections . 6
11 Creepage distances, clearances and distances through solid insulation . 7
12 Components . 7
13 Fault assessment on electronic circuits . 7
14 Moisture and dust resistance . 7
15 Electric strength and insulation resistance . 7
16 Heating . 7
17 Manufacturing deviation and drift . 7
18 Environmental stress . 8
19 Endurance . 8
20 Mechanical strength . 8
21 Resistance to heat, fire and tracking . 8
22 Resistance to corrosion . 8
23 Electromagnetic compatibility (EMC) requirements – Emission . 8
24 Normal operation . 8
25 Electromagnetic compatibility (EMC) requirements – Immunity . 8
26 Abnormal operation tests . 8
Annexes . 10
Annex H (normative) Requirements related to functional safety . 11
Annex Q (informative) Regional differences relevant for the member countries of
Cenelec . 12
Annex R (informative) National differences relevant in the United States of America . 13
Annex S (informative) National differences relevant in Japan . 14
Annex T (informative) National differences relevant in Canada . 15
Bibliography . 16
Table 1 – Required technical information and methods of providing these information . 6
IEC 60730-2-10:2026 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Automatic electrical controls -
Part 2-10 Particular requirements for motor-starting relays
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60730-2-10 has been prepared by IEC technical committee 72: Automatic electrical
controls. It is an International Standard.
This third edition cancels and replaces the second edition published in 2006. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) adoption of IEC 60730-1:2022 with all of its significant changes.
IEC 60730-2-10:2026 © IEC 2026
The text of this International Standard is based on the following documents:
Draft Report on voting
72/1522/CDV 72/1543/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2,
...
