SIST EN 2591-614:2004
(Main)Aerospace series - Elements of electrical and optical connection - Test methods - Part 614: Optical elements - Connector radial compression
Aerospace series - Elements of electrical and optical connection - Test methods - Part 614: Optical elements - Connector radial compression
This standard specifies a method of checking the resistance to radial compression of optical connection elements (including permanent connections) and fibre optic couplers.
It shall be used together with EN 2591-100.
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 614: Optische Elemente - Radiale Belastung des Steckverbinders
Diese Norm legt ein Verfahren für die Prüfung der Widerstandsfähigkeit von optischen Verbindungselementen (einschließlich dauerhaften Verbindungen) und LWL-Kopplern gegenüber radialer Belastung fest.
Sie ist in Verbindung mit EN 2591-100 anzuwenden.
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 614: Organes optiques - Compression radiale du connecteur
Aerospace series - Elements of electrical and optical connection - Test methods - Part 614: Optical elements - Connector radial compression
General Information
- Status
- Published
- Publication Date
- 30-Apr-2004
- Technical Committee
- I08 - Imaginarni 08
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-May-2004
- Due Date
- 01-May-2004
- Completion Date
- 01-May-2004
Overview
EN 2591-614:2002 is a CEN/AECMA aerospace test-method standard that defines how to check the resistance to radial compression of optical connection elements, including permanent connections and fibre optic couplers. It is part of the Aerospace series – Elements of electrical and optical connection – Test methods and is intended to be used together with EN 2591-100 (general test conditions).
Keywords: EN 2591-614:2002, connector radial compression, optical elements, fibre optic couplers, aerospace test methods.
Key topics and technical requirements
- Scope: Specifies a reproducible method for applying radial compression loads to optical connectors and couplers and assessing the effect on performance.
- Specimen preparation: Terminate and fit specimens per the product standard; use filler plugs for unterminated cavities; stabilize specimens under standard test conditions for 24 h (per EN 2591-100).
- Apparatus:
- Steel base plate: nominal 300 × 500 × 25 mm.
- Aluminium loading plate: nominal 100 × 100 × 15 mm, with a 10 mm thick material pad of 80 Shore D hardness to apply the load.
- Load and duration options (choose one combination unless product standard states otherwise):
- 500 N for 1.5 s
- 1 000 N for 5 s
- 2 000 N for 10 s
- 5 000 N for 60 s
- Test procedure (summary):
- Connect specimen to measurement equipment (LLS and LDS) and set reference power.
- Disconnect and position specimen between the loading plate and test surface; apply selected radial load for the chosen duration; remove load.
- Bulkhead/panel-mount receptacles are typically not tested.
- Post-test measurements and pass/fail criteria: Reconnect and perform measurements referenced to related standards:
- EN 2591-601 (insertion loss)
- EN 2591-6101 (visual examination)
- EN 2591-408 (mating/unmating forces) where applicable to non-permanent connections
Practical applications
- Ensures optical connector and coupler designs used in aerospace platforms resist crush and radial compression loads without excessive insertion loss or damage.
- Useful for: aerospace manufacturers, connector and fibre-optic component suppliers, test laboratories, quality assurance and reliability engineers validating connector mechanical robustness for aircraft and space systems.
- Helps qualify components for harsh mechanical environments, assembly stresses, or accidental compressive loads during installation and service.
Related standards
- EN 2591-100 - General test conditions (mandatory companion)
- EN 2591-601 - Optical elements - Insertion loss
- EN 2591-6101 - Optical elements - Visual examination
- EN 2591-408 - Mating and unmating forces
EN 2591-614:2002 provides a standardized, repeatable method to assess connector radial compression performance - a critical verification step for reliable fibre-optic connections in aerospace systems.
Frequently Asked Questions
SIST EN 2591-614:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Elements of electrical and optical connection - Test methods - Part 614: Optical elements - Connector radial compression". This standard covers: This standard specifies a method of checking the resistance to radial compression of optical connection elements (including permanent connections) and fibre optic couplers. It shall be used together with EN 2591-100.
This standard specifies a method of checking the resistance to radial compression of optical connection elements (including permanent connections) and fibre optic couplers. It shall be used together with EN 2591-100.
SIST EN 2591-614:2004 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 2591-614:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

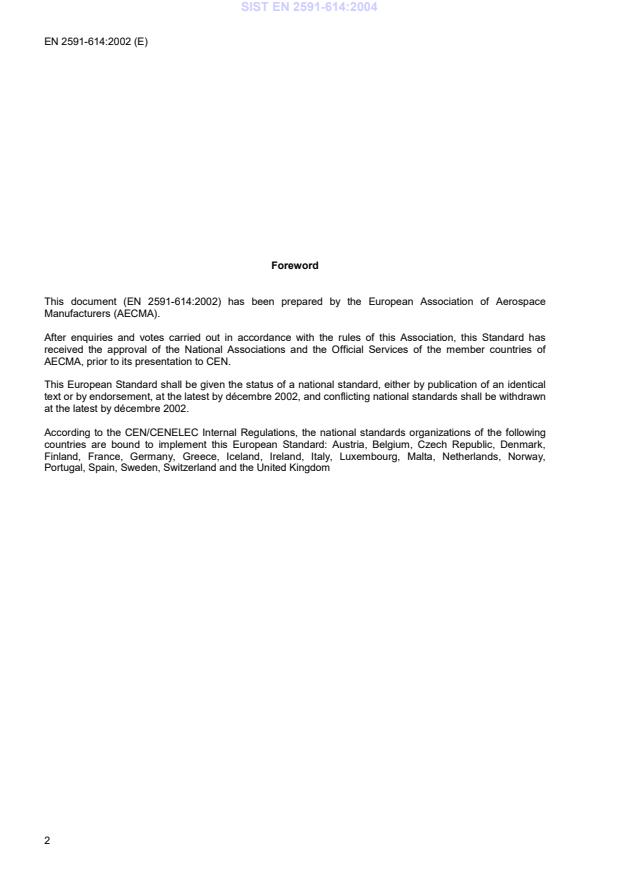

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Elements of electrical and optical connection - Test methods - Part 614: Optical elements - Connector radial compressionLuft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 614: Optische Elemente - Radiale Belastung des SteckverbindersSérie aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 614: Organes optiques - Compression radiale du connecteurAerospace series - Elements of electrical and optical connection - Test methods - Part 614: Optical elements - Connector radial compression49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2591-614:2002SIST EN 2591-614:2004en01-maj-2004SIST EN 2591-614:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 2591-614June 2002ICS 49.060English versionAerospace series - Elements of electrical and optical connection- Test methods - Part 614: Optical elements - Connector radialcompressionSérie aérospatiale - Organes de connexion électrique etoptique - Méthodes d'essais - Partie 614: Organes optiques- Compression radiale du connecteurLuft- und Raumfahrt - Elektrische und optischeVerbindungselemente - Prüfverfahren - Teil 614: OptischeElemente - Radiale Belastung des SteckverbindersThis European Standard was approved by CEN on 8 February 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 2591-614:2002 ESIST EN 2591-614:2004
...
