SIST EN 2591-211:2004
(Main)Aerospaces series - Elements of electrical and optical connection - Test Methods - Part 211: Capacitance
Aerospaces series - Elements of electrical and optical connection - Test Methods - Part 211: Capacitance
This standard specifies a method for measuring the capacitance between two adjacent, or coaxial conductors, or between a conductor and ground as applies to connectors and contacts.
It shall be used together with EN 2591-100.
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 211: Kapazität
Diese Norm legt ein Verfahren zum Messen der Kapazität zwischen zwei benachbarten Leitern oder Koaxialleitern oder zwischen einem Leiter und Masse fest, wie dies bei Steckverbindern und Kontakten der Fall ist.
Sie ist in Verbindung mit EN 2591-100 anzuwenden.
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 211: Capacité
Aerospaces series - Elements of electrical and optical connection - Test Methods - Part 211: Capacitance
General Information
- Status
- Published
- Publication Date
- 30-Apr-2004
- Technical Committee
- I08 - Imaginarni 08
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-May-2004
- Due Date
- 01-May-2004
- Completion Date
- 01-May-2004
Overview
EN 2591-211:2002 is a CEN European Standard (prepared by AECMA) that defines a standardized test method for measuring capacitance in aerospace electrical and optical connection elements. The standard covers measurement of capacitance between two adjacent or coaxial conductors, or between a conductor and ground, as applies to connectors and contacts. EN 2591-211 is intended to be used together with EN 2591-100 (general test method rules).
Key topics and technical requirements
- Scope: Measurement of capacitance for connectors and contacts (adjacent/coaxial conductors or conductor-to-ground).
- Specimen preparation: Tests may be performed with mated or unmated connectors; contacts may be measured assembled or unassembled as specified in the relevant product standard.
- Details to specify: test frequency, temperature, measurement accuracy limits, AC voltage magnitude (r.m.s.), mating condition, assembly condition, maximum permitted capacitance, and any deviations from the method.
- Apparatus: Use a capacitance bridge or suitable alternative. Measurement equipment must have an inherent accuracy of ±0.5 % at 0.2 pF.
- Test conditions:
- Ambient temperature: 20 °C (or as specified).
- Preferred test frequencies: 1 kHz, 100 kHz, 1 MHz and 3 MHz.
- Use measurement techniques that minimize errors from connections between apparatus and specimen.
- Keep the alternating current (AC) voltage across the specimen as low as practicable.
- Requirement: Measured capacitance shall not exceed limits specified in the applicable product standard.
Applications and users
- Who uses it:
- Aerospace connector designers and manufacturers
- Test laboratories and quality assurance teams
- Systems engineers concerned with connector electrical performance
- Procurement and compliance engineers validating connector specifications
- Practical uses:
- Characterizing connector capacitance for design validation and acceptance testing
- Ensuring connector performance against product-specific capacitance limits
- Supporting signal integrity and electromagnetic compatibility (EMC) assessments where connector capacitance is a factor
- Providing repeatable, comparable measurement data across suppliers and test labs
Related standards
- EN 2591-100 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 100: General (to be used together with EN 2591-211)
Keywords: EN 2591-211, capacitance test, aerospace connectors, connector capacitance measurement, test methods, EN 2591-100, capacitance bridge, AECMA, CEN.
Frequently Asked Questions
SIST EN 2591-211:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospaces series - Elements of electrical and optical connection - Test Methods - Part 211: Capacitance". This standard covers: This standard specifies a method for measuring the capacitance between two adjacent, or coaxial conductors, or between a conductor and ground as applies to connectors and contacts. It shall be used together with EN 2591-100.
This standard specifies a method for measuring the capacitance between two adjacent, or coaxial conductors, or between a conductor and ground as applies to connectors and contacts. It shall be used together with EN 2591-100.
SIST EN 2591-211:2004 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase SIST EN 2591-211:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2004
Aerospaces series - Elements of electrical and optical connection - Test Methods -
Part 211: Capacitance
Aerospaces series - Elements of electrical and optical connection - Test Methods - Part
211: Capacitance
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren -
Teil 211: Kapazität
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais -
Partie 211: Capacité
Ta slovenski standard je istoveten z: EN 2591-211:2002
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 2591-211
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2002
ICS 49.060
English version
Aerospaces series - Elements of electrical and optical
connection - Test Methods - Part 211: Capacitance
Série aérospatiale - Organes de connexion électrique et Luft- und Raumfahrt - Elektrische und optische
optique - Méthodes d'essais - Partie 211: Capacité Verbindungselemente - Prüfverfahren - Teil 211: Kapazität
This European Standard was approved by CEN on 8 February 2002.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2002 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2591-211:2002 E
worldwide for CEN national Members.

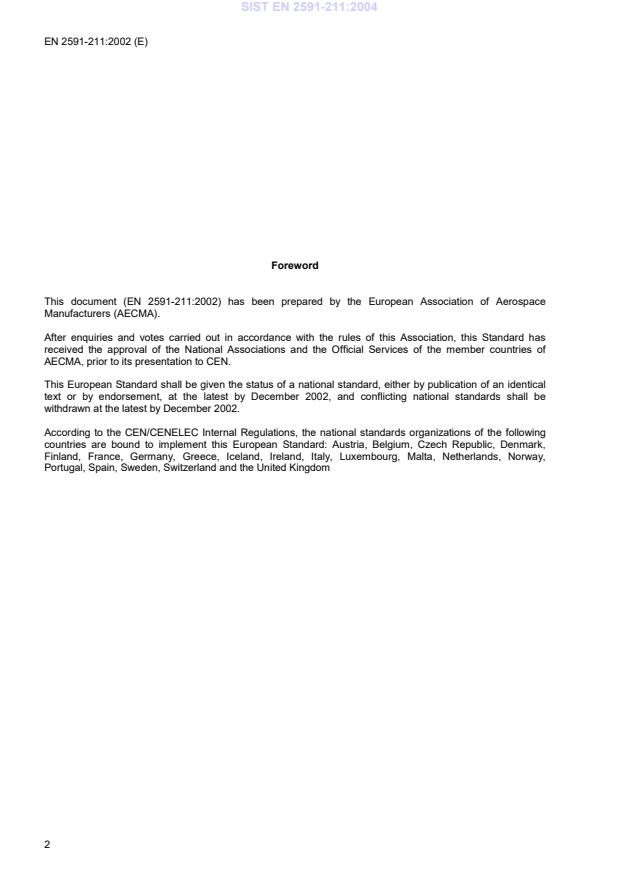

Foreword
