This standard specifies a method of determining the tensile strength of crimped connections used in elements of electrical and optical connection.
It shall be used together with EN 2591-100.
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 417: Zugfestigkeit (Crimpverbindung)
Diese Norm legt ein Verfahren zum Nachweis der Zugfestigkeit von Crimpverbindungen in elektrischen und optischen Verbindungselementen fest.
Sie ist in Verbindung mit EN 2591-100 anzuwenden.
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 417 : Résistance a la traction (connexion sertie)
La présente norme spécifie une méthode pour vérifier la résistance à la traction des connexions serties utilisées dans les organes de connexion électrique et optique.
Elle doit être utilisée conjointement avec EN 2591-100.
Aerospace series - Elements of electrical and optical connection - Test methods - Part 417: Tensile strength (crimped connection)
General Information
- Status
- Published
- Publication Date
- 30-Apr-2004
- Technical Committee
- I08 - Imaginarni 08
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-May-2004
- Due Date
- 01-May-2004
- Completion Date
- 01-May-2004
Overview
EN 2591-417:2001 is a European aerospace standard that defines a test method to determine the tensile strength of crimped connections used in elements of electrical and optical connection. Developed under the AECMA framework and adopted by CEN, this standard is part of the EN 2591 aerospace series and is intended to ensure reliable mechanical performance of crimped terminations in aerospace wiring and optical assemblies. It is to be used together with EN 2591-100 (General test method provisions).
Key topics and technical requirements
- Scope: Specifies a method for measuring the tensile (pull-out or break) strength of crimped conductor connections.
- Specimen preparation:
- Prepare specimens per the applicable technical specification.
- Use 50% of cables with conductors at the maximum section allowed by the contact and 50% at the minimum section allowed.
- Cable length should be suitable for the tensile tester used.
- State details unless otherwise specified: conductor min/max sections, minimum tensile load per conductor size, crimping tools, number of specimens and requirements.
- Apparatus:
- Tensile tester (capable of constant-speed axial loading).
- Proper crimping tooling as specified for the contact.
- Test method / procedure:
- Test specimens individually.
- Apply load along the specimen axis at a constant speed between 25 mm/min and 50 mm/min.
- Increase load until the conductor is pulled out or broken.
- Record maximum tensile values obtained.
- Acceptance criteria:
- Rupture or extraction force must not be below the specified minimum value.
- No measurable movement of the conductor is allowed below the minimum specified load.
Applications
- Ensures mechanical integrity of crimped connections in aerospace electrical harnesses and optical terminations.
- Used by manufacturers for incoming inspection and qualification of crimp contacts and crimping processes.
- Employed in test laboratories, quality assurance, and design validation for aerospace wiring, interconnect assemblies, and maintenance procedures.
- Supports procurement and certification activities where demonstrable tensile performance of electrical/optical connectors is required.
Who should use this standard
- Aerospace connector manufacturers and harness assemblers
- Test laboratories and quality control engineers
- Design and certification engineers working on aircraft and spacecraft electrical/optical systems
- Procurement specialists requiring compliance evidence for crimped connections
Related standards
- EN 2591-100 (Aerospace series - Elements of electrical and optical connection - Test methods - Part 100: General)
- EN 2591 series (other parts covering electrical and optical connection test methods)
Keywords: EN 2591-417, tensile strength, crimped connection, aerospace, electrical and optical connection, test methods, tensile tester, crimping tools.
Frequently Asked Questions
SIST EN 2591-417:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Elements of electrical and optical connection - Test methods - Part 417: Tensile strength (crimped connection)". This standard covers: This standard specifies a method of determining the tensile strength of crimped connections used in elements of electrical and optical connection. It shall be used together with EN 2591-100.
This standard specifies a method of determining the tensile strength of crimped connections used in elements of electrical and optical connection. It shall be used together with EN 2591-100.
SIST EN 2591-417:2004 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase SIST EN 2591-417:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Elements of electrical and optical connection - Test methods - Part 417: Tensile strength (crimped connection)Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 417: Zugfestigkeit (Crimpverbindung)Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 417 : Résistance a la traction (connexion sertie)Aerospace series - Elements of electrical and optical connection - Test methods - Part 417: Tensile strength (crimped connection)49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2591-417:2001SIST EN 2591-417:2004en01-maj-2004SIST EN 2591-417:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 2591-417November 2001ICS 49.060English versionAerospace series - Elements of electrical and optical connection- Test methods - Part 417: Tensile strength (crimpedconnection)Série aérospatiale - Organes de connexion électrique etoptique - Méthodes d'essais - Partie 417: Résistance à latraction (connexion sertie)Luft- und Raumfahrt - Elektrische und optischeVerbindungselemente - Prüfverfahren - Teil 417:Zugfestigkeit (Crimpverbindung)This European Standard was approved by CEN on 4 June 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 2591-417:2001 ESIST EN 2591-417:2004
...
SLOVENSKI STANDARD
01-maj-2004
Aerospace series - Elements of electrical and optical connection - Test methods -
Part 417: Tensile strength (crimped connection)
Aerospace series - Elements of electrical and optical connection - Test methods - Part
417: Tensile strength (crimped connection)
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren -
Teil 417: Zugfestigkeit (Crimpverbindung)
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais -
Partie 417 : Résistance a la traction (connexion sertie)
Ta slovenski standard je istoveten z: EN 2591-417:2001
ICS:
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 2591-417
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2001
ICS 49.060
English version
Aerospace series - Elements of electrical and optical connection
- Test methods - Part 417: Tensile strength (crimped
connection)
Série aérospatiale - Organes de connexion électrique et Luft- und Raumfahrt - Elektrische und optische
optique - Méthodes d'essais - Partie 417: Résistance à la Verbindungselemente - Prüfverfahren - Teil 417:
traction (connexion sertie) Zugfestigkeit (Crimpverbindung)
This European Standard was approved by CEN on 4 June 2001.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2001 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2591-417:2001 E
worldwide for CEN national Members.

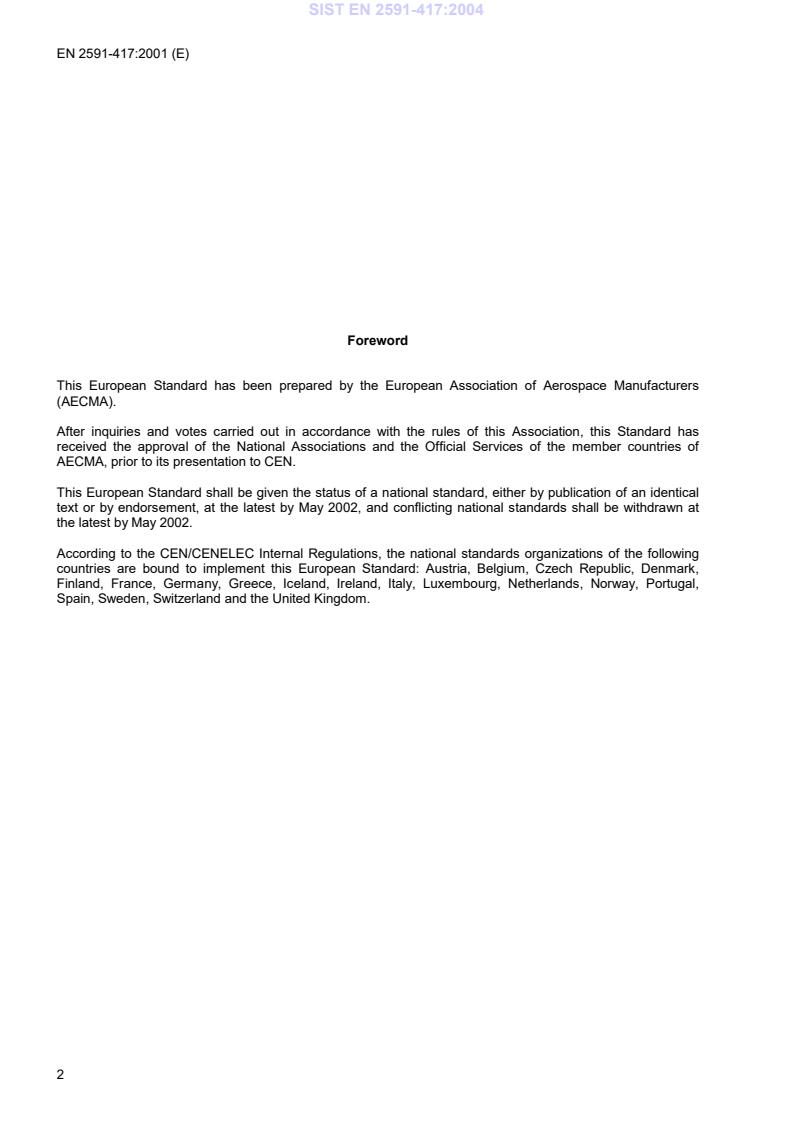

Foreword
