SIST EN 300 392-3-1 V1.3.1:2010

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Prizemni snopovni radio (TETRA) - Govor in podatki (V+D) - 3. del: Medsebojno delovanje na medsistemskem vmesniku (ISI) - 1. poddel: Splošna zasnovaTerrestrial Trunked Radio (TETRA) - Voice plus Data (V+D) - Part 3: Interworking at the Inter-System Interface (ISI) - Sub-part 1: General design33.070.10Prizemni snopovni radio (TETRA)Terrestrial Trunked Radio (TETRA)ICS:Ta slovenski standard je istoveten z:EN 300 392-3-1 Version 1.3.1SIST EN 300 392-3-1 V1.3.1:2010en01-oktober-2010SIST EN 300 392-3-1 V1.3.1:2010SLOVENSKI
STANDARD



SIST EN 300 392-3-1 V1.3.1:2010

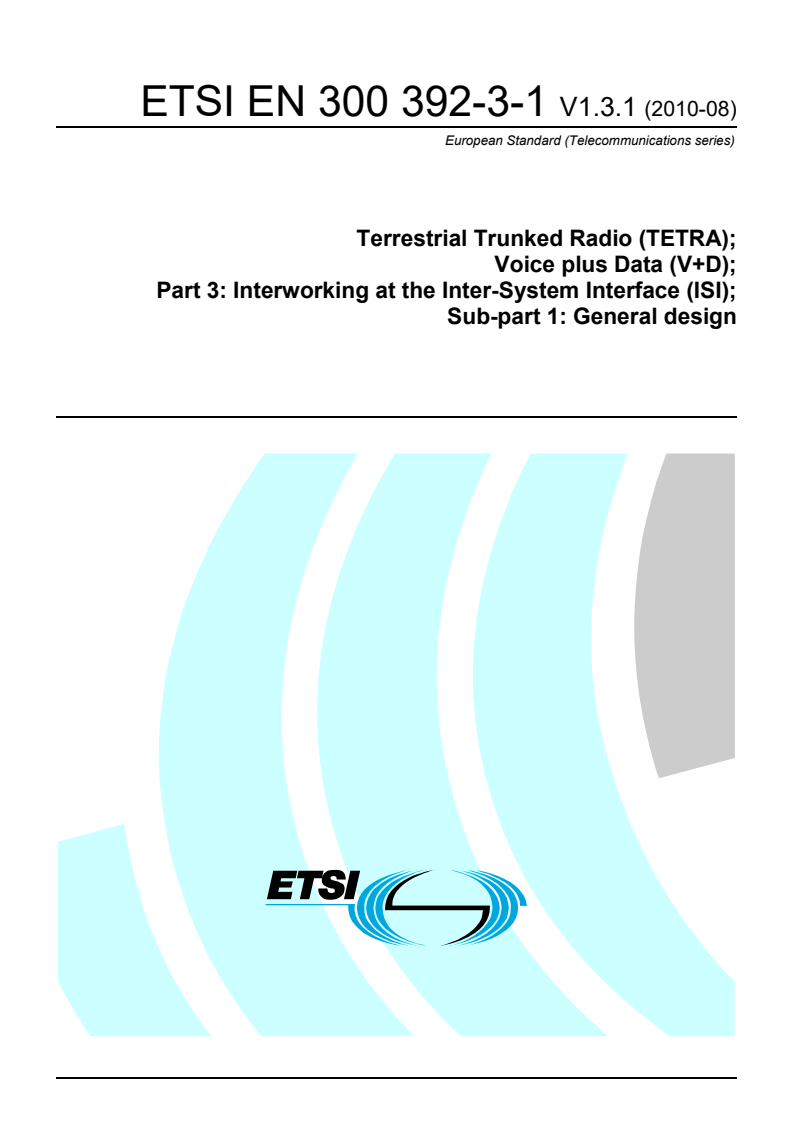

ETSI EN 300 392-3-1 V1.3.1 (2010-08)European Standard (Telecommunications series) Terrestrial Trunked Radio (TETRA);Voice plus Data (V+D);Part 3: Interworking at the Inter-System Interface (ISI);Sub-part 1: General design SIST EN 300 392-3-1 V1.3.1:2010

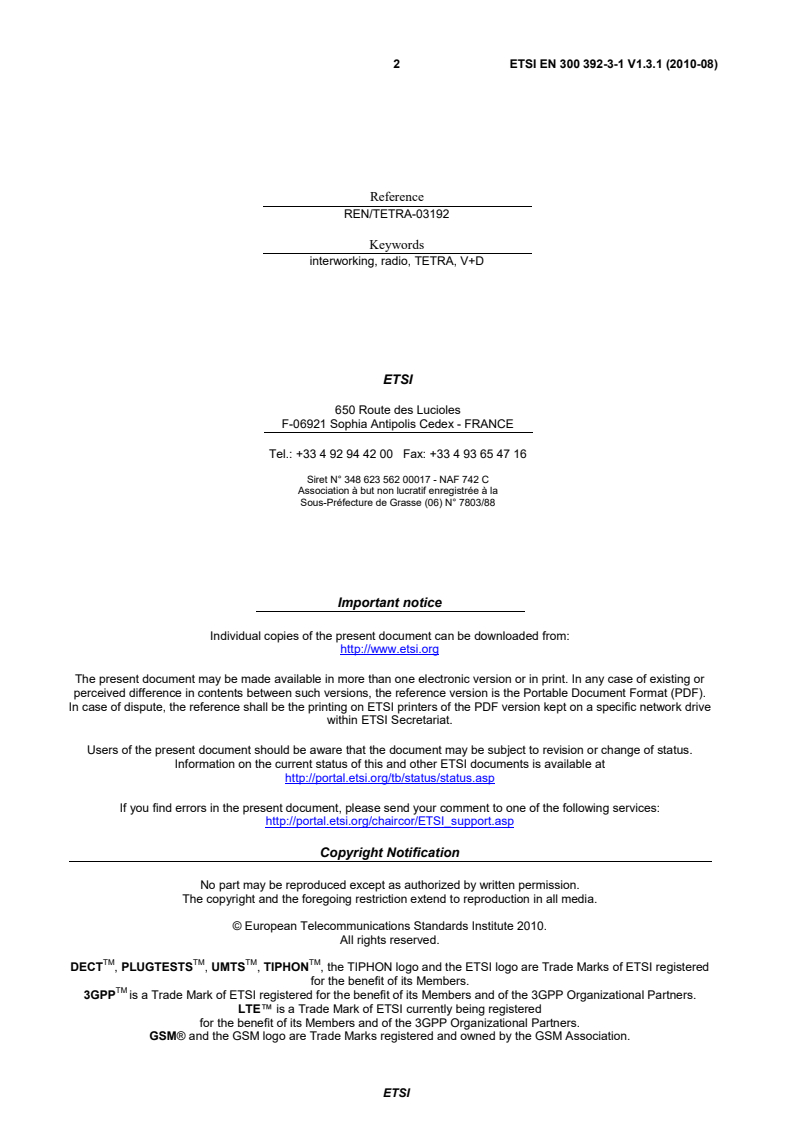

ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)2
Reference REN/TETRA-03192 Keywords interworking, radio, TETRA, V+D ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. LTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)3 Contents Intellectual Property Rights . 5 Foreword . 5 1 Scope . 7 2 References . 7 2.1 Normative references . 7 2.2 Informative references . 8 3 Definitions and abbreviations . 9 3.1 Definitions . 9 3.2 Abbreviations . 10 4 ISI standardization methodology . 11 4.1 3 stage methodology . 11 4.1.1 Stage 1 description . 11 4.1.2 Stage 2 description . 12 4.1.3 Stage 3 description . 12 4.2 Usage of Specification and Description Language (SDL) . 12 5 Usage of Private Signalling System 1 (PSS1) for TETRA . 13 5.1 PSS1 functionality . 13 5.2 Protocol stack for signalling information . 13 5.3 Generic Functional Protocol (GFP) . 14 5.4 Protocol stack for user information . 15 6 TETRA SwMI roles using ISI . 15 6.1 Management configurations . 15 6.1.1 Migration and group attachment configurations . 15 6.1.1.1 SwMI roles for migration and group attachment . 15 6.1.1.2 SwMI databases . 16 6.1.1.3 Migration scenarios . 17 6.1.1.4 Group attachment scenarios . 18 6.1.2 Group linking configurations . 18 6.2 Call configurations . 20 6.2.1 Group call configuration . 20 6.2.2 Individual call configuration . 22 6.2.3 Transit . 23 6.3 User information encoding at the ISI . 23 7 Introduction to ISI ANFs . 23 7.1 ANF-ISIMM. 24 7.2 ANF-ISIIC . 24 7.3 ANF-ISIGC . 24 7.4 ANF-ISISDS . 24 7.5 ANF-ISISS . 24 8 ISI Generic Functional Protocol (ISI GFP) . 24 8.1 Protocol model . 24 8.2 Services provided by the protocol model entities . 25 8.3 Addressing and transport . 26 8.3.1 Addressing . 26 8.3.2 Transport of ROSE APDUs . 27 8.3.2.1 Call related ROSE APDUs . 27 8.3.2.2 Call unrelated ROSE APDUs . 27 8.3.2.2.1 Protocol for the establishment of a call independent signalling connection . 27 8.3.2.2.2 Use of a call independent signalling connection already established . 36 8.3.2.2.3 Clearing of a call independent signalling connection already established . 36 8.4 Remote Operations Service Entity (ROSE) requirements and operation definition . 36 SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)4 8.4.1 General . 36 8.4.2 Return-result . 40 8.4.3 Return-error . 40 8.4.4 Reject . 41 8.5 Segmentation Service Element (SSE) . 41 8.5.1 Procedures. 41 8.5.1.1 Requirements for the segmentation procedure . 42 8.5.1.2 Requirements for the re-assembly procedure . 42 8.5.2 Segment encoding . 43 8.6 Co-ordination Function . 44 9 Security over the ISI . 44 9.1 ITSI authentication . 45 9.2 End-to-end encryption . 45 9.3 End-to-end key management via ISI . 45 Annex A (normative): Security - supporting encryption over ISI . 46 A.1 Overview . 46 A.2 Encryption . 47 A.2.1 ISI relation to air interface and end-to-end encryption . 47 A.2.2 Air interface encryption key management via ISI . 47 A.2.2.1 Secret Key of individual subscriber (K) . 47 A.2.2.2 Derived Cipher Key (DCK) . 48 A.2.2.3 Common Cipher Key (CCK) . 48 A.2.2.4 Static Cipher Key (SCK) . 48 A.2.2.5 Group Cipher Key (GCK) . 48 Annex B (informative): Maximum length of a ROSE APDU or a SSE segment encoded in a facility information element . 49 B.1 PSS1 FACILITY message. 49 B.2 PSS1 basic call message . 50 B.3 Example of the encoding of an ANF-ISIMM MIGRATION PDU in a ROSE Invoke ROSE APDU in a call PISN FACILITY PDU . 51 Annex C (informative): Change requests . 53 History . 54
SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Terrestrial Trunked Radio (TETRA). The present document is part 3, sub-part 1 of a multi-part deliverable covering the Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D), Release 2 as identified below: EN 300 392-1: "General network design"; EN 300 392-2: "Air Interface (AI)"; EN 300 392-3: "Interworking at the Inter-System Interface (ISI)"; EN 300 392-3-1: "General design"; EN 300 392-3-2: "Additional Network Feature Individual Call (ANF-ISIIC)"; EN 300 392-3-3: "Additional Network Feature Group Call (ANF-ISIGC)"; EN 300 392-3-4: "Additional Network Feature Short Data Service (ANF-ISISDS)"; EN 300 392-3-5: "Additional Network Feature for Mobility Management (ANF-ISIMM)"; TS 100 392-3-6: "Speech format implementation for circuit mode transmission"; TS 100 392-3-7: "Speech Format Implementation for Packet Mode Transmission"; TS 100 392-3-8: "Generic Speech Format Implementation"; ETS 300 392-4: "Gateways basic operation"; EN 300 392-5: "Peripheral Equipment Interface (PEI)"; EN 300 392-7: "Security"; EN 300 392-9: "General requirements for supplementary services"; EN 300 392-10: "Supplementary services stage 1"; EN 300 392-11: "Supplementary services stage 2"; EN 300 392-12: "Supplementary services stage 3"; ETS 300 392-13: "SDL model of the Air Interface (AI)"; ETS 300 392-14: "Protocol Implementation Conformance Statement (PICS) proforma specification"; TS 100 392-15: "TETRA frequency bands, duplex spacings and channel numbering"; TS 100 392-16: "Network Performance Metrics"; SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)6 TR 100 392-17: "TETRA V+D and DMO specifications"; TS 100 392-18: "Air interface optimized applications". NOTE: Part 3, sub-parts 6 and 7 (Speech format implementation), part 4, sub-part 3 (Data networks gateway), part 10, sub-part 15 (Transfer of control), part 13 (SDL) and part 14 (PICS) of this multi-part deliverable are in status "historical" and are not maintained.
National transposition dates Date of adoption of this EN: 2 August 2010 Date of latest announcement of this EN (doa): 30 November 2010 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 May 2011 Date of withdrawal of any conflicting National Standard (dow): 31 May 2011
SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)7 1 Scope The present document defines the general aspects of interworking at the Inter-System Interface (ISI) for Terrestrial Trunked Radio (TETRA) system supporting Voice plus Data (V+D). Those specify the general concepts which are the basis of the ISI operation between TETRA systems. It introduces the Additional Network Features (ANFs) used at the ISI, and specifies: - the general protocol mechanism, called ISI Generic Functional Protocol (ISI GFP), upon which the definition of each ANF is based; and - the security requirements for the ISI. The ISI GFP specification applies to any TETRA Switching and Management Infrastructure (SwMI) which supports the ISI. The security requirements for the ISI only apply to SwMIs which support authentication or encryption over the ISI. Besides the ISI general design, the present sub-part, interworking at the Inter-System Interface comprises the following other sub-parts: - Additional Network Feature - ISI Individual Call (ANF-ISIIC); - Additional Network Feature - ISI Group Call (ANF-ISIGC); - Additional Network Feature - ISI Short Data service (ANF-ISISDS); and - Additional Network Feature - ISI Mobility Management (ANF-ISIMM). 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] ETSI EN 300 392-1: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 1: General network design". [2] ETSI EN 300 392-2: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 2: Air Interface (AI)". [3] ETSI EN 300 392-3-2: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 2: Additional Network Feature Individual Call (ANF-ISIIC)". [4] ETSI EN 300 392-3-3: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 3: Additional Network Feature Group Call (ANF-ISIGC)". [5] ETSI EN 300 392-3-4: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 4: Additional Network Feature Short Data Service (ANF-ISISDS)". SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)8 [6] ETSI EN 300 392-3-5: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 5: Additional Network Feature for Mobility Management (ANF-ISIMM)". [7] ETSI TS 100 392-3-8: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 8: Generic Speech Format Implementation". [8] ETSI EN 300 392-7: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 7: Security". [9] ETSI EN 300 392-9: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 9: General requirements for supplementary services". [10] ETSI ETS 300 402-1: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling System No. one (DSS1) protocol; Data link layer; Part 1: General aspects [ITU-T Recommendation Q.920 (1993), modified]". [11] ETSI ETS 300 402-2: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling System No. one (DSS1) protocol; Data link layer; Part 2: General protocol specification
[ITU-T Recommendation Q.921 (1993), modified]". [12] ISO/IEC 11572: "Information technology - Telecommunications and information exchange between systems - Private Integrated Services Network - Circuit mode bearer services -
Inter-exchange signalling procedures and protocol". [13] ISO/IEC 11582: "Information technology - Telecommunications and information exchange between systems - Private Integrated Services Network - Generic functional protocol for the support of supplementary services - Inter-exchange signalling procedures and protocol". [14] ITU-T Recommendation G.704: "Synchronous frame structures used at 1544, 6312, 2048, 8448 and 44 736 kbit/s hierarchical levels". [15] ITU-T Recommendation Q.931: "ISDN user-network interface layer 3 specification for basic call control". [16] ITU-T Recommendation X.690: "Information technology - ASN.1 encoding rules: Specification of Basic Encoding Rules (BER), Canonical Encoding Rules (CER) and Distinguished Encoding Rules (DER)". [17] ITU-T Recommendation X.219: "Remote Operations: Model, notation and service definition". [18] ITU-T Recommendation X.229: "Remote Operations: Protocol specification". 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI EN 300 395-1: "Terrestrial Trunked Radio (TETRA); Speech CODEC for full-rate traffic channel; Part 1: General description of speech functions". [i.2] ITU-T Recommendation I.130: "Method for the characterization of telecommunication services supported by an ISDN and network capabilities of an ISDN". [i.3] ITU-T Recommendation Z.100: "Specification and description language (SDL)". SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)9 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in ISO/IEC 11582 [13] and the following apply: call independent signalling connection: signalling connection established between ANF-ISI entities located in different Switching and Management Infrastructures that does not have an associated user-information connection call independent: property of information which is conveyed across the Q reference point in a message that does not use a call reference which has an associated user-information connection NOTE: In TETRA standards, the term call unrelated is used with the same meaning as call independent. call unrelated: See the definition of the term "call independent". co-ordination Function: entity which provides co-ordination between different ANF-ISI entities, ROSE, SSE and GFT Control for different TETRA basic and supplementary services destination SwMI: Switching and Management Infrastructure where the receiving ANF-ISI entity is located (in the context of a single one-way exchange of information between two ANF-ISI entities located in different Switching and Management Infrastructures) Generic Functional Transport Control (GFT Control) entity: entity that exists within a Switching and Management Infrastructure and provides a range of services to the ANF-ISI entities and ROSE via the co-ordination Function NOTE: The services are defined in clause 6 of ISO/IEC 11582 [13]. group attached SwMI: Switching and Management Infrastructure different from the home SwMI of the group considered in which at least one individual subscriber member of the group is attached to that group Group TETRA Subscriber Identity (GTSI): TETRA Subscriber Identity assigned to a group home SwMI: Switching and Management Infrastructure in which the subscription of a given user is registered NOTE: That user is defined as being a subscriber (see below the definition of that term). invocation: an action taken by the user or by the service provider to execute a specific service function within real time Location Area (LA): area within radio coverage of a base station or group of base stations within which a Mobile Station (MS) is allowed to operate Mobile Network Identity (MNI): identity that is broadcast by all TETRA base stations to uniquely identify the SwMI NOTE: It consists of the Mobile Country Code (MCC) and the Mobile Network Code (MNC). Mobile Station (MS): physical grouping that contains all of the mobile equipment that is used to obtain TETRA services NOTE: By definition, a mobile station contains at least one Mobile Radio Stack (MRS). originating SwMI: in the context of a TETRA call, Switching and Management Infrastructure where the calling user is registered (which implies that this user is located in that SwMI) or Switching and Management Infrastructure which originates a Call independent signalling connection segmentation: act of generating two or more PDUs derived from an initial one service user: abstract representation of the totality of those entities in a single system that makes use of a service through a single access point Short Subscriber Identity (SSI): network specific portion of a TSI NOTE: A SSI is only unique within one TETRA sub-domain (one TETRA network). SIST EN 300 392-3-1 V1.3.1:2010



ETSI ETSI EN 300 392-3-1 V1.3.1 (2010-08)10 source SwMI: Switching and Management Infrastructure where the sending ANF-ISI entity is located (in the context of a single one-way exchange of information between two ANF-ISI entities located in different Switching and Management Infrastructures) subscriber: user of a telecommunication service, based on a contract with the provider of the service NOTE 1: The subscriber may be an individual or a group: in the first case it is identified by an ITSI, in the second, by a GTSI. NOTE 2: The individual subscriber is able to access an SwMI either through a MS or Line Station. supplementary service: modifies or supplements a basic bearer service or a basic teleservice NOTE: A supplementary service cannot be offered to a customer as a stand-alone service. It should be offered in combination with a bearer service or a teleservice. Switching and Management Infrastructure (SwMI): all of the TETRA equipment for a Voice plus Data (V+D) network NOTE: The SwMI enables users to communicate with each other. terminating SwMI: in the context of a TETRA call, Switching and Management Infrastructure where the calling user is registered (which implies that this user is located in that SwMI) or Switching and Management Infrastructure which terminates a Call independent signalling connection TETRA Subscriber Identity (TSI): global TETRA network address that is to identify an individual or a group subscriber within the domain of all TETRA networks user: entity using the services of a telecommunications network via an externally accessible service access point NOTE: An individual user may be a person or an application process. visited SwMI: Switching and Management Infrastructure different from the home SwMI in which a given subscriber is currently registere
...
