SIST EN 2480:2026
(Main)Aerospace series - Steel FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa - Bars - De ≤ 75 mm
Aerospace series - Steel FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa - Bars - De ≤ 75 mm
This document specifies the requirements relating to:
Steel 36NiCrMo16 (1.6773)
1 250 MPa ≤ Rm ≤ 1 400 MPa
Bars
De ≤ 75 mm
for aerospace applications.
W.nr: 1.6773.
ASD-STAN designation: FE-PL2108.
Luft- und Raumfahrt - Stahl FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa - Stangen - De ≤ 75 mm
No Scope available
Série aérospatiale - Acier FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa - Barres - De ≤ 75 mm
Le présent document spécifie les exigences relatives à :
Acier 36NiCrMo16 (1.6773)
1 250 MPa ≤ Rm ≤ 1 400 MPa
Barres
De ≤ 75 mm
pour les applications aérospatiales.
W.nr : 1.6773.
ASD-STAN : FE-PL2108.
Aeronavtika - Jeklo FE-PL2108 (36NiCrMo16) - 1250 MPa ≤ Rm ≤ 1400 MPa - Palice - De ≤ 75 mm
General Information
Relations
Overview
SIST EN 2480:2026 is a European standard developed by CEN for aerospace-grade steel bars, specifically focusing on Steel 36NiCrMo16 (1.6773), also designated as FE-PL2108 under ASD-STAN. This standard applies to bars with a diameter of up to 75 mm and a tensile strength (Rm) range between 1,250 MPa and 1,400 MPa, making it ideal for high-performance aerospace applications. The document supersedes EN 2480:2008 and integrates significant updates to improve compliance with current aerospace metallurgical and dimensional standards.
Key Topics
Material Specifications
SIST EN 2480:2026 specifies the chemical composition limits for Steel 36NiCrMo16, ensuring optimal balance of elements like Carbon, Silicon, Manganese, Chromium, Molybdenum, and Nickel to achieve the desired mechanical properties.Mechanical Properties
The standard mandates rigorous mechanical property requirements including:- Tensile strength (Rm) between 1,250 MPa to 1,400 MPa
- Minimum elongation of 8%
- Reduction of area minimum 40%
- Impact strength (KV) not less than 25 Joules
- Hardness ranges specified in HB or HV depending on bar diameter
Dimensions and Form
Bars covered in this standard must have an external diameter (De) of 75 mm or less, ensuring suitability for aerospace components requiring precise size control.Heat Treatment and Delivery Conditions
Steel bars are delivered in a hardened and tempered condition, treated at temperatures ranging between 860 °C and 880 °C followed by a tempering temperature not lower than 540 °C, guaranteeing consistent mechanical performance.Quality Inspections
The standard also prescribes comprehensive testing protocols such as:- Visual testing for surface imperfections
- Ultrasonic testing for internal flaws
- Verification of non-metallic inclusion content according to EN 2951
- Dimensional verification aligned with EN 4700-002 and TR 2410
Additional Requirements
SIST EN 2480:2026 includes guidelines for product qualification programs mutually agreed upon by manufacturers and purchasers to maintain quality assurance.
Applications
Steel 36NiCrMo16 bars conforming to SIST EN 2480:2026 are tailored for aerospace industry uses where high strength-to-weight ratio, toughness, and reliability are critical. Typical applications include:
- Structural aerospace components
- Landing gear parts
- Engine shafts and mechanical assemblies
- High-stress load-bearing aerospace hardware
- Precision machined components requiring dimensional stability and predictable mechanical behavior under extreme conditions
The standard ensures that the steel bars provide consistent mechanical properties, chemical composition, and quality control needed for safety-critical aerospace structures.
Related Standards
To complement SIST EN 2480:2026, the following related standards are essential for comprehensive aerospace material management:
- EN 4700-002: Technical specifications for steel and heat-resisting alloy bars and sections
- EN 2951: Micrographic determination of non-metallic inclusions in metallic materials
- EN 4258: General organization of metallic material standardization for aerospace
- EN 4500-005: Rules for drafting and presentation of aerospace metallic material standards - specific rules for steels
- EN 2034: Aerospace series - Round steel bars drawn/descaled-dimensions and tolerances
- EN 2042: Aerospace series - Square rolled steel bars’ dimensions and tolerances
- TR 2410: Guidelines linking dimensional standards and material standards for aerospace
Summary
SIST EN 2480:2026 sets the benchmark for the procurement and use of high-strength 36NiCrMo16 steel bars within aerospace engineering. By standardizing chemical composition, mechanical properties, dimensional limits, and testing requirements, this standard supports aerospace manufacturers in achieving the performance and safety levels demanded by modern aerospace environments. Compliance with SIST EN 2480:2026 ensures steel bars are manufactured and certified to meet the exacting strength, toughness, and traceability requirements critical in aerospace applications.
Frequently Asked Questions
SIST EN 2480:2026 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Steel FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa - Bars - De ≤ 75 mm". This standard covers: This document specifies the requirements relating to: Steel 36NiCrMo16 (1.6773) 1 250 MPa ≤ Rm ≤ 1 400 MPa Bars De ≤ 75 mm for aerospace applications. W.nr: 1.6773. ASD-STAN designation: FE-PL2108.
This document specifies the requirements relating to: Steel 36NiCrMo16 (1.6773) 1 250 MPa ≤ Rm ≤ 1 400 MPa Bars De ≤ 75 mm for aerospace applications. W.nr: 1.6773. ASD-STAN designation: FE-PL2108.
SIST EN 2480:2026 is classified under the following ICS (International Classification for Standards) categories: 49.025.10 - Steels; 77.140.60 - Steel bars and rods. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 2480:2026 has the following relationships with other standards: It is inter standard links to SIST EN 2480:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 2480:2026 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)

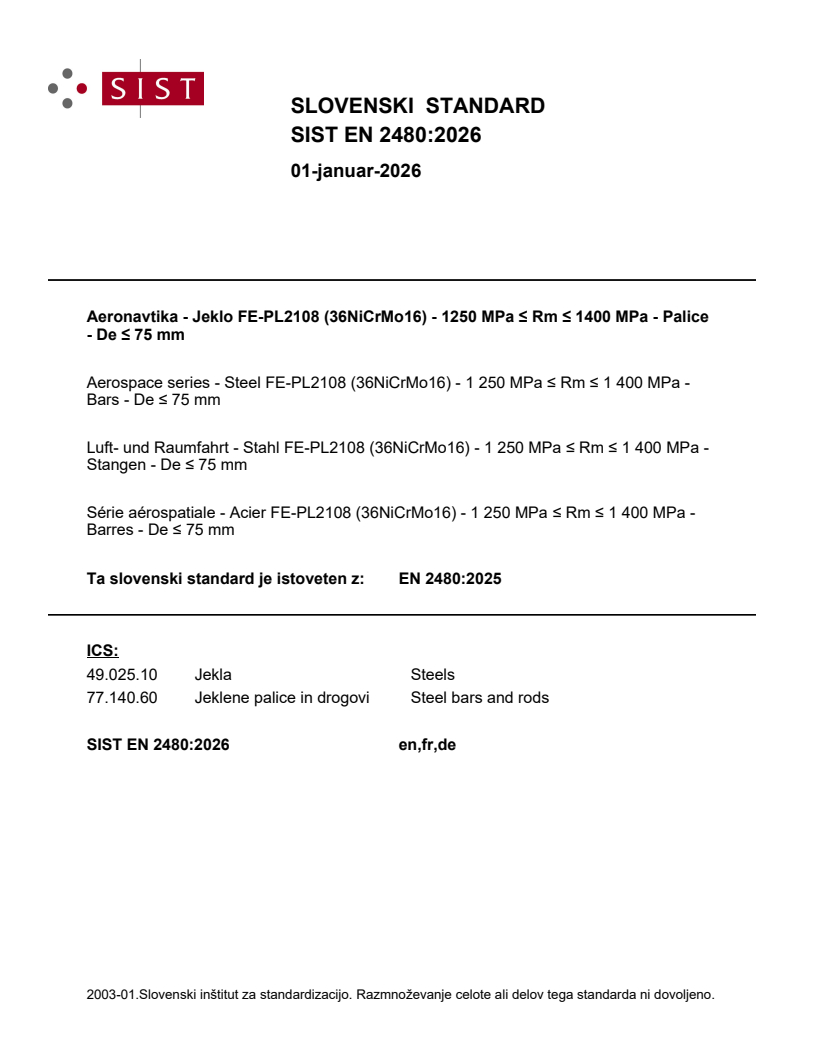

SLOVENSKI STANDARD
01-januar-2026
Aeronavtika - Jeklo FE-PL2108 (36NiCrMo16) - 1250 MPa ≤ Rm ≤ 1400 MPa - Palice
- De ≤ 75 mm
Aerospace series - Steel FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa -
Bars - De ≤ 75 mm
Luft- und Raumfahrt - Stahl FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa -
Stangen - De ≤ 75 mm
Série aérospatiale - Acier FE-PL2108 (36NiCrMo16) - 1 250 MPa ≤ Rm ≤ 1 400 MPa -
Barres - De ≤ 75 mm
Ta slovenski standard je istoveten z: EN 2480:2025
ICS:
49.025.10 Jekla Steels
77.140.60 Jeklene palice in drogovi Steel bars and rods
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

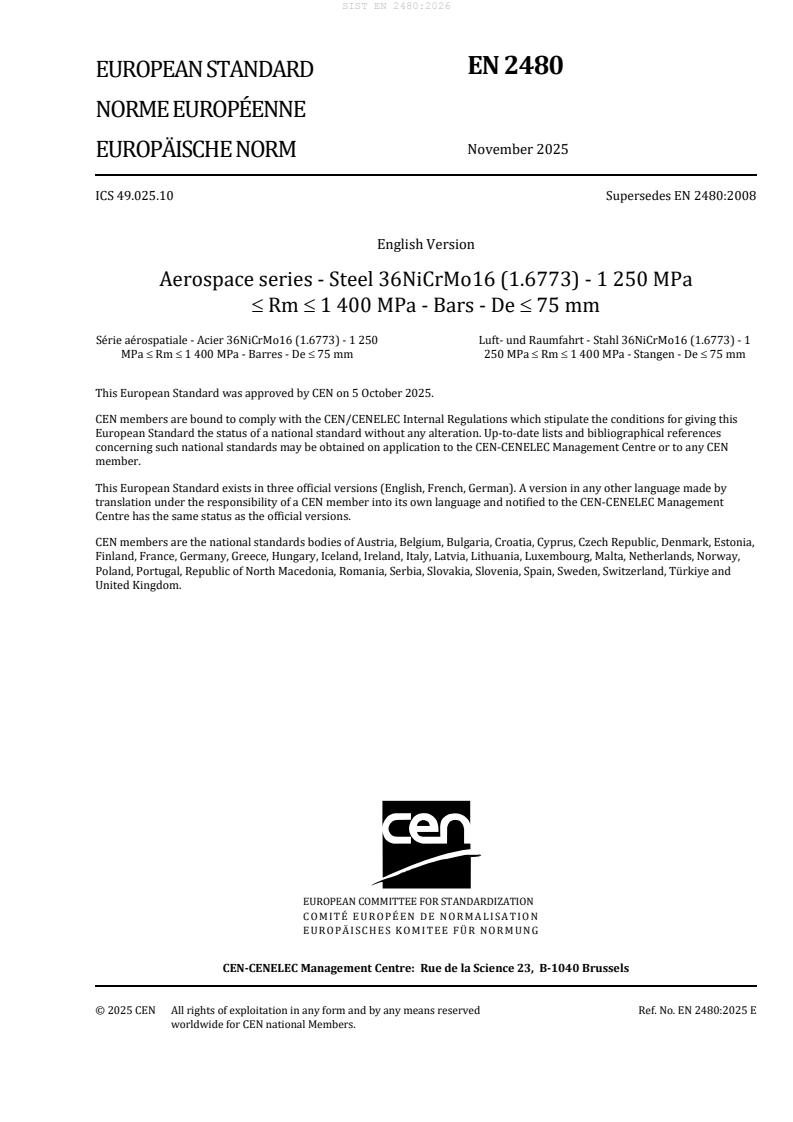

EN 2480
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2025
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 2480:2008
English Version
Aerospace series - Steel 36NiCrMo16 (1.6773) - 1 250 MPa
≤ Rm ≤ 1 400 MPa - Bars - De ≤ 75 mm
Série aérospatiale - Acier 36NiCrMo16 (1.6773) - 1 250 Luft- und Raumfahrt - Stahl 36NiCrMo16 (1.6773) - 1
MPa ≤ Rm ≤ 1 400 MPa - Barres - De ≤ 75 mm 250 MPa ≤ Rm ≤ 1 400 MPa - Stangen - De ≤ 75 mm
This European Standard was approved by CEN on 5 October 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N
EUROPÄISCHES KOMITEE FÜR NORMUN G
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2480:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9
European foreword
This document (EN 2480:2025) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by May 2026, and conflicting national standards shall be withdrawn at
the latest by May 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 2480:2008.
— overall editorial improvements to comply with the EN 4500 series;
— addition of a bibliography;
— update of Clause 2: EN 4258 and EN 4500-005 were moved to the bibliography;
— addition of a designation and title to the table;
— addition of line 4.3 “Further intended processing” and line 5.2 “Dimensional standard” as per
EN 4500-001;
— addition of information on line 20 “Impact strength”: the type of resilience (KV) and the unit (J)
were not specified. Technical modifications regarding the temperature of the creep tests.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
follow
...
