SIST EN 2591-425:2004
(Main)Aerospace series - Elements of electrical and optical connection - Test methods - Part 425: Unwrapping capability, solderless wrapped connections
Aerospace series - Elements of electrical and optical connection - Test methods - Part 425: Unwrapping capability, solderless wrapped connections
This standard specifies a method of assessing the unwrapping capability of solderless wrapped connections used in elements of electrical and optical connection.
It shall be used together with EN 2591-100.
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 425: Abwickelfähigkeit von lötfreien Wickelverbindungen
Diese Norm legt ein Verfahren zum Nachweis der Abwickelfähigkeit von lötfreien Wickelverbindungen fest, die in elek-trischen und optischen Verbindungselementen verwendet werden.
Sie ist in Verbindung mit EN 2591-100 anzuwenden.
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 425 : Aptitude au déroulement des connexions enroulées sans brasure
La présente norme spécifie une méthode pour vérifier l'aptitude au déroulement des connexions enroulées sans brasure utilisées dans les organes de connexion électrique et optique.
Elle doit être utilisée conjointement avec EN 2591-100.
Aerospace series - Elements of electrical and optical connection - Test methods - Part 425: Unwrapping capability, solderless wrapped connections
General Information
- Status
- Published
- Publication Date
- 30-Apr-2004
- Technical Committee
- I08 - Imaginarni 08
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-May-2004
- Due Date
- 01-May-2004
- Completion Date
- 01-May-2004
Overview
EN 2591-425:2001 is a European aerospace test method that specifies how to assess the unwrapping capability of solderless wrapped connections used in electrical and optical connection elements. Intended as part of the aerospace series of standards, it is used together with EN 2591-100 (general test method requirements) and aligns with AECMA/CEN procedures for connector testing. The standard defines specimen preparation, test apparatus, and the unwrapping procedure together with the acceptance criterion for conductor integrity.
Key Topics and Requirements
- Scope: Method for assessing the ability to unwrap solderless wrapped (wire-wrap) connections without damage.
- Specimen preparation: Specimens must be examined per EN 2591-101 (visual examination) and EN 2591-102 (dimensions and mass) and prepared as specified.
- Documentation required: Unless otherwise specified, records must state:
- Type of conductor or cable
- Type of contact
- Wrapping tool and unwrapping tool
- Type of wrapping (single or double)
- Test requirement/acceptance criteria
- Apparatus: The standard includes guidance on an unwrapping tool (figure example shows an approximate 12 mm dimension). The apparatus must not introduce additional twist or stress to the specimen during unwrapping.
- Procedure: Unwrap using the specified unwrapping tool while ensuring no additional mechanical stress is applied to the conductor.
- Acceptance criterion: Following EN 2591-101, no breaking or cracking of the conductor is allowed after unwrapping.
Practical Applications
- Ensures reliability of solderless wrapped connections in aerospace electrical and optical systems.
- Used by:
- Aerospace manufacturers and component designers to validate connector designs.
- Qualification and test laboratories performing acceptance and maintenance testing.
- Quality assurance and inspection teams responsible for supplier control and product certification.
- Maintenance organizations assessing the serviceability of wrapped connections during repair or inspection.
- Helps prevent in-service failures by verifying that wrapped connections can be safely unwrapped for inspection, repair, or rework without degrading conductor integrity.
Related Standards
- EN 2591-100 - Aerospace series: Test methods - Part 100: General
- EN 2591-101 - Visual examination
- EN 2591-102 - Examination of dimensions and mass
Keywords: EN 2591-425, unwrapping capability, solderless wrapped connections, aerospace test method, electrical and optical connection, EN 2591-100, connector testing.
Frequently Asked Questions
SIST EN 2591-425:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Elements of electrical and optical connection - Test methods - Part 425: Unwrapping capability, solderless wrapped connections". This standard covers: This standard specifies a method of assessing the unwrapping capability of solderless wrapped connections used in elements of electrical and optical connection. It shall be used together with EN 2591-100.
This standard specifies a method of assessing the unwrapping capability of solderless wrapped connections used in elements of electrical and optical connection. It shall be used together with EN 2591-100.
SIST EN 2591-425:2004 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 2591-425:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2004
Aerospace series - Elements of electrical and optical connection - Test methods -
Part 425: Unwrapping capability, solderless wrapped connections
Aerospace series - Elements of electrical and optical connection - Test methods - Part
425: Unwrapping capability, solderless wrapped connections
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren -
Teil 425: Abwickelfähigkeit von lötfreien Wickelverbindungen
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais -
Partie 425 : Aptitude au déroulement des connexions enroulées sans brasure
Ta slovenski standard je istoveten z: EN 2591-425:2001
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 2591-425
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2001
ICS 49.060
English version
Aerospace series - Elements of electrical and optical connection
- Test methods - Part 425: Unwrapping capability, solderless
wrapped connections
Série aérospatiale - Organes de connexion électrique et Luft- und Raumfahrt - Elektrische und optische
optique - Méthodes d'essais - Partie 425: Aptitude au Verbindungselemente - Prüfverfahren - Teil 425:
déroulement des connexions enroulées sans brasure Abwickelfähigkeit von lötfreien Wickelverbindungen
This European Standard was approved by CEN on 4 June 2001.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2001 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2591-425:2001 E
worldwide for CEN national Members.

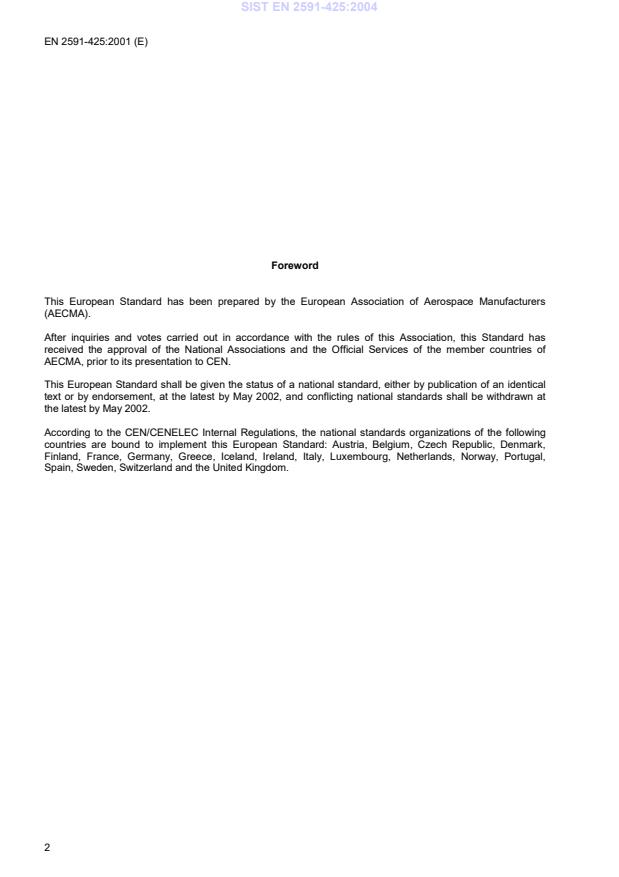

Foreword
