SIST EN 4708-204:2024
(Main)Aerospace series - Sleeving, heat-shrinkable, for binding, insulation and identification - Part 204: Limited fire hazard identification sleeves - Operating Temperature range -40 °C to 105 °C - Product standard
Aerospace series - Sleeving, heat-shrinkable, for binding, insulation and identification - Part 204: Limited fire hazard identification sleeves - Operating Temperature range -40 °C to 105 °C - Product standard
This document specifies the required characteristics for heat-shrinkable limited fire hazard identification sleeves for use in aircraft electrical systems at operating temperatures between −40 °C and 105 °C.
This document is only applicable for the characterization of identification sleeves. This sleeving is flexible, flame retarded and emits minimum smoke, gases and corrosive by-products when exposed to fire. This sleeving is only applicable for use in areas where smoke, gases or corrosive by-products would constitute a particular hazard.
It is available with a shrink ratio of 2 : 1.
The product is normally supplied with internal diameters up to 51 mm.
The standard colours are white or yellow.
Sizes or colours other than those specifically listed in this document can be available. These items are considered to comply with this document if they comply with the property requirements listed in Table 2 and Table 3, except for dimensions and mass.
As the sleeving to be tested is a printed article, the complete system is to be recorded as part of the evaluation. The sleeve will only be considered as meeting the requirements of this document if printed with the printer, ribbon, inks and settings referenced within the test report.
Mark adherence and print permanence are determined in this specification using method EN 6059-407.
Luft- und Raumfahrt - Wärmeschrumpfender Schlauch zur Identifizierung - Teil 204: Identifikation-Hülse begrenzt Brandverhalten - Temperaturbereich -40 °C und 105 °C - Produktnormen
Dieses Dokument legt die Anforderungen an wärmeschrumpfende Kennzeichnungsschläuche mit reduziertem Brandverhalten zur Verwendung in elektrischen Bordnetzen von Luftfahrzeugen bei Betriebstemperaturen zwischen −40 °C und 105 °C fest.
Dieses Dokument ist nur anwendbar für die Charakterisierung von Kennzeichnungsschläuchen. Dieser Schlauch ist flexibel, flammgehemmt und emittiert nur geringe Mengen an Rauch, Gasen und korrodierenden Nebenprodukten, wenn er Feuer ausgesetzt ist. Dieser Schlauch ist nur für die Anwendung in Bereichen geeignet, in denen Rauch, Gase oder korrodierende Nebenprodukte eine besondere Gefährdung darstellen würden.
Er ist mit einem Schrumpfverhältnis von 2 : 1 erhältlich.
Das Produkt wird üblicherweise mit Innendurchmessern bis zu 51 mm geliefert.
Die Standardfarben sind weiß oder gelb.
Es können andere Größen oder Farben als die speziell in diesem Dokument angegebenen angeboten werden. Diese Bauteile werden dahingehend angesehen, dass sie dieses Dokument erfüllen, wenn sie mit Ausnahme der Maße und Masse die in Tabelle 2 und Tabelle 3 angegebenen Anforderungen an die Merkmale erfüllen.
Da der zu prüfende Schlauch ein bedruckter Artikel ist, muss das gesamte System als Teil der Bewertung aufgezeichnet werden. Dieser Schlauch wird dahingehend angesehen, dass er die Anforderungen dieses Dokuments nur erfüllt, wenn er mithilfe von Drucker, Farbband, Tinten und den Einstellungen bedruckt wurde, auf die im Prüfbericht verwiesen wird.
In dieser Spezifikation werden die Haftfestigkeit und Haltbarkeit der Kennzeichnung mithilfe des Prüfverfahrens nach EN 6059 407 bestimmt.
Série aérospatiale - Manchons thermorétractables, de jonction, isolement et identification - Partie 204 : Manchons d’identification à risque d'incendie limité - Températures d'utilisation -40 °C à 105 °C - Norme de produit
Le présent document spécifie les caractéristiques requises pour les manchons d’identification à risque
d'incendie limité destinés à une utilisation dans les systèmes électriques des aéronefs à des
températures de fonctionnement comprises entre −40 °C et 105 °C.
Ce document est uniquement applicable à la caractérisation des manchons d’identification. Ce type de
manchon est flexible, ignifugé et émet des fumées, des gaz et des sous-produits corrosifs minimaux
quand il est exposé au feu. Il est uniquement applicable à une utilisation dans les zones où des fumées,
des gaz ou des sous-produits corrosifs sont susceptibles de représenter un risque spécifique.
Il est proposé avec un coefficient de rétreint de 2:1.
Le produit est normalement fourni avec des diamètres intérieurs allant jusqu’à 51 mm.
Les couleurs usuelles sont le blanc ou le jaune.
D’autres tailles ou d’autres couleurs que celles mentionnées spécifiquement dans le présent document
peuvent être disponibles. Ces articles sont considérés comme conformes au présent document s’ils
répondent aux exigences de propriétés présentées dans le Tableau 2 et le Tableau 3, exception faite des
dimensions et masses.
Étant donné que le manchon à soumettre à essai est un article imprimé, il est nécessaire d’enregistrer le
système complet en tant que partie intégrante de l’évaluation. Le manchon ne sera considéré comme
respectant les exigences du présent document que s’il est marqué à l’aide de l’imprimante, du ruban,
des encres et des paramètres référencés dans le rapport d’essai.
L’adhérence du marquage et la permanence de l'impression sont déterminées dans cette spécification à
l’aide de la méthode EN 6059-407.
Aeronavtika - Toplotno skrčljiva cev za utrjevanje, izolacijo in identifikacijo - 204. del: Z izboljšanimi identifikacijskimi protipožarnimi lastnostmi - Območje delovne temperature med –40 °C in 105 °C - Standard za proizvod
Ta dokument določa zahtevane lastnosti za toplotno skrčljive cevi z izboljšanimi identifikacijskimi protipožarnimi lastnostmi za uporabo v električnih sistemih letal pri obratovalnih temperaturah med –30 °C in 105 °C.
Ta dokument je namenjen samo določanju lastnosti identifikacijskih cevi. Te cevi so fleksibilne in ognjeodporne, pri izpostavljenosti požaru pa oddajajo kar najmanj dimnih, plinastih in korozivnih stranskih produktov. Primerne so za uporabo na območjih, kjer bi lahko dimni, plinasti in korozivni stranski produkti pomenili posebno nevarnost.
Na voljo so v razmerju krčenja 2:1.
Izdelek je običajno dobavljiv z notranjimi premeri do 51 mm.
Standardna barva je bela ali rumena.
Na voljo so lahko tudi druge velikosti in barve, ki niso posebej navedene v tem dokumentu. Šteje se, da so ti elementi skladni s tem standardom, če so skladni z zahtevami za lastnosti, navedenimi v preglednicah 2 in 3, razen z zahtevami za mere in maso.
Cevi za preskušanje so natisnjen izdelek, zato je treba pri ocenjevanju zabeležiti celoten sistem. Cev izpolnjuje zahteve tega dokumenta le, če je natisnjena s tiskalnikom, trakom, črnilom in nastavitvami, navedenimi v poročilu o preskusu.
Oprijemljivost oznak in obstojnost odtisov sta v tej specifikaciji določena z uporabo metode iz standarda EN 6059-407.
General Information
- Status
- Published
- Public Enquiry End Date
- 30-Sep-2021
- Publication Date
- 15-Jan-2024
- Technical Committee
- I13 - Imaginarni 13
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 03-Jan-2024
- Due Date
- 09-Mar-2024
- Completion Date
- 16-Jan-2024
Overview
SIST EN 4708-204:2024 is a European standard developed by CEN for aerospace applications, specifically focusing on heat-shrinkable sleeving used for binding, insulation, and identification of electrical systems in aircraft. This standard defines the characteristics and performance requirements for limited fire hazard identification sleeves that operate reliably within a temperature range of -40 °C to 105 °C.
The sleeving is designed to offer enhanced safety in sensitive aircraft areas by being flame retardant and minimizing the emission of smoke, toxic gases, and corrosive by-products when exposed to fire. This makes it especially suitable for zones where smoke or corrosive emissions could pose critical hazards. The product is typically supplied with internal diameters up to 51 mm and a shrink ratio of 2:1, in standard white or yellow colors, with other sizes and colors available upon request.
Key Topics
- Material Properties: Flexible, flame-retarded sleeving that emits minimal smoke and toxic gases during a fire, reducing hazards in aircraft environments.
- Temperature Range: Operational from -40 °C to 105 °C, suitable for a broad range of aerospace electrical components and environments.
- Dimensions and Shrink Ratio: Standard internal diameters up to 51 mm with a shrink ratio of 2:1 to ensure tight and reliable fitting around cables.
- Testing and Compliance: Includes rigorous tests on dimensions, heat shock resistance, flame propagation, oxygen index, copper corrosion, smoke density, toxicity, halogen content, acid gas generation, and more to certify performance under aerospace standards.
- Print and Marking Permanence: Sleeving is a printed article evaluated for mark adherence and print permanence in line with EN 6059-407 using specified printers, ribbons, inks, and settings to ensure durable identification marks.
- Resistance to Fluids: Tested for resistance to aviation fuels, hydraulic fluids, oils, cleaning solvents, de-icing fluids, fire extinguishing agents, and avionic coolants to ensure durability in aircraft operational environments.
- Quality Assurance: Standards-compliant procedures aligned with EN 4708-001:2019 ensuring consistent product quality over its lifecycle.
Applications
- Aircraft Electrical Systems: Identification sleeves for wiring harnesses that require reliable insulation and clear marking under extreme conditions.
- Fire-Sensitive Zones: Areas within aircraft where smoke and toxic gas emissions during fire are critical hazards, such as passenger cabins, avionics compartments, and cargo holds.
- Maintenance and Inspection: Marked sleeves enable easy cable identification, facilitating maintenance, troubleshooting, and regulatory compliance in aerospace systems.
- Thermal Insulation: Heat-shrinkable nature provides protective insulation over cables and connectors, improving mechanical security and resistance to environmental stress.
- Corrosive Environment Protection: Minimizes corrosive by-products in case of fire, extending equipment life and ensuring safer emergency conditions onboard.
Related Standards
- EN 4708-001:2019: Technical specifications for heat-shrinkable sleeving for binding, insulation, and identification.
- EN 6059-402 & EN 6059-407: Test methods for electrical cable protection sleeves covering mechanical properties and print permanence.
- ISO 846:2019: Evaluates action of microorganisms, ensuring fungal resistance of materials.
- ISO 1817:2022: Determines chemical resistance of rubber and plastics to various fluids.
- ASTM D740-11, MIL-PRF-87937, SAE AMS 1428: Standards for cleaning compounds and de-icing/anti-icing fluids relevant to aerospace applications.
- EN 3909:2016: Aerospace test fluids and methods applicable to electrical and optical components.
SIST EN 4708-204:2024 provides a comprehensive, robust framework ensuring heat-shrinkable identification sleeves used in aerospace applications meet stringent safety and durability requirements. This standard supports aviation manufacturers and maintenance providers by delivering reliable sleeving products that withstand operational extremes while minimizing fire-related risks and improving system identification accuracy.
Frequently Asked Questions
SIST EN 4708-204:2024 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Sleeving, heat-shrinkable, for binding, insulation and identification - Part 204: Limited fire hazard identification sleeves - Operating Temperature range -40 °C to 105 °C - Product standard". This standard covers: This document specifies the required characteristics for heat-shrinkable limited fire hazard identification sleeves for use in aircraft electrical systems at operating temperatures between −40 °C and 105 °C. This document is only applicable for the characterization of identification sleeves. This sleeving is flexible, flame retarded and emits minimum smoke, gases and corrosive by-products when exposed to fire. This sleeving is only applicable for use in areas where smoke, gases or corrosive by-products would constitute a particular hazard. It is available with a shrink ratio of 2 : 1. The product is normally supplied with internal diameters up to 51 mm. The standard colours are white or yellow. Sizes or colours other than those specifically listed in this document can be available. These items are considered to comply with this document if they comply with the property requirements listed in Table 2 and Table 3, except for dimensions and mass. As the sleeving to be tested is a printed article, the complete system is to be recorded as part of the evaluation. The sleeve will only be considered as meeting the requirements of this document if printed with the printer, ribbon, inks and settings referenced within the test report. Mark adherence and print permanence are determined in this specification using method EN 6059-407.
This document specifies the required characteristics for heat-shrinkable limited fire hazard identification sleeves for use in aircraft electrical systems at operating temperatures between −40 °C and 105 °C. This document is only applicable for the characterization of identification sleeves. This sleeving is flexible, flame retarded and emits minimum smoke, gases and corrosive by-products when exposed to fire. This sleeving is only applicable for use in areas where smoke, gases or corrosive by-products would constitute a particular hazard. It is available with a shrink ratio of 2 : 1. The product is normally supplied with internal diameters up to 51 mm. The standard colours are white or yellow. Sizes or colours other than those specifically listed in this document can be available. These items are considered to comply with this document if they comply with the property requirements listed in Table 2 and Table 3, except for dimensions and mass. As the sleeving to be tested is a printed article, the complete system is to be recorded as part of the evaluation. The sleeve will only be considered as meeting the requirements of this document if printed with the printer, ribbon, inks and settings referenced within the test report. Mark adherence and print permanence are determined in this specification using method EN 6059-407.
SIST EN 4708-204:2024 is classified under the following ICS (International Classification for Standards) categories: 49.025.40 - Rubber and plastics; 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase SIST EN 4708-204:2024 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)

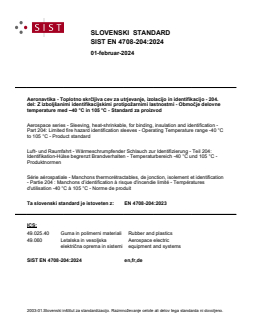

SLOVENSKI STANDARD
01-februar-2024
Aeronavtika - Toplotno skrčljiva cev za utrjevanje, izolacijo in identifikacijo - 204.
del: Z izboljšanimi identifikacijskimi protipožarnimi lastnostmi - Območje delovne
temperature med –40 °C in 105 °C - Standard za proizvod
Aerospace series - Sleeving, heat-shrinkable, for binding, insulation and identification -
Part 204: Limited fire hazard identification sleeves - Operating Temperature range -40 °C
to 105 °C - Product standard
Luft- und Raumfahrt - Wärmeschrumpfender Schlauch zur Identifizierung - Teil 204:
Identifikation-Hülse begrenzt Brandverhalten - Temperaturbereich -40 °C und 105 °C -
Produktnormen
Série aérospatiale - Manchons thermorétractables, de jonction, isolement et identification
- Partie 204 : Manchons d’identification à risque d'incendie limité - Températures
d'utilisation -40 °C à 105 °C - Norme de produit
Ta slovenski standard je istoveten z: EN 4708-204:2023
ICS:
49.025.40 Guma in polimerni materiali Rubber and plastics
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

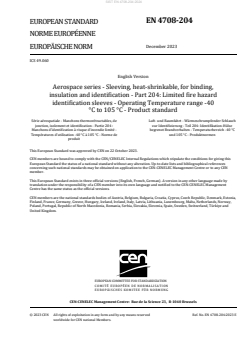

EN 4708-204
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2023
EUROPÄISCHE NORM
ICS 49.060
English Version
Aerospace series - Sleeving, heat-shrinkable, for binding,
insulation and identification - Part 204: Limited fire hazard
identification sleeves - Operating Temperature range -40
°C to 105 °C - Product standard
Série aérospatiale - Manchons thermorétractables, de Luft- und Raumfahrt - Wärmeschrumpfender Schlauch
jonction, isolement et identification - Partie 204 : zur Identifizierung - Teil 204: Identifikation-Hülse
Manchons d'identification à risque d'incendie limité - begrenzt Brandverhalten - Temperaturbereich -40 °C
Températures d'utilisation -40 °C à 105 °C - Norme de und 105 °C - Produktnormen
produit
This European Standard was approved by CEN on 22 October 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4708-204:2023 E
worldwide for CEN national Members.

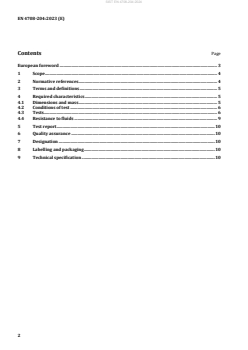

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Required characteristics . 5
4.1 Dimensions and mass . 5
4.2 Conditions of test . 6
4.3 Tests . 6
4.4 Resistance to fluids . 9
5 Test report . 10
6 Quality assurance . 10
7 Designation . 10
8 Labelling and packaging . 10
9 Technical specification . 10
European foreword
This document (EN 4708-204:2023) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this
document has received the approval of the National Associations and the Official Services of the
member countries of ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2024, and conflicting national standards shall be
withdrawn at the latest by June 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this document: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
1 Scope
This document specifies the required characteristics for heat-shrinkable limited fire hazard
identification sleeves for use in aircraft electrical systems at operating temperatures
between −40 °C and 105 °C.
This document is only applicable for the characterization of identification sleeves. This sleeving is
flexible, flame retarded and emits minimum smoke, gases and corrosive by-products when exposed to
fire. This sleeving is only applicable for use in areas where smoke, gases or corrosive by-products would
constitute a particular hazard.
It is available with a shrink ratio of 2 : 1.
The product is normally supplied with internal diameters up to 51 mm.
The standard colours are white or yellow.
Sizes or colours other than those specifically listed in this document can be available. These items are
considered to comply with this document if they comply with the property requirements listed in
Table 2 and Table 3, except for dimensions and mass.
As the sleeving to be tested is a printed article, the complete system is to be recorded as part of the
evaluation. The sleeve will only be considered as meeting the requirements of this document if printed
with the printer, ribbon, inks and settings referenced within the test report.
Mark adherence and print permanence are determined in this specification using method EN 6059-407.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 3909:2016, Aerospace series — Test fluids and test methods for electrical and optical components and
sub-assemblies
EN 4708-001:2019, Aerospace series — Sleeving, heat-shrinkable, for binding, insulation and
identification — Part 001: Technical specification
EN 6059-402, Aero
...
