EN 13763-13
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13763-13:2004
English Version
Explosives for civil uses - Detonators and detonating cord
relays - Part 13: Verification of the resistance to
electrostatic discharge (ESD) of electric and electronic
detonators
Explosifs à usage civil - Détonateurs et relais pour Explosivstoffe für zivile Zwecke - Zünder und
cordeau détonant - Partie 13 : Vérification de la Sprengschnurverzögerer - Teil 13: Überprüfung der
résistance à la décharge électrostatique (DES) des Widerstandsfähigkeit von elektrischen und
détonateurs électriques et électroniques elektronischen Zündern gegen elektrostatische
Entladungen
This European Standard was approved by CEN on 29 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13763-13:2025 E
worldwide for CEN national Members.

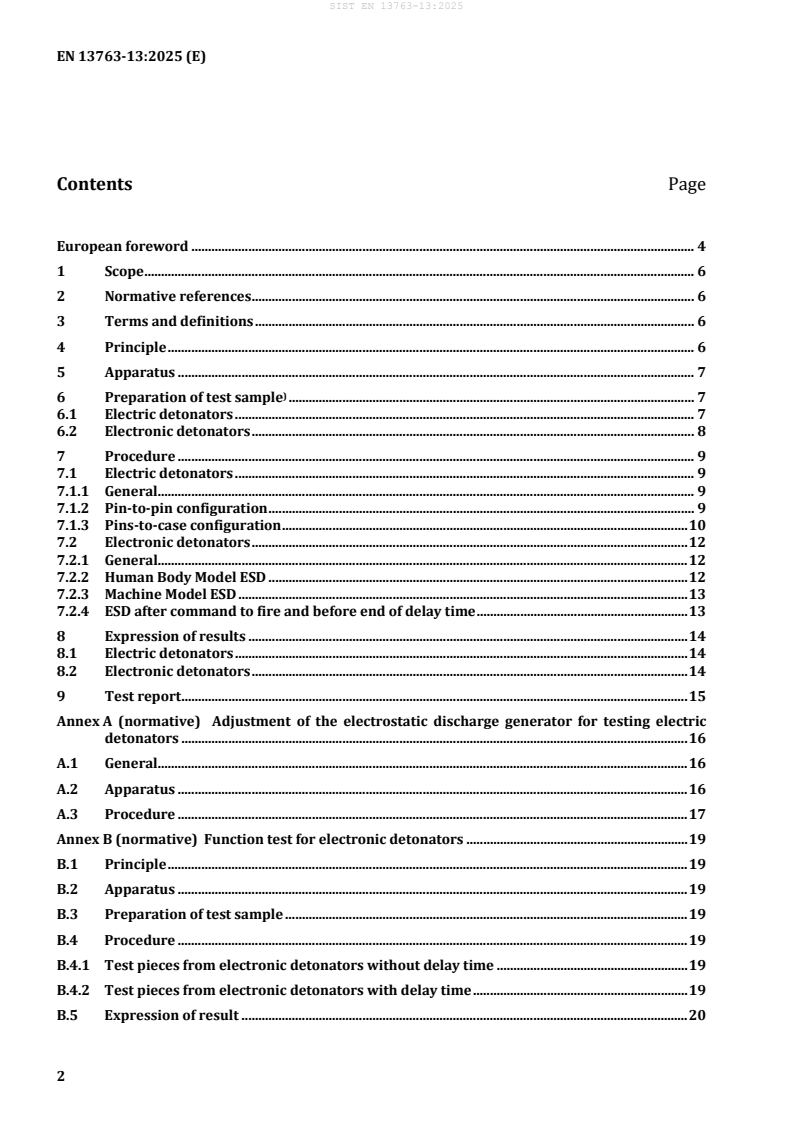

Contents Page
European foreword . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Principle . 6
5 Apparatus . 7
)
6 Preparation of test sample . 7
6.1 Electric detonators . 7
6.2 Electronic detonators . 8
7 Procedure . 9
7.1 Electric detonators . 9
7.1.1 General. 9
7.1.2 Pin-to-pin configuration . 9
7.1.3 Pins-to-case configuration . 10
7.2 Electronic detonators . 12
7.2.1 General. 12
7.2.2 Human Body Model ESD . 12
7.2.3 Machine Model ESD . 13
7.2.4 ESD after command to fire and before end of delay time . 13
8 Expression of results . 14
8.1 Electric detonators . 14
8.2 Electronic detonators . 14
9 Test report . 15
Annex A (normative) Adjustment of the electrostatic discharge generator for testing electric
detonators . 16
A.1 General. 16
A.2 Apparatus . 16
A.3 Procedure . 17
Annex B (normative) Function test for electronic detonators . 19
B.1 Principle . 19
B.2 Apparatus . 19
B.3 Preparation of test sample . 19
B.4 Procedure . 19
B.4.1 Test pieces from electronic detonators without delay time . 19
B.4.2 Test pieces from electronic detonators with delay time . 19
B.5 Expression of result . 20
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market and
supervision of explosives for civil uses aimed to be covered . 21
Bibliography . 22

European foreword
This document (EN 13763-13:2025) has been prepared by Technical Committee CEN/TC 321 “Explosives
for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026, and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13763-13:2004.
EN 13763-13:2004:
a) the document title has been changed from “Detonators and relays — Part 13: Determination of
resistance of electric detonators to electrostatic discharge” to “Detonators and detonating cord relays
— Part 13: Verification of the resistance to electrostatic discharge (ESD) of electric and electronic
detonators”;
b) the Scope has been revised to include electronic detonators and to clarify the covered and not
covered explosives;
c) the normative references have been updated;
d) the terminology entries 3.1, 3.2 and 3.3 have been removed;
e) Clause 4 “Principle” has been added;
f) the clause “Apparatus” has been revised and enlarged and now also includes the apparatus for testing
electronic detonators;
g) the clause “Test pieces” is now called “Preparation of test sample” and has been revised and now also
includes electronic detonators;
h) the clause “Procedure” has been revised and further detailed and now also includes the procedure
for testing electronic detonators;
i) in Table 1 “ESD impulse values for testing electric detonators”, tolerance values have been
introduced;
j) Clause 8 “Expression of results” has been added;
k) the clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised;
l) Annex A “Range of applicability of the test method” has been removed;
m) former Annex B is now Annex A “Adjustment of the electrostatic discharge generator for testing
electric detonators” and has been revised;
n) a new Annex B “Function test for electronic detonators” has been added;
o) Annex ZA has been updated;
p) the Bibliography has been added and lists EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13763 series, published under the general title Explosives for civil uses —
Detonators and detonating cord relays, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies test methods for the verification of the resistance to electrostatic discharge
(ESD) of electric and electronic detonators.
This document does not apply to electronic detonators without leading wires, non-electric, plain or semi-
finished detonators.
This document does not apply to surface connectors, detonating cord relays or electronic initiation
systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13763-1:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 1:
Requirements
EN 13763-21:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 21:
Verification of flash-over voltage of electric detonators
EN 13763-27:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 27: Test
methods for electronic initiation systems
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org
4 Principle
During transport and use, detonators can be exposed to electrostatic discharge (ESD) from human bodies,
machines, by lightning and by charge generated by detonation of explosives. Electric and electronic
detonators with leading wires can be initiated by ESD. Electronic detonators also can be functionally
damaged or, once commanded to fire, can misfire, or detonate at a time different from the programmed
delay time.
For the verification of the resistance to ESD, test pieces are subjected to electrostatic discharge in order
to check whether they detonate. The electrostatic discharge is applied to the test pieces either between
the two leading wires (pin-to-pin configuration, see Figure 1) or between the short-circuited leading
wires and the shell (pins-to-case configuration, see Figure 2). For electronic detonators it is also checked
whether the test pieces can be initiated and detonates at the programmed delay time.
5 Apparatus
5.1 Electrostatic discharge generator A (ESD generator A), for testing electric detonators, with a
selectable capacitance between 500 pF and 3 500 pF, a serial resistance selectable from 0,5 Ω to 5 kΩ and
an adjustable voltage up to 25 kV. The ESD generator shall be capable of applying five consecutive
discharges with a repetition rate of one per 10 s.
5.2 Electrostatic discharge generator B (ESD generator B), for testing electronic detonators, with a
selectable capacitance of (330 ± 16,5) pF and (2 000 ± 100) pF, a selectable serial resistance of ≤ 0,5 Ω
and (330 ± 16,5) Ω as well as an adjustable voltage between 800 V and 28 kV. The ESD generator shall be
−1
capable of applying five consecutive discharges with a repetition rate of 1 s .
5.3 Measurement equipment, as specified in A.2.3 and A.2.4, to record the ESD current and calculate
the ESD impulse delivered to a test piece.
5.4 Cable(s), as specified in A.2.2.
5.5 Length measuring device, for measuring length up to 4 m and readable to the nearest 1 mm.
5.6 Time measuring device, with a maximum permissible uncertainty of ± 1 %.
5.7 Firing unit, for the tested electronic detonator as specified in accordance with EN 13763-1:2025,
4.10.1.1.
5.8 Programming unit, for the tested electronic detonator as specified in accordance with
EN 13763-1:2025, 4.10.1.1.
5.9 Temperature measuring device, capable of measuring temperatures within the temperature
range of use of the tested detonator specified in accordance EN 13763-1:2025, 4.2.1.1 (for electric
detonator) or 4.4.1.1 (for electronic detonator), and readable to the nearest 1 °C.
5.10 Hygrometer, for measuring the relative humidity in air for values between 1 % and 99 %, readable
to the nearest 1 %.
1)
6 Preparation of test sample
6.1 Electric detonators
50 test pieces shall be selected.
The electric detonators needed for the adjustment of the ESD generator in accordance with Annex A are
not included in the above 50 test pieces.
Replacement test pieces, which can be needed when carrying out the tests in 7.1.2 and 7.1.3, are not
included in the above 50 test pieces.
The length of leading wires of each test piece shall be the shortest length of leading wires specified in
accordance with EN 13763-1:2025, 4.2.1.5. For longer leading wires, the leading wires shall be cut down
to the length specified in accordance with EN 13763-1:2025, 4.2.1.5, with a tolerance of ± 0,05 m
measured from the upper edge of the detonator top. If the shortest available length is > 3,5 m, the leading
wires of each test piece shall be cut to a length of (3,5 ± 0,05) m.

1) The choice of sample size is based on the classification of defects that shall be avoided, critical, major and minor. The
classification of defects and size of test sample can be found in EN 13763-1:2025, Annex B.
If the detonator to be tested has a delay element and forms part of a delay series, select two samples
consisting of 25 test pieces each with delay times evenly distributed, including the detonators having the
shortest and the longest delay time of the delay series.
The insulation shall be removed from the ends of the leading wires of each test piece in order to have a
length between 10 mm and 20 mm of non-insulated electrical wire.
6.2 Electronic detonators
For electronic detonators without delay time, 200 test pieces shall be selected. For electronic detonators
with delay time, 350 test pieces shall be selected.
For electronic detonators with leading wires consisting of more than two conductors, the number of test
pieces shall be increased by the number calculated in accordance with Formulae (1) and (2).
n
 
c
n =150⋅−()1
 
add, delay 2
 
(1)
n
 
c
n =100⋅−()1
 
add, no delay 2
 
(2)
where
n is the number of test pieces to be added in case of an electronic detonator with
add, delay
delay time;
n is the number of test pieces to be added in case of an electronic detonator without
add, no delay
delay time;
n is the number of conductors of the leading wires, for n > 2;
c c
is the binomial coefficient to calculate the number of possible combinations of two
n
 
c
 
conductors depending on n .
c
 
The length of leading wires of each test piece shall be the shortest length of leading wires specified in
accordance with EN 13763-1:2025, 4.4.1.5. For longer leading wires, the leading wires shall be cut down
to the length specified in accordance with EN 13763-1:2025, 4.4.1.5, with a tolerance of ± 0,05 m
measured from the upper edge of the detonator top.
If the shortest available length is > 3,5 m, the leading wires of each test piece shall be cut to a length of
(3,5 ± 0,05) m. If the shortest available length is > 3,5 m and the detonator to be tested is equipped with
a connector, test pieces shall be selected from those detonators having the shortest length of leading
wires specified in accordance with EN 13763-1:2025, 4.4.1.5, without cutting down the length.
In case that the detonator to be tested is equipped with a connector, a piece of bus wire with a length of
(10 ± 1) cm shall be attached to the connector. The insulation of the bus wire shall be removed from the
free ends in order to have a length between 10 mm and 20 mm of non-insulated electrical wire. In case
that the bus wire is a twin wire, the wires shall be separated.
In case that the detonator to be tested is not equipped with a connector, the insulation shall be removed
from the ends of the leading wires of each test piece in order to have a length between 10 mm and 20 mm
of non-insulated electrical wire. In case that the leading wires of the test pieces are twin wires, the wires
shall be separated over a length of (10 ± 1) cm before removing the insulation.
NOTE The connector is a coupling device to connect the leading wires to the bus wire of the firing unit.
In case of pre-programmed electronic detonators, the test pieces used for the test in 7.2.2 shall be the
ones with longest delay time specified in accordance with EN 13763-1:2025, 4.4.1.8.3.
7 Procedure
7.1 Electric detonators
7.1.1 General
Carry out the test at a temperature within the range of use specified in accordance with EN 13763-1:2025,
4.2.1.1, and at a relative humidity ≤ 60 %. Measure the temperature using the temperature measur
...
