This European Standard specifies the technical and functional properties of automatic recording equipment used to determine randomly appearing shocks during transportation.
Such automatic recording equipment can be used to:
— determine mechanical shock loads on individual transportations;
— monitor the transportation means to observe the limits of the shock parameters;
— determine the shock loads on the transported item.
This standard defines the sensors to be attached to the device, and specifies the minimum requirements for the parameters to be adjusted. It also defines the minimum requirements for the data analysis, as well as the data presentation.
This standard covers the complete recording equipment, including its accelerometers and the data analysis in an external data processing unit. The accelerometers can be integrated into the device or separately mounted from it (external sensors).
This standard also applies to the routine monitoring of individual transportations
Transportbelastungen - Messen und Auswerten von mechanisch-dynamischen Belastungen - Teil 6: Transportüberwachung mit automatischen Aufzeichnungsgeräten zur Messung stochastisch auftretender Stöße
Charges de transport - Mesurage et analyse des charges mécaniques dynamiques - Partie 6 : Systèmes d'enregistrement automatiques pour la mesure de choc aléatoire intervenant durant le suivi de transports
La présente Norme européenne spécifie les propriétés techniques et fonctionnelles des équipements d'enregistrement automatiques utilisés pour déterminer les chocs aléatoires qui surviennent pendant le transport.
De tels équipements d'enregistrement automatiques peuvent être utilisés pour :
— déterminer les charges de chocs mécaniques exercées sur des moyens de transport isolés ;
— surveiller les moyens de transport afin d'observer les limites des paramètres de choc ;
— déterminer les charges de choc exercées sur l'article transporté.
La présente norme définit les détecteurs à relier au dispositif, et spécifie les exigences minimales relatives aux paramètres à régler. Elle définit également les exigences minimales relatives à l'analyse des données, ainsi qu'à la présentation des données.
La présente norme couvre l'équipement d'enregistrement complet, y compris ses accéléromètres et l'analyse des données dans une unité de traitement de données externe. Les accéléromètres peuvent être intégrés au dispositif ou montés séparément (détecteurs externes).
La présente norme s'applique également à la surveillance de routine des moyens de transport individuels.
Obremenitve pri transportu - Merjenje in vrednotenje dinamično mehanskih obremenitev - 6. del: Sistemi za avtomatsko beleženje pri merjenju naključnih sunkov, ki se pojavljajo med spremljanjem transporta
Ta evropski standard določa tehnične in funkcionalne lastnosti opreme za avtomatsko beleženje, ki se uporablja za določanje naključnih sunkov, ki se pojavljajo med transportom. Taka oprema za avtomatsko beleženje se lahko uporablja za: – določanje mehanskih obremenitev zaradi sunkov pri posameznih transportih; – spremljanje transportov za opazovanje mejnih vrednosti parametrov sunkov; – določanje obremenitev zaradi sunkov pri elementu, ki se prevaža. Ta standard opredeljuje senzorje, ki se pritrdijo na napravo, in določa minimalne zahteve za prilagoditev parametrov. Opredeljuje tudi minimalne zahteve za analizo in predstavitev podatkov. Ta standard zajema celotno opremo za beleženje, vključno z njenimi merilniki pospeška in analizo podatkov v zunanji enoti za obdelavo podatkov. Merilnike pospeška je mogoče vgraditi v napravo ali namestiti ločeno od nje (zunanji senzorji). Ta standard se uporablja tudi za redno spremljanje posameznih transportov.
General Information
- Status
- Published
- Public Enquiry End Date
- 03-May-2016
- Publication Date
- 19-Feb-2017
- Technical Committee
- EPO - Packaging - sales and grouped
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 02-Feb-2017
- Due Date
- 09-Apr-2017
- Completion Date
- 20-Feb-2017
Relations
- Effective Date
- 01-Mar-2017
Overview
EN 15433-6:2016 - “Transportation loads - Measurement and evaluation of dynamic‑mechanical loads - Part 6” is the CEN standard that specifies technical and functional requirements for automatic recording systems (shock recorders) used to measure randomly occurring shocks during transport. It defines the complete recording chain (device and accelerometers), minimum parameter settings, data analysis and data presentation needed for reliable transport monitoring and routine shipment surveys.
Key topics and technical requirements
- Sensors and mounting: Devices must use three accelerometers arranged on Cartesian axes (x, y, z). Sensors may be integrated or externally mounted; axes and positive directions must be clearly identified.
- Recording modes:
- Event mode - records shock events triggered when an axis exceeds a set threshold and the shock duration is ≥10% of the event peak. Stored event data include time stamp, peak axis accelerations, and shock duration; optional derived values (spatial vector peak, shock intensity) can be computed.
- Plotter mode - stores time‑series sampled values (ax, ay, az) with timestamps for waveform analysis.
- Signal processing and bandwidth: The complete measurement chain’s frequency limit, filter characteristics and sampling rate must be declared so results are comparable between devices.
- Data storage and presentation: Requirements cover storage modes, time code resolution, mailbox metadata (transport order, mounting location), and data export for external analysis.
- Calibration and quality: Evidence of calibration, error limits, environmental operating conditions and power supply/resilience requirements are specified.
- Ancillary features: GPS tagging, tilt/static orientation measurement (with dynamic filtering), and external data processing unit integration are addressed where available.
Practical applications and users
EN 15433-6:2016 is intended for anyone needing objective, standardized shock data from real transport operations:
- Packaging engineers and designers assessing protective packaging requirements
- Logistics and quality assurance teams monitoring transport chains and handling practices
- Freight carriers and shippers conducting routine shipment surveillance
- Test laboratories and R&D groups validating transport simulations and lab tests
- Compliance staff aligning packaging with EU directives on packaging and packaging waste
Use cases include determining mechanical shock loads on individual shipments, monitoring transport vehicles to detect handling extremes, and collecting event-driven data to derive test specifications.
Related standards
- EN 15433 series (Parts 1–5) - general requirements, data acquisition, validity checking, evaluation and test spec derivation
- EN 15433-2 - Data acquisition and general requirements for measuring equipment
- EN 13011 - Good transport chains / declaration of performance conditions
Keywords: EN 15433-6:2016, transportation loads, shock recording, automatic recording systems, accelerometers, transport monitoring, shock duration, sampling rate, packaging engineering.
Frequently Asked Questions
SIST EN 15433-6:2017 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Transportation loads - Measurement and evaluation of dynamic-mechanical loads - Part 6: Automatic recording systems for measuring randomly occurring shock during monitoring of transports". This standard covers: This European Standard specifies the technical and functional properties of automatic recording equipment used to determine randomly appearing shocks during transportation. Such automatic recording equipment can be used to: — determine mechanical shock loads on individual transportations; — monitor the transportation means to observe the limits of the shock parameters; — determine the shock loads on the transported item. This standard defines the sensors to be attached to the device, and specifies the minimum requirements for the parameters to be adjusted. It also defines the minimum requirements for the data analysis, as well as the data presentation. This standard covers the complete recording equipment, including its accelerometers and the data analysis in an external data processing unit. The accelerometers can be integrated into the device or separately mounted from it (external sensors). This standard also applies to the routine monitoring of individual transportations
This European Standard specifies the technical and functional properties of automatic recording equipment used to determine randomly appearing shocks during transportation. Such automatic recording equipment can be used to: — determine mechanical shock loads on individual transportations; — monitor the transportation means to observe the limits of the shock parameters; — determine the shock loads on the transported item. This standard defines the sensors to be attached to the device, and specifies the minimum requirements for the parameters to be adjusted. It also defines the minimum requirements for the data analysis, as well as the data presentation. This standard covers the complete recording equipment, including its accelerometers and the data analysis in an external data processing unit. The accelerometers can be integrated into the device or separately mounted from it (external sensors). This standard also applies to the routine monitoring of individual transportations
SIST EN 15433-6:2017 is classified under the following ICS (International Classification for Standards) categories: 55.180.01 - Freight distribution of goods in general. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 15433-6:2017 has the following relationships with other standards: It is inter standard links to SIST EN 15433-6:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 15433-6:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.KDQVNLKTransportbelastungen - Messen und Auswerten von mechanisch-dynamischen Belastungen - Teil 6: Transportüberwachung mit automatischen Aufzeichnungsgeräten zur Messung stochastisch auftretender StößeCharges de transport - Mesurage et analyse des charges mécaniques dynamiques - Partie 6 : Systèmes d'enregistrement automatiques pour la mesure de choc aléatoire intervenant durant le suivi de transportsTransportation loads - Measurement and evaluation of dynamic-mechanical loads - Part 6: Automatic recording systems for measuring randomly occurring shock during monitoring of transports55.180.01Distribucija blaga s prevozom na splošnoFreight distribution of goods in generalICS:Ta slovenski standard je istoveten z:EN 15433-6:2016SIST EN 15433-6:2017en,fr,de01-marec-2017SIST EN 15433-6:2017SLOVENSKI
STANDARDSIST EN 15433-6:20081DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15433-6
July
t r s x ICS
w wä s z rä r s Supersedes EN
s w v u uæ xã t r r yEnglish Version
Transportation loads æ Measurement and evaluation of dynamicæmechanical loads æ Part
xã Automatic recording systems for measuring randomly occurring shock during monitoring of transports Charges de transport æ Mesurage et analyse des charges mécaniques dynamiques æ Partie
x ã Systèmes d 5enregistrement automatiques pour la mesure de choc aléatoire intervenant durant le suivi de transports
Transportbelastungen æ Messen und Auswerten von mechanischædynamischen Belastungen æ Teil
xã Transportüberwachung mit automatischen Aufzeichnungsgeräten zur Messung stochastisch auftretender Stöße This European Standard was approved by CEN on
s t June
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s w v u uæ xã t r s x ESIST EN 15433-6:2017

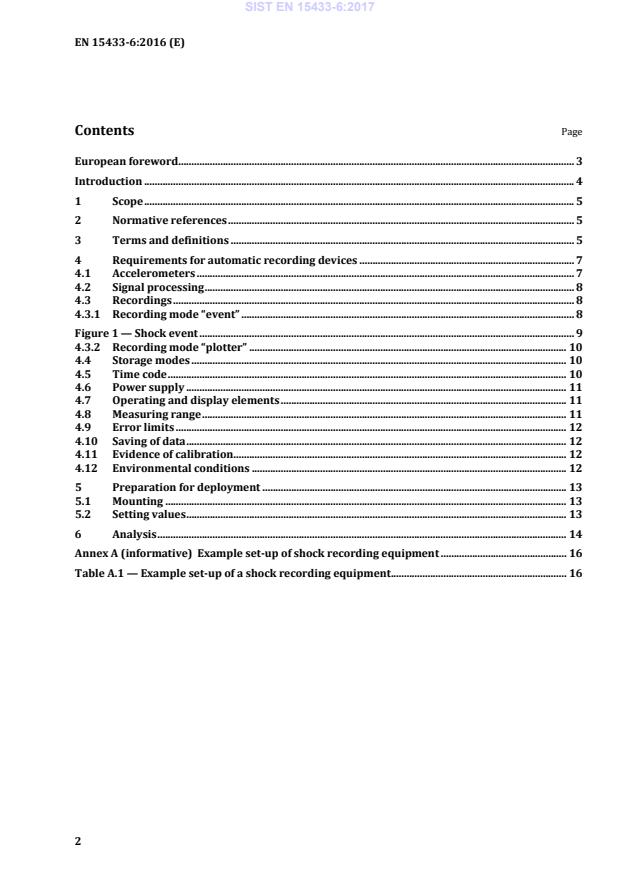

Example set-up of shock recording equipment . 16 Table A.1 — Example set-up of a shock recording equipment . 16
