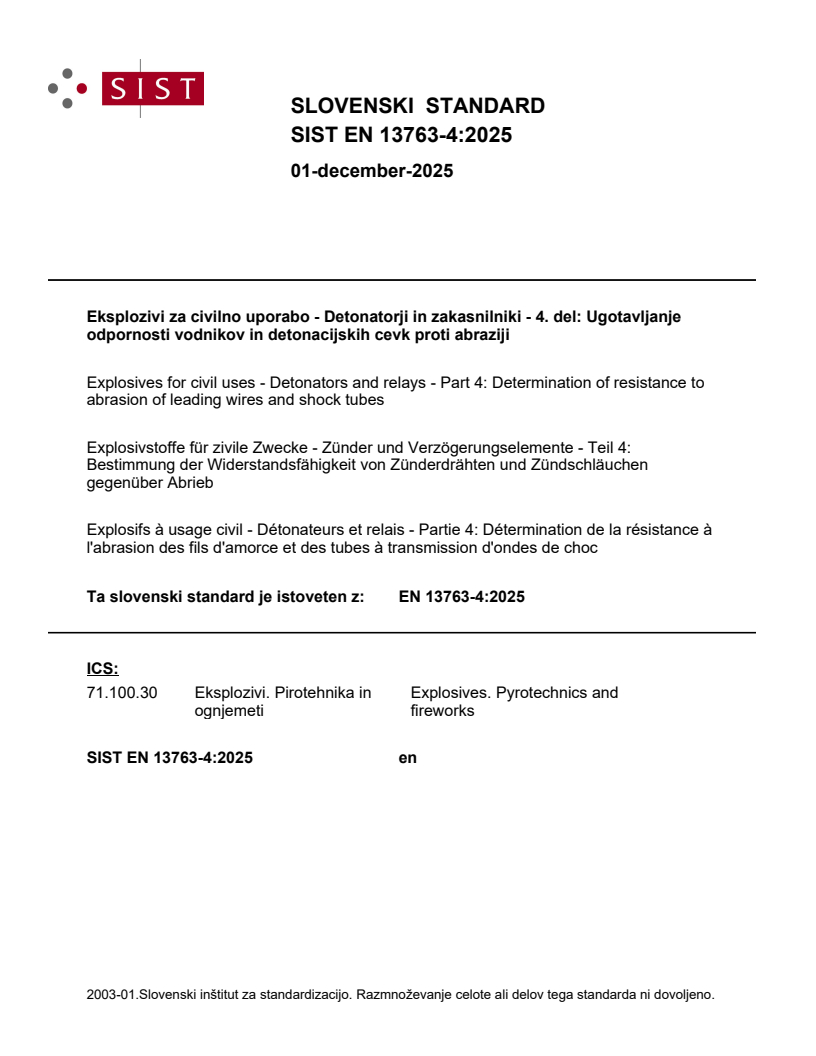

SIST EN 13763-4:2025

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Detonatorji in zakasnilniki - 4. del: Ugotavljanje
odpornosti vodnikov in detonacijskih cevk proti abraziji
Explosives for civil uses - Detonators and relays - Part 4: Determination of resistance to
abrasion of leading wires and shock tubes
Explosivstoffe für zivile Zwecke - Zünder und Verzögerungselemente - Teil 4:
Bestimmung der Widerstandsfähigkeit von Zünderdrähten und Zündschläuchen
gegenüber Abrieb
Explosifs à usage civil - Détonateurs et relais - Partie 4: Détermination de la résistance à
l'abrasion des fils d'amorce et des tubes à transmission d'ondes de choc
Ta slovenski standard je istoveten z: EN 13763-4:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

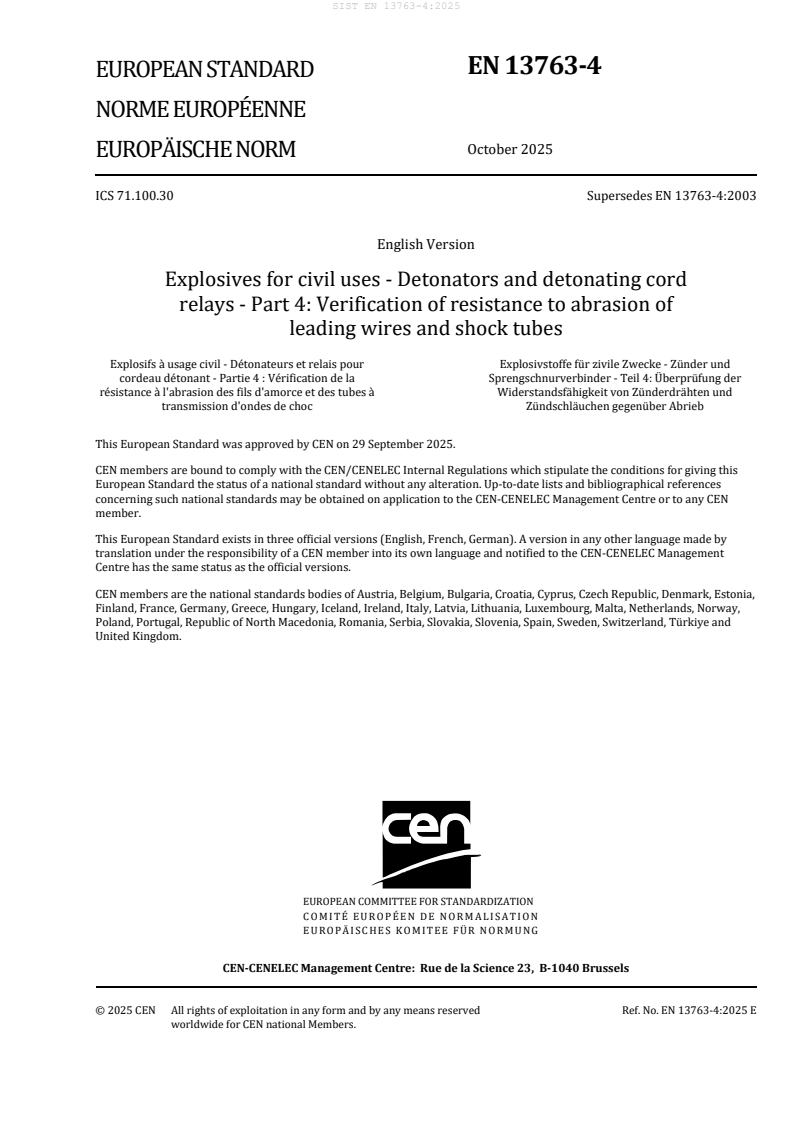

EN 13763-4
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13763-4:2003
English Version
Explosives for civil uses - Detonators and detonating cord
relays - Part 4: Verification of resistance to abrasion of
leading wires and shock tubes
Explosifs à usage civil - Détonateurs et relais pour Explosivstoffe für zivile Zwecke - Zünder und
cordeau détonant - Partie 4 : Vérification de la Sprengschnurverbinder - Teil 4: Überprüfung der
résistance à l'abrasion des fils d'amorce et des tubes à Widerstandsfähigkeit von Zünderdrähten und
transmission d'ondes de choc Zündschläuchen gegenüber Abrieb
This European Standard was approved by CEN on 29 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13763-4:2025 E
worldwide for CEN national Members.

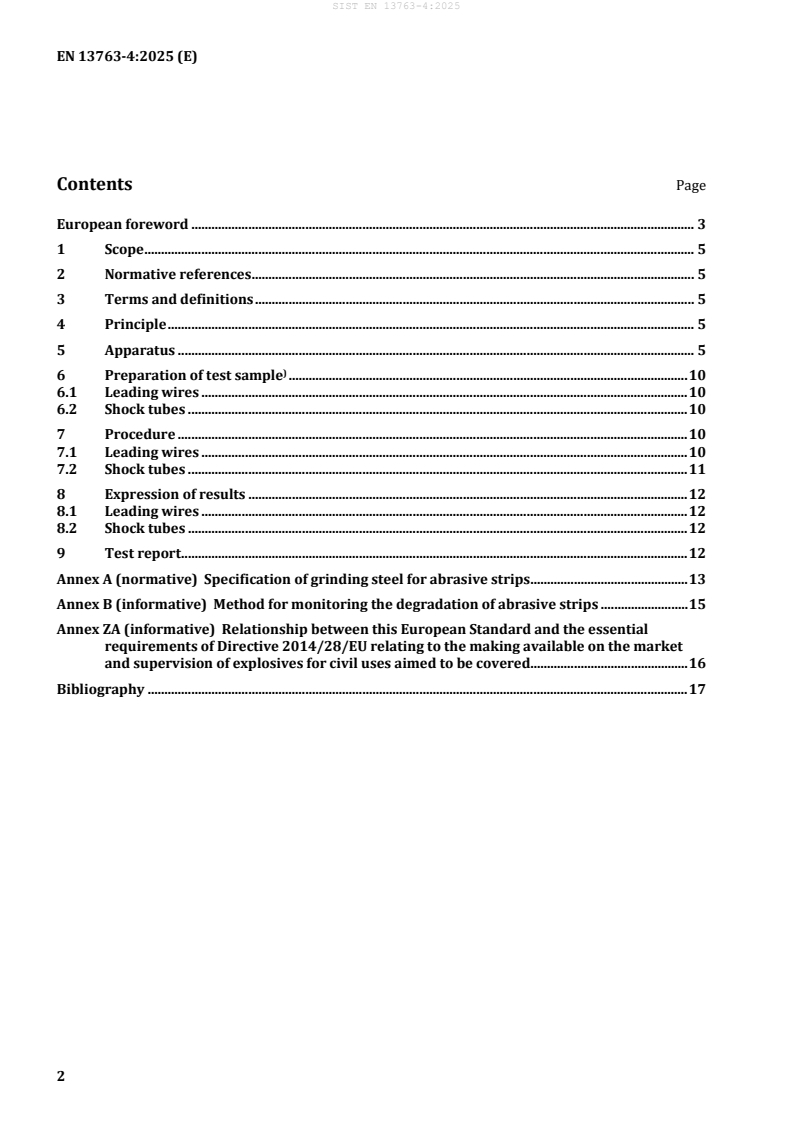

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 5
)
6 Preparation of test sample . 10
6.1 Leading wires . 10
6.2 Shock tubes . 10
7 Procedure . 10
7.1 Leading wires . 10
7.2 Shock tubes . 11
8 Expression of results . 12
8.1 Leading wires . 12
8.2 Shock tubes . 12
9 Test report . 12
Annex A (normative) Specification of grinding steel for abrasive strips . 13
Annex B (informative) Method for monitoring the degradation of abrasive strips . 15
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market
and supervision of explosives for civil uses aimed to be covered. 16
Bibliography . 17

European foreword
This document (EN 13763-4:2025) has been prepared by Technical Committee CEN/TC 321 “Explosives
for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026 and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13763-4:2003.
a) the document title has been changed from “Detonators and relays — Part 4: Determination of
resistance to abrasion of leading wires and shock tubes” to “Detonators and detonating cord relays
— Part 4: Verification of resistance to abrasion of leading wires and shock tubes”;
b) the Introduction has been removed;
c) the Scope has been revised to clarify the covered and not covered explosives;
d) the normative references have been updated;
e) the Clause “Apparatus” has been revised and enlarged;
f) the Clause “Test pieces” is now called “Preparation of test sample” and has been revised to include
the conditioning of the test pieces that is no longer part of the clause “Procedure”;
g) the number of test pieces has been changed from 10 to 20;
h) the Clause “Procedure” has been revised and further detailed;
i) the Clause 8 “Expression of results” has been added;
j) the Clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised;
k) the former Annex A “Range of applicability of the test method” has been removed;
l) the former Annex B has been revised and is now Annex A “Specification of grinding steel for abrasive
strips”;
m) a new Annex B “Method for monitoring the degradation of abrasive strips” has been added;
n) the former Annex C “Availability of abrasive strips” has been removed and its information has been
added to 5.1.2 as footnote.
o) the Annex ZA has been updated;
p) the Bibliography has been added and lists EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13763 series, published under the general title Explosives for civil uses —
Detonators and detonating cord relays, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This test method specifies a test method for the verification of the resistance to abrasion of leading wires
of electric and electronic detonators as well as shock tubes of non-electric detonators, surface connectors
and electronic detonators.
This document does not apply to detonating cord relays and electronic initiation systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10088-2:2024, Stainless steels — Part 2: Technical delivery conditions for sheet/plate and strip of
corrosion resisting steels for general purposes
EN 13763-1:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 1:
Requirements
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp/
4 Principle
During use, the insulation on the leading wires of electric detonators, electronic detonators and the plastic
tube of shock tubes can be subjected to abrasion, e.g. when drawn over rough surfaces. In case of leading
wires, this could cause short cuts, and in case of shock tubes, this could cause misfires.
For the verification of the resistance to abrasion, a test piece is subjected to abrasion by an abrasive
surface while it is kept under slight tension. For leading wires, the time is measured that it takes to abrade
the isolation of the test piece so that the electrical wire is exposed. For shock tubes, the abrasion is applied
for a specified time and the functioning of the test piece is verified after being immersed in water.
5 Apparatus
5.1 Abrasion test apparatus, as shown in Figure 1, compromising the following main components:
5.1.1 Rotor, made from steel or brass, with a perimeter of (453 ± 2) mm to which three abrasive strips
(5.1.2) are attached as shown in Figure 2 by means of glue or double-sided adhesive tape. It shall be
ensured that electrical contact between the abrasive strips and the rotor is made; this can be provided by
slits on the rotor where the ends of the abrasive strips are inserted (see Figure 2). The rotor shall rotate
at a speed of (9,96 ± 0,18) rpm, producing a mean peripheral speed of (0,075 ± 0,001) m/s.
Depending on attachment type of the abrasive strip to the rotor (glue or adhesive tape), it is possible that
the abrasive strip needs to be bent carefully in order to make it fit properly against the surface of the
rotor.
5.1.2 Abrasive strips, three pieces having a width of (10 ± 1) mm and a length of (145 ± 1) mm each,
made of grinding steel as specified in Annex A.
5.1.3 Weight A, to apply a load of either (4,00 ± 0,02) N or (12,20 ± 0,02) N to the test piece, as
applicable (see Clause 7), through the hinged arm (5.1.4) as shown in Figure 1.
5.1.4 Hinged arm, made of steel or brass with dimensions as shown in Figure 3. In the starting position,
the hinged arm shall apply a load of (8,35 ± 0,05) N to the test piece. It shall be possible to fix the hinged
arm in a position by means of a retaining pin.
5.1.5 Clamp, for attaching the test piece (see Figure 1, item 9).
5.1.6 Pulley, with a diameter (70 ± 1) mm, to which the test piece is clamped by means of a clamp
screw and that applies a tensile force of (8,1 ± 0,5) N to the test piece, by means of a rod and weight B as
shown in Figure 1.
As shown in Figure 1, the weight on the rod at the right of the pulley may hang down the right side of the
pulley.
5.1.7 Motor, capable of maintaining a constant speed of rotation of the rotor (5.1.1) independent of the
load applied to it during testing. The motor is not shown in Figure 1.
NOTE A DC motor with an output power of at least 500 W and with a separate speed control can be used.
The rotor (5.1.1) shall reach the speed of rotation specifi
...
