SIST EN 933-5:2023
(Main)Tests for geometrical properties of aggregates - Part 5: Determination of percentage of crushed particles in coarse and all-in natural aggregates
Tests for geometrical properties of aggregates - Part 5: Determination of percentage of crushed particles in coarse and all-in natural aggregates
This document specifies the reference method, used for type testing and in case of dispute, for the determination of the percentages of crushed particles, totally crushed particles and totally rounded particles in coarse and all-in natural aggregates. Other methods can be used for other purposes, such as factory production control, provided that an appropriate working relationship with the reference method has been established.
NOTE 1 Examples of advanced test methods can be found in the Bibliography.
This document applies to coarse aggregates comprising particles within size fraction 4/63 mm. It does not apply to lightweight aggregates.
NOTE 2 For coarse aggregate between 4 mm and 20 mm the percentages of crushed surfaces are linked to the flow coefficient and can therefore be used in association with the test method specified in EN 933 6.
Clause 7.1 specifies the procedure for test portions consisting of one size fraction and Clause 7.2 specifies the procedure for test portions consisting of two or more size fractions.
Guidance for the estimated mass of various size fractions with about 100 particles is given in informative Annex A.
Examples of application of the test procedure and an example of a test data sheet are given in informative Annexes B and C.
Prüfverfahren für geometrische Eigenschaften von Gesteinskörnungen - Teil 5: Bestimmung des prozentualen Anteils an gebrochenen Körnern in groben Gesteinskörnungen und Gesteinskörnungsgemischen
Dieses Dokument legt das für die Erstprüfung und im Streitfall anzuwendende Referenzverfahren für die Bestimmung des prozentualen Anteils an gebrochenen Körnern, vollständig gebrochenen Körnern und vollständig gerundeten Körnern in groben Gesteinskörnungen und natürlichen Gesteinskörnungsgemischen fest. Für andere Zwecke, speziell im Rahmen der werkseigenen Produktionskontrolle, können andere Verfahren angewendet werden, sofern ein ausreichender Zusammenhang mit dem Referenzverfahren nachgewiesen wurde.
ANMERKUNG 1 Beispiele für erweiterte Prüfverfahren können in den Literaturhinweisen gefunden werden.
Das vorliegende Dokument ist anzuwenden für grobe Gesteinskörnungen mit Körnern in der Kornklasse 4/63 mm. Es ist nicht anzuwenden für leichte Gesteinskörnungen.
ANMERKUNG 2 Bei einer groben Gesteinskörnung zwischen 4 mm und 20 mm hängt der Prozentsatz an gebrochenen Oberflächen mit dem Fließkoeffizienten zusammen und kann deshalb als alternatives Prüfverfahren zu dem in EN 933 6 beschriebenen Verfahren angewendet werden.
In 7.1 wird das Verfahren für Messproben, die aus einer Kornklasse bestehen, und in 7.2 das Verfahren für Messproben, die aus zwei oder mehr Kornklassen bestehen, festgelegt.
Leitlinien für die geschätzte Masse unterschiedlicher Kornklassen mit ungefähr 100 Körnern sind im informativen Anhang A aufgeführt.
Beispiele für die Anwendung des Prüfverfahrens und ein Beispiel eines Prüf-Datenblattes werden im informativen Anhang B und im informativen Anhang C aufgeführt.
Essais pour déterminer les caractéristiques géométriques des granulats - Partie 5 : Détermination du pourcentage de surfaces cassées dans les gravillons et graves naturelles
Le présent document spécifie la méthode de référence, utilisée pour les essais de type et en cas de litige, pour la détermination des pourcentages de grains semi-concassés, de grains entièrement concassés et de grains entièrement roulés de gravillons et de graves naturels. D’autres méthodes peuvent être utilisées à d’autres fins, telles que le contrôle de la production en usine, à condition qu’une relation de travail appropriée ait été établie avec la méthode de référence.
NOTE 1 Des exemples de méthodes d’essai avancées sont présentés dans la Bibliographie.
Le présent document s’applique aux gravillons dont la taille est comprise dans la fraction 4/63 mm. Il ne s’applique pas aux granulats légers.
NOTE 2 Pour les gravillons de taille comprise entre 4 mm et 20 mm, les pourcentages de surfaces cassées sont liés au coefficient d’écoulement et peuvent donc être utilisés en association avec la méthode d’essai spécifiée dans l’EN 933-6.
L’article 7.1 spécifie le mode opératoire pour les prises d’essai constituées d’une fraction granulaire et l’article 7.2 spécifie le mode opératoire pour les prises d’essai constituées d’au moins deux fractions granulaires.
Des indications sur la masse estimée de différentes fractions granulaires contenant environ 100 particules sont données dans l’Annexe A informative.
Des exemples d’application du mode opératoire d’essai et un exemple de feuille d’essai sont donnés dans les Annexes B et C informatives.
Preskusi geometričnih lastnosti agregatov - 5. del: Določevanje odstotka lomljenih površin zrn grobega in mešanega agregata
Ta dokument določa referenčno metodo, ki se uporablja za tipsko preskušanje in v primeru spora za določanje odstotka lomljenih zrn, popolnoma zdrobljenih zrn ter popolnoma zaobljenih zrn v vzorcu naravnega grobega in mešanega agregata. Za druge namene, na primer za kontrolo proizvodnje v obratu, je mogoče uporabiti druge metode, če obstaja primerna delovna povezava z referenčno metodo.
OPOMBA 1: Primeri naprednih preskusnih metod so opisani v bibliografiji.
Ta dokument velja za gramoz ali mešanico naravnih grobih agregatov, ki vsebujejo gramoz. Preskusna metoda se uporablja za zrna velikosti od 4 do 63 mm.
OPOMBA 2: Pri grobem agregatu velikosti od 4 do 20 mm so odstotki zdrobljenih površin povezani s koeficientom pretoka in se zato lahko uporabljajo v povezavi s preskusno metodo, določeno v standardu EN 933-6.
Podtočka 7.1 določa postopek za preskusne deleže, sestavljene iz enega velikostnega razreda zrn, podtočka 7.2 pa določa postopek za preskusne deleže, ki so sestavljeni iz dveh ali več velikostnih razredov zrn.
Smernice za ocenjevanje mase preskusnega deleža so na voljo v informativnem dodatku A.
Primeri uporabe preskusnega postopka in primer preskusnega lista so podani v informativnih dodatkih B in C.
General Information
- Status
- Published
- Public Enquiry End Date
- 14-Jan-2021
- Publication Date
- 11-Jan-2023
- Technical Committee
- AGR - Aggregates
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 09-Jan-2023
- Due Date
- 16-Mar-2023
- Completion Date
- 12-Jan-2023
Relations
- Effective Date
- 01-Feb-2023
- Effective Date
- 01-Feb-2023
Overview
EN 933-5:2022 - Tests for geometrical properties of aggregates, Part 5 specifies the reference method for determining the percentage of crushed particles, totally crushed particles and totally rounded particles in coarse and all‑in natural aggregates. It applies to size fractions within 4/63 mm and excludes lightweight aggregates. The method is intended for type testing and dispute resolution; alternative methods may be used for factory production control provided they are correlated with this reference method.
Key topics and technical requirements
- Scope and purpose
- Reference method for coarse/all‑in natural aggregates (4/63 mm).
- Not applicable to lightweight aggregates.
- Definitions
- Crushed surface: angular fractured planar faces with distinct edges.
- Crushed particle (c): >50% of particle surface crushed.
- Totally crushed particle (tc): >90% crushed.
- Totally rounded particle (tr): >90% rounded.
- Test principle
- Manual sorting of a dried test portion into c, tc and tr categories; mass of each category expressed as percentage of the test portion mass.
- Test portion preparation
- Size fraction selected from the laboratory sample (if d < 4 mm then d = 4 mm; if D > 63 mm then D = 63 mm).
- Samples reduced per EN 932-2; sieving per EN 933-1/EN 933-2.
- Oven drying to constant mass at (110 ± 5) °C.
- Procedure notes
- Clause 7.1: procedure for single size fraction where D ≤ 2d (test portion should contain at least 100 particles).
- Clause 7.2: procedure for test portions with two or more size fractions.
- Informative Annex A gives guidance on estimated mass for ~100 particles; Annexes B and C provide worked examples and a data sheet template.
- Apparatus
- Test sieves (EN 933-2), ventilated oven (110 ± 5 °C), balance accurate to 0.1 %, trays, brushes; coloured pencil optional to mark surfaces.
Applications and users
- Who uses EN 933-5:2022
- Aggregate producers, independent testing laboratories, construction material specifiers, concrete/asphalt mix designers, and regulatory authorities.
- Practical uses
- Type testing and acceptance testing of coarse aggregates.
- Resolving contractual disputes over aggregate shape and processing quality.
- Correlating factory production control methods with a standardized reference test.
- Supporting specification compliance for concrete, asphalt and base layers where particle shape affects performance.
Related standards
- EN 933 series (Parts 1–11) - particle size, shape indices, flow coefficient, shells, fines
- EN 932 series - sample reduction and common equipment
- EN 1097 series - mechanical and physical tests for aggregates
Keywords: EN 933-5:2022, crushed particles, coarse aggregates, all-in natural aggregates, geometrical properties of aggregates, reference test method, aggregate testing, particle shape.
Frequently Asked Questions
SIST EN 933-5:2023 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Tests for geometrical properties of aggregates - Part 5: Determination of percentage of crushed particles in coarse and all-in natural aggregates". This standard covers: This document specifies the reference method, used for type testing and in case of dispute, for the determination of the percentages of crushed particles, totally crushed particles and totally rounded particles in coarse and all-in natural aggregates. Other methods can be used for other purposes, such as factory production control, provided that an appropriate working relationship with the reference method has been established. NOTE 1 Examples of advanced test methods can be found in the Bibliography. This document applies to coarse aggregates comprising particles within size fraction 4/63 mm. It does not apply to lightweight aggregates. NOTE 2 For coarse aggregate between 4 mm and 20 mm the percentages of crushed surfaces are linked to the flow coefficient and can therefore be used in association with the test method specified in EN 933 6. Clause 7.1 specifies the procedure for test portions consisting of one size fraction and Clause 7.2 specifies the procedure for test portions consisting of two or more size fractions. Guidance for the estimated mass of various size fractions with about 100 particles is given in informative Annex A. Examples of application of the test procedure and an example of a test data sheet are given in informative Annexes B and C.
This document specifies the reference method, used for type testing and in case of dispute, for the determination of the percentages of crushed particles, totally crushed particles and totally rounded particles in coarse and all-in natural aggregates. Other methods can be used for other purposes, such as factory production control, provided that an appropriate working relationship with the reference method has been established. NOTE 1 Examples of advanced test methods can be found in the Bibliography. This document applies to coarse aggregates comprising particles within size fraction 4/63 mm. It does not apply to lightweight aggregates. NOTE 2 For coarse aggregate between 4 mm and 20 mm the percentages of crushed surfaces are linked to the flow coefficient and can therefore be used in association with the test method specified in EN 933 6. Clause 7.1 specifies the procedure for test portions consisting of one size fraction and Clause 7.2 specifies the procedure for test portions consisting of two or more size fractions. Guidance for the estimated mass of various size fractions with about 100 particles is given in informative Annex A. Examples of application of the test procedure and an example of a test data sheet are given in informative Annexes B and C.
SIST EN 933-5:2023 is classified under the following ICS (International Classification for Standards) categories: 91.100.15 - Mineral materials and products. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 933-5:2023 has the following relationships with other standards: It is inter standard links to SIST EN 933-5:1999/A1:2005, SIST EN 933-5:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 933-5:2023 is associated with the following European legislation: EU Directives/Regulations: 305/2011; Standardization Mandates: M/124, M/125. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 933-5:2023 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2023
Nadomešča:
SIST EN 933-5:1999
SIST EN 933-5:1999/A1:2005
Preskusi geometričnih lastnosti agregatov - 5. del: Določevanje odstotka lomljenih
površin zrn grobega in mešanega agregata
Tests for geometrical properties of aggregates - Part 5: Determination of percentage of
crushed particles in coarse and all-in natural aggregates
Prüfverfahren für geometrische Eigenschaften von Gesteinskörnungen - Teil 5:
Bestimmung des prozentualen Anteils an gebrochenen Körnern in groben
Gesteinskörnungen und Gesteinskörnungsgemischen
Essais pour déterminer les caractéristiques géométriques des granulats - Partie 5 :
Détermination du pourcentage de surfaces cassées dans les gravillons et graves
naturelles
Ta slovenski standard je istoveten z: EN 933-5:2022
ICS:
91.100.15 Mineralni materiali in izdelki Mineral materials and
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 933-5
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2022
EUROPÄISCHE NORM
ICS 91.100.15 Supersedes EN 933-5:1998
English Version
Tests for geometrical properties of aggregates - Part 5:
Determination of percentage of crushed particles in coarse
and all-in natural aggregates
Essais pour déterminer les caractéristiques Prüfverfahren für geometrische Eigenschaften von
géométriques des granulats - Partie 5 : Détermination Gesteinskörnungen - Teil 5: Bestimmung des
du pourcentage de surfaces cassées dans les gravillons prozentualen Anteils an gebrochenen Körnern in
et cailloux groben Gesteinskörnungen und
Gesteinskörnungsgemischen
This European Standard was approved by CEN on 26 September 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 933-5:2022 E
worldwide for CEN national Members.

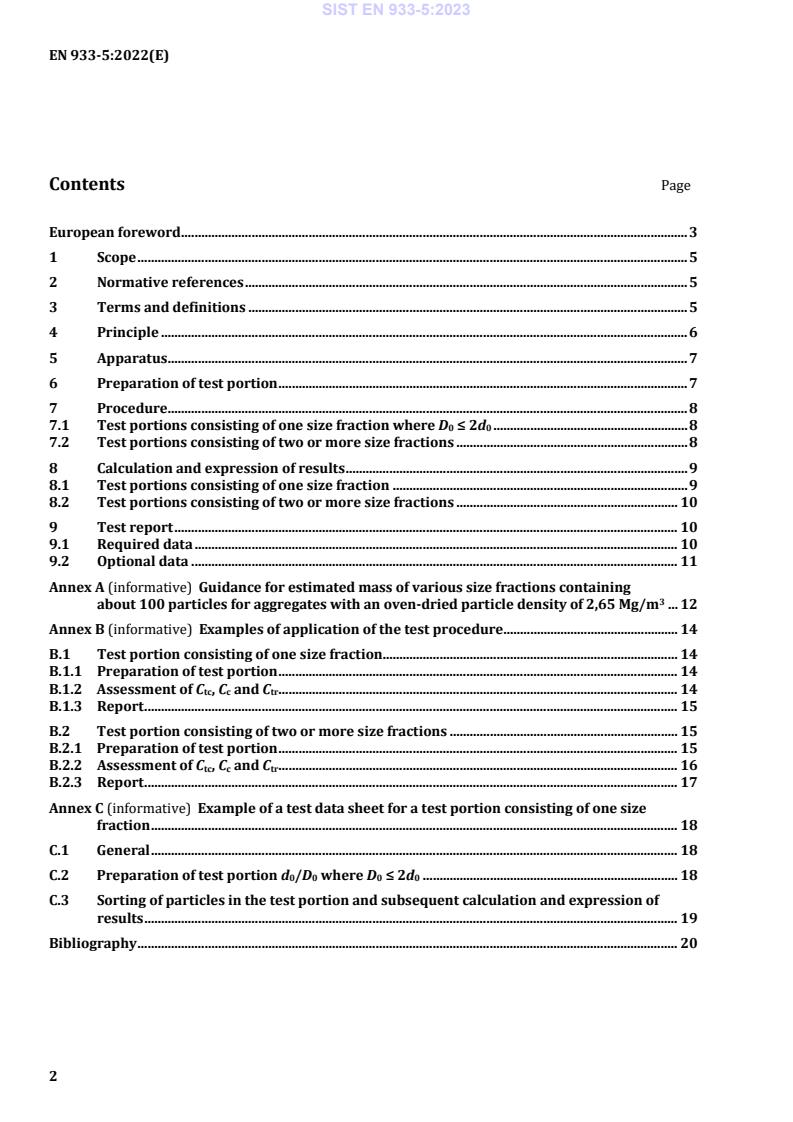

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 6
5 Apparatus . 7
6 Preparation of test portion . 7
7 Procedure. 8
7.1 Test portions consisting of one size fraction where D ≤ 2d . 8
0 0
7.2 Test portions consisting of two or more size fractions . 8
8 Calculation and expression of results . 9
8.1 Test portions consisting of one size fraction . 9
8.2 Test portions consisting of two or more size fractions . 10
9 Test report . 10
9.1 Required data . 10
9.2 Optional data . 11
Annex A (informative) Guidance for estimated mass of various size fractions containing
about 100 particles for aggregates with an oven-dried particle density of 2,65 Mg/m . 12
Annex B (informative) Examples of application of the test procedure . 14
B.1 Test portion consisting of one size fraction. 14
B.1.1 Preparation of test portion . 14
B.1.2 Assessment of C , C and C . 14
tc c tr
B.1.3 Report . 15
B.2 Test portion consisting of two or more size fractions . 15
B.2.1 Preparation of test portion . 15
B.2.2 Assessment of C , C and C . 16
tc c tr
B.2.3 Report . 17
Annex C (informative) Example of a test data sheet for a test portion consisting of one size
fraction . 18
C.1 General . 18
C.2 Preparation of test portion d /D where D ≤ 2d . 18
0 0 0 0
C.3 Sorting of particles in the test portion and subsequent calculation and expression of
results . 19
Bibliography . 20
European foreword
This document (EN 933-5:2022) has been prepared by Technical Committee CEN/TC 154 “Aggregates”,
the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2023, and conflicting national standards shall be
withdrawn at the latest by May 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 933-5:1998.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association.
In comparison with the previous edition, the following technical modifications have been made:
a) The title has been revised to better reflect the scope;
b) Clause 1: Scope has been clarified to show that the standard applies to coarse and all-in natural
aggregates, but not to lightweight aggregates.
c) Clause 3: The definition of a crushed surface has been changed. The definitions of aggregate size and
a rounded particle have been deleted. The definition of a rounded surface has been added;
d) Clause 4: Principle has been amended;
e) Clause 5: Coloured pencil has been added as optional apparatus to facilitate the procedure of
estimating crushed and rounded parts of a particle surface;
f) Clause 6: Preparation of test portion has been revised;
g) Clause 7: Procedure has been amended and an illustrating figure has been added;
h) Clause 8: Calculation and expression of results has been amended;
i) Clause 9: The lists of required and optional data have been updated;
j) New informative Annex A, with guidance for estimated mass of various size fractions with about 100
particles, has been added;
k) New informative Annex B, with example of application of the test procedure, has been added;
l) Previous Annex A, with example of a test data sheet, has been revised and moved to Annex C.
This document forms part of a series of tests for geometrical properties of aggregates. Test methods for
other properties of aggregates are covered by the following European Standards:
— EN 932 (all parts), Tests for general properties of aggregates
— EN 1097 (all parts), Tests for mechanical and physical properties of aggregates
— EN 1367 (all parts), Tests for thermal and weathering properties of aggregates
— EN 1744 (all parts), Tests for chemical properties of aggregates
— EN 13179 (all parts), Tests for filler aggregate used in bituminous mixtures
The other parts of the EN 933 series include:
— Part 1: Determination of particle size distribution - Sieving method
— Part 2: Determination of particle size distribution - Test sieves, nominal size of apertures
— Part 3: Determination of particle shape - Flakiness index
— Part 4: Determination of particle shape - Shape index
— Part 6: Assessment of surface characteristics - Flow coefficient of aggregates
— Part 7: Determination of shell content - Percentage of shells in coarse aggregates
— Part 8: Assessment of fines - Sand equivalent test
— Part 9: Assessment of fines - Methylene blue test
— Part 10: Assessment of fines - Grading of filler aggregates (air jet sieving)
— Part 11: Classification test for the constituents of coarse recycled aggregate
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies the reference method, used for type testing and in case of dispute, for the
determination of the percentages of crushed particles, totally crushed particles and totally rounded
particles in coarse and all-in natural aggregates. Other methods can be used for other purposes, such as
factory production control, provided that an appropriate working relationship with the reference method
has been established.
NOTE 1 Examples of advanced test methods can be found in the Bibliography.
This document applies to coarse aggregates comprising particles within size fraction 4/63 mm. It does
not apply to lightweight aggregates.
NOTE 2 For coarse aggregate between 4 mm and 20 mm the percentages of crushed surfaces are linked to the
flow coefficient and can therefore be used in association with the test method specified in EN 933-6.
Clause 7.1 specifies the procedure for test portions consisting of one size fraction and Clause 7.2 specifies
the procedure for test portions consisting of two or more size fractions.
Guidance for the estimated mass of various size fractions with about 100 particles is given in informative
Annex A.
Examples of application of the test procedure and an example of a test data sheet are given in informative
Annexes B and C.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 932-2, Tests for general properties of aggregates - Part 2: Methods for reducing laboratory samples
EN 932-5, Tests for general properties of aggregates - Part 5: Common equipment and calibration
EN 933-1, Tests for geometrical properties of aggregates - Part 1: Determination of particle size
distribution - Sieving method
EN 933-2, Tests for geometrical properties of aggregates - Part 2: Determination of particle size
distribution - Test sieves, nominal size of apertures
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/ui
— IEC Electropedia: available at https://www.electropedia.org/
3.1
size fraction
d /D
i i
fraction of an aggregate passing the larger (D ) of two sieves and retained on the smaller (d )
i i
3.2
test portion
d /D
0 0
sample used as a whole in a single test
3.3
constant mass
mass determined after successive weighings at least 1 h apart not differing by more than 0,1 %
Note 1 to entry: In many cases constant mass can be achieved after a test portion has been dried for a pre-
determined period in a specified oven at (110 ± 5) °C. Test laboratories can determine the time required to achieve
constant mass for specific types and sizes of sample dependent upon the drying capacity of the oven used.
3.4
crushed surface
surface of a particle with angular fractured planar faces and often distinct corners and edges
Note 1 to entry: The crushed surface is usually produced by mechanical processing, but it can also consist of the
original surface of a gravel particle, formed by geological action (breaking without any subsequent significant wear
and weathering of the gravel particle).
3.5
totally crushed particle
particle with more than 90 % of its surface crushed (tc)
3.6
crushed particle
particle with more than 50 % of its surface crushed (c)
3.7
rounded surface
surface of a particle which does not conform to the definition of crushed surface in 3.5
3.8
totally rounded particle
particle with more than 90 % of its surface rounded (tr)
4 Principle
The test consists of sorting by hand a coarse test portion of natural aggregates into crushed particles,
totally crushed particles and totally rounded particles.
The masses of crushed particles, totally crushed particles and totally rounded particles are determined
and expressed as percentages of the test portion mass.
5 Apparatus
Unless otherwise stated, all apparatus shall conform to the general requirements of EN 932-5.
5.1 Test sieves, of nominal size of apertures conforming with EN 933-2.
5.2 Tightly fitting pan and lid, for the sieves.
5.3 Ventilated oven, capable of maintaining a temperature of (110 ± 5) °C, or equipment for drying
the aggregate which does not cause any particle size breakdown.
5.4 Balance or scale, accurate to 0,1 % of the mass to be weighed.
5.5 Trays.
5.6 Brushes.
5.7 Sieving machine, optional.
5.8 Coloured pencil, optional.
6 Preparation of test portion
The test portion shall consist of size fraction d /D , where d and D are determined from the aggregate
0 0 0
...
기사 제목: SIST EN 933-5: 2023 - 골재의 형태적 특성 시험 - 제 5 부: 거친 및 전체 혼합 골재에서 파쇄 입자의 백분율 결정 기사 내용: 이 문서는 자연 거친 골재 또는 전체 골재의 샘플에서 파쇄 입자, 완전히 파쇄된 입자 및 완전히 둥근 입자의 백분율을 결정하는 참조 방법을 지정합니다. 다른 목적으로는 공장 생산 관리와 같은 다른 방법을 사용할 수 있지만 참조 방법과의 적절한 작업 관계가 설정되어야 합니다. 참고 1: 고급 시험법의 예는 참고 문헌에서 찾을 수 있습니다. 이 문서는 자갈이나 자갈이 포함 된 자연 거친 골재에 적용됩니다. 지정된 시험 방법은 4mm에서 63mm 사이의 입자 크기에 적용됩니다. 참고 2: 4mm에서 20mm 사이의 거친 골재의 경우 파쇄 표면의 백분율은 흐름 계수에 연결되어 EN 933-6에서 지정된 시험 방법과 함께 사용할 수 있습니다. 소절 7.1은 하나의 입자 크기 분수로 구성된 시험 샘플의 절차를 지정하고, 소절 7.2는 두 개 이상의 입자 크기 분수로 구성된 시험 샘플의 절차를 지정합니다. 시험 샘플의 추정 질량에 대한 안내는 정보 제공 부록 A에 제공됩니다. 시험 절차의 응용 사례 및 시험 데이터 시트의 예는 정보 제공 부록 B와 C에 제공됩니다.
기사 제목: SIST EN 933-5:2023 - 시험법을 통한 집성재의 기하학적 특성에 대한 시험 - 제5부: 거친 자연성 및 모든 종류의 집성재에서 파괴된 입자의 백분율 결정 기사 내용: 이 문서는 자연 거친 집성재 또는 전부 요약에서 파괴된 입자의 백분율, 완전히 파괴된 입자 및 완전히 둥근 입자의 결정에 대한 참조 방법을 정의합니다. 다른 목적을 위해 공장 생산 통제와 같은 경우 적절한 참조 방법과의 작업 관계가 확립되어야 하는 경우 다른 방법을 사용할 수 있습니다. 비고 1 범위에서 고급 시험 방법의 예제는 참고 문헌에서 찾을 수 있습니다. 이 문서는 자갈이나 자갈을 포함하는 자연 거친 집성재의 혼합물에 적용됩니다. 지정된 시험 방법은 4 mm에서 63 mm까지 입자 크기에 적용됩니다. 비고 2 4 mm에서 20 mm 사이의 거친 집성재의 경우 파괴된 표면의 백분율은 유동 계수와 관련이 있으므로 EN 933-6에 명시된 시험 방법과 연계하여 사용할 수 있습니다. 서적 7.1의 소목은 하나의 입자 크기 분획으로 구성된 시험 부분에 대한 절차를 명시하고, 7.2의 소목은 두 개 이상의 입자 크기 분획으로 구성된 시험 부분에 대한 절차를 명시합니다. 정보적인 부록 A에서는 테스트 부분의 추정 질량에 대한 지침이 제공됩니다. 테스트 절차의 적용 예제 및 테스트 데이터 시트의 예제는 정보 부록 B와 C에서 제공됩니다.
記事タイトル：SIST EN 933-5:2023 - 骨材の幾何学的特性の試験 - 第5部：粗引き骨材と全骨材中の砕けた粒子の割合の決定 記事内容：この文書は、自然の粗引き骨材または全骨材の試料中の砕けた粒子、完全に砕けた粒子、完全に丸い粒子の割合を決定するための基準方法を指定しています。他の目的（工場生産管理など）では、適切な基準方法との適切な作業関係が確立されている場合、他の方法を使用することができます。 注1：高度な試験方法の例は参考文献に記載されています。 この文書は、砂利または砂利を含む自然の粗引き骨材の混合物に適用されます。指定された試験方法は、4 mmから63 mmの粒子サイズに適用されます。 注2：4 mmから20 mmの粗引き骨材の場合、砕けた表面の割合は流量係数と関連しているため、EN 933-6に指定された試験方法と組み合わせて使用することができます。 項7.1では1つの粒子サイズ分別から成る試験部分の手順を指定し、項7.2では2つ以上の粒子サイズ分別から成る試験部分の手順を指定しています。 情報提供付録Aでは、試験部分の推定質量のガイダンスが提供されています。 試験手順の適用例と試験データシートの例は情報提供付録BおよびCに示されています。
The article discusses SIST EN 933-5:2023, a document that specifies a reference method for determining the percentages of crushed particles in natural coarse aggregates. It applies to gravel or a mixture of natural coarse aggregates containing gravel, with particle sizes between 4 mm and 63 mm. The document also provides guidance on test portions consisting of one or multiple particle size fractions. The article includes examples of advanced test methods in the bibliography and informative annexes that provide guidance on estimated mass of the test portion, application of the test procedure, and a test data sheet.
記事タイトル：SIST EN 933-5:2023 - 骨材の幾何学的特性の試験 - 第5部：粗骨材およびオールイン自然骨材の破砕粒子の割合の決定 記事内容：この文書は、自然粗骨材またはオールイン骨材のサンプルにおける破砕粒子、完全に破砕された粒子、完全に丸い粒子の割合を決定するための基準方法を指定しています。他の目的には、適切な作業関係が確立されている場合、工場の生産管理など、他の方法を使用することができます。 注意1：高度な試験方法の例は、参考文献に記載されています。 この文書は、砂利または砂利を含む自然粗骨材の混合物に適用されます。指定された試験方法は、4mmから63mmの粒径に適用されます。 注意2：4mmから20mmの粗骨材の場合、破砕表面の割合は流動係数に関連しており、EN 933-6で指定された試験方法と組み合わせて使用することができます。 7.1項では、1つの粒径分数からなる試験部分の手順が定められ、7.2項では、2つ以上の粒径分数からなる試験部分の手順が定められています。 推定試験部分の質量のガイダンスについては、付属情報Aに記載されています。 試験手順の応用例および試験データシートの例については、付属情報BおよびCに示されています。
The article discusses the SIST EN 933-5:2023 standard, which determines the percentage of crushed particles in natural coarse aggregates. This method is the reference method used for type testing and disputes. Other methods can be used for different purposes, as long as they are compatible with the reference method. The standard applies to gravel or mixtures of natural coarse aggregates containing gravel, with particle sizes between 4 mm and 63 mm. The article also provides guidance for test portions consisting of one or multiple particle size fractions, as well as examples of application and a test data sheet.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
