Electrical requirements for lifts, escalators and moving walks — Part 6: Programmable electronic systems in safety-related applications for escalators and moving walks (PESSRAE)

1.1 This document is applicable to the product family of escalators and moving walks used in residential buildings, offices, hospitals, hotels, industrial plants, etc. This document covers those aspects that need to be addressed when programmable electronic systems are used to carry out electric safety functions for escalators and moving walks (PESSRAE). This document is applicable for escalator and moving walk safety functions that are identified in escalator and moving walk codes, standards, or laws that reference this document for PESSRAE application. The safety integrity levels (SILs) specified in this document are understood to be valid for PESSRAE application in the context of the referenced escalator and moving walk codes, standards, and laws in the Bibliography. 1.2 This document is also applicable for the application of PESSRAE that are new or deviate from those described in this document. 1.3 The requirements of this document regarding electrical safety/protective devices are such that it is not necessary to take into consideration the possibility of a failure of an electric safety/protective device complying with all the requirements of this document and other relevant standards. This document: a) uses safety integrity levels (SIL) for specifying the target failure rate for the safety functions to be implemented by the PESSRAE; b) specifies the requirements for achieving safety integrity for a function but does not specify who is responsible for implementing and maintaining the requirements (for example, designers, suppliers, owner/operating company, contractor); this responsibility is assigned to different parties according to safety planning and national regulations; c) applies to PE systems used in escalator and moving walk applications that meet the minimum requirements of a recognized escalator and moving walk standards, such as EN 115, ASME A17.1/CSA B44 or The Japan Building Standard Law Enforcement Order For Elevator and Escalator; d) defines the relationship between this document and IEC 61508 and defines the relationship between this document and ISO 22200; e) outlines the relationship between escalator and moving walk safety functions and their safe-state conditions; f) applies to phases and activities that are specific to design of hardware and software but not the phases and activities which occur post design, for example sourcing and manufacturing; h) provides requirements relating to the hardware and software safety validation; i) establishes the safety integrity levels for specific escalator and moving walk safety functions; j) specifies techniques/measures required for achieving the specified safety integrity levels; k) defines a maximum level of performance (SIL 3) which can be achieved for a PESSRAE according to this document and defines a minimum level of performance (SIL 1). 1.4 This document does not cover: a) hazards arising from the PE systems equipment itself such as electric shock etc.; b) the concept of fail-safe that can be of value when the failure modes are well defined and the level of complexity is relatively low. The concept of fail-safe was considered inappropriate because of the full range of complexity of PESSRAE that are within the scope of this document; c) other relevant requirements necessary for the complete application of a PESSRAE in an escalator and moving walk safety function, such as system integration specifications, temperature and humidity, the mechanical construction, mounting and labelling of switches, actuators, or sensors that contain PESSRAE. d) foreseeable misuse involving security threats related to malevolent or unauthorized action. This document can be used in cases where a security threat analysis needs to be considered, provided that the specified SIL has been reassessed.

Exigences électriques pour ascenseurs, escaliers mécaniques et trottoirs roulants — Partie 6: Systèmes électroniques programmables dans les applications liées à la sécurité pour escaliers mécaniques et trottoirs roulants

General Information

Status
Published
Publication Date
29-Jan-2019
Current Stage
9060 - Close of review
Start Date
02-Sep-2029
Ref Project

Relations

Buy Standard

Standard
ISO 8102-6:2019 - Electrical requirements for lifts, escalators and moving walks
English language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

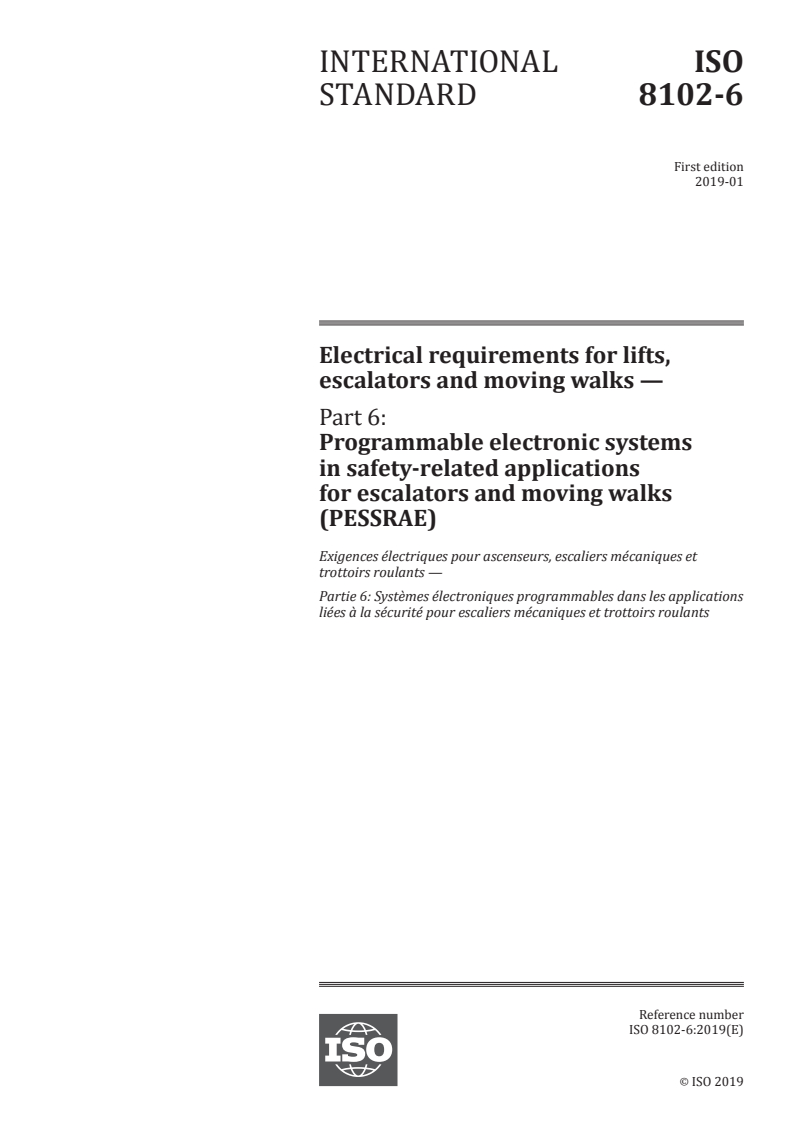

INTERNATIONAL ISO
STANDARD 8102-6
First edition
2019-01
Electrical requirements for lifts,
escalators and moving walks —
Part 6:
Programmable electronic systems
in safety-related applications
for escalators and moving walks
(PESSRAE)
Exigences électriques pour ascenseurs, escaliers mécaniques et
trottoirs roulants —
Partie 6: Systèmes électroniques programmables dans les applications
liées à la sécurité pour escaliers mécaniques et trottoirs roulants
Reference number
ISO 8102-6:2019(E)
©
ISO 2019

---------------------- Page: 1 ----------------------
ISO 8102-6:2019(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 8102-6:2019(E)

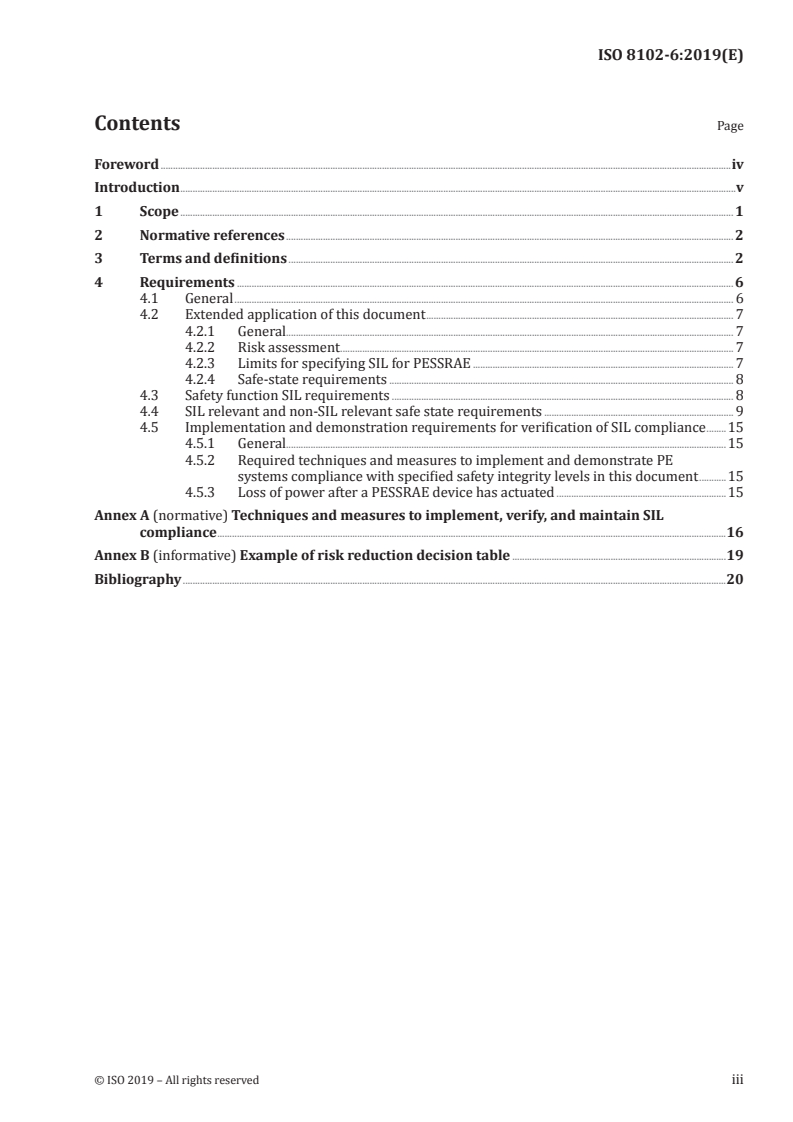

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Requirements . 6
4.1 General . 6
4.2 Extended application of this document . 7
4.2.1 General. 7
4.2.2 Risk assessment . . 7
4.2.3 Limits for specifying SIL for PESSRAE . 7
4.2.4 Safe-state requirements . 8
4.3 Safety function SIL requirements . 8
4.4 SIL relevant and non-SIL relevant safe state requirements . 9
4.5 Implementation and demonstration requirements for verification of SIL compliance .15
4.5.1 General.15
4.5.2 Required techniques and measures to implement and demonstrate PE
systems compliance with specified safety integrity levels in this document .15
4.5.3 Loss of power after a PESSRAE device has actuated .15
Annex A (normative) Techniques and measures to implement, verify, and maintain SIL
compliance .
...
