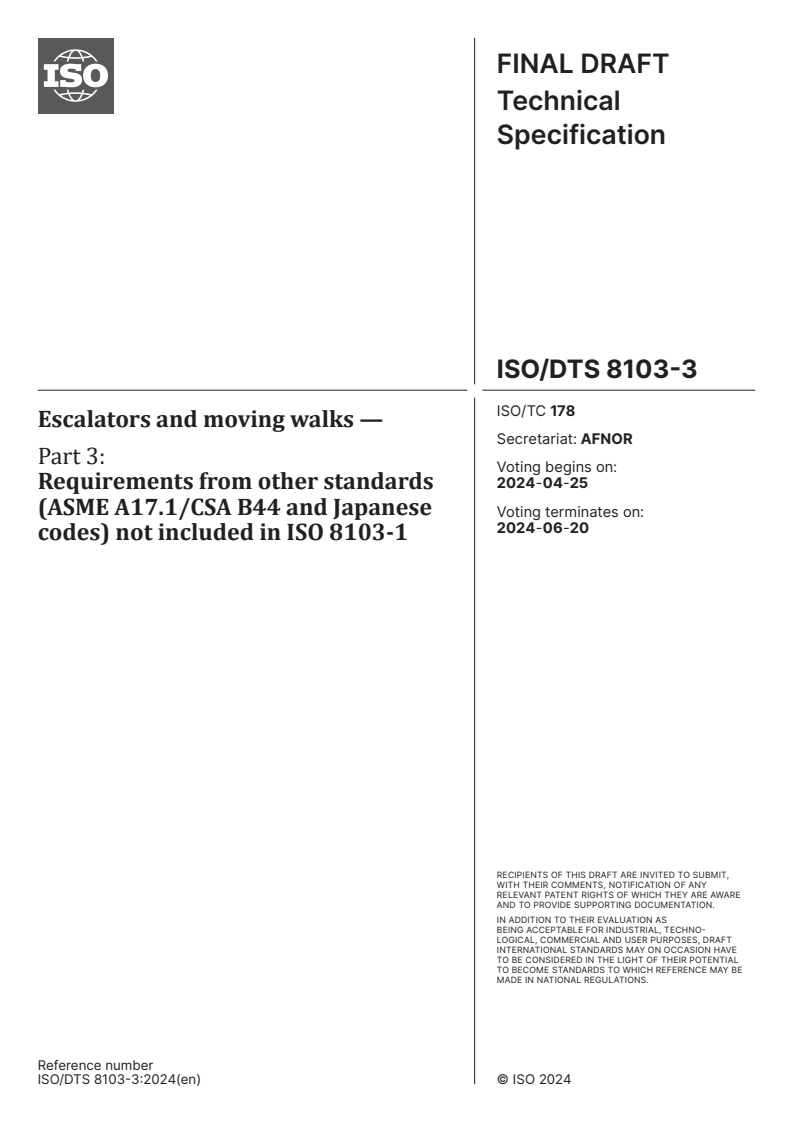

ISO/TS 8103-3:2024

FINAL DRAFT
Technical
Specification
ISO/DTS 8103-3
ISO/TC 178
Escalators and moving walks —
Secretariat: AFNOR
Part 3:
Voting begins on:
2024-04-25
Requirements from other standards
(ASME A17.1/CSA B44 and Japanese
Voting terminates on:
2024-06-20
codes) not included in ISO 8103-1
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/DTS 8103-3:2024(en) © ISO 2024

FINAL DRAFT
ISO/DTS 8103-3:2024(en)
Technical
Specification
ISO/DTS 8103-3
ISO/TC 178
Escalators and moving walks —
Secretariat: AFNOR
Part 3:
Voting begins on:
Requirements from other standards
(ASME A17.1/CSA B44 and Japanese
Voting terminates on:
codes) not included in ISO 8103-1
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.

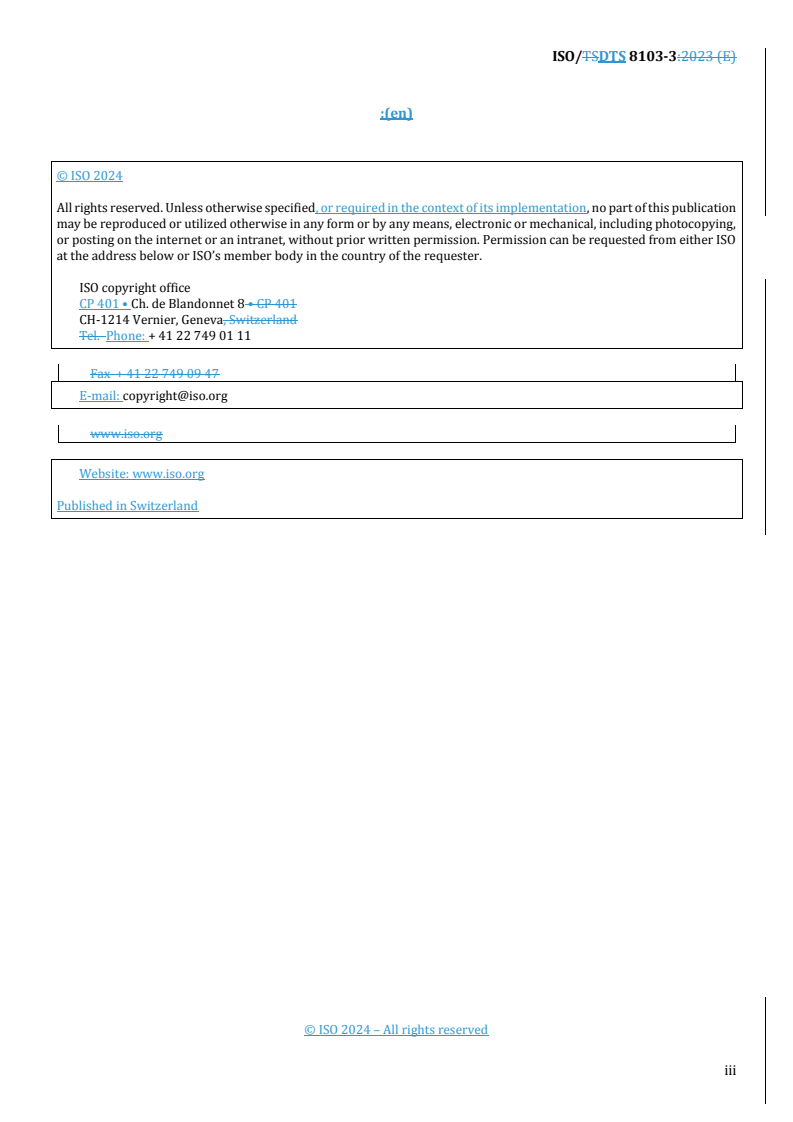

© ISO 2024
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/DTS 8103-3:2024(en) © ISO 2024

ii
ISO/DTS 8103-3:2024(en)

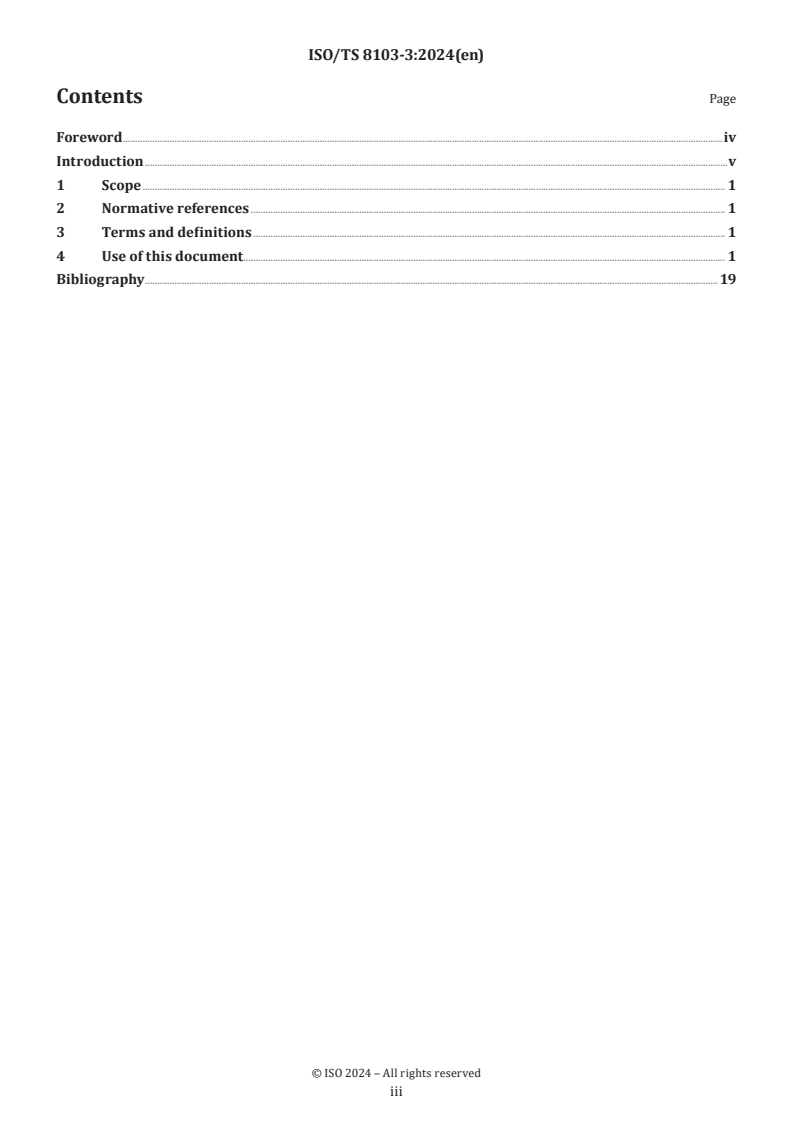

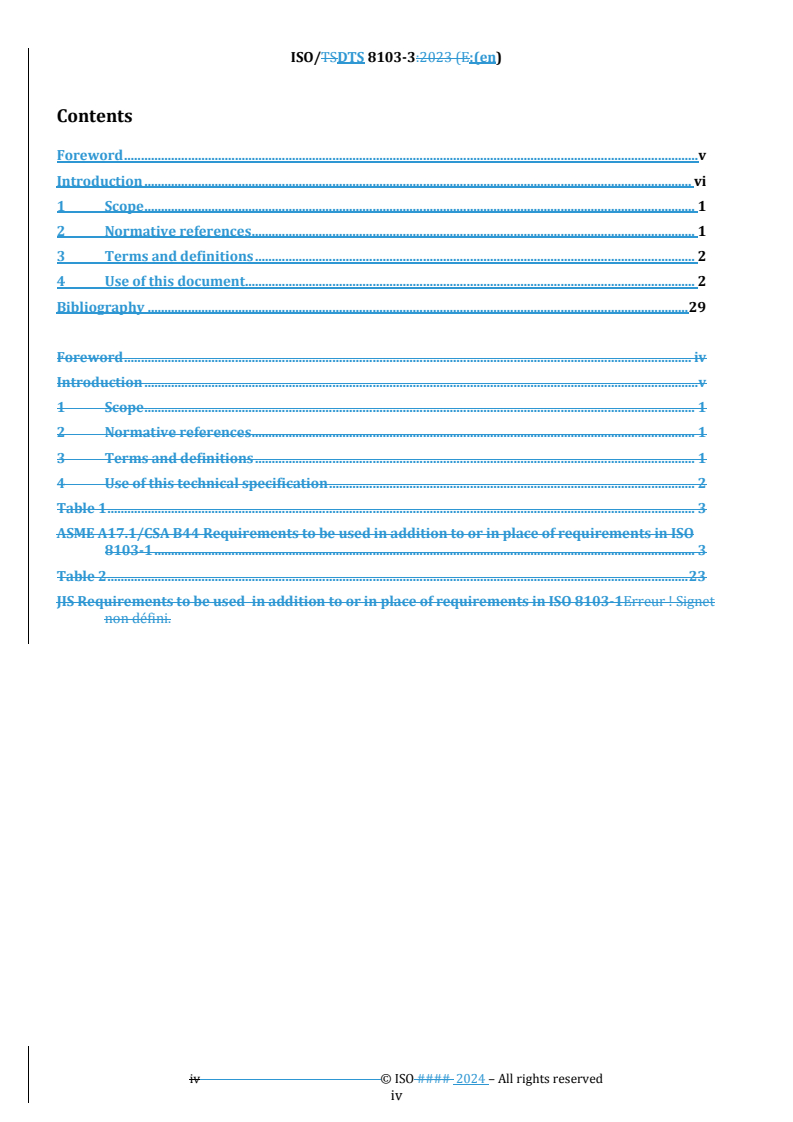

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Use of this document . 1
Bibliography . 19

iii
ISO/DTS 8103-3:2024(en)

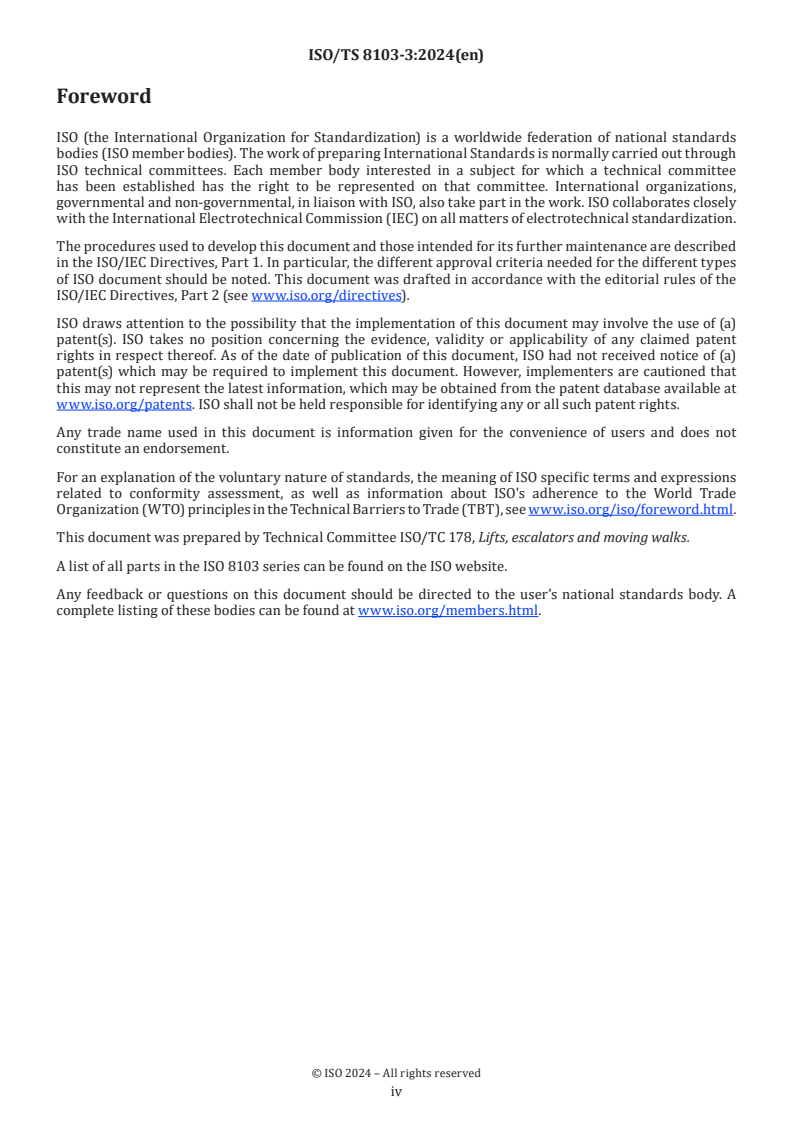

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 178, Lifts, escalators and moving walks.
A list of all parts in the ISO 8103 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
ISO/DTS 8103-3:2024(en)
Introduction
0.1  General
The machinery concerned and the extent to which hazards, hazardous situations and hazardous events are
covered are indicated in the scope of this standard.
0.2  General remarks
This document is to be used in combination with ISO 8103-1 for the purpose of achieving equivalency with
the requirements of ASME A17.1/CSA B44 and Japanese codes respectively, where the scopes of ASME A17.1/
CSA B44 and Japanese codes coincide with the scope of this document. Equipment outside of the scope of
this document is not addressed.
This document is not a substitute for ASME A17.1/CSA B44 or Japanese codes and it does not evaluate or
interpret requirements in those standards/codes.
As a further clarification, it is emphasized that although differences exist in the various standards, it does
not imply that any standard is superior to another standard covering the same scope.

v
FINAL DRAFT Technical Specification ISO/DTS 8103-3:2024(en)
Escalators and moving walks —
Part 3:
Requirements from other standards (ASME A17.1/CSA B44
and Japanese codes) not included in ISO 8103-1
1 Scope
This document identifies section and requirement numbers from ASME A17.1/CSA B44 or Japanese codes
for requirements not included in ISO 8103-1. The content of the specific requirements is published in ASME
A17.1/CSA B44 and Japanese codes.
This document is applicable for new escalators and moving walks (pallet or belt type) as defined in
ISO/DIS 8103-1:—, Clause 3.
This document deals with all significant hazards, hazardous situations, and events relevant to escalators
and moving walks when they are used as intended and under conditions of misuse which are reasonably
foreseeable by the manufacturer (see Clause 4).
This document is not applicable to escalators and moving walks which were manufactured before the date
of its publication. It is, however, expected that existing installations be adapted to this standard.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Use of this document
Products designed in compliance with specific requirements of ISO 8103-1 may not be in compliance with
specific prescriptive requirements in ASME A17.1/CSA B44-2016 or Japanese Codes.
By referring to Table 1, specific prescriptive requirements of ASME A17.1/CSA B44-2016 that need to be
addressed in addition to or in place of requirements of ISO 8103-1 can be identified by the user.
In a similar way, Table 2 identifies requirements of Japanese codes that need to be addressed by the user.
Tables 1 and 2 provide guidance and in all cases the relevant standards need to be consulted.
In each table, there are five columns as follows:
— Column 1 identifies the clause number in ISO 8103-1:—;

ISO/DTS 8103-3:2024(en)
— Column 2 describes the subject matter;
— Column 3 identifies the requirement to be addressed in addition to ISO 8103-1:—;
— Column 4 identifies the requirement to be addressed in place of ISO 8103-1:—; and
— Column 5 contains comments and explanations intended to provide guidance to the user.

ISO/DTS 8103-3:2024(en)
Table 1 — ASME A17.1/CSA B44 Requirements not included in ISO 8103-1
Column 1 Column 2 Column 3 Column 4 Column 5
ISO 8103-1 Subject A17.1/B44 Section or Re- A17.1/B44 Section or Comments
quirement number to be used Requirement number to be
Clause #
in addition to Column 1 used in place of Column 1
3.1.21 nominal speed 1.3 A17.1/B44 has differing speed definition
Protection of floor openings 6.1.1 A17.1/B44 has additional requirements regarding floor openings referred to
applicable building code.
5.2.1.5 Apertures for ventilation 6.1.2/ 6.2.2 A17.1/B44 has additional requirements regarding aperture access restric-
tion.
Escalators/moving walks are to be effectively ventilated to dissipate excessive
heat.
Apertures are to not enable contact with moving parts.
5.2.1.6 Requirement for safety 6.1.7.3.3 A17.1/B44 has differing requirements
device
6.2.7.3.3
5.2.2 Angle of inclination 6.1.3 A17.1/B44 has differing requirement regarding maximum inclination angle.
6.1.3.1
6.2.3.1
5.2.3 Access to the interior 8.1.3 A17.1/B44 has additional requirements
5.2.4 Inspection covers 6.1.7.3 A17.1/B44 has differing requirements regarding the locking device and addi-
tional cover weight requirements.
6.1.7.3.1
6.1.7.3.2
5.2.5 Structural design 6.1.3.9 A17.1/B44 has specific requirements for the calculation of structural compo-
nents.
6.2.3.10
6.1.3.9.1
6.2.3.10.1
6.1.3.5.8 A17.1/B44 has additional requirements regarding step and pallet retention.
6.2.3.5.6
5.3.2 Dimensions 6.2.3.7 A17.1/B44 has differing dimensional requirements
5.3.3.1 Structural design 6.1.3.9.4 A17.1/B44 has differing requirements.
6.1.3.10.4
6.2.3.11.4
5.3.2.2 Step treads and pallets 6.2.3.7 A17.1/B44 has differing requirements.
5.3.2.2.3 Step treads 6.1.3.5.5 A17.1/B44 has differing requirements.
6.2.3.5.1
5.3.2.3 Belts 6.2.3.6.2 A17.1/B44 has differing requirements.
5.3.3 Structural design 6.1.3.9.4 A17.1/B44 has differing requirements.
6.1.3.10.4
6.2.3.11.4
5.3.3.2.4 Belts 6.2.3.9 A17.1/B44 has differing requirements.
5.3.3.3 Dynamic tests 6.1.3.5.7 A17.1/B44 has additional requirements regarding evaluation of step cracks.
8.3.11
ISO/DTS 8103-3:2024(en)
Table 1 (continued)
Column 1 Column 2 Column 3 Column 4 Column 5
ISO 8103-1 Subject A17.1/B44 Section or Re- A17.1/B44 Section or Comments
quirement number to be used Requirement number to be
Clause #
in addition to Column 1 used in place of Column 1
5.3.3.3.2.1 Pallets Load test 6.2.3.5.4 A17.1/B44 has differing requirements.
8.3.11
5.3.4 Guiding of steps, pallets and 6.1.3.5.4 A17.1/B44 has different requirements.
belt
6.2.3.5.2
6.1.3.5.6
5.3.5 Clearance between steps or 6.1.3.5.4 A17.1/B44 has different requirements.
pallets
6.2.3.5.2
6.1.3.5.6
5.4.1.2.2 Speed of escalators 6.1.4.1.1 A17.1/B44 has differing requirements. For escalators the defined maximum
is 0,5 m/s.
5.4.1.2.3 Speed of moving walks 6.2.4 A17.1/B44 has different requirements.
5.4.1.3 Link between operational brake 6.1.5 A17.1/B44 has differing requirements.
and step, pallet or belt drive
6.2.5
6.1.5.1
6.2.5.1
6.1.5.3
6.2.5.3
6.1.5.3.1
6.2.5.3.1
No equivalent require- V belts drive 6.2.3.14 A17.1/B44 has additional requirements.
ments
5.4.1.3.2 Safety factor of driving  6.1.3.1 A17.1/B44 has differing requirements.
elements
6.2.3.11
5.4.2.1.1.2 Operational braking by elec- 6.1.5.3.1(a) A17.1/B44 has additional requirements.
tro mechanical brake.
6.2.5.3.1(a)
5.4.2.1.1.3 Operational braking by electri- A17.1/B44 does not allow the use of electrical braking. Note: A17.1/B44 – 2019
cal braking. allows electrical braking. Reference 6.1.5.3.3 and 6.1.5.3.4.
5.4.2.1.2 Electro-mechanical brake 6.1.5.3.1 (a) and (b) A17.1/B44 has differing requirements.
6.2.5.3.1 (a) and (b)
5.4.2.1.3.1 Determination of the brake 6.1.3.9.3 A17.1/B44 has differing requirements.
load for escalators
5.4.2.1.3.2 Stopping distances for the es- 6.1.5.3.1 (c) A17.1/B44 has differing requirements.
calator
5.4.2.1.3.3 Determination of the brake load 6.2.3.10.3 A17.1/B44 has differing requirements.
for moving walks
5.4.2.1.3.4 Stopping distances for mov- 6.2.5.3.1 (c) A17.1/B44 has differing requirements.
ing walks
ISO/DTS 8103-3:2024(en)
Table 1 (continued)
Column 1 Column 2 Column 3 Column
...
