ISO/FDIS 9076-1

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 9076-1
ISO/TC 163/SC 3
Thermal insulation — Mineral wool
Secretariat: SCC
loose-fill for ventilated roof spaces —
Voting begins on:
2013-06-24
Part 1:
Voting terminates on:
Material product specification
2013-08-24
Isolation thermique — Fibres minérales en vrac pour les combles
ventilées —
Partie 1: Caractéristiques des matériaux et méthodes d’essai
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 9076-1:2013(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
©
NATIONAL REGULATIONS. ISO 2013

---------------------- Page: 1 ----------------------
ISO/FDIS 9076-1:2013(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/FDIS 9076-1:2013(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 3
5 Sampling and conformity control . 4
6 Required general properties . 4
6.1 Composition . 4
6.2 Determination or declaration of settlement . 4
6.3 Test specimen density. 5
6.4 Thermal resistance (R-value) . 5
6.5 Fire behaviour related to material characteristics. 5
6.6 Air flow permeability . 5
6.7 Hazards . 5
7 Tolerances on declared properties . 5
8 Declaration of conformity . 6
9 Marking and labelling . 6
10 Manufacturer’s documentation . 7
Annex A (normative) Test methods . 9
Annex B (normative) Sampling and conformity control .15
Annex C (informative) Supplemental properties .16
Bibliography .19
© ISO 2013 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/FDIS 9076-1:2013(E)

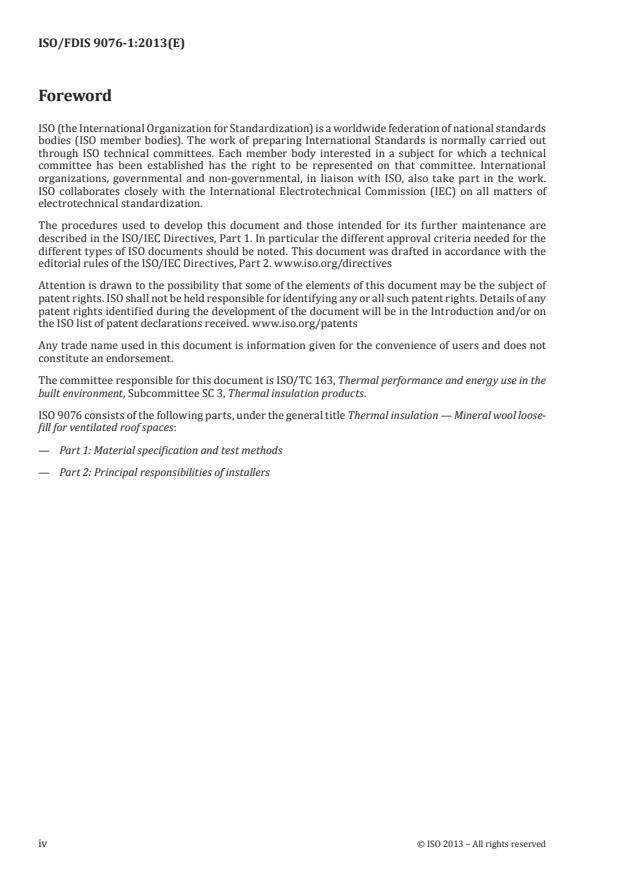

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
The committee responsible for this document is ISO/TC 163, Thermal performance and energy use in the
built environment, Subcommittee SC 3, Thermal insulation products.
ISO 9076 consists of the following parts, under the general title Thermal insulation — Mineral wool loose-
fill for ventilated roof spaces:
— Part 1: Material specification and test methods
— Part 2: Principal responsibilities of installers
iv © ISO 2013 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/FDIS 9076-1:2013(E)

Introduction
The specification in this part of ISO 9076 deals primarily with the labelling of packages containing
loose-fill mineral wool, the declaration of settlement and the measurements on a blown material, which
relates the settled thickness to the declared thermal resistance. This part of ISO 9076 indicates how
air permeability is to be measured and makes suggestions for the performance characteristics for the
material (suggested properties). The user might have to request information on the air permeability and
the other characteristics from the manufacturer.
© ISO 2013 – All rights reserved v

---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 9076-1:2013(E)
Thermal insulation — Mineral wool loose-fill for ventilated
roof spaces —
Part 1:
Material product specification
1 Scope
This part of ISO 9076 specifies the labelling for packages of loose-fill thermal insulation for horizontal
applications in ventilated attic, loft or roof spaces of buildings installed by blowing machines, and the
related test methods and requirements.
This part of ISO 9076 is not applicable to the methods of installing loose-fill mineral wool thermal
insulation. The necessary installation instructions for satisfactory performance of the material are
intended to be given by the manufacturer. Typical locations for loose-fill are detailed in ISO 9774. The
installer’s responsibilities are covered in ISO 9076-2.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable to its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 7345, Thermal insulation — Physical quantities and definitions
ISO 8301, Thermal insulation — Determination of steady-state thermal resistance and related properties —
Heat flow meter apparatus
ISO 8302, Thermal insulation — Determination of steady-state thermal resistance and related properties —
Guarded hot plate apparatus
ISO 8990, Thermal insulation — Determination of steady-state thermal transmission properties —
Calibrated and guarded hot box
ISO 9053, Acoustics — Materials for acoustical applications — Determination of airflow resistance
ISO 9229, Thermal insulation — Vocabulary
ISO 12576-2, Thermal insulation products — Conformity control systems — Part 2: In-situ products
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 7345 and ISO 9229 and the
following apply.
3.1
attic space
loft space
roof space
enclosed space between roof and ceiling
Note 1 to entry: Figures 2 a) and b) show examples of the application for two types of construction.
© ISO 2013 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/FDIS 9076-1:2013(E)

3.2
coverage
area provided by a package of loose-fill insulation when applied according to the manufacturer’s
instructions to achieve a declared thermal performance
[SOURCE: ISO 9229:2007, 2.6.12, modified — The following have been replaced: “area or yield” with
“area”; “in accordance with” with “according to the”; “claimed” with “declared”.]
3.3
declared settled thickness
thickness declared by the manufacturer as that meeting the specified requirements
Note 1 to entry: The declared settled thickness may be determined by extrapolating observations of applications
three to five years after installation to the thickness 25 years after installation.
[SOURCE: ISO 9229:2007, 2.6.4.1, modified — The definition has been modified and Note 1 to entry
has been added.]
3.4
declared thermal resistance
thermal resistance of the material or insulation declared by the manufacturer for specific thickness,
density, and mean temperatures
3.5
horizontal application
insulation applied to a surface with a slope of not more than 18,4° (having a rise to run of less than 4 in
12 or 33,3 in 100)
3.6
installed thickness
initial thickness at the time of installation necessary to provide the declared thickness after settlement
Note 1 to entry: The installed thickness is equal to or greater than the declared thickness, and it is necessary to
take into account any settling after installation. The term “as blown thickness” is also used.
3.7
loose-fill insulation
fibres, granules, nodules, powder or similar forms of insulation material designed to be installed by
manual pouring or blowing using pneumatic equipment
[SOURCE: ISO 9229:2007, 2.6.4.1, modified — The definition has been modified.]
3.8
mineral wool
wool made of vitreous fibres having a woolly consistency, and manufactured from molten rock (stone),
slag or glass
[SOURCE: ISO 9229:2007, 2.1.16, modified — The definition has been modified and the accompanying
abbreviated term “MW” has been omitted.]
3.9
minimum required thickness
thickness required by a manufacturer as that which provides the declared thermal properties
Note 1 to entry: The minimum required thickness does not include space occupied by the roof framing.
Note 2 to entry: See ISO 9229:2007, 2.6.4.1 and 2.6.6.1.
2 © ISO 2013 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/FDIS 9076-1:2013(E)

3.10
pneumatic application
method of using air to mechanically install loose-fill (insulation) materials
[SOURCE: ISO 9229:2007, 2.4.12, modified — The adverb “mechanically” has been added.]
3.11
reference mean temperature
mean temperature selected for use as the basis for physical property measurement and expression of
data for those materials whose physical properties change with temperature
[SOURCE: ISO 9229:2007, 2.6.10, modified — The definition has been altered.]
3.12
sample
one or more unit(s) of a product or material from an inspection lot
Note 1 to entry: The units of the sample are selected at random without regard to their quality.
3.13
settled density
density of the product observed at least 10 years after installation, or where no data are available,
determined from the blown density and a given class of settlement
Note 1 to entry: 6.2.2 allows a graphical extrapolation of data taken after three years to 10 years and graphically
extrapolated to 25 years.
3.14
test specimen
single insulating material unit or part of a unit used for a test
3.15
R-value
R
thermal resistance of the insulation expressed for a given settled thickness at a given mean temperature
2
Note 1 to entry: It is expressed in square metre kelvins per watt (m ·K)/W.
Note 2 to entry: This definition is given for the convenience of the installers and designers.
3.16
water vapour sorption
laboratory measurement of a gain in mass of a material due to the combined mechanisms of moisture
sorption under specified laboratory test conditions
4 Symbols
R Thermal resistance of the insulation expressed for a given settled thickness at
D10
10 °C
R Thermal resistance of the insulation expressed for a given settled thickness at
D23
23 °C
R Thermal resistance of the insulation expressed for a given settled thickness at
D27
27 °C
© ISO 2013 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/FDIS 9076-1:2013(E)

5 Sampling and conformity control
Manufacturers shall examine the variations in their processes and primary controlling variables to
ensure the ongoing quality of their materials.
For the purposes of sampling and conformity control, the procedures described in Annex B shall be applied.
6 Required general properties
6.1 Composition
The loose-fill mineral wool insulating materials are composed of mineral wool manufactured from
glass, rock, or slag and air.
6.2 Determination or declaration of settlement
6.2.1 Declaration of settlement
Settlement shall be declared in accordance with the labelling requirements of Table 2 and coverage
calculated accordingly.
6.2.2 Observation period
The declaration shall be based on a set of observations of the thickness and settlement of insulation
installed in attic roof spaces in several constructions, in several buildings, in several climates for periods
of from three years to 10 years, which is extrapolated graphically to predict the settled thickness
25 years after installation.
6.2.3 Types of construction to be observed
The observations on settlement shall be made in types of construction similar to those described in the
manufacturer’s installation handbook and at the range of thickness declared by the manufacturer in the
performance chart (see Table 4) described in Clause 10.
6.2.4 Default values for settlement
If no relevant measurements have been carried out, the class shall be declared in accordance with
column 4 of Table 2.
Table 1 — Classes from settlement
Class Requirement
S1 No measurable settlement
S2 5 %
S3 10 %
S4 15 %
S5 20 %
S6 25 %
4 © ISO 2013 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/FDIS 9076-1:2013(E)

Table 2 — Class for use in marking and labelling of packages/bags and calculating coverage
Long-term data available No long-term data available
Material Manufacturing process
Class to be used Class to be used
Chopped Table 1 S3
Mineral wool
Spun or otherwise formed Table 1 S4
Long-term data spans the period of three years to 10 years.
6.3 Test specimen density
For the purposes of this part of ISO 9076, all testing shall be done on specimens that have the
manufacturer’s declared settled density at that specimen thickness for the product in the typical attic
roof space installation (±10 %), where relevant.
6.4 Thermal resistance (R-value)
The thermal resistance is determined as the average of four measurements carried out in accordance
with A.3, provided no individual measurement deviates from the average of the other three by more
than 10 %.
The mean temperature of the tests shall be 27 °C, 23 °C or 10 °C, or all three, as decided by the manufacturer
and according to normal practice in the location of installation. The user and the manufacturer may
agree on other temperatures.
Settlement of the product after installation has an effect on the thermal transmission properties of
the insulation. The manufacturer shall give the minimum installed thickness that corresponds to the
declared thickness.
6.5 Fire behaviour related to material characteristics
Loose-fill insulating materials are intended to meet the requirements of local codes and regulations.
6.6 Air flow permeability
The airflow permeability shall be determined in accordance with ISO 9053 method A. The manufacturer
shall test as an initial type test or in the case of a dispute. The manufacturer shall provide this information
upon request.
Note Air flow permeability is a characteristic of the material and its significance to the performance of the
product after installation are intended to be evaluated by the user.
6.7 Hazards
The manufacturer shall supply the information required in 10 c) and mark the material in accordance
with 10 d).
7 Tolerances on declared properties
Table 3 lists the requirements for tolerances on the properties that are declared by the manufacturer
and used for developing the values to be listed on the package (bag).
© ISO 2013 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/FDIS 9076-1:2013(E)

Table 3 — Tolerances required for properties declared by the manufacturer and data used by
the manufacturer to make the declaration
Negative tolerance Positive tolerance
Property declared on bag label Unit
for property for property
a
Package/bag mass kg 0 % excess permitted
2
R-value, average m ·K/W 0 % excess permitted
2
R-value, individual test specimen m ·K/W 10 % excess permitted
2
Number of packages per 100 m 0 % excess permitted
2
Coverage (on declared area per bag) m /bag less permitted 0 %
2
Surface density (see the Note to this clause) kg/m 0 % excess permitted
Apparent thermal conductivity, average W/m·K less permitted 0 %
Apparent thermal conductivity, individual test speci-
W/m·K less permitted 5 %
men
The tolerances do not apply to the actual installation of the material and so neither do they apply to the product
sold to the user.
a
   The bag mass is calculated using the average of 10 bags, unless local regulations require additional bags.
NOTE Surface density is also designated by the term “mass per unit area”, which is deprecated by ISO.
8 Declaration of conformity
The declaration shall include the following information:
a) manufacturer’s name, address, production facility and material designation;
b) material description;
c) model of the blowing equipment used and the settings;
d) production code and date;
e) declared coverage, minimum installed thickness, R-value(s) and reference temperature(s);
f) information about s
...
