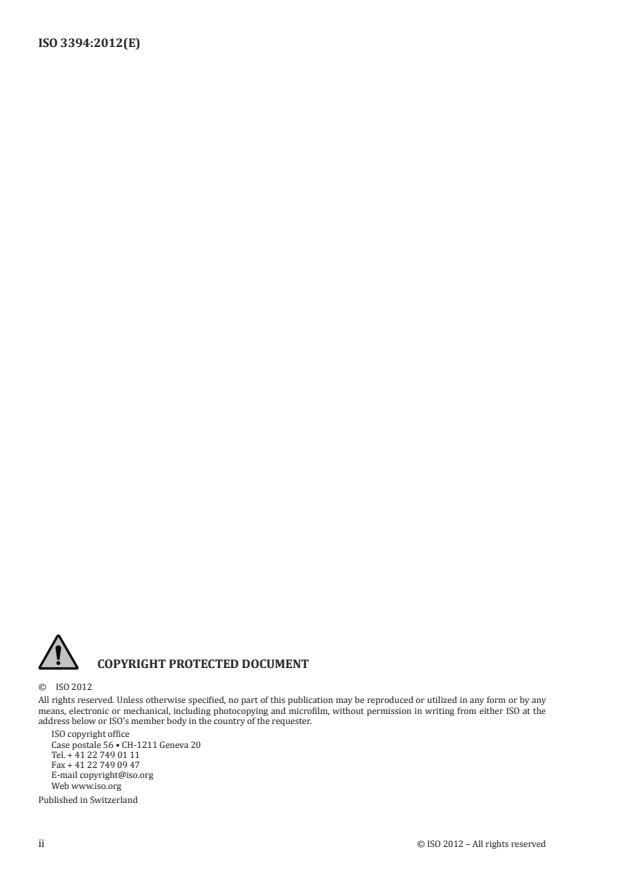

COPYRIGHT PROTECTED DOCUMENT
© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

Contents  Page
Foreword .iv
1 Scope . 1
2  Normative references . 1
3  Terms and definitions . 1
4  Principle . 1
5  Plan dimensions . 1
6 Height . 8
7  Tolerances . 8
Annex A (informative) Examples of combination multiples and submultiples, arranged
to interlock . 9
Bibliography .10

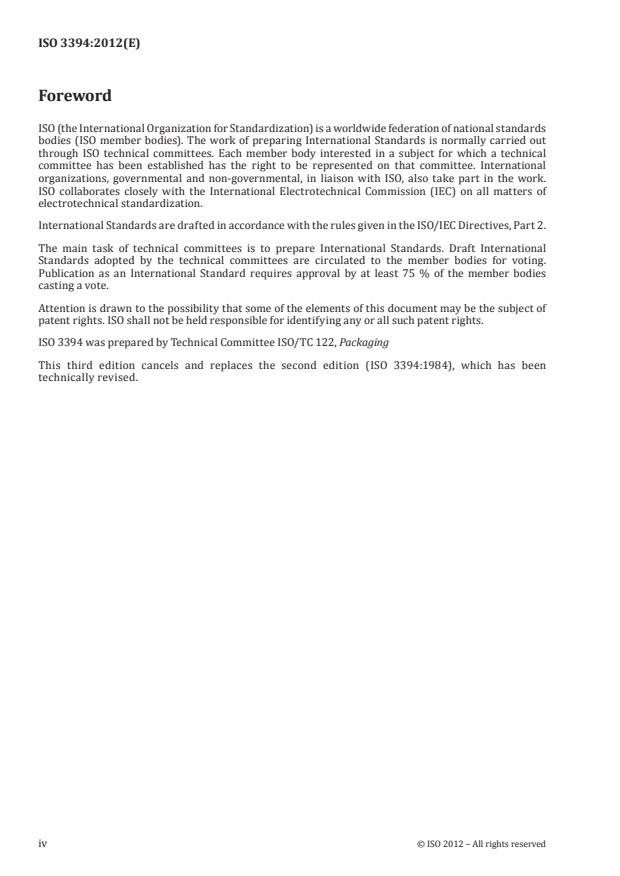

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 3394 was prepared by Technical Committee ISO/TC 122, Packaging
This third edition cancels and replaces the second edition (ISO 3394:1984), which has been
technically revised.
iv © ISO 2012 – All rights reserved

INTERNATIONAL STANDARD ISO 3394:2012(E)
Packaging — Complete, filled transport packages and unit
loads — Dimensions of rigid rectangular packages
1 Scope
This International Standard sets forth a series of dimensions for rigid rectangular transport
packages, based on the standard plan dimension (module) of 600 mm × 400 mm, 600 mm × 500 mm
and 550 mm × 366 mm, as outlined in ISO 3676, which defines the plan dimensions of four series
(1 219 mm × 1 016 mm, 1 200 mm × 1 000 mm, 1 200 mm × 800 mm, 1 100 mm × 1 100 mm).
2  Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 21067, Packaging — Vocabulary
ISO 6780:2003, Flat pallets for intercontinental materials handling — Principal dimensions and tolerances
3  Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21067 and the following apply.
3.1
plan dimensions
dimensions of the rectangle defined on a horizontal surface by the four vertical planes intersecting at
right angles which enclose a transport package freestanding on that surface
NOTE
...
