ISO/IEC 14496-2:2004/Amd 3:2007

INTERNATIONAL ISO/IEC
STANDARD 14496-2
Third edition
2004-06-01
AMENDMENT 3
2007-07-01
Information technology — Coding of
audio-visual objects —
Part 2:
Visual
AMENDMENT 3: Support for colour spaces
Technologies de l'information — Codage des objets audiovisuels —
Partie 2: Codage visuel
AMENDEMENT 3: Support pour espaces de couleur

Reference number
ISO/IEC 14496-2:2004/Amd.3:2007(E)
©
ISO/IEC 2007
ISO/IEC 14496-2:2004/Amd.3:2007(E)

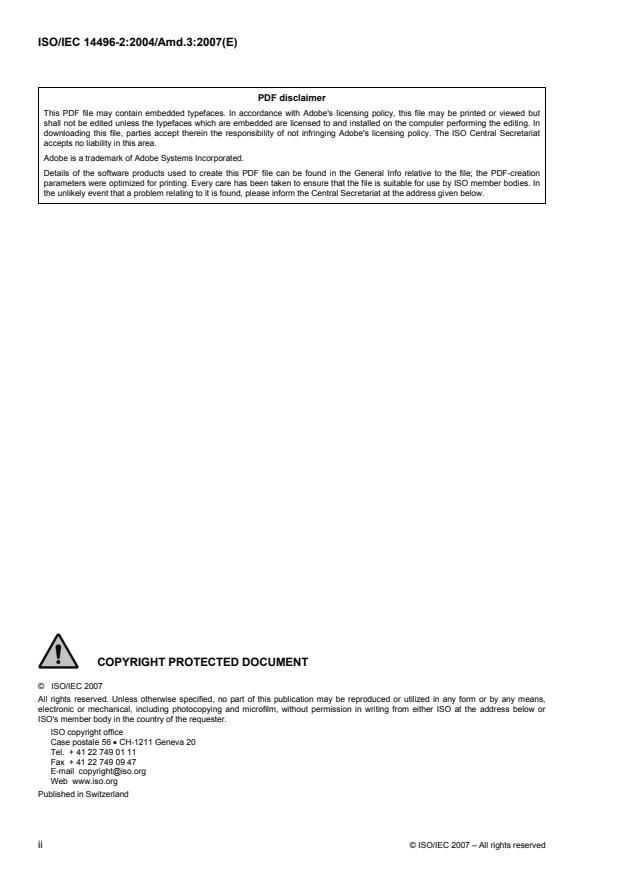

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2007 – All rights reserved

ISO/IEC 14496-2:2004/Amd.3:2007(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 3 to ISO/IEC 14496-2:2004 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
© ISO/IEC 2007 – All rights reserved iii

ISO/IEC 14496-2:2004/Amd.3:2007(E)

Information technology — Coding of audio-visual objects —
Part 2:
Visual
AMENDMENT 3: Support for colour spaces
At the end of subclause 4.1, add the following:
Floor() the largest integer less than or equal to the argument
Round() Sign( x ) * Floor( Abs( x ) + 0,5), for an argument x
In 6.3.2, replace Table 6-8 with the following:
Table 6-8 — Colour Primaries
Value Primaries Informative Remarks
0 Forbidden
1 primary x y ITU-R Recommendation BT.709-5
green 0,300 0,600 ITU-R Recommendation BT.1361 conventional
colour gamut system or extended colour gamut
blue 0,150 0,060
system
red 0,640 0,330
IEC 61966-2-4
white D65 0,3127 0,3290
Society of Motion Picture and Television
Engineers RP 177 Annex B
2 Unspecified Image characteristics are unknown or are
determined by the application
3 Reserved For future use by ISO/IEC
4 primary x y ITU-R Recommendation BT.470-6 System M
(historical)
green 0,21 0,71
United States National Television System
blue 0,14 0,08
Committee 1953 Recommendation for
red 0,67 0,33
transmission standards for color television
white C 0,310 0,316
United States Federal Communications
Commission Title 47 Code of Federal
Regulations (2004) 73.682 (a) (20)
5 primary x y ITU-R Recommendation BT.1700 625 PAL or
625 SECAM
green 0,29 0,60
ITU-R Recommendation BT.1358 625
blue 0,15 0,06
ITU-R Recommendation BT.470-6 System B, G
red 0,64 0,33
(historical)
white D65 0,3127 0,3290
ITU-R Recommendation BT.601-6 625
© ISO/IEC 2007 – All rights reserved 1

ISO/IEC 14496-2:2004/Amd.3:2007(E)
6 primary x y ITU-R Recommendation BT.1700 NTSC
green 0,310 0,595 ITU-R Recommendation BT.1358 525
blue 0,155 0,070 ITU-R Recommendation BT.601-6 525
red 0,630 0,340 Society of Motion Picture and Television
Engineers 170M
white D65 0,3127 0,3290
(functionally the same as the value 7)
7 primary x y Society of Motion Picture and Television
Engineers 240M
green 0,310 0,595
(functionally the same as the value 6)
blue 0,155 0,070
red 0,630 0,340
white D65 0,3127 0,3290
8 primary x y Generic film (colour filters using Illuminant C)
green 0,243 0,692 (Wratten 58)
blue 0,145 0,049 (Wratten 47)
red 0,681 0,319 (Wratten 25)
white C 0.310 0.316
9-255 Reserved For future use by ISO/IEC

In 6.3.2, replace Table 6-9 with the following:
Table 6-9 — Transfer Characteristics
Value Transfer Characteristic Informative Remarks
0 Forbidden
0,45
1 V = 1,099 L – 0,099 ITU-R Recommendation BT.709-5
c
for 1 ≥ L ≥ 0,018 ITU-R Recommendation BT.1361 conventional colour
c
gamut system
V = 4,500 L
c
(functionally the same as the value 6)
for 0,018 > L ≥ 0
c
2 Unspecified Image characteristics are unknown or are determined by
the application.
3 Reserved For future use by ISO/IEC
4 Assumed display gamma 2,2 ITU-R Recommendation BT.470-6 System M (historical)
United States National Television System Committee 1953
Recommendation for transmission standards for color
television
ITU-R Recommendation BT.1700 (2007 revision)
625 PAL or 625 SECAM
United States Federal Communications Commission Title
47 Code of Federal Regulations (2004) 73.682 (a) (20)
5 Assumed display gamma 2,8 ITU-R Recommendation BT.470-6 System B, G (historical)
0,45
6 V = 1,099 L – 0,099 ITU-R Recommendation BT.1700 NTSC
c
for 1 ≥ L ≥ 0,018 ITU-R Recommendation BT.1358 525 or 625
c
V = 4,500 L ITU-R Recommendation BT.601-6 525 or 625
c
for 0,018 > L ≥ 0 Society of Motion Picture and Television Engineers 170M
c
(functionally the same as the value 1)
2 © ISO/IEC 2007 – All rights reserved
