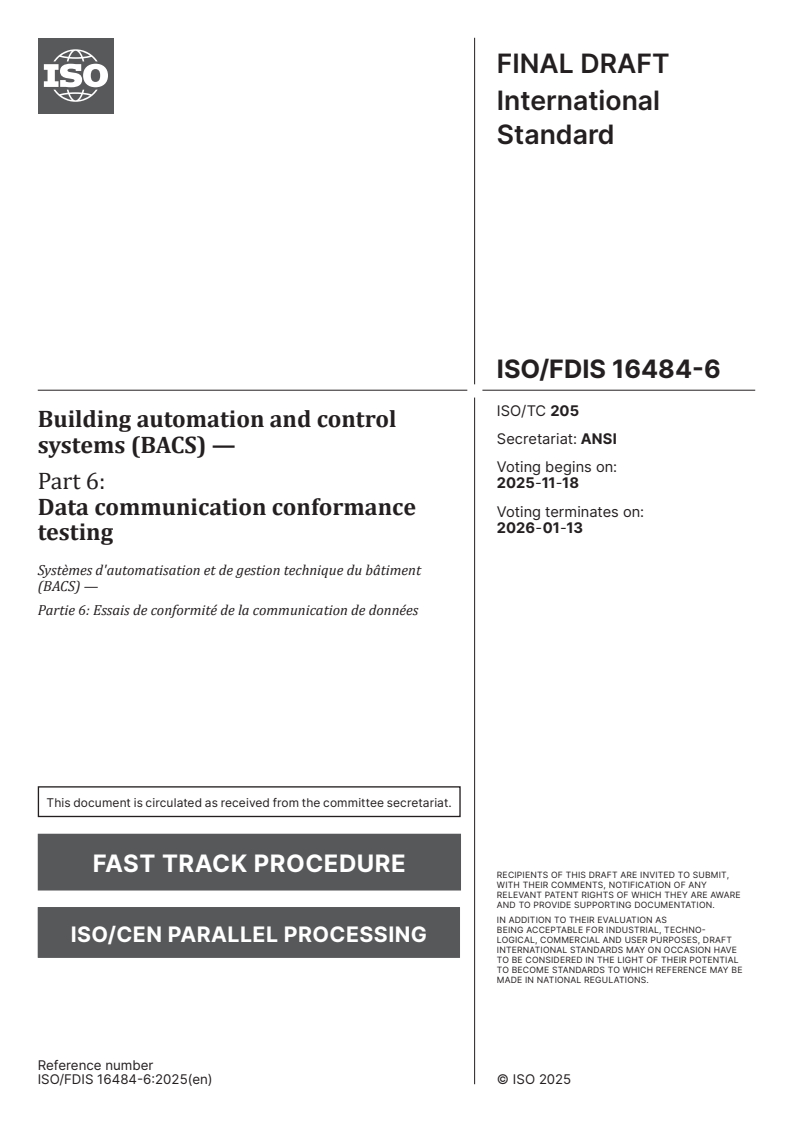

ISO/FDIS 16484-6

FINAL DRAFT
International
Standard
ISO/TC 205
Building automation and control
Secretariat: ANSI
systems (BACS) —
Voting begins on:
2025-11-18
Part 6:
Data communication conformance
Voting terminates on:
2026-01-13
testing

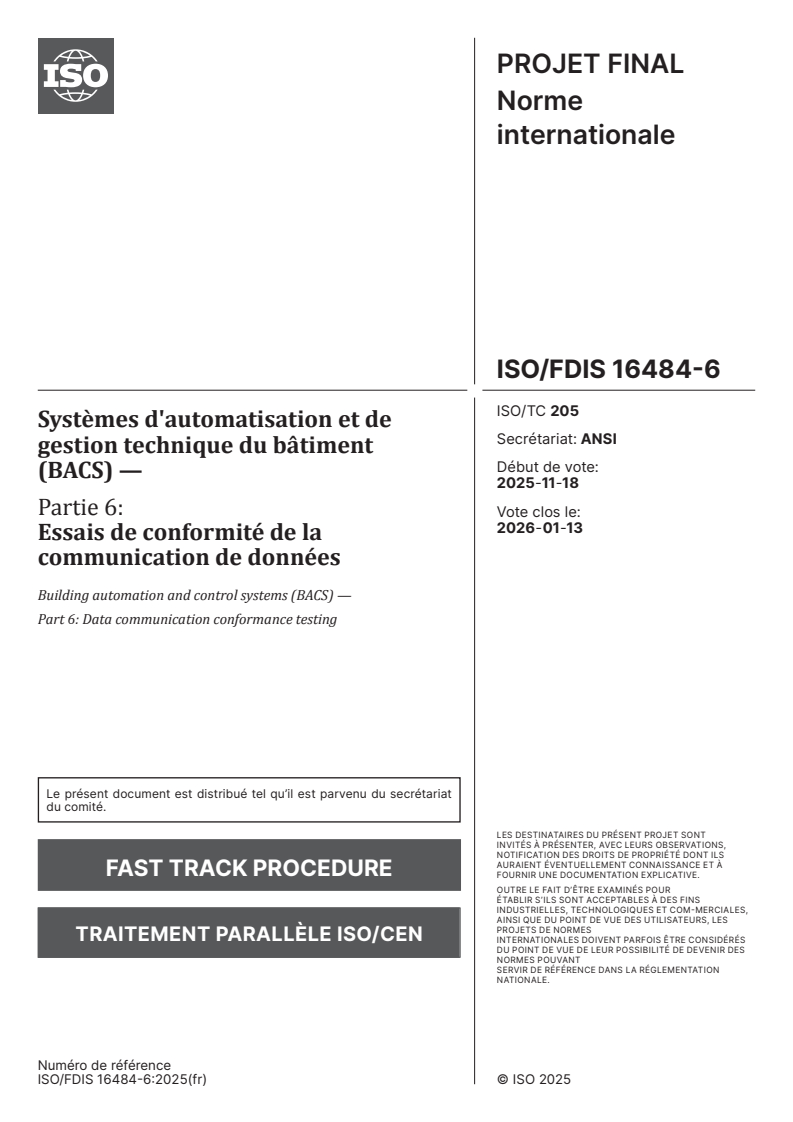

Systèmes d'automatisation et de gestion technique du bâtiment
(BACS) —
Partie 6: Essais de conformité de la communication de données
This document is circulated as received from the committee secretariat.
FAST TRACK PROCEDURE
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
FINAL DRAFT
International
Standard
ISO/TC 205
Building automation and control
Secretariat: ANSI
systems (BACS) —
Voting begins on:
Part 6:
Data communication
Voting terminates on:
conformance testing
Systèmes d'automatisation et de gestion technique du bâtiment
(BACS) —
Partie 6: Essais de conformité de la communication de données
This document is circulated as received from the committee secretariat.
FAST TRACK PROCEDURE
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.

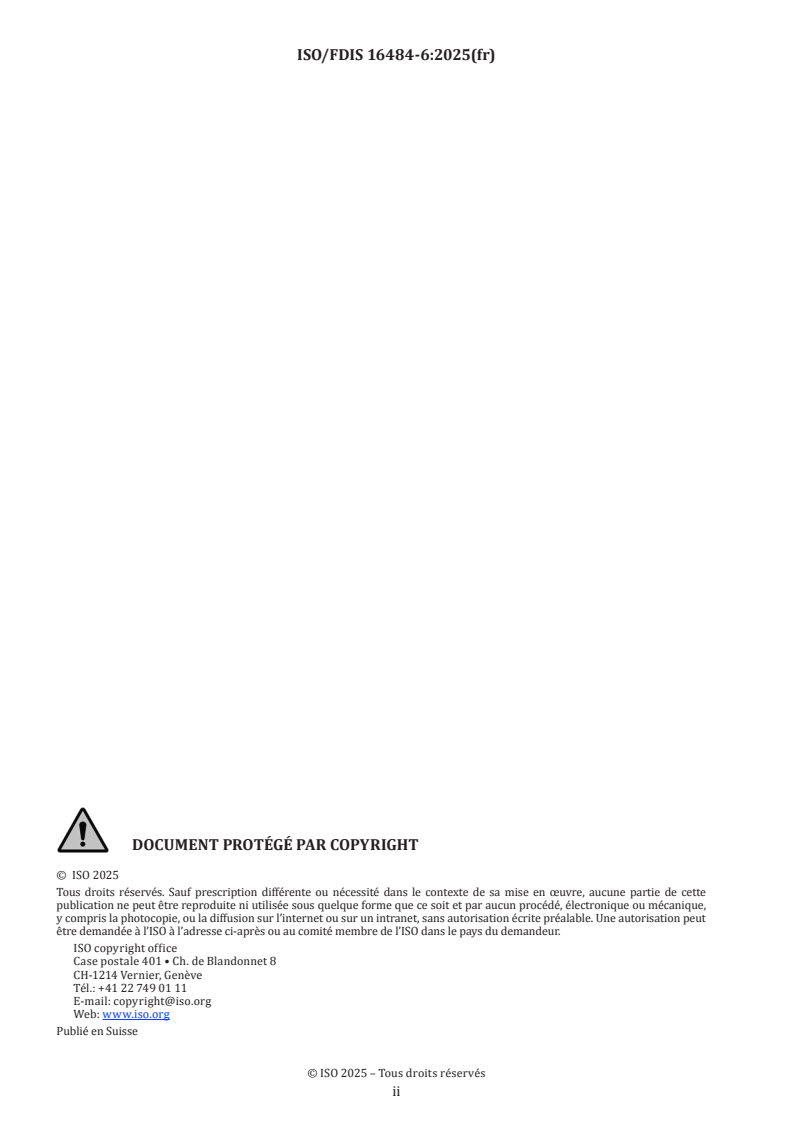

© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ii

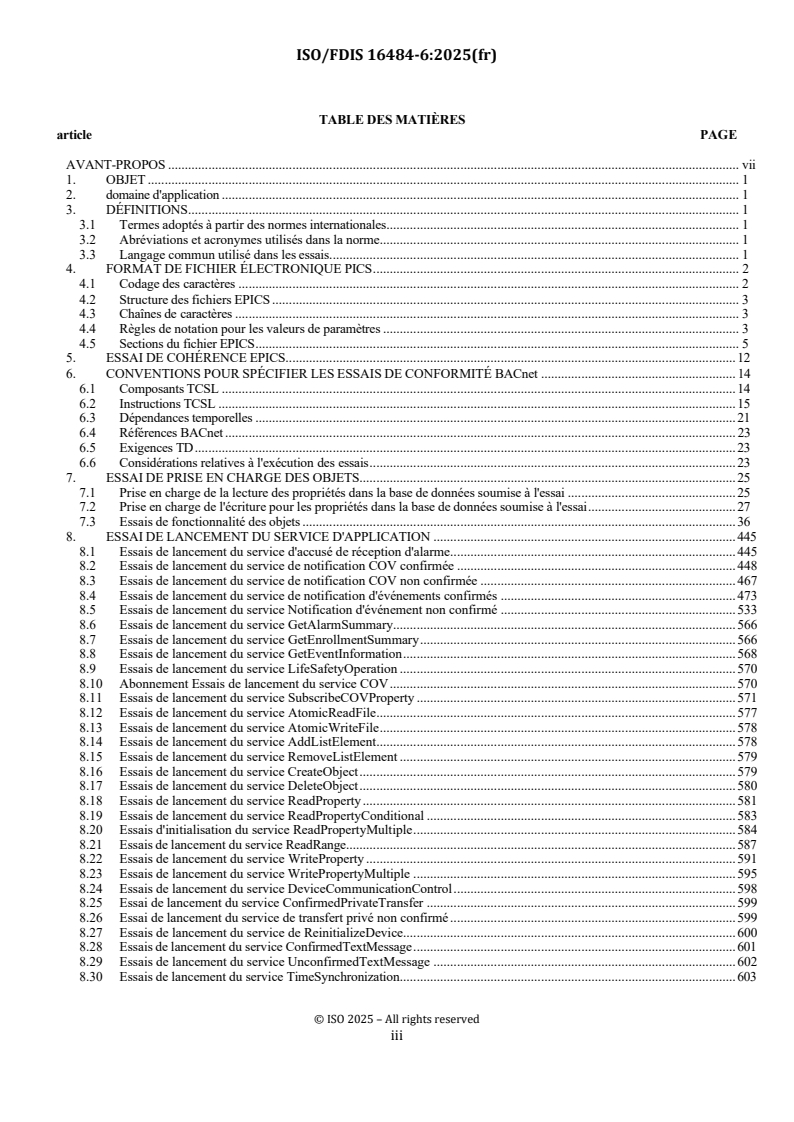

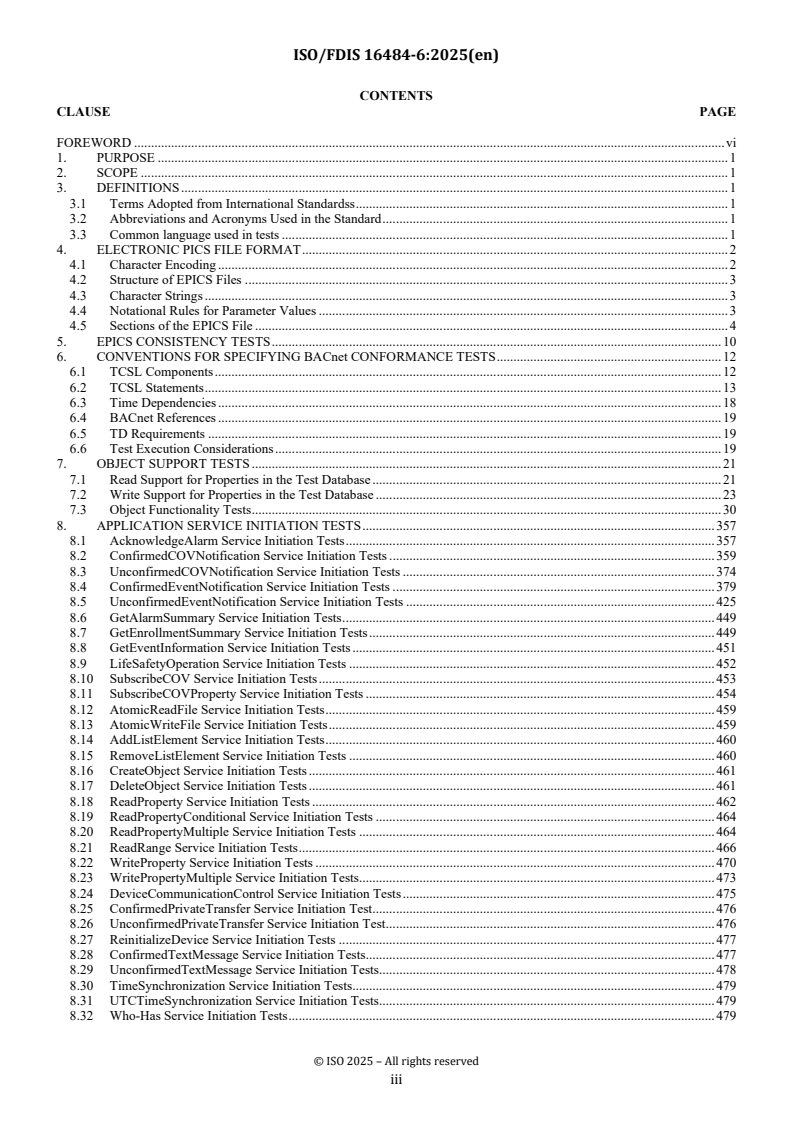

CONTENTS
CLAUSE PAGE
FOREWORD . vi
1. PURPOSE . 1
2. SCOPE . 1
3. DEFINITIONS . 1
3.1 Terms Adopted from International Standardss . 1
3.2 Abbreviations and Acronyms Used in the Standard . 1
3.3 Common language used in tests . 1
4. ELECTRONIC PICS FILE FORMAT . 2
4.1 Character Encoding . 2
4.2 Structure of EPICS Files . 3
4.3 Character Strings . 3
4.4 Notational Rules for Parameter Values . 3
4.5 Sections of the EPICS File . 4
5. EPICS CONSISTENCY TESTS . 10
6. CONVENTIONS FOR SPECIFYING BACnet CONFORMANCE TESTS . 12
6.1 TCSL Components . 12
6.2 TCSL Statements . 13
6.3 Time Dependencies . 18
6.4 BACnet References . 19
6.5 TD Requirements . 19
6.6 Test Execution Considerations . 19
7. OBJECT SUPPORT TESTS . 21
7.1 Read Support for Properties in the Test Database . 21
7.2 Write Support for Properties in the Test Database . 23
7.3 Object Functionality Tests . 30
8. APPLICATION SERVICE INITIATION TESTS . 357
8.1 AcknowledgeAlarm Service Initiation Tests . 357
8.2 ConfirmedCOVNotification Service Initiation Tests . 359
8.3 UnconfirmedCOVNotification Service Initiation Tests . 374
8.4 ConfirmedEventNotification Service Initiation Tests . 379
8.5 UnconfirmedEventNotification Service Initiation Tests . 425
8.6 GetAlarmSummary Service Initiation Tests . 449
8.7 GetEnrollmentSummary Service Initiation Tests . 449
8.8 GetEventInformation Service Initiation Tests . 451
8.9 LifeSafetyOperation Service Initiation Tests . 452
8.10 SubscribeCOV Service Initiation Tests . 453
8.11 SubscribeCOVProperty Service Initiation Tests . 454
8.12 AtomicReadFile Service Initiation Tests . 459
8.13 AtomicWriteFile Service Initiation Tests . 459
8.14 AddListElement Service Initiation Tests . 460
8.15 RemoveListElement Service Initiation Tests . 460
8.16 CreateObject Service Initiation Tests . 461
8.17 DeleteObject Service Initiation Tests . 461
8.18 ReadProperty Service Initiation Tests . 462
8.19 ReadPropertyConditional Service Initiation Tests . 464
8.20 ReadPropertyMultiple Service Initiation Tests . 464
8.21 ReadRange Service Initiation Tests . 466
8.22 WriteProperty Service Initiation Tests . 470
8.23 WritePropertyMultiple Service Initiation Tests . 473
8.24 DeviceCommunicationControl Service Initiation Tests . 475
8.25 ConfirmedPrivateTransfer Service Initiation Test . 476
8.26 UnconfirmedPrivateTransfer Service Initiation Test . 476
8.27 ReinitializeDevice Service Initiation Tests . 477
8.28 ConfirmedTextMessage Service Initiation Tests . 477
8.29 UnconfirmedTextMessage Service Initiation Tests . 478
8.30 TimeSynchronization Service Initiation Tests . 479
8.31 UTCTimeSynchronization Service Initiation Tests . 479
8.32 Who-Has Service Initiation Tests . 479
iii

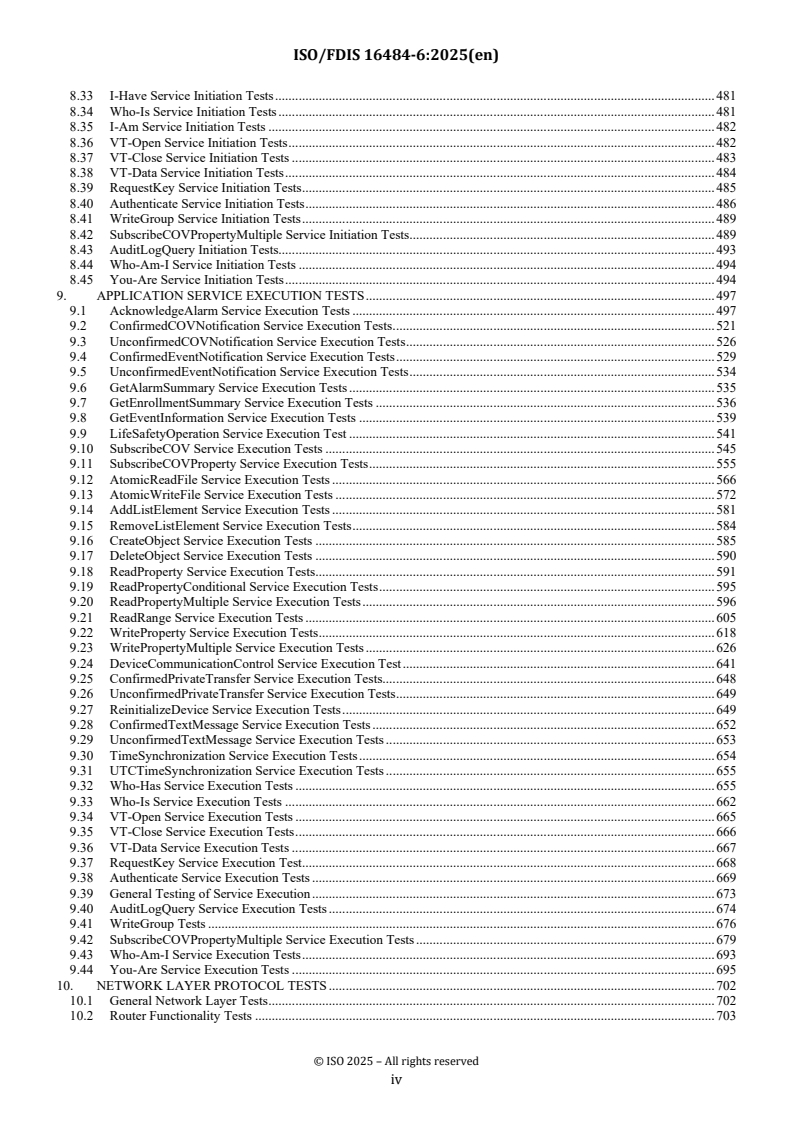

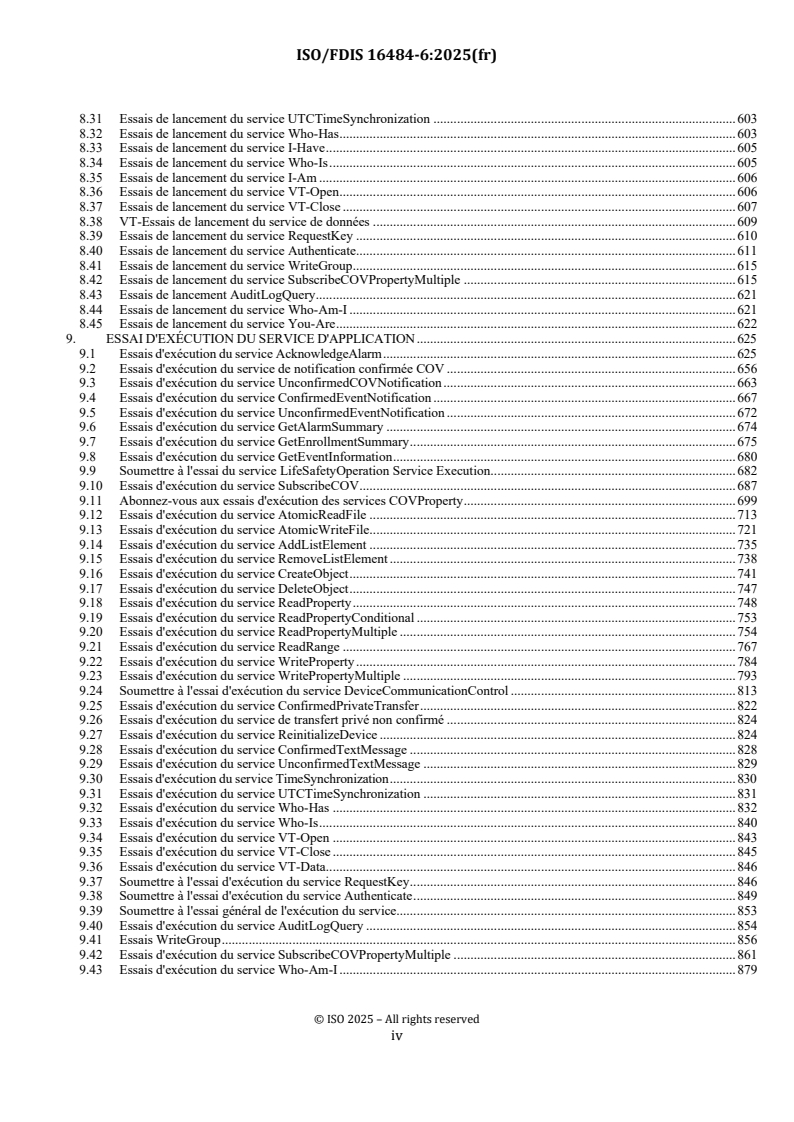

8.33 I-Have Service Initiation Tests . 481
8.34 Who-Is Service Initiation Tests . 481
8.35 I-Am Service Initiation Tests . 482
8.36 VT-Open Service Initiation Tests . 482
8.37 VT-Close Service Initiation Tests . 483
8.38 VT-Data Service Initiation Tests . 484
8.39 RequestKey Service Initiation Tests . 485
8.40 Authenticate Service Initiation Tests . 486
8.41 WriteGroup Service Initiation Tests . 489
8.42 SubscribeCOVPropertyMultiple Service Initiation Tests . 489
8.43 AuditLogQuery Initiation Tests. 493
8.44 Who-Am-I Service Initiation Tests . 494
8.45 You-Are Service Initiation Tests . 494
9. APPLICATION SERVICE EXECUTION TESTS . 497
9.1 AcknowledgeAlarm Service Execution Tests . 497
9.2 ConfirmedCOVNotification Service Execution Tests . 521
9.3 UnconfirmedCOVNotification Service Execution Tests . 526
9.4 ConfirmedEventNotification Service Execution Tests . 529
9.5 UnconfirmedEventNotification Service Execution Tests . 534
9.6 GetAlarmSummary Service Execution Tests . 535
9.7 GetEnrollmentSummary Service Execution Tests . 536
9.8 GetEventInformation Service Execution Tests . 539
9.9 LifeSafetyOperation Service Execution Test . 541
9.10 SubscribeCOV Service Execution Tests . 545
9.11 SubscribeCOVProperty Service Execution Tests . 555
9.12 AtomicReadFile Service Execution Tests . 566
9.13 AtomicWriteFile Service Execution Tests . 572
9.14 AddListElement Service Execution Tests . 581
9.15 RemoveListElement Service Execution Tests . 584
9.16 CreateObject Service Execution Tests . 585
9.17 DeleteObject Service Execution Tests . 590
9.18 ReadProperty Service Execution Tests . 591
9.19 ReadPropertyConditional Service Execution Tests . 595
9.20 ReadPropertyMultiple Service Execution Tests . 596
9.21 ReadRange Service Execution Tests . 605
9.22 WriteProperty Service Execution Tests . 618
9.23 WritePropertyMultiple Service Execution Tests . 626
9.24 DeviceCommunicationControl Service Execution Test . 641
9.25 ConfirmedPrivateTransfer Service Execution Tests . 648
9.26 UnconfirmedPrivateTransfer Service Execution Tests . 649
9.27 ReinitializeDevice Service Execution Tests . 649
9.28 ConfirmedTextMessage Service Execution Tests . 652
9.29 UnconfirmedTextMessage Service Execution Tests . 653
9.30 TimeSynchronization Service Execution Tests . 654
9.31 UTCTimeSynchronization Service Execution Tests . 655
9.32 Who-Has Service Execution Tests . 655
9.33 Who-Is Service Execution Tests . 662
9.34 VT-Open Service Execution Tests . 665
9.35 VT-Close Service Execution Tests . 666
9.36 VT-Data Service Execution Tests . 667
9.37 RequestKey Service Execution Test . 668
9.38 Authenticate Service Execution Tests . 669
9.39 General Testing of Service Execution . 673
9.40 AuditLogQuery Service Execution Tests . 674
9.41 WriteGroup Tests . 676
9.42 SubscribeCOVPropertyMultiple Service Execution Tests . 679
9.43 Who-Am-I Service Execution Tests . 693
9.44 You-Are Service Execution Tests . 695
10. NETWORK LAYER PROTOCOL TESTS . 702
10.1 General Network Layer Tests . 702
10.2 Router Functionality Tests . 703
iv
10.3 Half-Router Functionality Tests . 730
10.4 B/IP PAD Tests . 737
10.5 Initiating Network Layer Messages . 739
10.6 Non-Router Functionality Tests . 740
10.7 Route Binding Tests . 742
10.8 Virtual Routing Functionality Tests . 747
11. LOGICAL LINK LAYER PROTOCOL TESTS . 766
11.1 UI Command and Response . 766
11.2 XID Command and Response . 766
11.3 TEST Command and Response . 767
12. DATA LINK LAYER PROTOCOLS TESTS . 768
12.1 MS/TP State Machine Tests . 768
12.2 PTP State Machine Tests . 827
12.3 BACnet/IP Functionality Tests . 859
12.4 BACnet/IPv6 Functionality Tests . 890
12.5 Secure Connect Functionality Tests . 905
13. SPECIAL FUNCTIONALITY TESTS . 965
13.1 Segmentation . 965
13.2 Time Manager . 973
13.3 Character Sets . 977
13.4 Malformed PDUs . 978
13.5 Subordinate Proxy Tests . 979
13.6 Automatic Network Mapping . 981
13.7 Automatic Device Mapping . 981
13.8 Backup and Restore Procedure Tests . 982
13.9 Application State Machine Tests . 995
13.10 Workstation Scheduling Tests . 996
13.11 BACnet/SC Certificate Replacement Tests . 1013
14. Reporting Test Results . 1020
ANNEX A – EXAMPLE EPICS (INFORMATIVE) . 1021
HISTORY OF REVISIONS . 1039

v
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 205, Building environmental design, in
collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC 247,
Building Automation, Controls and Building Management, in accordance with the Agreement on technical
cooperation between ISO and CEN (Vienna Agreement) and with the American Society of Heating,
Refrigerating and Air-Conditioning Engineers, Inc. (ASHRAE).
This sixth edition cancels and replaces the fifth edition (ISO 16484-6:2024), which has been technically
revised.
The main changes are as follows:
— see the detailed list of changes on pages 1039 to 1043.
A list of all parts in the ISO 16484 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

vi
1. PURPOSE
1. PURPOSE
To define a standard method for verifying that an implementation of the BACnet protocol provides each capability claimed in
its Protocol Implementation Conformance Statement (PICS) in conformance with the BACnet standard.
2. SCOPE
This standard provides a comprehensive set of procedures for verifying the correct implementation of each capability claimed
on a BACnet PICS including:
(a) support of each claimed BACnet service, either as an initiator, executor, or both,
(b) support of each claimed BACnet object-type, including both required properties and each claimed optional property,
(c) support of the BACnet network layer protocol,
(d) support of each claimed data link option, and
(e) support of all claimed special functionality.
3. DEFINITIONS
All definitions from ANSI/ASHRAE Standard 135-2020 also apply to this addendum.
3.1 Terms Adopted from International Standardss
local network: the network to which a BACnet device is directly connected.

remote network: a network that is accessible from a BACnet device only by passing through one or more routers.

test database: a database of BACnet functionality and objects created by reading the contents of an EPICS.
3.2 Abbreviations and Acronyms Used in the Standard
BNF Backus-Naur Form syntax
EPICS electronic protocol implementation conformance statement
IUT implementation under test
TCSL testing and conformance scripting language
TD testing device
TPI text protocol information
3.3 Common language used in tests
'any valid value': Any valid value refers to any value of the correct data type and within the vendor's range specified for the
property this is applied to.
'any appropriate password': Any password that meets the Configuration Requirements specified in the test or test section.
Passwords when required by the vendor are required to be no more than 20 characters.

'reset': Some tests require to reset the IUT. Reset includes power cycle via switch, power cycle via loss of power, and
reinitializeDevice WARMSTART. As defined by the BACnet standard, "WARMSTART shall mean to reboot the device and
start over, retaining all data and programs that would normally be retained during a brief power outage."

4. ELECTRONIC PICS FILE FORMAT
4. ELECTRONIC PICS FILE FORMAT
An electronic protocol implementation conformance statement (EPICS) file contains a BACnet protocol implementation
conformance statement expressed in a standardized text form. EPICS files are machine and human readable representations of
the implementation of BACnet objects and services within a given device. EPICS files shall use the extension ".TPI" (text
protocol information) and contain normal editable text lines consisting of text character codes ending in carriage return/linefeed
pairs (X'0D', X'0A').
EPICS files are used by software testing tools to conduct and interpret the results of tests defined in this standard. An EPICS file
shall accompany any device tested according to the procedures of this standard.
4.1 Character Encoding
BACnet provides for a variety of possible character encodings. The character encodings in BACnet fall into three groups: octet
streams, double octet streams and quad octet streams. Octet streams represent characters as single octet values. In some cases,
such as Microsoft DBCS and JIS C 6226, certain octet values signal that the second octet which follows should be viewed along
with the leading octet as a single value, thus extending the range to greater than 256 possible characters. In contrast, double octet
streams view pairs of octets as representing single characters. The ISO 10646 UCS-2 encoding is an example. The first or leading
octet of the pair is the most significant part of the value. Quad octet streams, such as ISO 10646 UCS-4, treat tuples of four octets
at a time as single characters with the first or leading octet being the most significant.

To accommodate the various encodings that may be used with BACnet device descriptions, EPICS files begin with a header that
serves both to identify the file as an EPICS file, and to identify the particular encoding used. The header begins with the string
"PICS #" where # is replaced by a numeral representing the character set as shown in Table 4-1.

Table 4-1. Character Set Codes
code character set
0 ISO 10646 (UTF-8)
1 IBM™/Microsoft™ DBCS
2 JIS X 0208
3 ISO 10646 (UCS-4)
4 ISO 10646 (UCS-2)
5 ISO 8859-1
An octet stream format can be recognized by examining the first eight octets of the EPICS file. Using ANSI X3.4 encoding as
an example these eight octets will contain: X'50' X'49' X'43' X'53' X'20' X'30' X'0D' X'0A'. This represents the text "PICS 0"
followed by carriage return and linefeed.

A double octet stream format can be recognized by examining the first 16 octets of the EPICS file. Using ISO 10646 UCS-2
encoding as an example these 16 octets will contain:

X'00' X'50' X'00' X'49' X'00' X'43' X'00' X'53'
X'00' X'20' X'00' X'34' X'00' X'0D' X'00' X'0A'

This represents the text "PICS 4" followed by carriage return and linefeed.

A quad octet stream format can be recognized by examining the first 32 octets of the EPICS file. Using ISO 10646 UCS-4 as an
example these 32 octets will contain:

X'00' X'00' X'00' X'50' X'00' X'00' X'00' X'49'
X'00' X'00' X'00' X'43' X'00' X'00' X'00' X'53'
X'00' X'00' X'00' X'20' X'00' X'00' X'00' X'33'
X'00' X'00' X'00' X'0D' X'00' X'00' X'00' X'0A'

This represents the text "PICS 3" followed by carriage return and linefeed.
4. ELECTRONIC PICS FILE FORMAT
4.2 Structure of EPICS Files
EPICS files consist of text lines ending in carriage return/linefeed pairs (X'0D', X'0A') encoded as octet, double octet or quad
octet streams as defined in 4.1. In the rest of this standard, the term "character" will be used to mean one symbol encoded as one,
two, or four octets based on the character encoding used in the EPICS file header. For example, the character space may be
encoded as X'20' or X'0020' or X'00000020'. In this standard all characters will be shown in their single octet form.

The special symbol ↵ is used in this Clause to signify the presence of a carriage return/linefeed pair (X'0D0A'). Except within
character strings, the character codes tab (X'09'), space (X'20'), carriage return (X'0D') and linefeed (X'0A') shall be considered
to be white space. Any sequence of 1 or more white space characters shall be equivalent to a single white space character. Except
within a character string, a sequence of two dashes (X'2D') shall signify the beginning of a comment which shall end with the
next carriage return/linefeed pair, i.e., the end of the line upon which the -- appears. Comments shall be considered to be white
space, and may thus be inserted freely.

EPICS files shall have, as their first line following the header, the literal text:
BACnet Protocol Implementation Conformance Statement ↵
This text serves as a signature identifying the EPICS file format.

Lines that define the sections of the EPICS (see 4.5) and the particular implementation data for a given device follow the signature
line.
The EPICS file ends with a line containing the following literal text:
End of BACnet Protocol Implementation Conformance Statement ↵
4.3 Character Strings
The occurrence of a double quote (X'22'), single quote (X'27') or accent grave (X'60') shall signify character strings. For double
quotes, the end of the string shall be signified by the next occurrence of a double quote, or the end of the line. For single quote
or accent grave, the end of the string shall be signified by the next occurrence of a single quote (X'27'), or the end of the line.
Thus strings which need to include a single quote or accent grave as a literal character in the string shall use the double quote
quoting method, while strings which need to include double quote shall use the single quote or accent grave quoting method.
4.4 Notational Rules for Parameter Values
Within each section, parameters may need to be expressed in one of several forms. The following rules govern the format for
parameters:
(a) key words are case insensitive so that X'41' through X'5A' are equivalent to X'61' through X'7A';
(b) null values are shown by the string "NULL";
(c) Boolean values are shown by the strings "T" or "TRUE" if the value is true, or "F" or "FALSE" if the value is false;
(d) integer values are shown as strings of digits, possibly with a leading minus (-): 12345 or -111;
(e) real values are shown with a decimal point, which may not be the first or last character: 1.23, 0.02, 1.0 but not .02;
(f) octet strings are shown as pairs of hex digits enclosed in either single quotes (X'2D') or accent graves (X'60'), and
preceded by the letter "X": X'001122';
(g) character strings are represented as one or more characters enclosed in double, single or accent grave quotes as defined
in 4.3: 'text' or 'text' or "text";
(h) bitstrings are shown as a list, enclosed by curly brackets ({ } or X'7B' and X'7D'), of true and false values: {T,T,F} or
{TRUE, TRUE, FALSE}. When the actual value of a bit does not matter, a question mark is used: {T,T,?};
(i) enumerated values are represented as named, rather than numeric, values. Enumeration names are case insensitive so
that X'41' through X'5A' are equivalent to X'61' through X'7A'. The underscore (X'5F') and dash (X'2D') are considered
equivalent in enumeration names. Proprietary values are shown as a named text with no whitespace and ending in a
non-negative decimal numeric. Each must start with the word "proprietary": Object_Type, proprietary-object-type-653;
(j) dates are represented enclosed in parenthesis: (Monday, 24-January-1998). Any "wild card" or unspecified field is
shown by an asterisk (X'2A'): (Monday, *-January-1998). The omission of day of week implies that the day is
unspecified: (24-January-1998);
(k) times are represented as hours, minutes, seconds, hundredths in the format hh:mm:ss.xx: 2:05:44.00, 16:54:59.99. Any
"wild card" field is shown by an asterisk (X'2A'): 16:54:*.*;
(l) object identifiers are shown enclosed by parentheses, with commas separating the object type and the instance number:
(analog-input, 56). Proprietary object types replace the object type enumeration with the word "proprietary" followed
by the numeric value of the object type: (proprietary 700,1);
(m) constructed data items are represented enclosed by curly brackets ({ } or X'7B' and X'7D'), with elements separated by
commas. If an element is itself a constructed value, then that element shall be enclosed in curly brackets.
4. ELECTRONIC PICS FILE FORMAT
4.4.1 Complex Parameter Values
Some parameter values, notably property values for constructed or CHOICE types of encoded values, need to use a more complex
notation to represent their values. This notation is tied to the ASN.1 encoding for those property values and may appear obscure
out of context. These additional rules govern the presentation of those types of parameter values:

(a) values which are a CHOICE of application-tagged values are represented by the value of the chosen item encoded as
described in 4.4;
(b) values which are a CHOICE of context-tagged values are represented by the context tag number enclosed in square
brackets, followed by the representation of the value of the chosen item;
(c) list values (ASN.1 "SEQUENCE OF") are represented enclosed in parenthsis, with the elements of the list separated by
commas. If an element is itself a constructed value, then that element shall be enclosed in curly brackets;
(d) array values are represented enclosed in curly brackets, with the elements of the array separated by commas. If an
element is itself a constructed value, then that element shall be enclosed in curly brackets.
4.4.2 Specifying Limits on Parameter Values
Some properties may have restrictions on the range or resolution of their values. In order to correctly interpret the results of tests
in which the value of a property is changed using WriteProperty, WritePropertyMultiple, or AddListElement then read back
using ReadProperty or ReadPropertyMultiple, it is necessary to know what these restrictions are. The test database may contain
restriction statements that define these constraints. The permissible restrictions and the datatypes they apply to are:

(a) minimum - the minimum value for Unsigned, Integer, Real, or Double datatypes. The earliest date for the Date datatype;
(b) maximum - the maximum value for Unsigned, Integer, Real, or Double datatypes. The latest date for the Date datatype;
(c) resolution - the minimum guaranteed resolution for Real and Double datatypes. The minimum time resolution in
seconds for the Time datatype;
(d) maximum length string - the maximum length of a CharacterString or OctetString;
(e) maximum length list - the maximum number of elements guaranteed to fit in a list;
(f) maximum length array - the maximum number of elements in an array;
(g) allowed values - a comma-delimited list of supported enumerations for an Enumerated datatype. A comma- delimited
list of object types for properties that reference an extern
...
