ISO 13765-1:2004

INTERNATIONAL ISO
STANDARD 13765-1
First edition
2004-06-01
Refractory mortars —
Part 1:
Determination of consistency using the
penetrating cone method
Mortiers réfractaires —
Partie 1: Détermination de la consistance par la méthode de pénétration
d'un cône
Reference number
©
ISO 2004

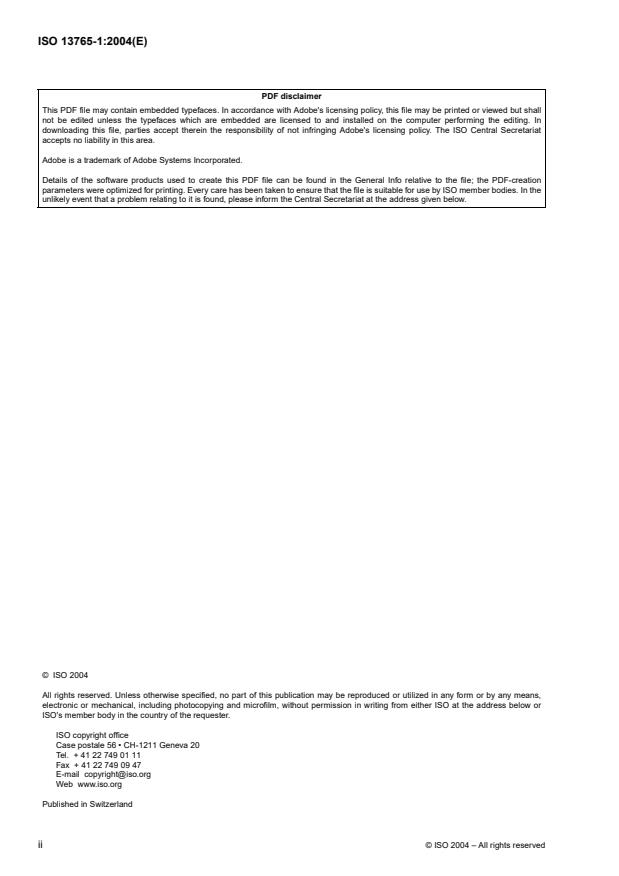

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
©
ii ISO 2004 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 13765-1 was prepared by Technical Committee ISO/TC 33, Refractories.
ISO 13765 consists of the following parts, under the general title Refractory mortars:
— Part 1: Determination of consistency using the penetrating cone method
— Part 2: Determination of consistency using the reciprocating flow table method
— Part 3: Determination of joint stability
— Part 4: Determination of flexural bonding strength
— Part 5: Determination of grain size distribution (sieve analysis)
— Part 6: Determination of moisture content of ready-mixed mortars
©
ISO 2004 – All rights reserved iii

.
iv
INTERNATIONAL STANDARD ISO 13765-1:2004(E)
Refractory mortars —
Part 1:
Determination of consistency using the penetrating cone
method
1Scope
This part of ISO 13765 describes a method for the determination of the consistency of refractory mortars using
a penetrating cone.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 8656-1, Refractory products — Sampling of raw materials and unshaped products — Part 1: Sampling
scheme
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
refractory mortar
finely ground refractory composition which, generally after the addition of water or other specified mixed liquid,
is used for laying and jointing bricks
NOTE 1 The refractory components are related to the quality of the bricks with which the composition is to be used.
NOTE 2 In some cases the mortar may be supplied in a ready-mixed state.
3.2
consistency of refractory mortars
measure of the viscosity of the material in its ready-to-use state
4 Principle
The consistency of a refractory mortar is assessed by the depth of penetration of a specified cone into the
sample.
5 Apparatus
5.1 Consistency determination device, consisting of a penetrometer, a cone and a container for the sample.
The penetrometer is shown in Figure 1. The requirements for the cone and the sample container are given in
5.1.1 and 5.1.2.
©
ISO 2004 – All rights reserved 1

Key
1 gauge plate
2 toothed lever
3button
4 drop rod
5 reflector
6 standard cone
NOTE Reflecor may or may not be used.
Figure 1 — Penetrometer
5.1.1 Cone.
The cone shall be made of brass or corrosion-resistant steel
...
