ISO 20336:2025

International
Standard
ISO 20336
Second edition
Coal and coke — Determination
2025-02
of total sulfur by Coulomb
titration method
Charbon et coke — Détermination de la teneur totale en soufre
par la méthode de titrage de Coulomb
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagent and materials . 1
6 Apparatus . 2
7 Preparation of test sample . 4
8 Procedure . 5
8.1 Preparation of test .5
8.2 Calibration .5
8.3 Calibration procedure .5
8.4 Procedure .6
8.5 Calibration check .6
9 Expression of result . 6
10 Precision . 7
10.1 Repeatability limit .7
10.2 Reproducibility limit .7
11 Test report . 7

iii

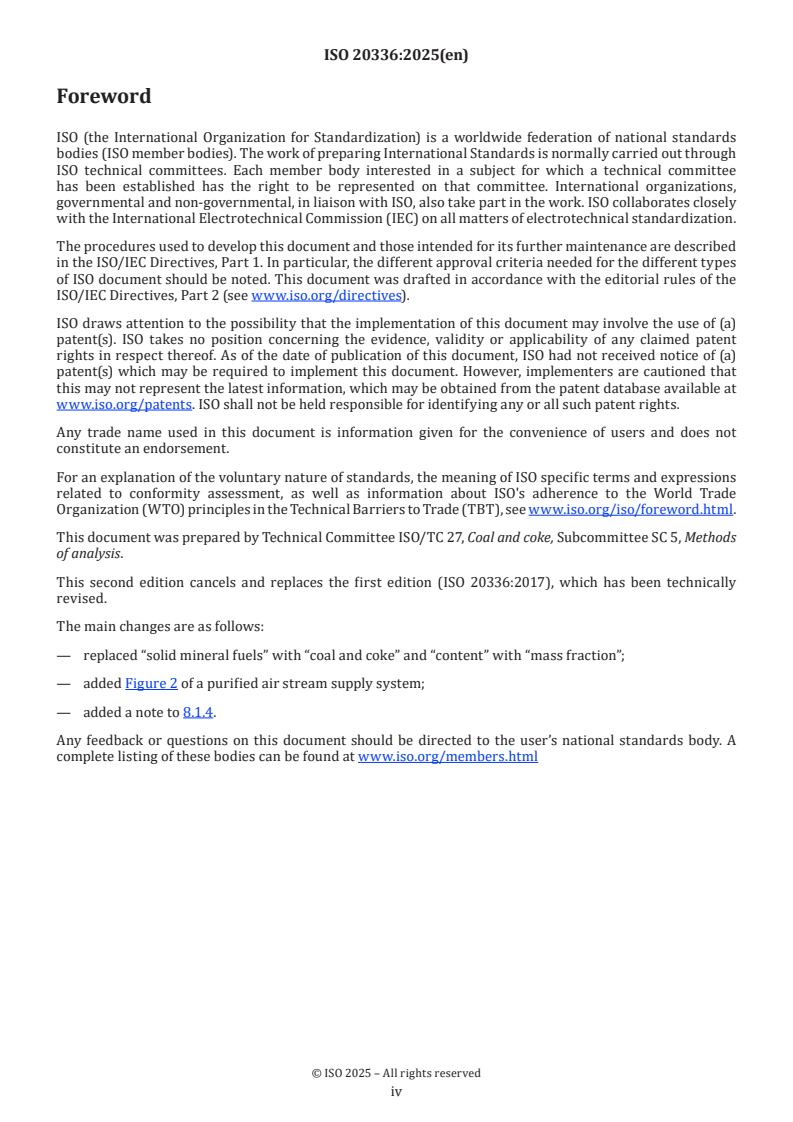

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 27, Coal and coke, Subcommittee SC 5, Methods
of analysis.
This second edition cancels and replaces the first edition (ISO 20336:2017), which has been technically
revised.
The main changes are as follows:
— replaced “solid mineral fuels” with “coal and coke” and “content” with “mass fraction”;
— added Figure 2 of a purified air stream supply system;
— added a note to 8.1.4.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html

iv
Introduction
The objective of this document is to provide an alternative method for determining the total sulfur mass
fraction in coal and coke with high-temperature combustion by Coulomb titration using automated
instruments.
v
International Standard ISO 20336:2025(en)
Coal and coke — Determination of total sulfur by Coulomb
titration method
1 Scope
This document specifies an alternative method of determining the total sulfur mass fraction of coal and
coke by high-temperature combustion by Coulomb titration.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 687, Coke — Determination of moisture in the general analysis test sample
ISO 5068-2, Brown coals and lignites — Determination of moisture content — Part 2: Indirect gravimetric
method for moisture in the analysis sample
ISO 11722, Solid mineral fuels — Hard coal — Determination of moisture in the general analysis test sample by
drying in nitrogen
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
In the presence of the catalyst, a sample of known mass is combusted at 1 150 °C in a stream of purified air.
The sulfur oxides are formed and dissolved in the electrolytic solution. The sulfur dioxides are titrated by the
iodine and bromine librated from the electrolysis of the potassium iodide and potassium bromide solution.
The quantity of the electricity consumed by electrolysis is integrated and used to calculate the mass fraction
of sulfur dioxides. The instrument is calibrated with certified reference materials. The percentage of total
sulfur in the sample is calculated according to the sulfur dioxides mass fraction and the prior calibration.
5 Reagent and materials
During the analysis, unless otherwise stated, use only reagents of recognized analytical grade and only
distilled water or water of equivalent purity.
5.1 Potassium iodide.
5.2 Potassium bromide.
5.3 Glacial acetic acid.
5.4 Self-indicating silica gel, industrial grade.
5.5 Sodium hydroxide, chemical grade.
5.6 Electrolytic solution, composed of 5 g of potassium iodide (5.1) and 5 g of potassium bromide (5.2)
dissolved in (250 to 300) ml of water, then add 10 ml of glacial acetic acid.
5.7 Glass wool.
5.8 Aluminosilicate wool.
5.9 Catalyst, tungsten trioxide.
5.10 Certified reference materials (CRMs), coal or coke.
6 Apparatus
6.1 Instrument, for de
...
