ISO 10068:2012
(Main)Mechanical vibration and shock — Mechanical impedance of the human hand-arm system at the driving point
Mechanical vibration and shock — Mechanical impedance of the human hand-arm system at the driving point
ISO 10068:2012 specifies the mechanical impedance of the human male hand-arm system at the driving point. Values of the impedance, expressed as modulus and phase, are provided for three orthogonal, translatory directions of excitation that correspond to the xh-, yh- and zh-axes of the basicentric coordinate system. The xh-, yh- and zh-components of impedance are defined as a function of frequency, from 10 Hz to 500 Hz, for specified arm positions, grip and feed forces, handle diameters, and intensities of excitation. The components of impedance in the three directions are treated as being independent. ISO 10068:2012 can be used to define typical values of the mechanical impedance of the hand-arm system at the driving point, applicable to males under the circumstances specified. ISO 10068:2012 can provisionally be applied to females. Reference values of the mechanical impedance at the driving point are provided as a function of frequency for a specified grip and feed force. These impedance values are intended for the determination of the transmissibility of resilient materials when loaded by the hand-arm system. Mathematical representations of the hand-arm system that model the mean values of apparent mass or impedance are provided. A gloved hand-arm model is described, and the frequency dependence of vibration power absorption in the hand-arm system is also provided. To help conduct further measurement of the mechanical impedance, especially for circumstances that are not specified in ISO 10068:2012, information on the measurement of mechanical impedance is provided.
Vibrations et chocs mécaniques — Impédance mécanique du système main-bras au point d'entrée
General Information
Relations
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 10068
Second edition
2012-12-01
Mechanical vibration and shock —
Mechanical impedance of the human
hand-arm system at the driving point
Vibrations et chocs mécaniques — Impédance mécanique du système
main-bras au point d’entrée
Reference number
ISO 10068:2012(E)
©
ISO 2012
---------------------- Page: 1 ----------------------
ISO 10068:2012(E)

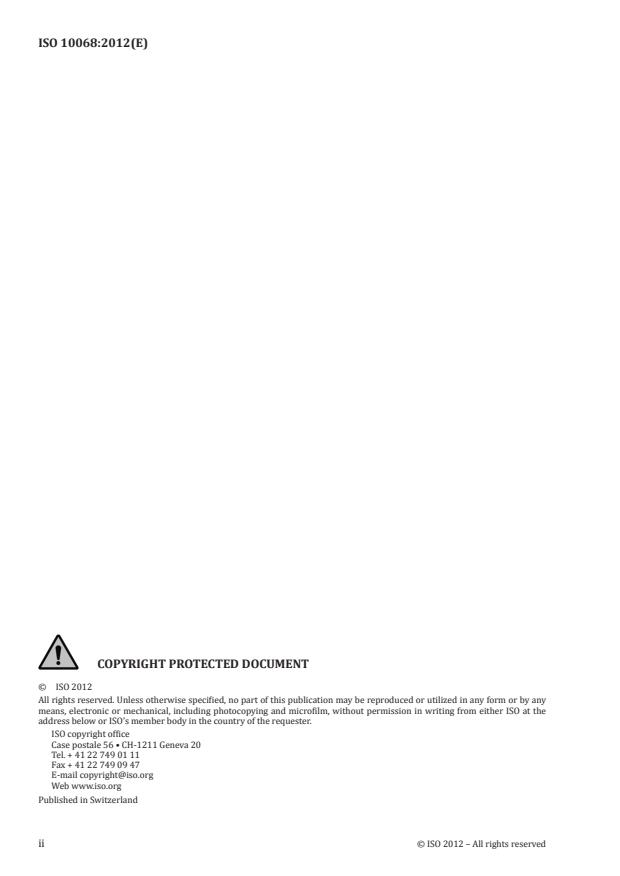

COPYRIGHT PROTECTED DOCUMENT
© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 10068:2012(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Terms and definitions . 2
3 Mechanical impedance of the hand-arm system at the driving point .2
4 Applicability of values of impedance . 8
5 Applications .10
5.1 General .10
5.2 Evaluation of the transmissibility of resilient materials when loaded by the hand-
arm system .10
5.3 Models of the hand-arm system .11
5.4 Estimation of power absorbed in the hand-arm system and its frequency dependence .11
Annex A (normative) Reference values for the z -component of the mechanical impedance of the
h
hand-arm system .12
Annex B (informative) Model 1.14
Annex C (informative) Model 2 .19
Annex D (informative) Model 3 .24
Annex E (informative) Model of the gloved hand-arm system .29
Annex F (informative) Examples of frequency dependence derived from vibration
power absorption .32
Annex G (informative) Measurement of the mechanical impedance of the hand-arm system .36
Bibliography .37
