ISO/IEC TR 13818-5:1997/Amd 2:2005

TECHNICAL ISO/IEC
REPORT TR
13818-5
First edition
1997-12-15
AMENDMENT 2
2005-04-01
Information technology — Generic
coding of moving pictures and
associated audio information —
Part 5:
Software simulation
AMENDMENT 2:
MPEG-2 IPMP reference software
Technologies de l'information — Codage générique des images
animées et des informations sonores associées —
Partie 5: Simulation de logiciel
AMENDEMENT 2: Logiciel de référence MPEG-2 IPMP

Reference number
ISO/IEC TR 13818-5:1997/Amd.2:2005(E)
©
ISO/IEC 2005
ISO/IEC TR 13818-5:1997/Amd.2:2005(E)

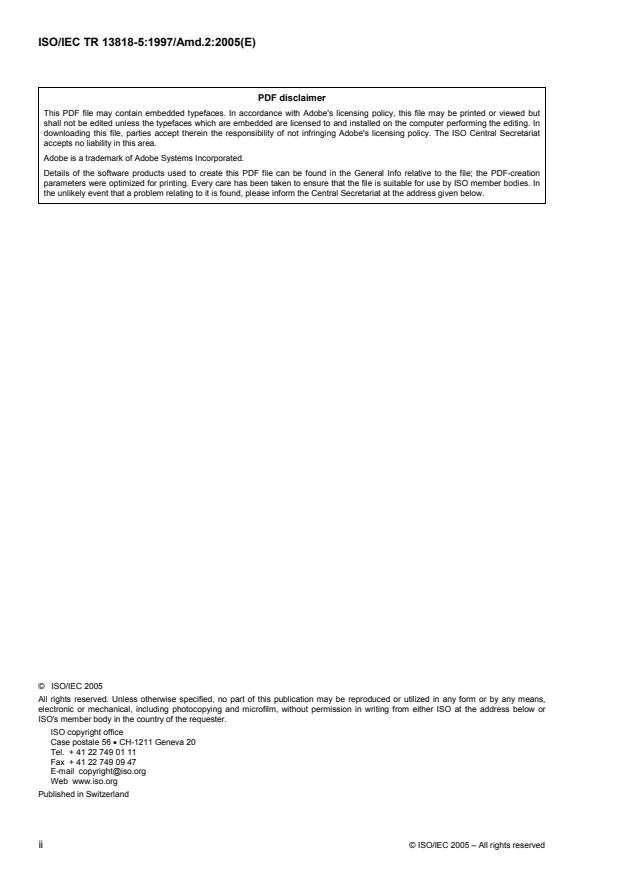

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2005 – All rights reserved

ISO/IEC TR 13818-5:1997/Amd.2:2005(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
In exceptional circumstances, the joint technical committee may propose the publication of a Technical Report
of one of the following types:
— type 1, when the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts;
— type 2, when the subject is still under technical development or where for any other reason there is the
future but not immediate possibility of an agreement on an International Standard;
— type 3, when the joint technical committee has collected data of a different kind from that which is
normally published as an International Standard (“state of the art”, for example).
Technical Reports of types 1 and 2 are subject to review within three years of publication, to decide whether
they can be transformed into International Standards. Technical Reports of type 3 do not necessarily have to
be reviewed until the data they provide are considered to be no longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to ISO/IEC TR 13818-5:1997 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
© ISO/IEC 2005 – All rights reserved iii

ISO/IEC TR 13818-5:1997/Amd.2:2005(E)
Information technology — Generic coding of moving pictures
and associated audio information —
Part 5:
Software simulation
AMENDMENT 2: MPEG-2 IPMP reference software
Replace 1.1 Scope with:
This part of ISO/IEC 13818 provides a C language software simulation of an encoder and decoder for Part 1
(systems), Part 2 (Video), Part 3 (Audio) and Part 11 (IPMP) of ISO/IEC 13818.
Insert the following additional references to 1.2:
ISO/IEC 13818-1:2000, Information technology — Generic coding of moving pictures and associated audio
information: Systems
ISO/IEC 13818-11:2003, Information technology — Generic coding of moving pictures and associated audio
information — Part 11: Intellectual Property Management and Protection (IPMP) on MPEG-2 systems.

Insert the following text as a new IPMP Modules section at the end of ISO/IEC 13818-5:
6 MPEG-2 IPMP Reference Software
6.1 Architecture
The codes of MPEG-2 IPMP reference software are developed with C++ on Windows Platform. However, the
normative parts of the reference software don’t use Windows specific libraries or functions. So it is quite easy
to transport the codes to other platforms as well.
The major IPMP functionalities are encapsulated in a demultiplex filter, which uses Microsoft’s DirectX
technology. Doing that not only gives an easy terminal implementation, which needs to deal with
demultplexing, decoding and rendering, but also brings the benefits of a clear terminal architecture. The
general architecture of the software is shown in Figure 1. Based on this given architecture, a general data flow
in a MPEG-2 IPMP terminal is described as below,
An input MPEG-2 Transport Stream (TS) is fed into a demultiplex filter, which decomposes the system stream
into individual elementary streams. Before the TS stream is demultiplexed, the IPMP information carried inside
are extracted and processed first. IPMP related actions are taken according to the processing results. For
example, if the rights condition of the TS stream is not fulfilled, further processing will be terminated and user
will be prompted of the rights failure. Furthermore, global initializations are also carried upon here, e.g.,
checking the availability the IPMP tools specified in the IPMP Tool List, retrieving the tools in case they don’t
exist in terminal, etc.
© ISO/IEC 2005 – All rights reserved 1

ToToolol M Maannaagegerr
MeMessassagege R Roouutteerr
ISO/IEC TR 13818-5:1997/Amd.2:2005(E)
The TS stream is then demultplexed into elementary streams, typically video streams and audio streams.
Before elementary streams are input to their respective decoder filters, IPMP processing is involved again, if
one stream has IPMP control point set before the decoder, i.e., the IPMP descriptors associated with this
stream explicitly request that data in the pre-decoder buffer need to be processed first by certain IPMP Tools,
which are also specified in the IPMP descriptors. For example, decryption tools are needed to transcode
encrypted data back to clear data before they can be correctly processed by decoder.
After the stream data go through the decoder filter, they are input to render filter. Before the render presents
the data, IPMP is involved again to check whether the data in the pre-render buffer need to be processed by
some IPMP tools first. For example, watermarking tools are used to extract signatures hidden in the stream
data.
At last, the render filters present the clear stream data on user’s terminals.
The internal communication between tools and terminal is in the form of IPMP messages, which are normative
parts of the IPMP standard. All MPEG-2 IPMP compatible terminal and tools should understand the content of
an IPMP message.
Message Routers act as an agent in the IPMP terminal. It takes charge of message sending and receiving
between terminal and tools. If one tool needs to send message to another tool, the message also needs to go
through terminal’s Message Router and redirected to its destination. However, the interfaces between
Message Router and IPMP Tools are not standardized. So the implementation can vary in different platforms
and applications. This software just gives a reference implementation of the Message Router and reference
model how the Message Router can facilitate the message delivering between IPMP Terminal and IPMP tools.
Users are not limited by the reference implementation and free to extend from it by their wills.
MMPPEG-EG-22 I IPPMMPP T TSS SSttreamream
MPMPEGEG--22 I IPPMMPP T Teerrmmiinnaall
IPMIPMPP T Tooooll
MMeessassagegess
IIPPMMPP T Toolool
DeDemmuuxx
MeMessassagegess
AAudioudio D Decoecoderder
VViideodeo D Decoecodederr
IIPPMMPP T Toolool
MeMessassagegess
VViideodeo R Reendernder
AudioAudio R Reenndderer
Figure AMD2-1 — MPEG-2 IPMP Terminal Architecture

2 © ISO/IEC 2005 – All rights reserved

ISO/IEC TR 13818-5:1997/Amd.2:2005(E)
Tool Manager acts as an agent to manage IPMP Tools in IPMP Terminal, e.g., loading IPMP Tool, connecting
to IPMP Tool, unloading IPMP Tool, etc. Similar as Message Router, its interfaces are not standardized also.
This software gives a reference implementation of the Tool Manager. Users of the software are not limited to
extend its functionalities by their wills.
The following section introduces the implemented core components in details.
6.2 Core Components
6.2.1 IPMP Tool List – Normative
IPMP Tool List is carried in TS stream’s PSI table. It gives the information of IPMP Tools to be used to
process the given stream.
In the reference software, the modules related with IPMP Tool List are included in the demultiplex filter.
6.2.2 PMP Tool Container – Normative
IPMP Tool Container is carried in TS streams’ PSI table. It is able to carry binary IPMP Tools. One possible
scenario to use this feature is tool vendor wants to update or upgrade a updated tool with a later version.
In the reference software, the modules related with IPMP Tool Container are included in the demultiplex filter.
6.2.3 IPMP Rights Container - Normative
IPMP Rights Container is carried in TS streams’ PSI table. It carries rights information associated with the
host stream. The rights information should be extracted by the Terminal and processed by specified IPMP
Tools.
In the reference software, the modules related with IPMP Rights Container are included in the demultiplex
filter.
6.2.4 IPMP Descriptor – Normative
IPMP Descriptor is carried in TS stream’s PMT table. Each descriptor is associated with an elementary stream,
i.e., audio or video. Each descriptor specifies an IPMP Tool to be used to process the stream. The control
point is given to tell terminal at what stage the tool to be applied.
In the reference software, the modules related with IPMP Descriptor are included in the demultiplex filter.
6.2.5 IPMP Messages – Normative
IPMP Messages are used to pass data and information between IPMP Terminal and IPMP Tools to facilitate
IPMP processing.
There are 24 messages, listed in Table 1, defined in the MPEG-2 IPMP standard. All of them have been
implemented in the reference software. They are encapsulated in an individual message library for user
convenience.
© ISO/IEC 2005 – All rights reserved 3

ISO/IEC TR 13818-5:1997/Amd.2:2005(E)
Table AMD2-1 — MPEG-2 IPMP Messages
8-bit Tag Value Symbolic Name
0x00 Forbidden
0x01 IPMP_OpaqueData_tag
0x02 IPMP_AudioWatermarkingInit_tag
0x03 IPMP_VideoWatermarkingInit _tag
0x04 IPMP_SelectiveDecryptionInit_tag
0x05 IPMP_KeyData _tag
0x06 IPMP_SendAudioWatermark_tag
0x07 IPMP_SendVideoWatermark _tag
0x08 IPMP_RightsData _tag
0x09 IPMP_Secure_Container_tag
0x0A IPMP_AddToolNotificationListener_tag
0x0B IPMP_RemoveToolNotificationListener_tag
0x0C IPMP_InitAuthentication_tag
0x0D IPMP_MutualAuthentication_tag
0x0E IPMP_UserQuery_tag
0x0F IPMP_UserQueryResponse_tag
0x10 IPMP_ToolParamCapabilitiesQuery_tag
0x11 IPMP_ToolParamCapabilitiesResponse_tag
0x12 IPMP_GetTools_tag
0x13 IPMP_GetToolsResponse_tag
0x14 IPMP_ConnectTool_tag
0x15 IPMP_DisconnectTool_tag
0x16 IPMP_NotifyToolEvent_tag
0x17 IPMP_CanProcess_tag
0x18 IPMP_TrustSecurityMetadata_tag
0x19– 0x3F Reserved for Inter-device messages
0x40 – 0xCF ISO Reserved
0xD0 – 0xFE User Defined
0xFF Forbidden
6.2.6 IPMP Stream - Normative
IPMP Stream carries multiple IPMP Messages, which are packed by IPMP_StreamDataUpdate message.
Multiple continuous IPMP_StreamDataUpdate messages can be concatenated together to form IPMP stream.
One usage of this stream is to carry time-variant key data, and multiplex together with video or audio
elementary streams. Upon receiving IPMP_StreamDataUpdate message, the Message Router will unpack the
IPMP_StreamDataUpdate message and extract the inside messages for further processing.
The following three messages are used to facilitate the message delivery between terminal and tools. Table
AMD2-2 lists what MPEG-2 IPMP has defined.
4 © ISO/IEC 2005 – All rights reserved

ISO/IEC TR 13818-5:1997/Amd.2:2005(E)
Table AMD2-2 — MPEG-2 IPMP Facilitating Messages
8-bit Tag Value Symbolic Name
0x00 Forbidden
0x01 IPMP_MessageFromBitstream_tag
0x02 IPMP_DescriptorFromBitstream_tag
0x03 IPMP_MessageFromTool_tag
0x04 – 0xCF ISO Rese
...
