ISO/IEC 10742:1994/Amd 1:1995

ISO/IEC
INTERNATIONAL
STANDARD
First edition
1994-08-0 1
AMENDMENT 1
1995-11-15
Information technology - Telecommunications
and information exchange between Systems -
Elements of management information related to
OSI Data Link Layer Standards
AMENDMENT 1: Addition of DCE conditions and
new attri butes
Technologies de Unformation - T6kcommunications et khange d ’information
entre syst&mes - &ments d ’information de gestion concernant /es normes de Ia
couche de liaison de donnkes OS/
AMENDEMENT 1: Addition de conditions DCE et de nouveaux atrtributs
Reference number
ISO/IEC 10742:1994/Amd.1:1995(E)

ISO/IEC 10742:1994/Amd. ‘l:1995(E)

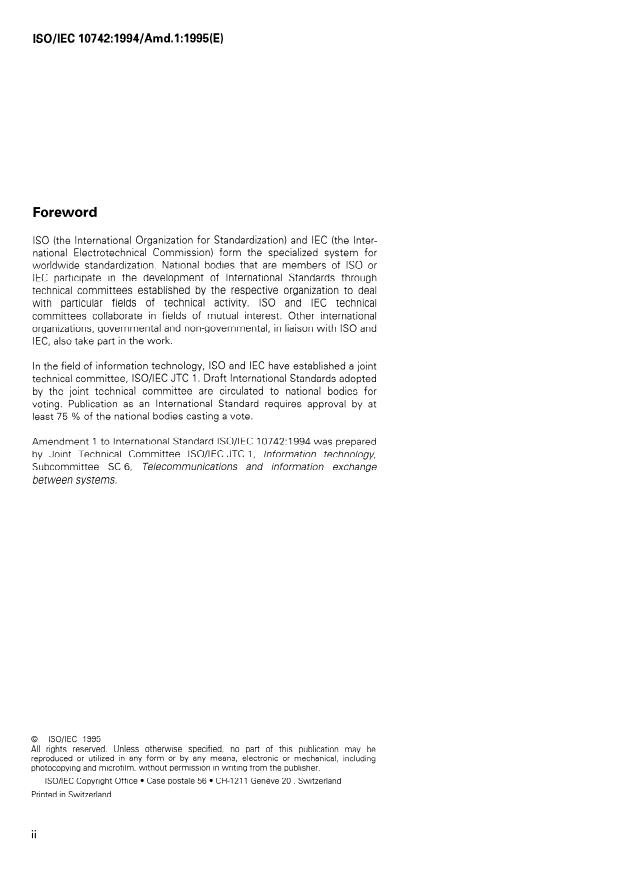

Foreword
ISO (the International Organization for Standardization) and IEC (the lnter-
national Electrotechnical Commission) form the specialized System for
worldwide standardization. National bodies that are members of ISO or
IEC participate in the development of International Standards through
technical committees established by the respective organization PO deal
with particular fields of technical activity. ISO and IEC technical
committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and
IEC, also take part in the work.
In the field of information technology, ISO and IEC have established a joint
technical committee, lSO/IEC JTC 1. Draft International Standards adopted
by the joint technical committee are circulated to national bodies for
voting. Publication as an International Standard requires approval by at
least 75 % of the national bodies casting a vote.
Amendment 1 to International Standard lSO/IEC 10742:1994 was prepared
by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 6, Telecommunications and information exchange
between Systems.
0 ISO/IEC 1995
All rights reserved. Unless otherwise specified, no patt of this publication may be
rept-oduced or utilized in any form or by any means, electronie or mechanical, including
photocopying and microfilm, without Permission in writing from the publisher.
l Case postale 56 l CH-l 211 Geneve 20 . Switzerland
ISO/1 EC Copyright Office
Printed in Switzerland
ii
olSO/I EC ISO/IEC 10742:1994/Amd.l:1995(E)
Introduction
This amendment to ISO/IEC 107421994 adds specifications answering to
requirements for DCE aspects and some new attributes for LAPBDLE
MOs and IVMOs.
These new specifications came out of the comments to DIS 10742. They
will be merged into the base document ISO/IEC 10742:1994 at the next
revision.
. . .
Ill
This page intentionally left blank

0 ISO/IEC ISO/IEC 10742:1994/Amd.l:1995(E)
Information technology - Telecommunications
and information exchange between Systems -
Elements of management information related to
OSI Data Link Layer standards
AMENDMENT 1: Addition of DCE conditions and
new attributes
5.1.3.2 DLE
Change the /ast sentence to:
“The SN-ServiceProvider attribute of the Network layer Linkage,X25PLE-DTE MOs
and X25PLE-DCE” MOs contains the local distinguished name of a ‘DLE’ MO ”.
5.6 The LAPB Data Link Entity managed Object
Add a new CONDITIONAL PACKAGE to IAPBDLE MO CLASS:
“mLP-Counters-P PRESENT IF ITU-T DCE mode Operation is supported”
Add the attributes m W and mX in the mLP-P PACKAGE:
“mW REPLACE-WITH-DEFAULT GET-REPLACE
mX REPLACE-WITH-DEFAULT GET-REPLACE”
Add the following definition of the new CONDITIONAL PACKAGE in Packages:
“mLP-Counters-P PACKAGE
BEHAVIOUR mLP-Counters-P-B BEHAVIOUR
DEFINED AS
Additional properties present when ITU-T DCE mode Operation is supported;;
ATTRIBUTES
receivedMIpResets REPLACE-WITH-DEFAULT GET-REPLACE,
timesMT1 Expired REPLACE-WITH-DEFAULT GET-REPLACE,
iFramesReassignments REPLACE-WITH-DEFAULT GET-REPLACE,
receivedMlpFramesInGuardRegion REPLACE-WITH-DEFAULT GET-REPLACE,
REGISTERED AS (DLM.poi mLP-Counters-P(6));”
Add the following definitions of the new ATTRIBUTES in Attributes:
“iFramesReassignments ATTRIBUTE
DERIVED FROM “GMI ”:nonWrapping64BitCounter;
BEHAVIOUR iFramesReassignments-B BEHAVIOUR
DEFINED AS
Counter. Number of reassignments of IFrames on another slp.;;
REGISTERED AS (DLM.aoi iFramesReassignments(46));
mW ATTRIBUTE
WITH ATTRIBUTE SYNTAX DLM.MW;
ISO/IEC 10742:1994/Amd.l:1995(E)
0 ISO/IEC
MATCHES FOR EQUALITY, ORDERING;
BEHAVIOUR mW-B BEHAVIOUR
DEFINED AS
MLP window size.;;
REGISTERED AS (DLM.aoi mW(47));
mX ATTRIBUTE
WITH ATTRIBUTE SYNTAX DLM.MX;
MATCHES FOR EQUALITY, ORDERING;
BEHAVIOUR mX-B BEHAVIOUR
DEFINED AS
Receive MLP window in the Guard Region.;;
REGISTERED AS (DLM.aoi mX(48));
receivedMlpFrameslnGuardRegion ATTRIBUTE
DERIVED FROM “GMI ’YnonWrapping64BitCounter;
BEHAVIOUR receivedMlpFrameslnGuardRegion-B BEHAVIOUR
DEFINED AS
Counter. Number of MLP Frames received in the Guard Region.;;
REGISTERED AS (DLM.aoi receivedMlpFrameslnGuardRegion(49));
receivedMlpResets ATTRIBUTE
DERIVED FROM “GMl ’YnonWrapping64BitCounter;
BEHAVIOUR receivedMIpResets-B BEHAVIOUR
DEFINED AS
Counter. Number of received MLP Resets.;;
REGISTERED AS (DLM.aoi receivedMIpResets(S0));
timesMT1 Expired ATTRIBUTE
DERIVED FROM “GMl ”:nonWrapping64BitCounter;
BEHAVIOUR timesMT1 Expired-B BEHAVIOUR
DEFINED AS
Counter. Lost multilink frames.;;
REGISTERED AS (DLM.aoi timesMT1 Expired(51));”
5.8 The LAPB Single Link Protocol Connection managed Object
Complete the condition for the CONDITIONAL PACKAGE t3-P with:
“or ITU-T DCE mode Operation is supported”
Add a new CONDITIONAL PACKAGE to sLPConnection MO CLASS:
“t4-P PRESENT IF Timer T4 of ISO/IEC 7776 or ITU-T DCE mode is supported”
Add a new CONDITIONAL PACKAGE to sLPConnection MO CLASS:
“Iink-reset-disconnect-n2-P PRESENT IF supported”
ßemove in commonSLPConnection-P PACKAGE:
“ATTRIBUTE : t4Timer” and
“ATTRIBUTE GROUP: t4Timer”
Add in Packages the following definitions:
“Iink-reset-disconnect-n2-P PACKAGE
BEHAVIOUR link-reset-disconnect-n2-P-B BEHAVIOUR
DEFINED AS
Present if supported.;;
ATTRIBUTES
abnormalLinkDisconnectsReceived GET,
abnormalLinkDisconnectsSent GET,
0 ISO/IEC ISOAEC 10742:1994/Amd.l:1995(E)
IinkResetsReceived GET,
IinkResetsSent GET,
timesN2Reached GET;
ATTRIBUTE GROUPS
“GMI ”:cou nters
abnormalLinkDisconnectsReceived
abnormalLinkDisconnectsSent
IinkRese
...
