ISO/IEC 14496-13:2004

INTERNATIONAL ISO/IEC
STANDARD 14496-13
First edition
2004-09-15
Information technology — Coding of
audio-visual objects —
Part 13:
Intellectual Property Management and
Protection (IPMP) extensions
Technologies de l'information — Codage des objets audiovisuels —
Partie 13: Extensions de gestion et protection de la propriété
intellectuelle (IPMP)
Reference number
©
ISO/IEC 2004
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2004 – All rights reserved

Contents Page
Foreword. iv
Introduction . vi
1 Scope. 1
2 Normative References. 1
3 Terms and Definitions . 2
4 Overview of IPMP Extensions (Informative). 3
4.1 IPMP Architecture. 3
5 Normative Elements. 8
5.1 Extended MPEG-4 Architecture. 8
5.2 Extension tags for the IPMP_Data_BaseClass message. 8
5.3 Mutual Authentication. 9
5.4 IPMP Tool connection and disconnection. 17
5.5 IPMP Tool notification . 23
5.6 IPMP Processing. 25
5.7 User Interaction Messages. 28
5.8 IPMP Information Delivery Functions . 31
Annex A (normative) Selective Decryption Configuration Data . 35
A.1 Introduction. 35
A.2 IPMP_SelectiveDecryptionInit. 35
A.3 An example of a selective decryption configuration data (Informative) . 38
Annex B (normative) Audio Watermarking Configuration and Notification. 41
B.1 Introduction. 41
B.2 B.2 IPMP_AudioWatermarkingInit. 41
B.3 IPMP_SendAudioWatermark. 43
Annex C (normative) Video Watermarking Configuration and Notification Data . 45
C.1 Introduction. 45
C.2 IPMP_VideoWatermarkingInit. 45
C.3 IPMP_SendVideoWatermark. 47
Annex D (normative) Tool/Content Transfer Messages Among Distributed IPMP Devices . 49
D.1 Introduction. 49
D.2 Addressing of distributed devices . 49
D.3 IPMP_DeviceMessageBase. 49
D.4 Device to Device IPMP Message . 50
D.5 Content Transfer Messages. 51
D.6 Tool Transfer Messages. 52
D.7 Device ID messages. 53
Annex E (normative) Schema for Terminal Platform . 54
Annex F (normative) Registration Procedure. 57
F.1 Registered Data. 57
F.2 Procedure for the request of Registered Data . 57
F.3 Responsibilities of the Registration Authority . 57
F.4 Contact information for the Registration Authority . 58
F.5 Responsibilities of Parties Requesting Registered Data. 58
F.6 Appeal Procedure for Denied Applications. 58
F.7 Registration Application Form. 59
Annex G (informative) Patent statements . 62

© ISO/IEC 2004 – All rights reserved iii

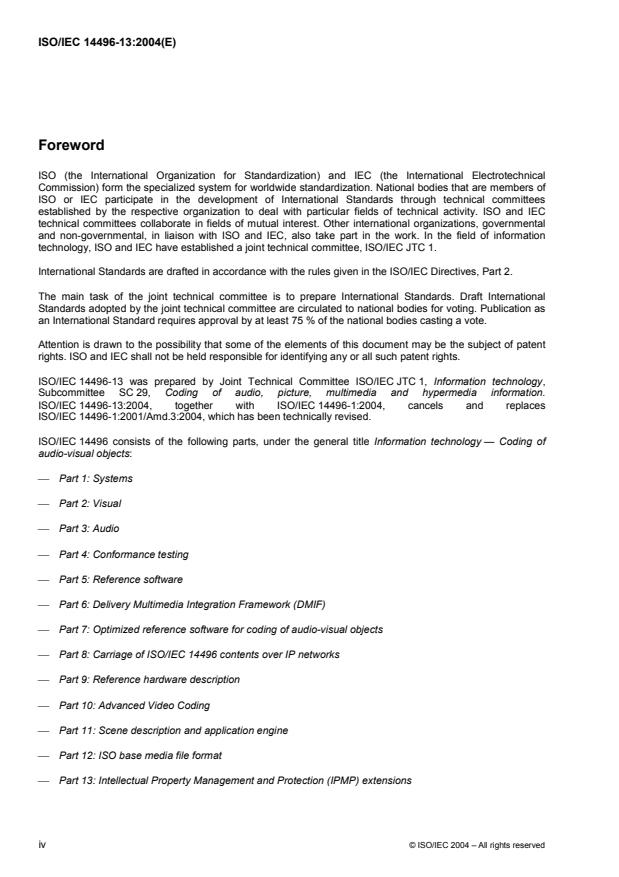

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 14496-13 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
ISO/IEC 14496-1:2001/Amd.3:2004, which has been technically revised.
ISO/IEC 14496 consists of the following parts, under the general title Information technology — Coding of
audio-visual objects:
 Part 1: Systems
 Part 2: Visual
 Part 3: Audio
 Part 4: Conformance testing
 Part 5: Reference software
 Part 6: Delivery Multimedia Integration Framework (DMIF)
 Part 7: Optimized reference software for coding of audio-visual objects
 Part 8: Carriage of ISO/IEC 14496 contents over IP networks
 Part 9: Reference hardware description
 Part 10: Advanced Video Coding
 Part 11: Scene description and application engine
 Part 12: ISO base media file format
 Part 13: Intellectual Property Management and Protection (IPMP) extensions
iv © ISO/IEC 2004 – All rights reserved

 Part 14: MP4 file format
 Part 15: Advanced Video Coding (AVC)
 Part 16: Animation Framework eXtension (AFX)
 Part 17: Streaming text format
 Part 18: Font compression and streaming
 Part 19: Synthesized texture stream

© ISO/IEC 2004 – All rights reserved v

Introduction
The International Organization for Standardization (ISO) and International Electrotechnical Commission (IEC)
draw attention to the fact that it is claimed that compliance with this document may involve the use of a patent.
The ISO and IEC take no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the ISO and IEC that he is willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world. In this respect,
the statement of the holder of this patent right is registered with the ISO and IEC. Information may be obtained
from the companies listed in Annex G.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights other than those identified in Annex G. ISO and IEC shall not be held responsible for identifying any or
all such patent rights.
vi © ISO/IEC 2004 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC 14496-13:2004(E)

Information technology — Coding of audio-visual objects —
Part 13:
Intellectual Property Management and Protection (IPMP)
extensions
1 Scope
This International Standard specifies :
• The definition, as well as Extension tags, syntax and semantics for an IPMP_Data_BaseClass to
support the following functionalities.
� Mutual Authentication for IPMP tool to IPMP tool as well as IPMP tool to Terminal
communication.
� The requesting by IPMP tools of the connection/disconnection to requested IPMP tools.
� The notification to IPMP tools of the connection/disconnection of IPMP tools.
� Common IPMP processing.
� IPMP tool to/from User interaction.
• Syntax and semantics for the carriage of IPMP tools in the bit stream.
• Syntax and semantics for IPMP information carriage to and from IPMP tools.
• Syntax and semantics for the requesting and transfer of content and IPMP Tools between Terminals
as well as extension tags, syntax and semantics to the IPMP_Data_BaseClass ISO/IEC 14496-1
used therein.
• XML syntax and semantics for the description of the environment in which and MPEG-4
Terminal/application is operating.
• A list of registration authorities required for the support of the amended specifications found herein.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 10646-1:1993, Information technology – Universal Multiple-Octet Coded Character Set (UCS) –
Part 1: Architecture and Basic Multilingual Plane
ISO/IEC 14496-1:2004, Information technology — Coding of audio-visual objects — Part 1: Systems
© ISO/IEC 2004 – All rights reserved 1

XML Schema Part 0: Primer, Part 1: Structures, and Part 2: Datatypes, W3C Recommendation, 2 May 2001,
available at , xmlschema-1-20010502>, and
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
Binary Representation
In the context of an IPMP Tool, this is the format of the implementation of that IPMP Tool, Examples: Platform
Dependent Native Code, Java ™ bytecode.
3.2
Content
This implies part or whole of an MPEG presentation.
3.3
Content Consumption
Any experience of given Content implies consumption of that content. Access, Playback, Denial of Access and
Creation of a Copy are all types of content consumption.
3.4
Content Stream
This is the incoming content, of MPEG-4 format.
3.5
IPMP Device
An implemented application that implements an MPEG-4 Terminal supporting the use of MPEG-4 IPMP.
3.6
IPMP Information
Information directed to a given IPMP Tool to enable, assist or facilitate its operation.
3.7
IPMP System
A monolithic IPMP protection scheme which requires implementation dependant access to protected streams
at required Control Points and must provide any intra-communication within an IPMP System on an
implementation basis.
3.8
IPMP Tool
IPMP tools are modules that perform (one or more) IPMP functions such as authentication, decryption,
watermarking, etc. Conceptually the use of one or more IPMP Tools is combined to perform the functionality
of an IPMP System. IPMP Tools, as opposed to IPMP Systems, are normatively identified as to which control
points they function at as well as are provided normative methods for secure communications both within as
well as outside of a given IPMP Tools comprised functional “IPMP System”. An additional difference between
IPMP Tools and IPMP Systems is that IPMP Tools, or a combination thereof, may be used for the protection
of Object streams.
In this specification the use of the term “IPMP System” is used in some cases to indicate either an actual
IPMP System or a combination of IPMP Tools whose combination provides the functionality of an IPMP
System. In cases where the distinction is important the proper respective terms are used.
2 © ISO/IEC 2004 – All rights reserved

3.9
IPMP Tool Manager
The IPMP Tool Manager is a conceptual entity within the Terminal that processes IPMP Tool List(s) and
retrieves the Tools that are specified therein.
3.10
IPMP Tool Message
A message passed between any combination of IPMP Tool or Terminal.
3.11
IPMP Tool Stream
An elementary stream carrying an implementation of an IPMP Tool.
3.12
Message Router
A conceptual entity within the Terminal that implements the Terminal-side behavior of the Terminal-Tool
interface.
3.13
Mutual Authentication
Protocols carried out to determine the proper and correct identity of a communicating entity and to secure the
communication channels between communicating entities.
3.14
Parametric Configuration
Information that carries task-specific parameter specification, in an extensible form.
3.15
Representation Format
The binary format, platform and communication mechanisms applicable to a given implementation of an IPMP
Tool or Terminal.
3.16
Scope of Protection
Scope of protection refers to the elementary stream and/or object governed by a given IPMP Tool instance.
3.17
Terminal
A Terminal is an environment that consumes possibly protected Content in compliance with the usage rules.
3.18
User
A hardware, software or human entity that is the initiator and/or target of content consumption.
4 Overview of IPMP Extensions (Informative)
4.1 IPMP Architecture
This subclause describes the general IPMP architecture. For detailed IPMP architecture linked to MPEG-4
system, please refer to 5.1.
© ISO/IEC 2004 – All rights reserved 3

Missing IPMP
Tools
Obtain Missing IPMP
Tool(s)
Content
IPMP Tool Manager
IPMP Tool List
IPMP Tool ID(s)
Content Request
Alternate IPMP Tool ID(s)
Param etric Tool Terminal
Content Delivery
Description(s)
IPMP Tool Elem entary
Stream
IPMP Inform ation
Term inal-Tool Message Interchange Interface
Term inal-IPMP Tool
Communications
IPMP Tool 1 IPMP Tool 2 . IPMP Tool n

Figure 1 — Architecture Diagram for Walkthrough Concepts
4.1.1 Messaging
To facilitate the cooperation of multiple tools in the protection and governance of content, a message based
architecture is provided. The message based architecture has three advantages over functional interface type
architectures. The first is that security can more easily be maintained as messages are less difficult to protect
in an open framework then parameters in a function parameters list. The second is that the only entities that
need be concerned with a given message's definition are those that need to generate or act upon a given
message and so additional functionality can be created and supported simply through the addition of required
messages. The third is that full interoperability with IPMP tools can be easily achieved by using the
IPMP_ToolAPI_Config [5.8.5] carried in IPMP Descriptor, or by defining a single messaging API by a third-
party forum who adopts IPMP.
Physical routing of information and context resolution are handled by a conceptual entity called the Message
Router. The Message Router abstracts all platform-dependent routing and delivery issues, from the IPMP
Tools. The interface between the Message Router and the Tools, is non-normative and is not defined in this
specification, however, the information on the messaging interface can be carried in IPMP_ToolAPI_Config
to assist interoperability.
All IPMP Tool interactions take place via the Terminal. IPMP Tools do not communicate directly with each
other within the scope of this standard.
The delivery of both bit stream sourced IPMP information as well as IPMP tool and Terminal generated
information is supported through the use of three separate messages which are passed via the Message
Router to IPMP tools. The three messages are, IPMP_MessageFromBitstream [5.8.2], which is used to
deliver IPMP stream data, IPMP_DescriptorFromBitstream [5.8.3], which is used to deliver
IPMP_Descriptors [ISO/IEC 14496-1] and IPMP_MessageFromTool [5.8.4], which is used to deliver
messages from either other IPMP tools or the Terminal itself.
In these extensions, a core set of messages are provided which cover what are identified as core functional
requirements.
4 © ISO/IEC 2004 – All rights reserved

4.1.2 Mutual Authentication
The most important aspect of a secure messaging architecture is the use of cryptographic algorithms and
protocols that allow one to perform a number of important security functions.
At any point in IPMP Information or Content processing, IPMP Tools may be required to communicate with
one another or the Terminal. The degree of security required for such communication is determined by a
number of variables including information that may be included by the content provider in the Content and
conditions of trust established between tool providers a priori and out of band. It is generally the case that a
given ES is protected by multiple tools but that certain types of tools are complex (e.g. Rights Management
tools) and others are utilities (e.g. Decryption engines). Complex tools may control the instantiation of other
tools or make decisions about content use in response to usage queries from the terminal. Mutual
authentication may occur between any pair of tools but the level of security required for this communication
will in part be dictated by data contained in the bitstream in an opaque manner. The mechanism for making
the determination of this security level is non-normative.
Mutual authentication is executed as follows:
1. The Tool that initiates mutual authentication with another tool determines the conditions of trust to be
achieved by such authentication, i.e. the initiating tool determines whether it needs integrity protected
communication or full secure, authenticated communication. This level may or may not be dictated by
IPMP Information in the Content.
2. The communicating tools then engage in a message exchange to determine which authentication protocol
will be used. In some cases, this protocol will have been determined by an a priori out of band negotiation
between the tool providers in their security audits of one another.
These extensions provide a set of messages to support the identified functionalities. The first message
IPMP_InitMutualAuthentication [5.3.1] may be used and delivered to a given IPMP tool such that the
receiving IPMP tool is informed as to its required communication partner as well as security measures that
must be in place. Following this message or the absence thereof, IPMP tools required to do so will use the
IPMP_MutualAuthentication [5.3.2] message as required to determine or create secure channels of
communication as needed based on the application.
As one purpose of Mutual Authentication is the verification of trust relationships existing between two entities
these specifications provide for the carriage of trust and security metadata. This metadata may include zero
or more certificates, credentials or integrity verification information. The creation or establishment of trust
relationships are established by out of band relationships between the different entities involved in protecting
and managing the content. However, the trust metadata that results from such relationships needs to be made
available to permit static and dynamic verification of trust.
During the Mutual Authentication process the carriage of IPMP_TrustSecurityMetadata [5.3.2.7] is
supported to provide additional security related data usable by IPMP tools to determine trust related
information.
Once Mutual Authentication is performed, the IPMP_SecureContainer [5.3.3] may be used to pass
information securely between IPMP tools and IPMP tools and Terminal.
4.1.3 IPMP tool acquisition
ISO/IEC 14496-1 defines IPMP_ToolListDescriptor which conveys the list of IPMP tools required to
access the content associated with the InitialObjectDescriptor in which it is described, and may
include a list of alternate IPMP tools or parametric descriptions of tools required to access the content. The
conceptual entity Tool Manager parses the tool list, makes sure all tools are available, and retrieves missing
tools if any.
If a given required tool is not present on a given Terminal, the IPMPToolES_DecoderConfig [5.4.3]
descriptor can be used to indicate an IPMP tool bearing stream with IPMP_ToolES_AU [5.4.4] being used to
actually carry the required tool.
© ISO/IEC 2004 – All rights reserved 5

A missing IPMP Tool can also be acquired from a neighbouring IPMP device via tool transfer messages
defined in Annex D, or it can be acquired by connecting to a remote server and providing the terminal
description as defined in Annex E.
4.1.4 IPMP Tool connection and disconnection
In the IPMP architecture, IPMP tool may be connected as the result of an IPMP_DescriptorPointer
[ISO/IEC 14496-1] being processed and in addition may be connected due to requests from already
connected IPMP tools. Note: Instantiation of the Tools to be connected is implementation dependent,
however, the information on how to instantiate the Tools can be carried in IPMP_ToolAPI_Config [5.8.5] to
assist interoperability.
Instantiation of the Tools to be connected is implementation dependent. A registration authority shall register
instantiation mechanisms for particular platforms.
IPMP tools may use the IPMP_GetTools [5.4.1] and IPMP_GetToolsResponse [5.4.2] messages to
request a list of tools available for connection that exist as well as a response to the request, respectively.
IPMP tools as well as the Terminal may also query a given IPMP tool as to its capabilities and functionality by
using the IPMP_ToolParamCapabilitiesQuery [5.4.5] message with the tool being queried using the
IPMP_ToolParamCapabilitiesResponse [5.4.6] message as a reply.
Knowing that a given tool is needed for processing, an IPMP tool may request the connection of another IPMP
tool by using the IPMP_ConnectTool [5.4.7] message and may request the disconnection of another IPMP
tool by using the IPMP_DisconnectTool [5.4.8] message. A connection may require the actual instantiation
of a tool or may be accomplished through physical/electronic means.
The IPMP_ConnectTool message contains control point and sequence information to determine the exact
location to connect the requested tool. Tools connected at the request of other tools inherit the same scope of
protection as the requesting tool. Note that some control points are not associated with any known point on
an Elementary Stream. Note also that there are issues with scoping and scenarios that are somewhat illogical,
especially as related to BIFS nodes referencing ODs.
Each instantiation of an IPMP Tool shall establish a new logical instance of the tool, for a particular scope of
protection. The Terminal assigns a context identifier for the logical instance of the tool, which maps to the
specific tool instance, and therefore to the associated scope of protection. These context identifiers shall be
unique to ensure unambiguous message addressing.
The process of instantiation involves the following steps
1. Establish a context for the Tool being instantiated
2. Establish a link between the MR and the Tool instance
3. Establish a link between the Tool instance and the MR.

Details of this process are implementation specific. The normative result is a context/address being made
available for communication and use of the instantiated tool by other tools as well as the Terminal.
The tool requesting connection shall receive an IPMP_NotifyToolEvent [5.5.3] message indicating the
instantiation of the IPMP Tool, and its associated context. The requesting tool and the instantiated tool may
perform mutual authentication thereafter.
If an IPMP tool knows of another tool with which it must communicate has already been connected, it may use
the IPMP_GetToolContext [5.4.9] message and will receive an IPMP_GetToolContextResponse
[5.4.10] message in reply if the requested IPMP tool is already connected with the message containing the
address through which the requesting tool may use to communicate with the requested tool.
6 © ISO/IEC 2004 – All rights reserved

4.1.5 Notification of IPMP Tool connection and disconnection
During the processing of IPMP protected content, a number of IPMP tools may be involved, for
communication and various security purposes, notification messages are supplied to notify IPMP tools when
other IPMP tools have either been connected, disconnected or processed watermark information. Additionally
IPMP tools may request at any time a list of all the IPMP tools currently connected at various specifiable
scopes of protection.
The IPMP_AddToolNotificationListener [5.5.1] message may be used to indicate the sending IPMP
tools intent to receive notifications of events and scopes of protection as specified in the
IPMP_AddToolNotificationListener message. To remove one's self from being notified in the future
for specified events, an IPMP tool may use the IPMP_RemoveToolNotificationListener [5.5.2] to do
so.
As events occur for which notifications have been requested, the IPMP_NotifyToolEvent [5.5.3] message
is sent to requesting IPMP tools.
4.1.6 Common IPMP processing.
Direct support has been provided for the carrying out of common IPMP processing operations. Specific
support and the related messages are as follows:
• IPMP_CanProcess [5.6.1] for the notification by an IPMP tool to the Terminal that stream processing
may begin. All tools connected and processing data within a given stream must send permission
before any tools in the stream receive stream data.
• IPMP_Opaquedata [5.6.2] for the carriage of user defined data.
• IPMP_KeyData [5.6.3] for the carriage of decryption key data as well as timing information to
determine the validity period of time varying keys.
• IPMP_RightsData [5.6.4] for the carriage of rights expressions.
• IPMP_SelectiveDecryptionInit [Annex A] for the configuration of a decryption tool.
• IPMP_AudioWatermarkingInit [Annex B] for the configuration of an audio watermarking tool.
• IPMP_SendAudioWatermark [Annex B] for the sending of information to be embedded or that was
extracted.
• IPMP_VideoWatermarkingInit [Annex C] for the configuration of a video watermarking tool.
• IPMP_SendVideoWatermark [Annex C] for the sending of information to be embedded or that was
extracted.
4.1.7 IPMP tool to/from User interaction
During IPMP processing, direct interaction between IPMP tools and a User may be required. The
IPMP_UserQuery [5.7.1] message is used to provide information to be relayed to a User and to request
information as well. The IPMP_UserQueryResponse [5.7.2] is used to relay information provided by a User
back to the originator of the User query.
© ISO/IEC 2004 – All rights reserved 7

5 Normative Elements
5.1 Extended MPEG-4 Architecture

Figure 2 — Mapping of IPMP Extensions to MPEG-4 Systems Architecture

5.2 Extension tags for the IPMP_Data_BaseClass message
Table 1 — Tags for IPMP Data extending IPMP_Data_BaseClass
8-bit Tag Value Symbolic Name
0x00 Forbidden
0x01 IPMP_OpaqueData_tag
0x02 IPMP_AudioWatermarkingInit_tag
0x03 IPMP_VideoWatermarkingInit _tag
0x04 IPMP_SelectiveDecryptionInit_tag
0x05 IPMP_KeyData _tag
0x06 IPMP_SendAudioWatermark_tag
0x07 IPMP_SendVideoWatermark _tag
8 © ISO/IEC 2004 – All rights reserved

0x08 IPMP_RightsData _tag
0x09 IPMP_Secure_Container_tag
0x0A IPMP_AddToolNotificationListener_tag
0x0B IPMP_RemoveToolNotificationListener_tag
0x0C IPMP_InitAuthentication_tag
0x0D IPMP_MutualAuthentication_tag
0x0E IPMP_UserQuery_tag
0x0F IPMP_UserQueryResponse_tag
0x10 IPMP_ParamtericDescription_tag
0x11 IPMP_ToolParamCapabilitiesQuery_tag
0x12 IPMP_ToolParamCapabilitiesResponse_tag
0x13 IPMP_GetTools_tag
0x14 IPMP_GetToolsResponse_tag
0x15 IPMP_GetToolContext_tag
0x16 IPMP_GetToolContextResponse_tag
0x17 IPMP_ConnectTool_tag
0x18 IPMP_DisconnectTool_tag
0x19 IPMP_NotifyToolEvent_tag
0x1A IPMP_CanProcess_tag
0x1B IPMP_TrustSecurityMetadata_tag
0x1C IPMP_ToolAPI_Config_tag
0x1D– 0x3F Reserved for Inter-device messages
0x40 – 0xCF ISO Reserved
0xD0 – 0xFE User Defined
5.3 Mutual Authentication
This subclause defines the syntax and semantics of messages used for mutual authentication and secure
communications.
© ISO/IEC 2004 – All rights reserved 9

5.3.1 IPMP_InitAuthentication
5.3.1.1 Syntax
class IPMP_InitAuthentication extends IPMP_Data_BaseClass:
bit(8) tag = IPMP_InitAuthentication_tag
{
bit (32) Context;
bit (8)  AuthType;
}
5.3.1.2 Semantics
Context - the 32-bit Context ID of the logical instance of the Tool with which mutual authentication is to be
performed. In the case of this message being contained in the bitstream, the only possible value for Context
is “0”, the Context ID of the Terminal, as that is the only context ID that can be known in advance. In the case
of this message being used between instantiated tools, Context shall include the actual Context ID of the
required tool.
AuthType has the following values.
Value of AuthType Semantic Meaning
0x00 Forbidden
0x01 No Authentication Required
0x02 No ID verify, Do secure channel
0x03 Do ID verify, No secure channel
0x04 Do ID verify, Do secure channel
0x05-0xFE ISO Reserved
0xFF Forbidden
5.3.1.3 Response
IPMP_Mutual_Authentication between receiving tool and indicated tool.
5.3.2 IPMP_Mutual_Authentication
5.3.2.1 Syntax
class IPMP_Mutual_Authentication extends IPMP_Data_BaseClass
: bit(8) tag=IPMP_MutualAuthentication_tag;
{
bit (1) requestNegotiation;
bit (1) successNegotiation;
bit (1) failedNegotiation;
bit (1) inclAuthenticationData
bit (1) inclAuthCodes;
const bit (3) reserved = 0b000;
if (requestNegotiation) {
bit(8)   nCandidateAlgorithm;
AlgorithmDesciptor  candidateAlgorithms[];
}
10 © ISO/IEC 2004 – All rights reserved

if (successNegotiation) {
bit(8)   nAgreedAlgorithm;
AlgorithmDescriptor agreedAlgorithms[];
}
if (inclAuthenticationData) {
ByteArray   AuthenticationData
}
if (inclAuthCodes) {
unsigned int type;
if (type == 0x01) {
unsigned int  nCertificate;
unsigned int  certType;
ByteArray  certificates[nCertificate];
} elseif (type == 0x02) {
KeyDescriptor  publicKey;
} elseif (type == 0xFE) {
ByteArray  opaque;
}
IPMP_TrustSecurityMetadata trustData;
ByteArray   authCodes;
}
}
5.3.2.2 Semantics
An instance of IPMP_Mutual_Authentication is generated by and exchanged between IPMP tools, and
IPMP Tools and a Terminal for the purpose of mutual authentication.
inclAuthCodes – if this flag is set, authentication codes for the current message are specified.
type – specifying the type of the authentication codes. Semantics of each value for this variable is defined as
follows
Value of Type Semantics
0x00: No information regarding the type is explicitly specified.
0x01 The value specified in the variable authCodes is digital signature. One or more
SPKI certificates or X.509 V3 certificates, depending on the value of certType are
specified as a method to verify the signature in the variable certificates[].
0x02 The value specified in the variable authCodes is a digital signature. At the same
time, a public key accompanied by algorithm specification is specified as a method to
verify the signature.
0x03 – 0xDF ISO Reserved
0xE0 – 0xFD User Private
0xFE Application-dependent information regarding the type is specified in the variable
opaque.
0xFF Forbidden
certType – specifies type of a certificate, value assigned by a Registration Authority.
certificates [] – specifies data of one or more certificates. The certificate type is determined by the value
of certType. This variable is specified, only when the variable type specifies 0x01.
© ISO/IEC 2004 – All rights reserved 11

publicKey – specifies a cryptographic public key accompanied by algorithm specification. This variable is
specified, if the variable type specifies 0x02.
opaque – specifies an application-dependent method to verify the authentication codes. This variable is
specified if the variable type specifies 0xFE.
trustData – if present, specifies trust and security metadata.
authCodes – specifies authentication codes to this message. Note that data to be signed excludes data
beginning at the type specification of the authCodes.
requestNegotiation – indicates that the originator is requesting negotiation about an authentication
method to be used in the subsequent communication.
candidateAlgorithms – specifies a list comprised of one or more algorithm identifiers of candidate
authentication methods. The originator of the IPMP_Mutual_Authentication message shall specify
identifiers of algorithms and/or protocols that it supports. The recipient of this message shall select ones out
of the list to fulfil the requirements, which the recipient IPMP tool supports. The recipient sends another
IPMP_Mutual_Authentication message such that agreedAlgorithm specifies the identification of the
selected algorithms and/or protocols. If the recipient cannot find algorithms and/or protocols that it supports in
the list, it returns an IPMP_Mutual_Authentication message specifying a "0b1" for
failedNegotiation. The syntax of AlgorithmDescriptor is provided in [5.3.2.6].
Note: When the field candidateAlgorithms contains algorithms of mutual authentication that support the
generation of a shared secret, additional algorithm identifiers are listed to support the negotiation of message
encryption, and message authentication. The purpose of each algorithm included will be implicit from its
functionality. i.e. if DES is a candidate algorithm it is assumed it is specified for message
encryption/decryption.
Additional Note: For algorithms that support a number of options within one algorithm such as AES supporting
a number of block lengths and key lengths, only one configuration will be specified for a given identifier or
registration authority listed ID. Additionally padding requirements and solutions will be included in the
identifiers and Ids as well.
inclAuthenticationData – when set to ‘1’, this implies that the message contains method specific data
used during mutual authentication.
AuthenticationData – specifies data to be used for mutual authentication and whose value depends on
method specific processing. This variable exists only when the flag inclAuthenticationData is set.
5.3.2.3 Response
IPMP_Mutual_Authentication, until authentication is successful.
5.3.2.4 BaseAuthenticationDescriptor
This subclause defines the syntax and semantics for a descriptor that defines a base from which
authentication descriptors may be extended.
5.3.2.4.1 Syntax
abstract aligned(8) expandable(2^28 -1) class BaseAuthenticationDescriptor : bit(8) tag=0
{
// empty. To be filled by classes extending this class.
}
12 © ISO/IEC 2004 – All rights reserved

tag table
0x00 Forbidden
0x01 IPMP_AlgorithmDescr_tag
0x02 IPMP_KeyDescr_tag
0x03-0x7F ISO Reserved
0x7F-0xFE User defined
0xFF Forbidden
5.3.2.5 Key Descriptor
This subclause defines the syntax and semantics for the carriage of a cryptographic key.
5.3.2.5.1 Syntax
class KeyDescriptor extends BaseAuthenticationDescriptor:
bit(8) tag = IPMP_KeyDescr_tag
{
ByteString keyBody;
}
5.3.2.5.2 Semantics
This class is for specifying a cryptographic algorithm and a key conforming to the algorithm.
keyBody – the body of the key.  The value shall be data that conforms to a rule for data structure of the key
defined outside of this document.
Example – If an encryption algorithm is RSA, the value of this parameter shall be the BER encoded data
which conforms to PKCS#1.
RSAPublicKey ::=
SEQUENCE {
modulus  INTEGER, -- n
publicExponent INTEGER -- e
}
5.3.2.6 AlgorithmDescriptor
This subclause defines the syntax and semantics for the carriage of a cryptographic algorithm or protocol
identification.
5.3.2.6.1 Syntax
class AlgorithmDescriptor extends BaseAuthenticationDescriptor:
bit(8) tag = IPMP_AlgorithmDescr_tag {

bit (1) isRegistered;
const bit (7) reserved = 0b0000.000;
if (isRegistered) {
bit (16) regAlgoID;
}
else {
ByteArray  specAlgoID;
}
ByteArray OpaqueData;
}
© ISO/IEC 2004 – All rights reserved 13

5.3.2.6.2 Semantics
This class is for specifying an identifier of an arbitrary algorithm.
isRegistered – a 0b1 indicates the ID included is a normative identifier of the algorithm. A 0b0 indicates
the algorithm is identified by an ID assigned by a registration authority
regAuthID – a identifier of the algorithm as assigned by a registration authority.
specAlgoID – a normative identifier of the algorithm.
SpecAlgoID –
SpecAlgoID
Content ConfidentialityIntegrity
DH-G-H-x-y Diffie-Hellman Key Agreement Scheme No Yes
on a base group G. The parameter
setting of the both parties is specified in
certificates.
EDH-G-H-x-y Ephemeral Diffie-Hellman Key No Yes
Agreement Scheme on a base group G.
Both parties are assumed to agree on
the base group G, and each party is
supposed to generate ephemeral
parameters (a public key pair) for the
purpose of authentication and the
parameters are submitted being signed
by the party. A certificate of the party is
used for the opponent party to verify the
signature.
DH-G-E-H-x-y-z DH-G-H-x-y being used in combination Yes Yes
with a symmetric key cipher algorithm E.
EDH-G-E-H-x-y-z EDH-G-H-x-y being used in combination Yes Yes
with a symmetric key cipher algorithm E.
RSA-OAEP-H-x Needham-Schroeder Scheme deploying No Yes
RSA-based OAEP as the public key
encryption.
RSA-OAEP-E-H-x-z RSA-OAEP-H-x being used in Yes Yes
combination with a symmetric key cipher
algorithm E.
SCHNRR- G-x-y Schnorr Identification Scheme on a base No No
group G.
14 © ISO/IEC 2004 – All rights reserved

In the above table, the significance of the variables is as follows:
Variable Definition
G Specifies the type of a base group (e.g. a sub-groups of an elliptic curve)
E Specifies a symmetric key cipher algorithm to realize confidentiality of messages.
H Specifies a hash function to realize message integrity. Hash function to be used being
SHA-1.
X Specifies the size of a base field (e.g. the length in bits of the base field of an elliptic
curve).
Y Specifies a size of the order of the base group (e.g. the length in bits of the order of a
base group).
Z Specifies the length in bits of a symmetric key cipher to be used.

Remark. The actual cryptograph
...
