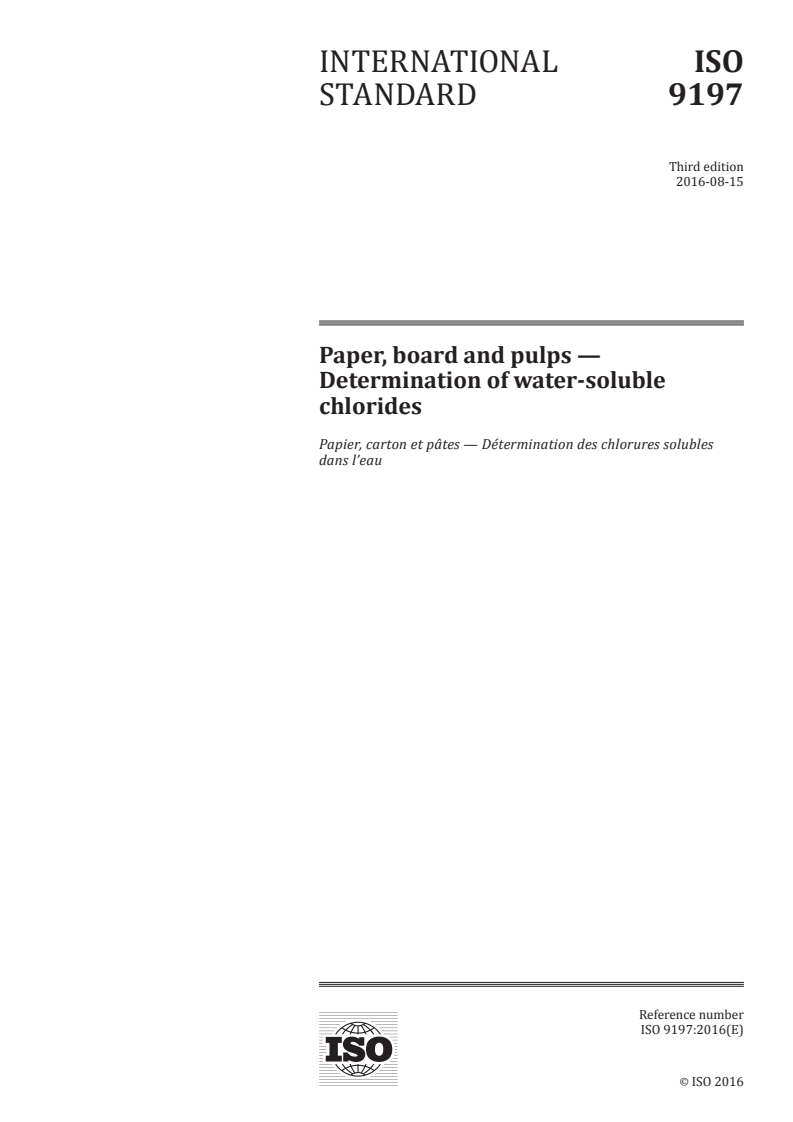

ISO 9197:2016

INTERNATIONAL ISO
STANDARD 9197
Third edition
2016-08-15
Paper, board and pulps —
Determination of water-soluble
chlorides
Papier, carton et pâtes — Détermination des chlorures solubles
dans l’eau
Reference number
ISO 9197:2016(E)
©
ISO 2016

---------------------- Page: 1 ----------------------
ISO 9197:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 9197:2016(E)

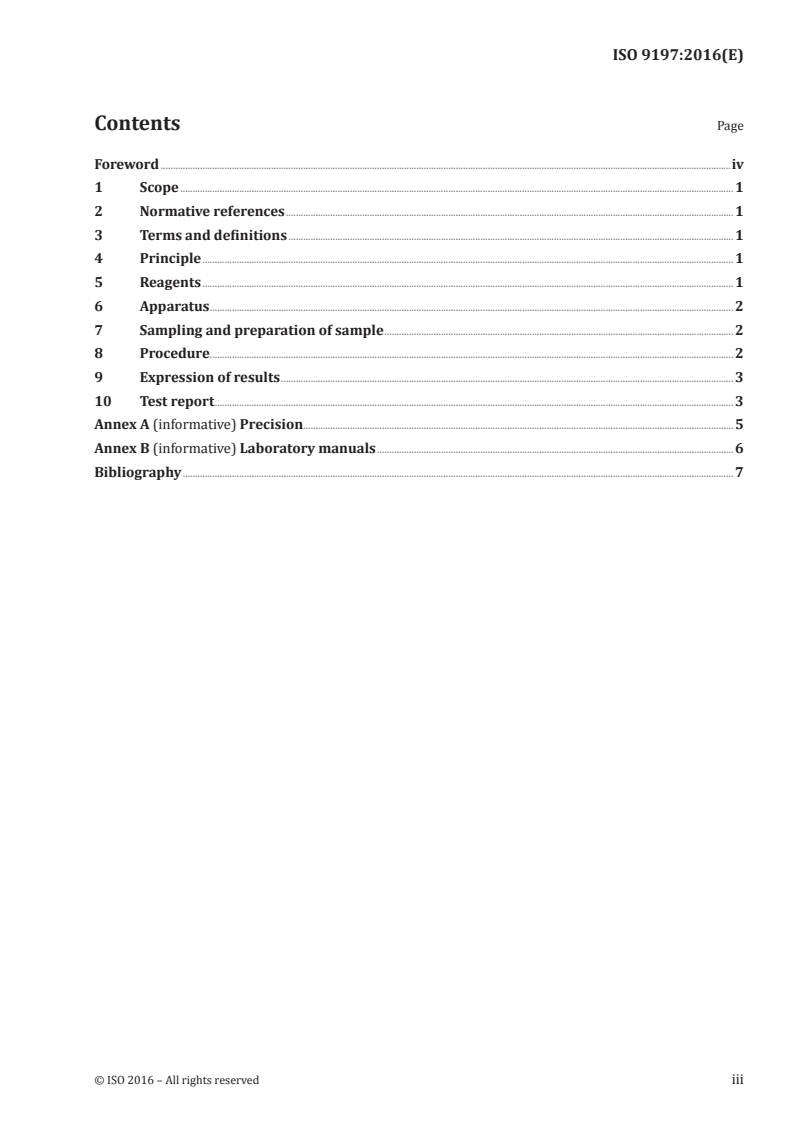

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Sampling and preparation of sample . 2
8 Procedure. 2
9 Expression of results . 3
10 Test report . 3
Annex A (informative) Precision . 5
Annex B (informative) Laboratory manuals . 6
Bibliography . 7
© ISO 2016 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 9197:2016(E)

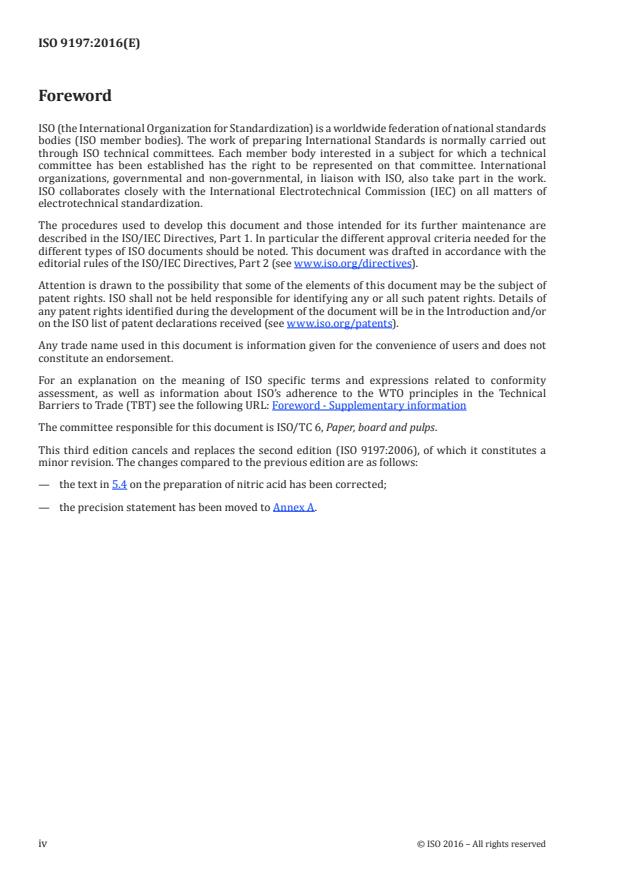

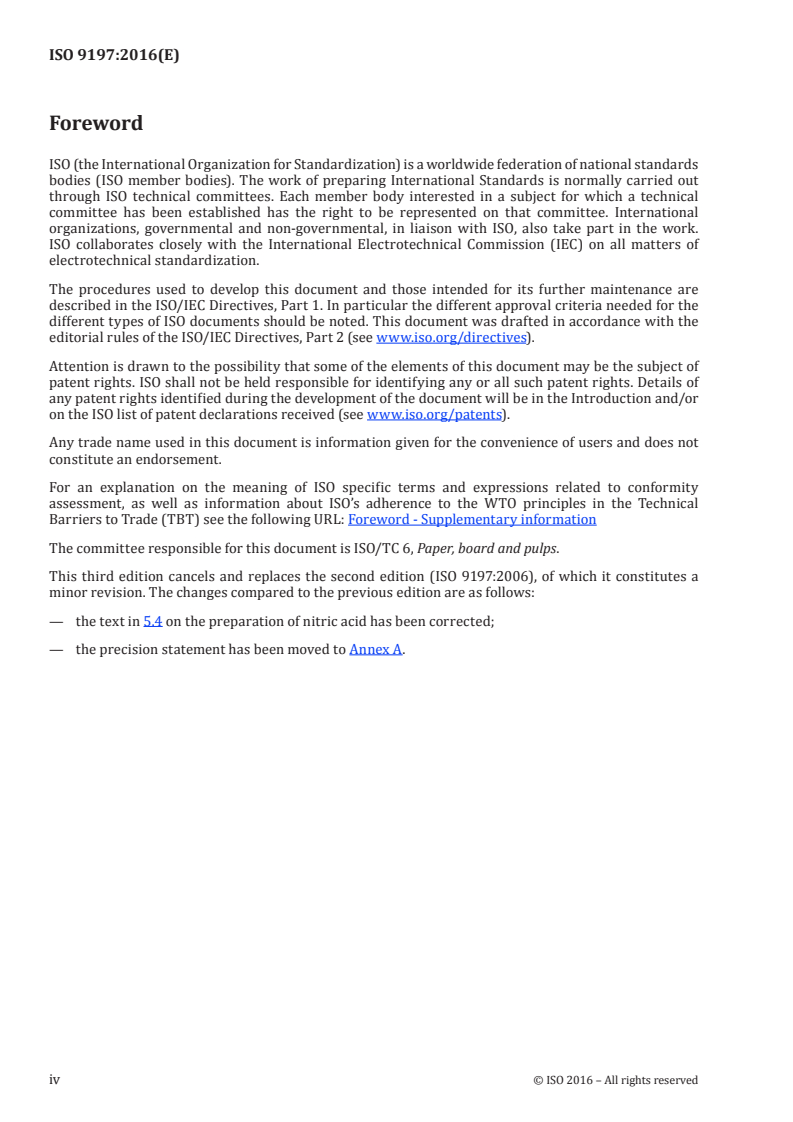

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 6, Paper, board and pulps.
This third edition cancels and replaces the second edition (ISO 9197:2006), of which it constitutes a
minor revision. The changes compared to the previous edition are as follows:
— the text in 5.4 on the preparation of nitric acid has been corrected;
— the precision statement has been moved to Annex A.
iv © ISO 2016 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 9197:2016(E)
Paper, board and pulps — Determination of water-soluble
chlorides
1 Scope
This International Standard specifies a method for the determination of water-soluble chlorides in
all types of paper, board and pulp. The lower limit of the determination is 20 mg of chloride ion per
kilogram of dry sample.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 186, Paper and board — Sampling to determine average quality
ISO 287, Paper and board — Determination of moisture content of a lot — Oven-drying method
ISO 638, Paper, board and pulps — Determination of dry matter content — Oven-drying method
ISO 7213, Pulps — Sampling for testing
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
water soluble chlorides
amount of chloride ion that is extracted with cold water and determined under the conditions specified
4 Principle
Pieces of the sample under test are extracted with water at room temperature in a disintegrator. The
resulting suspension is filtered and an aliquot is used for determination of the chloride ion content by
ion chromatography.
5 Reagents
During the analysis, use only reagents of recognized analytical quality and only water as specified in 5.1.
5.1 Distilled or demineralized water, conductivity less than 0,2 mS/m.
5.2 Chloride stock solution, c(Cl) = 1 000 mg/l. Dry a portion of potassium chloride, (KCI), at 140 °C.
Transfer 210,2 mg thereof to a 100 ml volumetric flask, dissolve the KCI and dilute to the mark with
water (5.1). Commercially available standard solutions may be used.
5.3 Chloride matching solution. Dilute the chloride stock solution (5.2) to a mass fraction of
chloride ion of, for example, c(Cl) = 10 mg/l. Do not use chloride matching solutions that are more than
one week old.
© ISO 2016 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 9197:2016(E)

5.4 Nitric acid, c(HNO ) = 1,3 mol/l. Add with caution 82 ml of concentrated nitric acid,
3
c(HNO ) = 15,8 mol/l (about 70 % HNO ), to 500 ml of water (5.1) and dilute to 1 l.
3 3
...
