Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 24409-3
First edition
2014-01-15
Ships and marine technology —
Design, location and use of shipboard
safety signs, safety-related signs,
safety notices and safety markings —
Part 3:
Code of practice
Navires et technologie maritime — Conception, emplacement et
utilisation des signaux de sécurité, signaux relatifs à la sécurité, notes
de sécurité et marquages de sécurité à bord des navires —
Partie 3: Code de bonne pratique
Reference number
©
ISO 2014
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Escape route signing system . 3
4.1 General . 3
4.2 Planning . 3
4.3 Familiarization . 4
4.4 Marking of means of escape . 4
4.5 Marking of assembly stations and embarkation stations . 5
4.6 Location of escape route signs . 5
4.7 Use of directional arrows . 6
4.8 Mounting height . 6
4.9 Mimic signs . 6
4.10 Marking of means of escape for mobility impaired people . 7
5 Fire-fighting equipment and life-saving appliances signing system .7
6 Fire control plan signing system . 7
7 Illumination and photometric properties of phosphorescent signs .8
8 Sign size and viewing distance . 8
9 Installation of signs . 8
10 Documentation of safety signing system . 8
11 Inspection and maintenance of signs . 9
Annex A (informative) Illustrative examples of signing applications .10
Bibliography .19

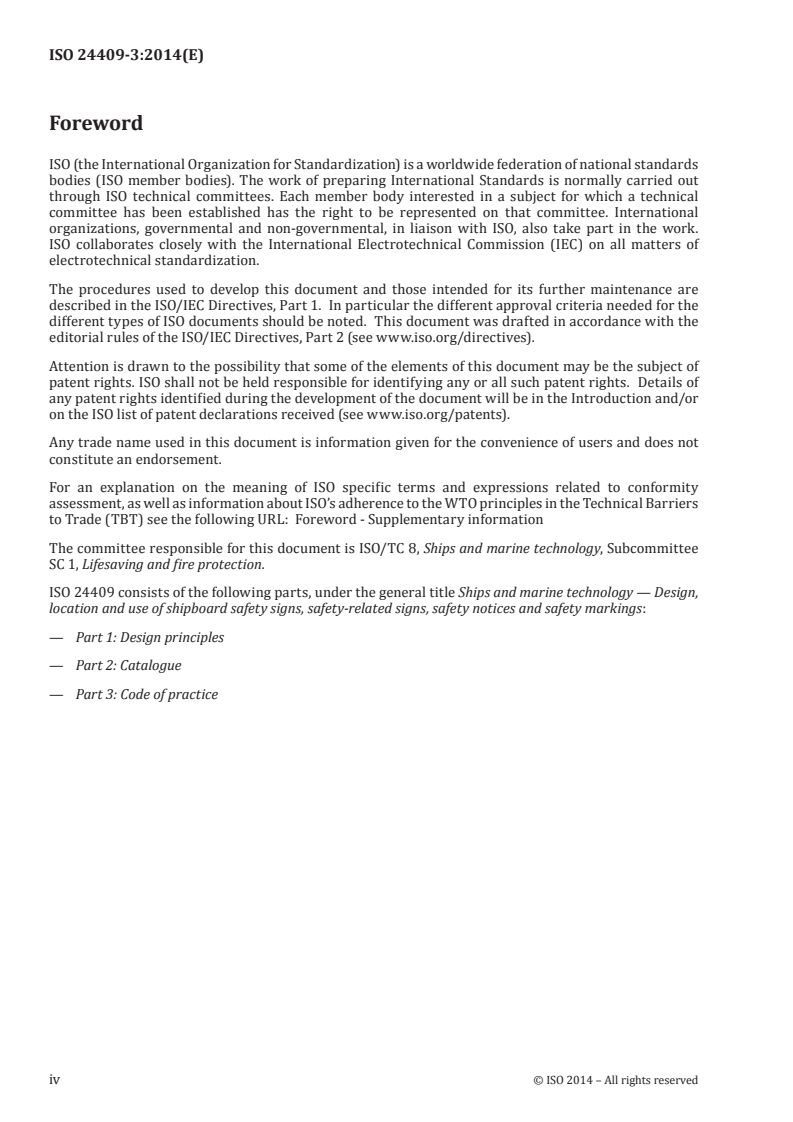

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee
SC 1, Lifesaving and fire protection.
ISO 24409 consists of the following parts, under the general title Ships and marine technology — Design,
location and use of shipboard safety signs, safety-related signs, safety notices and safety markings:
— Part 1: Design principles
— Part 2: Catalogue
— Part 3: Code of practice
iv © ISO 2014 – All rights reserved

Introduction
The growth of international travel by ship and the variety of work on offshore installations have created
a need to provide people travelling and working on-board ships and other marine installations with
signs and associated systems that communicate consistent and effective safety information. This part of
ISO 24409 specifies a system of signs on ships and other marine installations that is generally consistent
with standardized systems of signs with which many will have gained familiarity in other applications.
As such, this part of ISO 24409 clarifies and supplements existing requirements set out in SOLAS
regulations II-2/13.3.2.5.1, II-2/13.1.3, II-2/13.7.1.1, II-2/13.7.2, III/8, III/9, III/11.5, III/20.10, and
ISO 17631.
This part of ISO 24409 is intended to improve the safety of passengers and crew on board ships and
marine installations by providing guidance on the signing of escape routes, including the use of arrows
to provide directional information, and in so doing to assist in orientation and in the description of
the planned escape process to passengers and crew. In addition, it provides guidance in signing of the
location and instructions for the use of fire-fighting equipment and life-saving equipment.
This part of ISO 24409 does not specify if and when escape route signs will be required. However, it
has been assumed in the drafting of this part of ISO 24409 that its execution will be entrusted to a
competent person familiar with the relevant regulatory requirements. This part of ISO 24409 is
also intended for use by regulatory authorities to assist in judging compliance with appropriate IMO
regulations and resolutions. It should be noted that the signing of escape routes comprises only a part of
the management of means of escape. Many other considerations have to be taken into account, including
the requirements of people with special needs, in order to establish a safe evacuation procedure.
This part of ISO 24409 reflects best practice; the illustrations reflect a system designed to provide the
optimum amount of information to clearly identify the location and direction of the means of escape from
any location within a ship, or offshore installation, to the assembly stations and appropriate survival
craft embarkation stations. However, as shown in examples, by the use of supplementary text, escape
route signing can also have a role to play in the management of a ship in non-emergency situations.
INTERNATIONAL STANDARD ISO 24409-3:2014(E)
Ships and marine technology — Design, location and use of
shipboard safety signs, safety-related signs, safety notices
and safety markings —
Part 3:
Code of practice
1 Scope
This part of ISO 24409 is intended to provide for the consistent use of shipboard safety and fire control
plan signs, guidance on their location and size, and for the use of appropriate graphical symbols and
supplementary text to furnish additional directional information. This part of ISO 24409 does not apply
to low-location lighting systems (or components of such systems) which are covered in ISO 15370.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 15370, Ships and marine technology — Low-location lighting (LLL) on passenger ships — Arrangement
ISO 17398, Safety colours and safety signs — Classification, performance and durability of safety signs
ISO 17631, Ships and marine technology — Shipboard plans for fire protection, life-saving appliances and
means of escape
ISO 24409-1, Ships and marine technology — Design, location and use of shipboard safety signs, safety-
related signs, safety notices and safety markings — Part 1: Design principles
ISO 24409-2, Ships and marine technology — Design, location and use of shipboard safety signs, safety-
related signs, safety notices and safety markings — Part 2: Catalogue
International Convention for the Safety of Life at Sea, 1974 (SOLAS 1974), as amended
International Maritime Organization, International Code for Fire Safety Systems (FSS Code)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 24409-1 and ISO 24409-2 and
the following apply.
3.1
assembly station
muster station
designated internal or external space where persons are gathered in the event of an emergency
3.2
assembly station symbol
sign MES001 given in ISO 24409-2 used to identify assembly stations and which may be combined
with supplementary arrow to give directional information and/or supplementary text to increase
comprehension, as appropriate
3.3
assembly station plan
evacuation and abandon ship plan
plan, approved by the competent authority, which shows the location and the arrangement of passenger
and crew assembly stations, the passenger cabins assigned to them, if any, the escape routes to get from
them to the assigned survival craft, as applicable to the ship or offshore installation
Note 1 to entry: The above information may be included in the means of escape plan.
3.4
competent authority
administration whose flag the ship is entitled to fly, or an organization authorized by an administration
to perform functions on its behalf
3.5
embarkation station
designated area where survival craft are boarded
3.6
escape route
route forming part of the means of escape from any place on-board a ship to a designated assembly
station or embarkation station
3.7
escape route sign
exit, assembly station, or embarkation station sign with appropriate directional arrow used to guide
people along escape routes to a designated assembly station or embarkation station
3.8
escape route signing system
comprehensive layout of escape route signs
3.9
exit
doorway or other suitable opening lying on the perimeter of a space and part of the means of escape
from such space
3.10
exit sign
signs MES002 and MES003 given in ISO 24409-2 used to id
...
